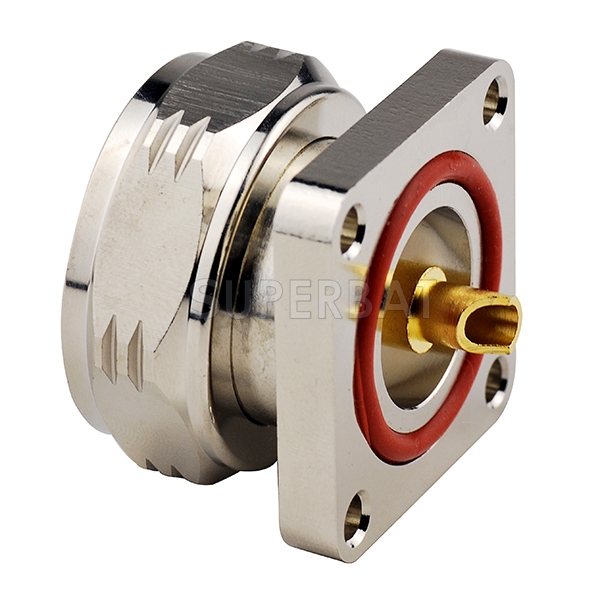

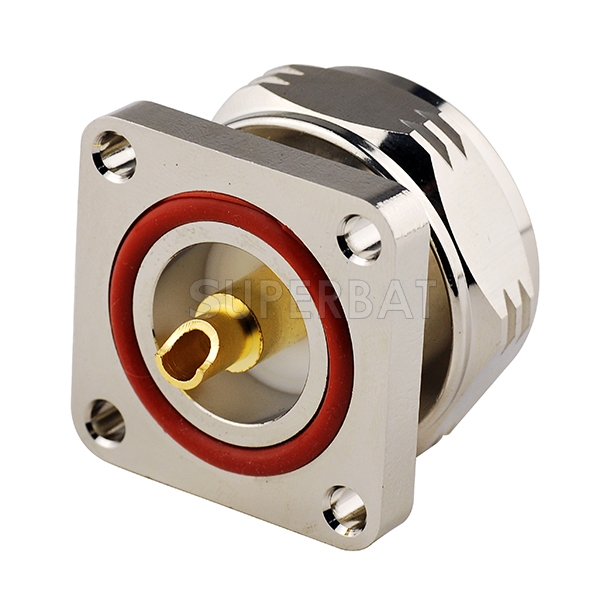

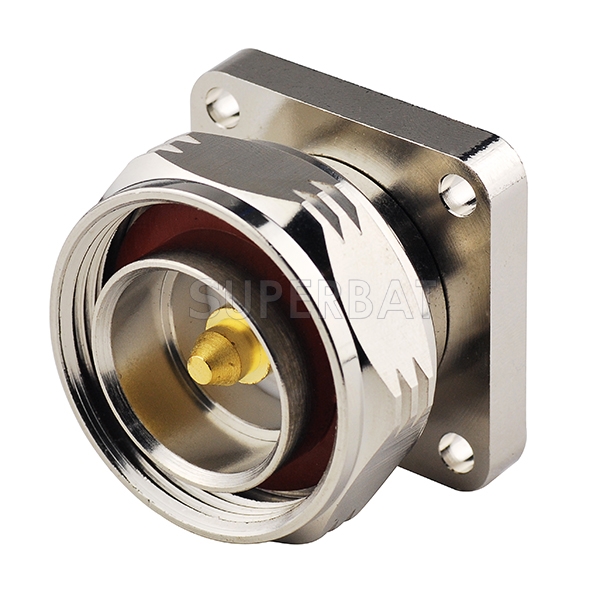

7/16 DIN Plug Male Connector Straight 4 Hole Flange Solder
Unit Price: $13.00
sku:D01-FPHL4-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $13.00 $12.35 $11.70 $11.18 ASK
saving% 0% 5% 10% 14% -
Real Time Availability
Stock: 9998
Quantity: Units

Series: 7/16 DIN Termination Type: Terminal Gender: Plug , Male Polarity: Reverse Polarity Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The 7/16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).

These connectors are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important. Because they are designed to minimize signal distortion from intermodulation, 7/16 connectors are especially suitable for base stations and broadcast communication systems.

Features and Benefits

Low IMD and low VSWR provides improved system performance
Self-flaring design ensures ease of installation with standard hand tool
Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 180
Silver-plated contacts and silver or white bronze-plated bodies deliver a high conductivity and corrosion resistance

Applications

Wireless Infrastructure
Lightning Protection
Base Stations
Satellite Communications
Antenna Systems
