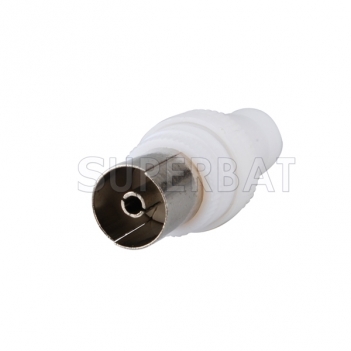

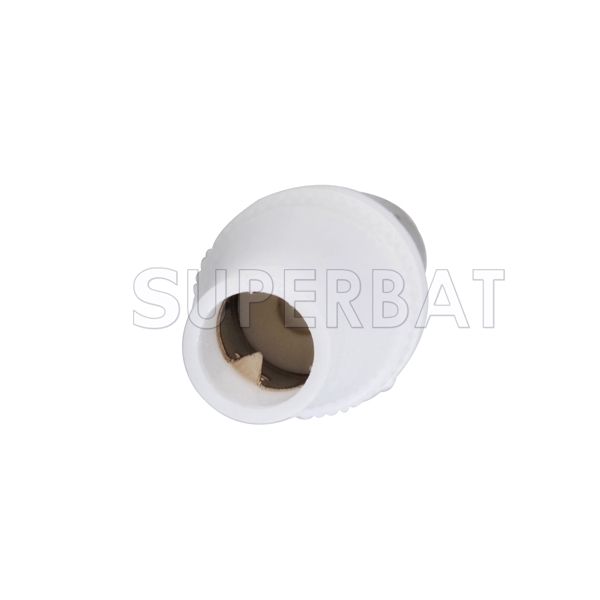

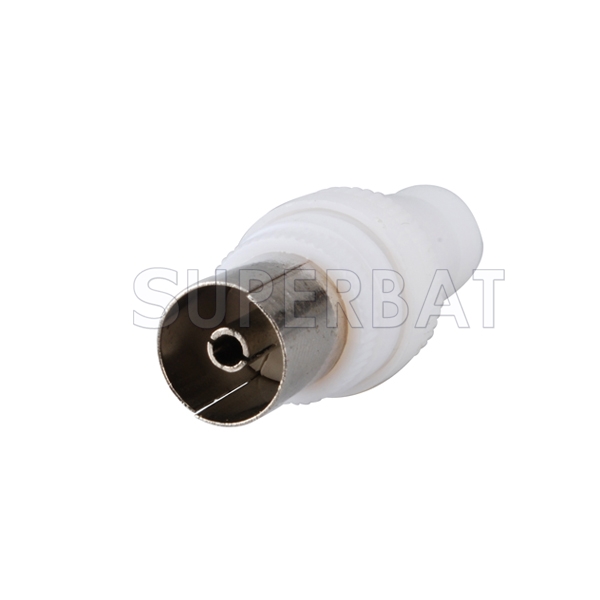

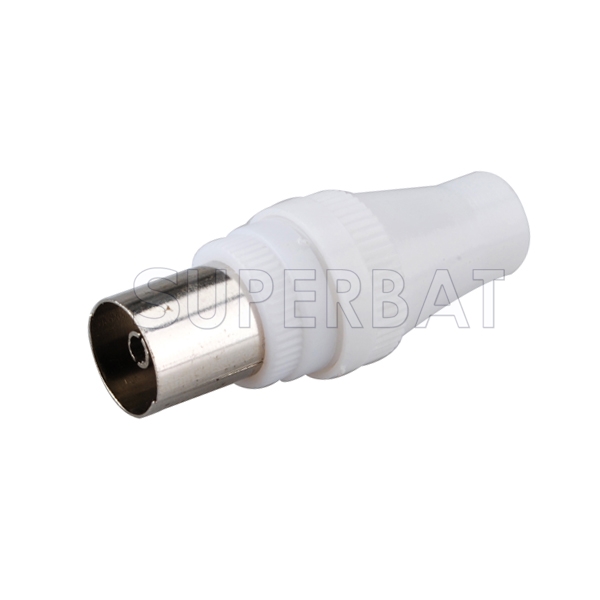

Zinc Alloy RF Connector TV Clamp Jack connector for RG6
Unit Price: $0.39
quantity 1 - 99 100 - 499 500 - 999 1000+
Price Each $0.39 $0.35 $0.33 ASK
saving% 0% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: TV Gender: Jack , Female Polarity: Standard Interface Type: RG6 Body Style: Straight Impedance: 50 Attachment Method: Solder Body Material: Zinc Alloy Body Plating: Nickel

TV connector are mainly used in TV video link a product quality practical meet method is simple and clear family entertainment television station and so on hotel meeting the indispensable parts.


Technology Parameter:
Electrical characteristic
Characteristic Impedance  50 Ω
Frequency Range DC-11GHz
Insertion Loss    DC-1GHz ≤0.1dB
                 1-2 GHz  ≤0.14dB
                 2-3 GHz  ≤0.16dB

VSWR           DC-1GHz ≤1.06
              1-3 GHz  ≤1.1

Dielectric Withstanding Voltage   2500 VAC
Dielectric Resistance  5000MΩ
                               Inner Conductor  1mΩ
Contact Resistance             Outer Conductor  0.25mΩ
Durability    500 Cycles
Working Environment
Temperature Range  -55---+155 °C
Water-Proofing   IP68


Shell.................Brass ...................Nickelplated
Inner conductor.......Beryllium or tin brass ....Nickelplated
Insulator ............PTFE
Crimping suite........Copper alloy ..............Nickelplated
