Product Description:

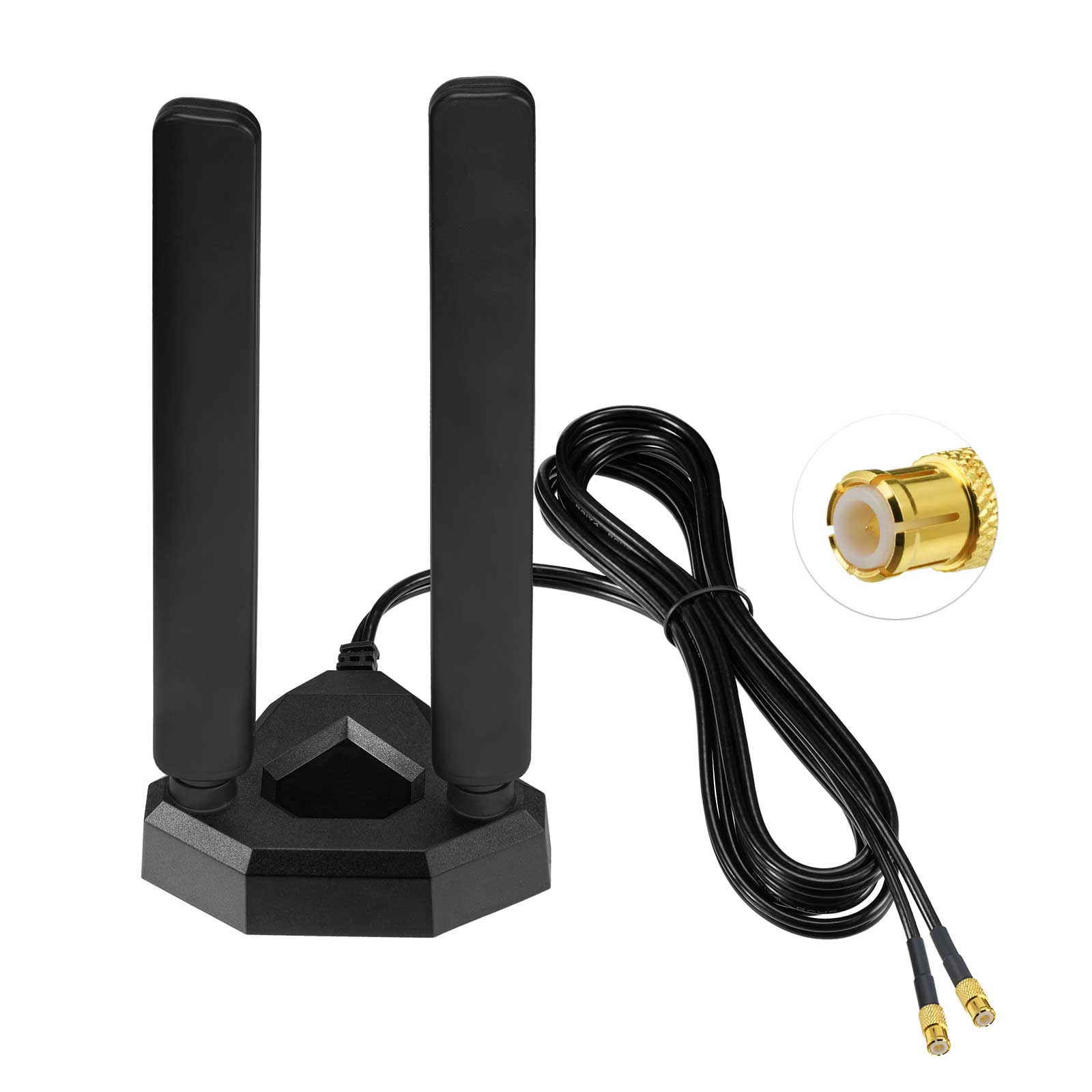

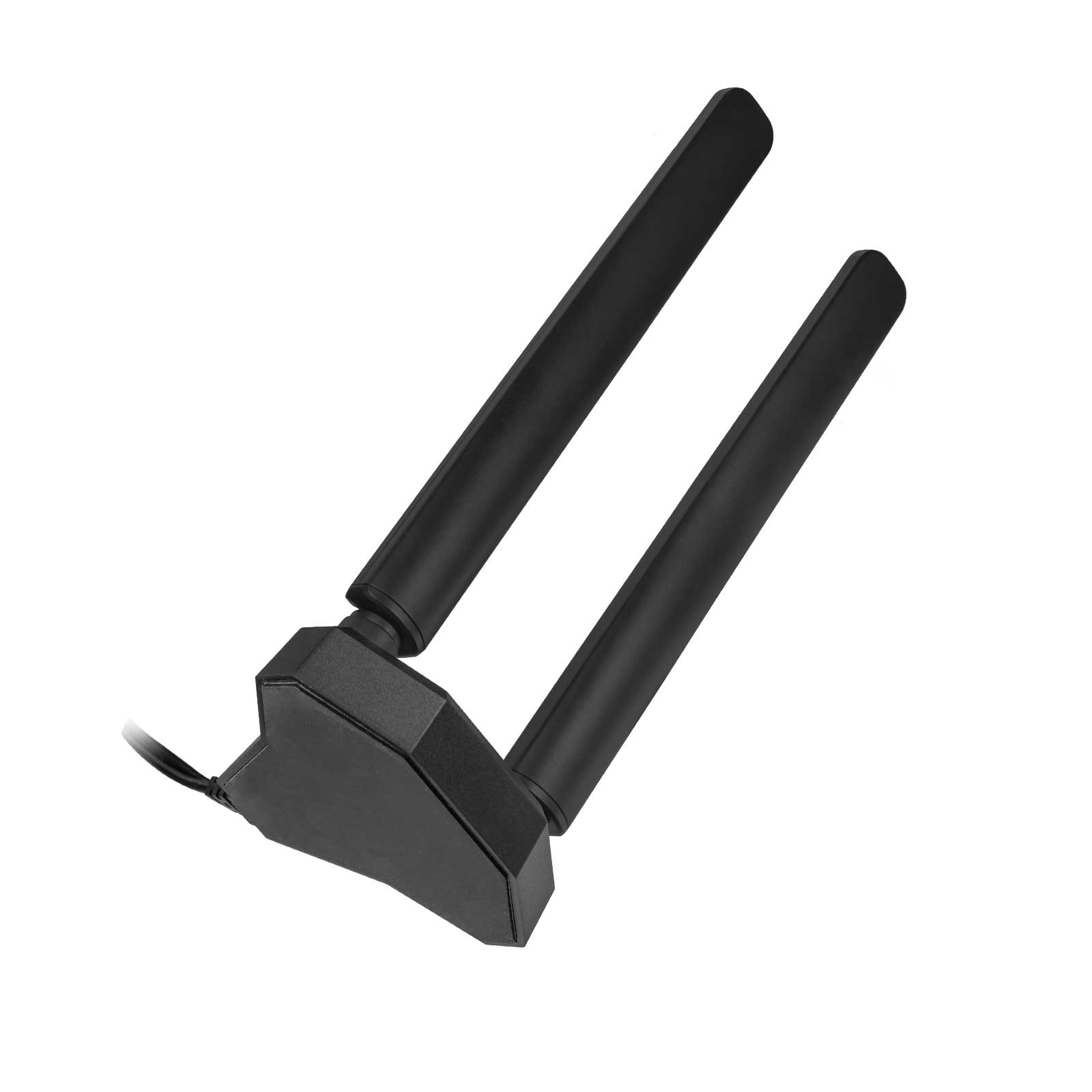

This tri-band dual WiFi antenna is specifically designed for MSI motherboards equipped with WiFi 7 EZ-Plug antenna ports. Featuring two antennas on a single magnetic desktop base, it covers the full 2.4GHz, 5GHz, and 6GHz frequency bands required by WiFi 6E and WiFi 7 (802.11be) standards. The MSI EZ-Plug connectors provide a direct, secure connection without requiring any SMA or RP-SMA adapters.

Important Compatibility Notice: This antenna uses MSI WiFi 7 EZ-Plug connectors. It is NOT compatible with standard RP-SMA or SMA antenna ports. Please confirm that your MSI motherboard has EZ-Plug antenna ports before purchasing. Compatible with select MSI Z790, B650, and other WiFi 7 series motherboards featuring the EZ-Plug connector design.

Specifications

Antenna Type: TRI-BAND WIFI 6E/WIFI 7 antenna

Frequency Range: 2400–2500 MHz / 5150–5850 MHz / 5900–7125 MHz

WiFi Standard: WiFi 6E / WiFi 7 (802.11be)

Antenna Gain: 4dB

Polarization: Linear

Impedance: 50Ω

VSWR: ≤ 2.5

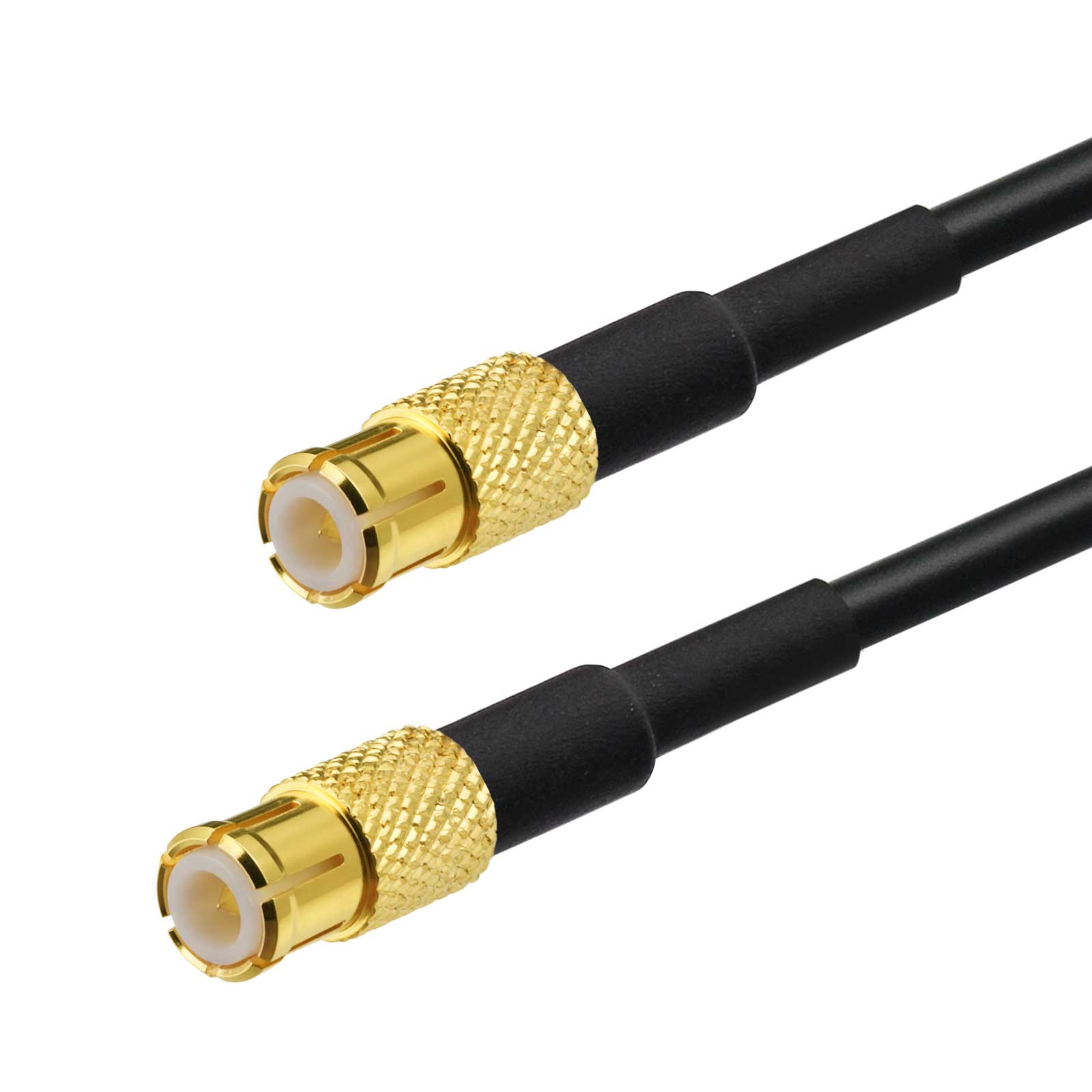

Connector Type: MSI WiFi 7 EZ-Plug (NOT RP-SMA / SMA)

Cable Type: RG174

Housing Material: ABS

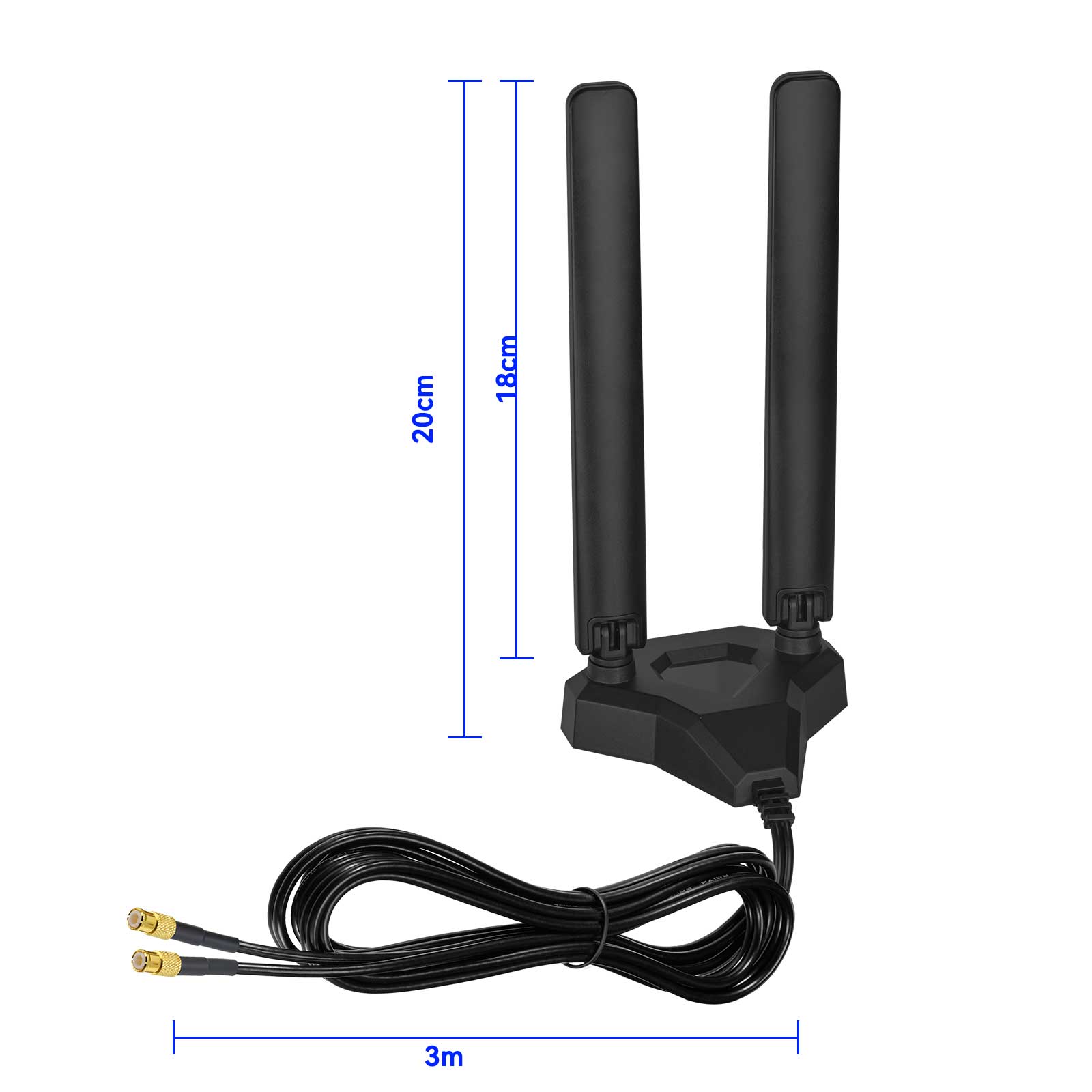

Base Dimensions: 80.0mm × 88.6mm × 20mm

Antenna Height: 172mm

Mounting Type: Magnetic Desktop Base

Operating Temperature: -30°C ~ +65°C

Storage Temperature: -30°C ~ +65°C

Storage Life: < 2 years

Product Features

Tri-band coverage: 2.4GHz + 5GHz + 6GHz for WiFi 6E/WiFi 7

Dual antenna design supporting 2×2 MIMO configurations

MSI WiFi 7 EZ-Plug connectors — direct fit, no adapters needed

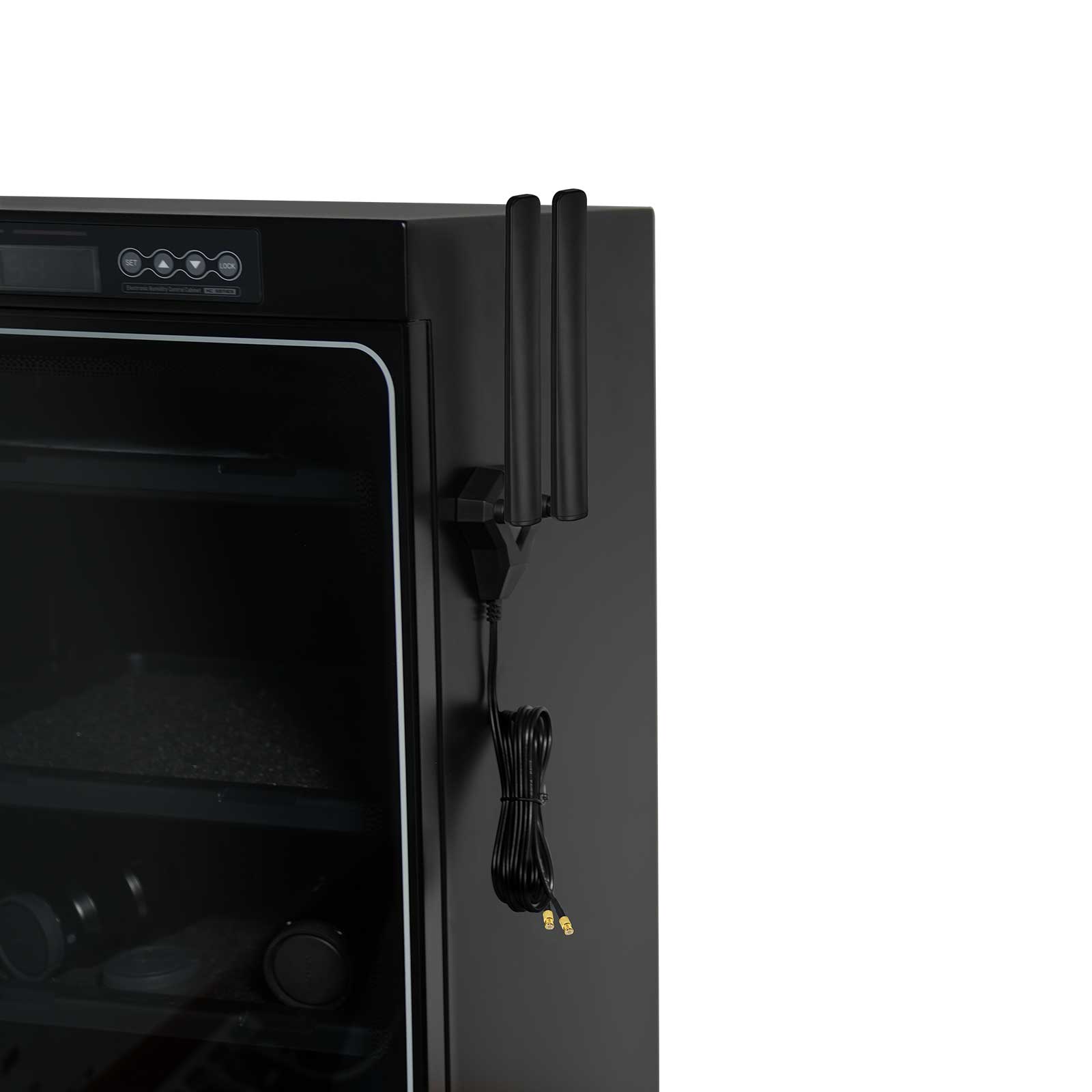

Magnetic desktop base for flexible, stable placement

ABS housing with RG174 coaxial cable, 50Ω impedance

Compact 172mm antenna height, space-efficient desktop form factor

Wide operating temperature range: -30°C to +65°C

Applications

MSI WiFi 7 motherboards with EZ-Plug antenna ports

Desktop PC WiFi signal enhancement (replacing stock antennas)

WiFi 6E / WiFi 7 (802.11be) tri-band wireless networking

Home and office desktop wireless connectivity

Gaming PCs requiring high-throughput, low-latency WiFi

Package Contents

1x TRI-BAND WIFI 6E/WIFI 7 Antenna with Magnetic Desktop Base

Integrated RG174 cables with MSI EZ-Plug connectors
