Tri-Band WiFi: 2.4g(2400-2500MHz)/5g(5150-5850MHz)/6g(5900-7125MHz); Support 802.11 b/g/n/ac/ax/wifi 6/wifi 6e; Gain: 8dBi; Direction: Omni-directional; Antenna Connector: RP-SMA Male Connector
Improve Signal Strength: Support Wi-Fi 6E, the new 6 GHz band can bring more bandwidth, faster speeds, lower latency, and less interference, helps WiFi devices get faster speeds and more stable connections

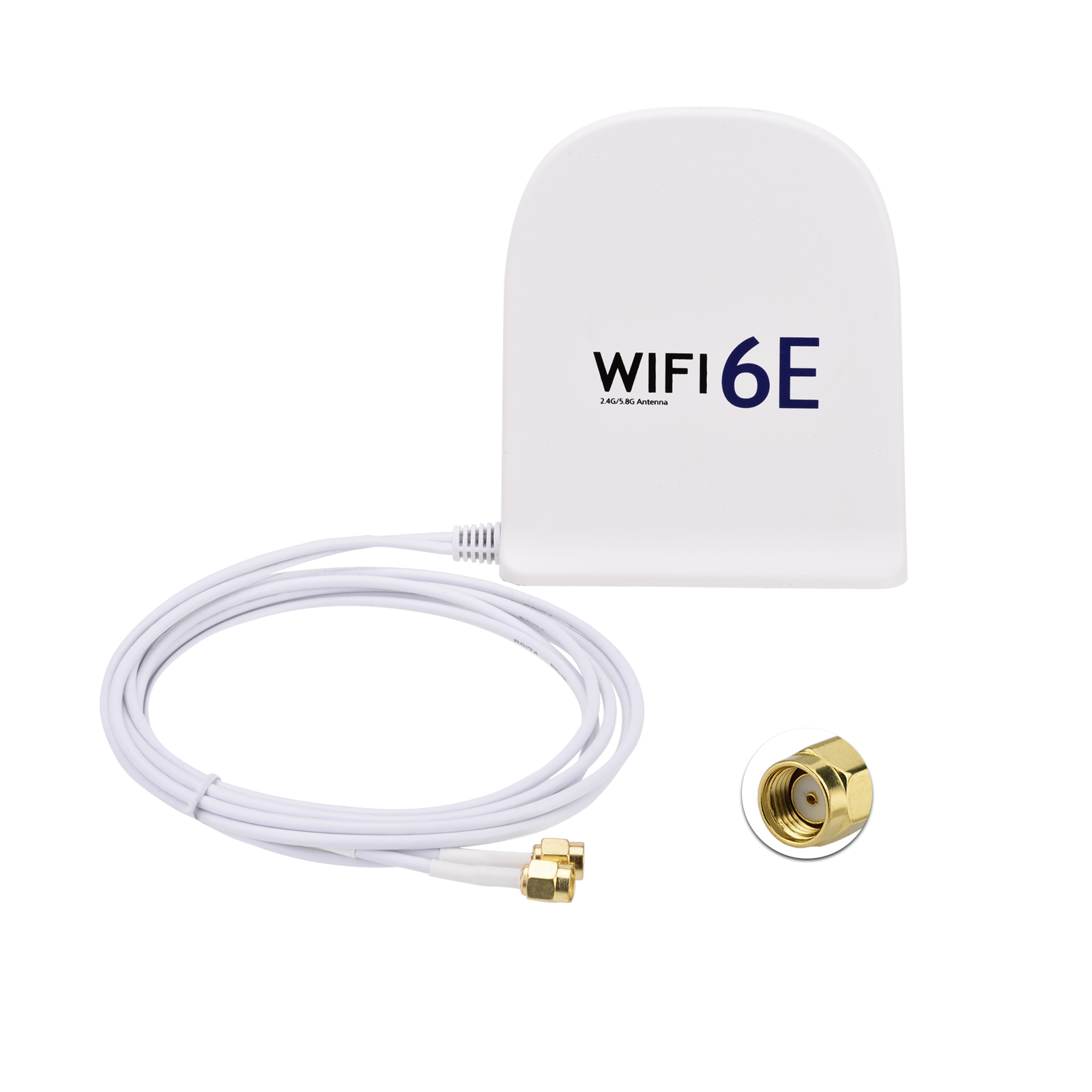

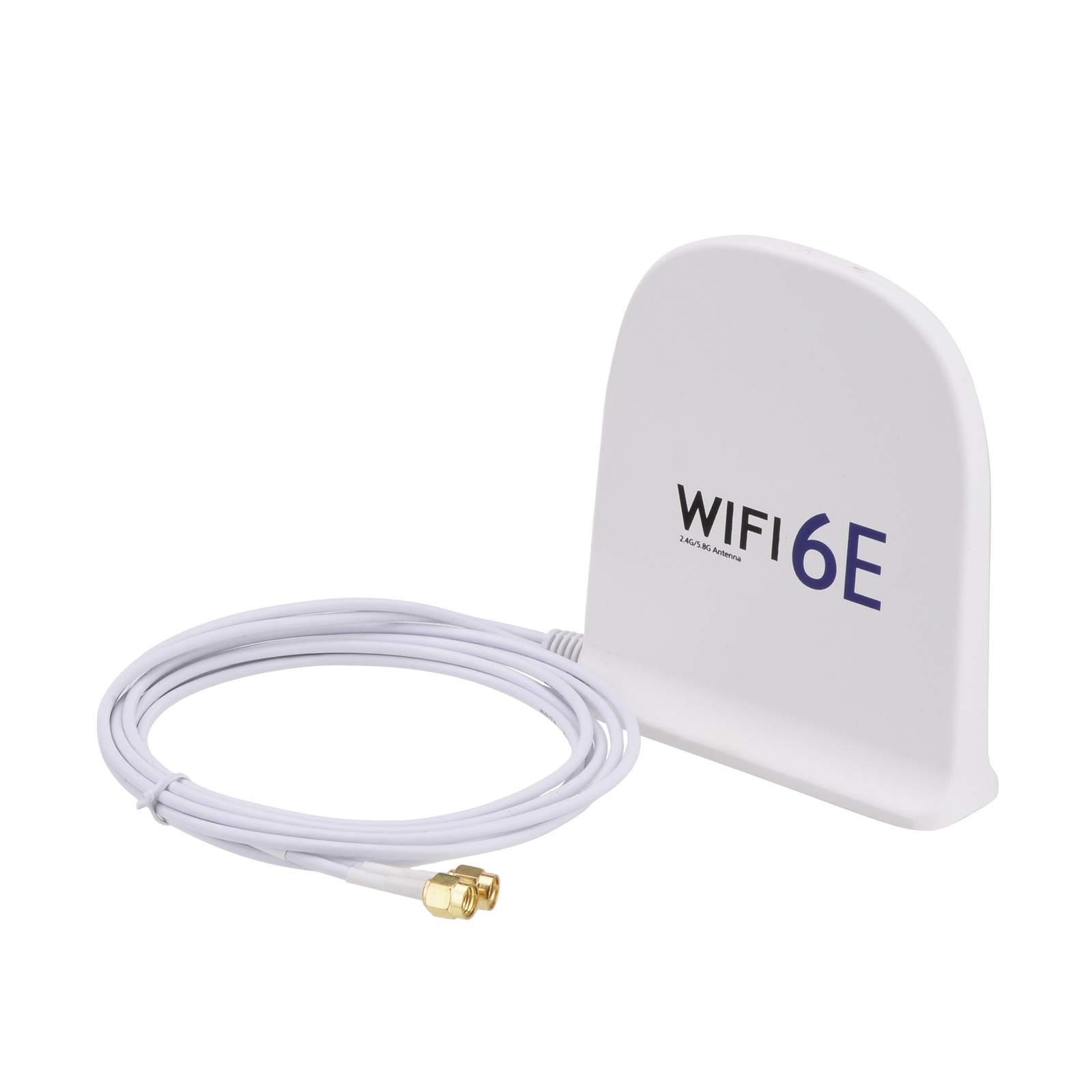

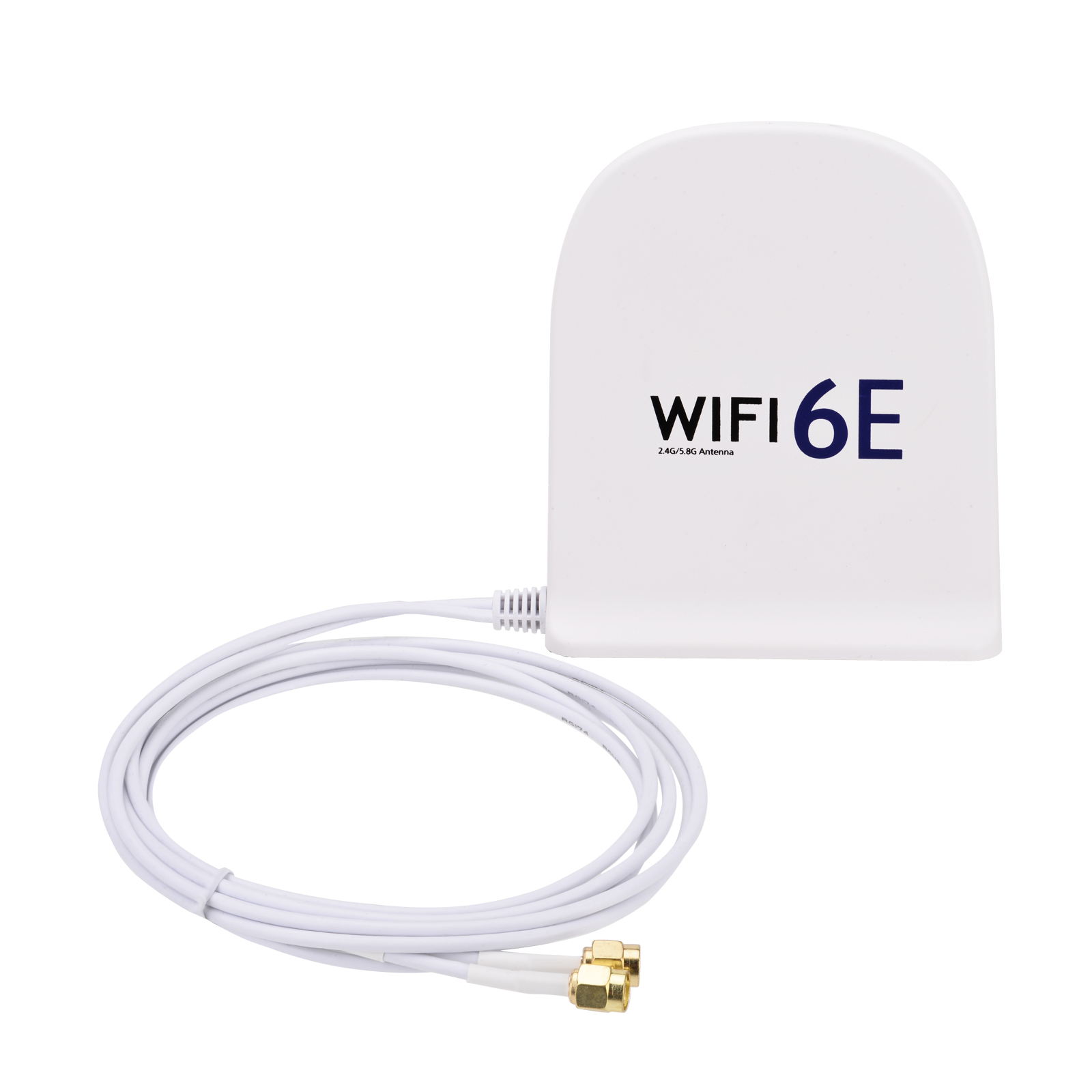

Feature: 2 meter (6.5 ft) extension cable allows you to move the antenna to a location for better signal reception; Powerful magnets support mounting the base vertically to a metal surface
Application: wireless network router,PCI PCIe network card, built-in wifi motherboard, notebook PC desktop computer external USB network adapter, WLAN AP & Hotspot wireless range extender, security cameras, wireless Bluetooth
Package List: 1 x WiFi RP-SMA Antenna
Please Note: The connector is (RP-SMA) (Male) -- [a hole in connector center(without pin)], -- please know the difference between (RP-SMA) and (SMA) before purchase
Specifications
Frequency range | 2400-2500 MHz /5150-5850MHz/5900-7125MHz |
Gain | 8dBi |
Impedance | 50 Ohm |
Antenna Interface | RP-SMA male |
VSWR | less than 2 |
Polarization | Linear Vertical |
Extension Cable | RG174 6.5 feet / 2 m |
Antenna Size | 117*100*31mm |
Colour | White |
Weight | 115g |
Operating Temperature | -20°С ~ +80°С |
Storage Temperature | -30°С ~ +85°С |
In Compliance with | 802.11 b/g/n/ac/ax/wifi 6 |
Package list | 1 x WiFi RP-SMA Antenna |
