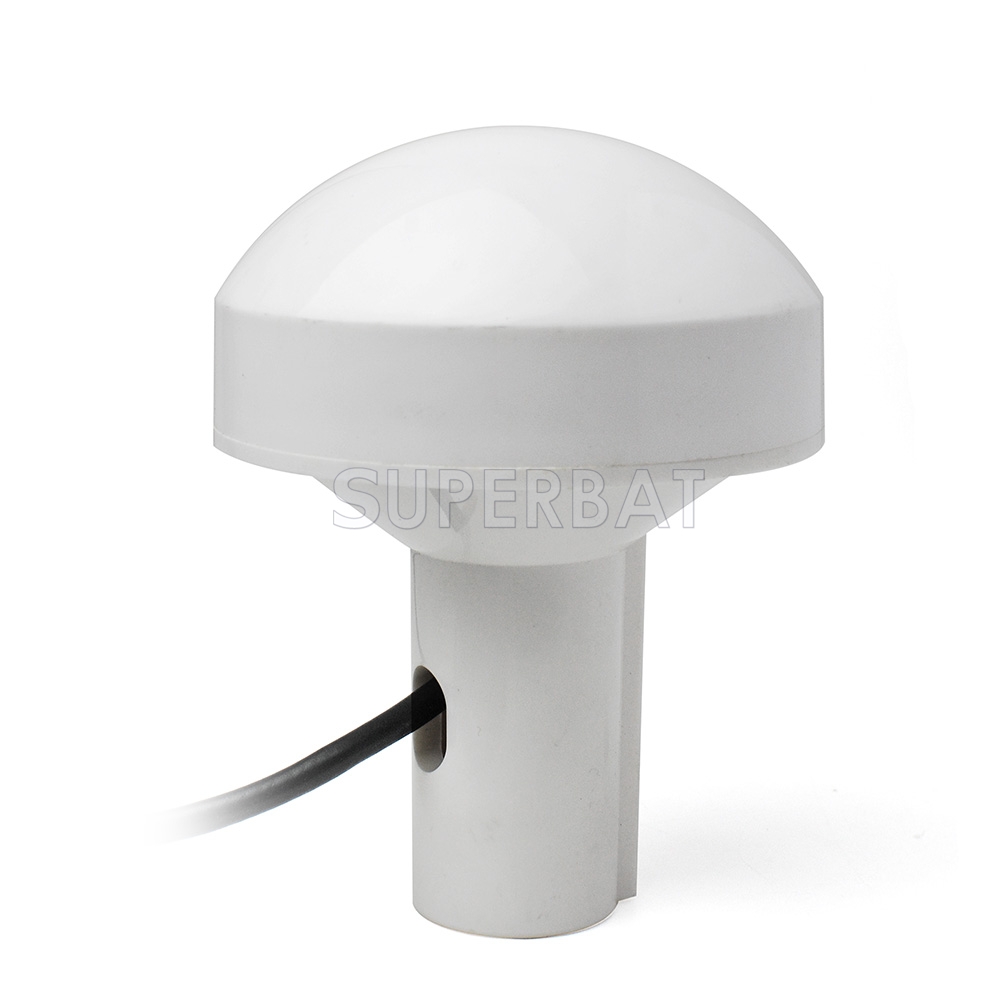

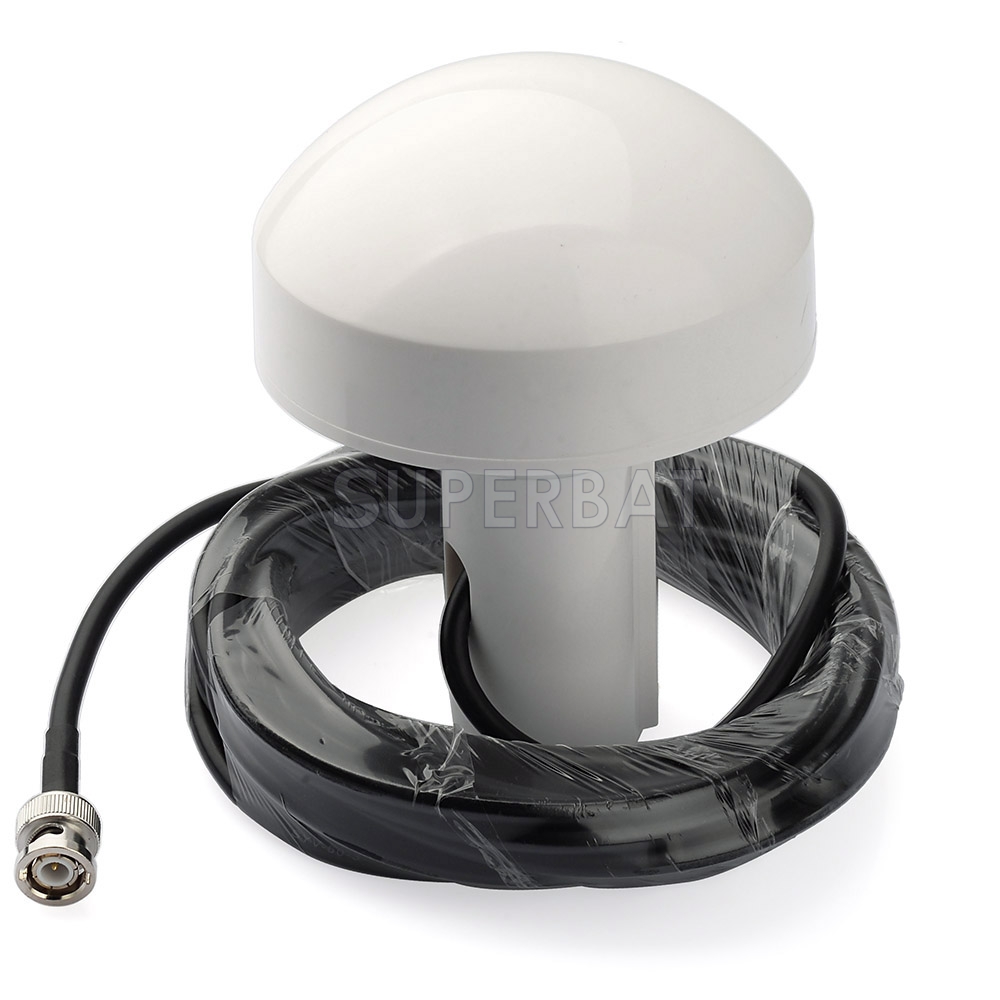

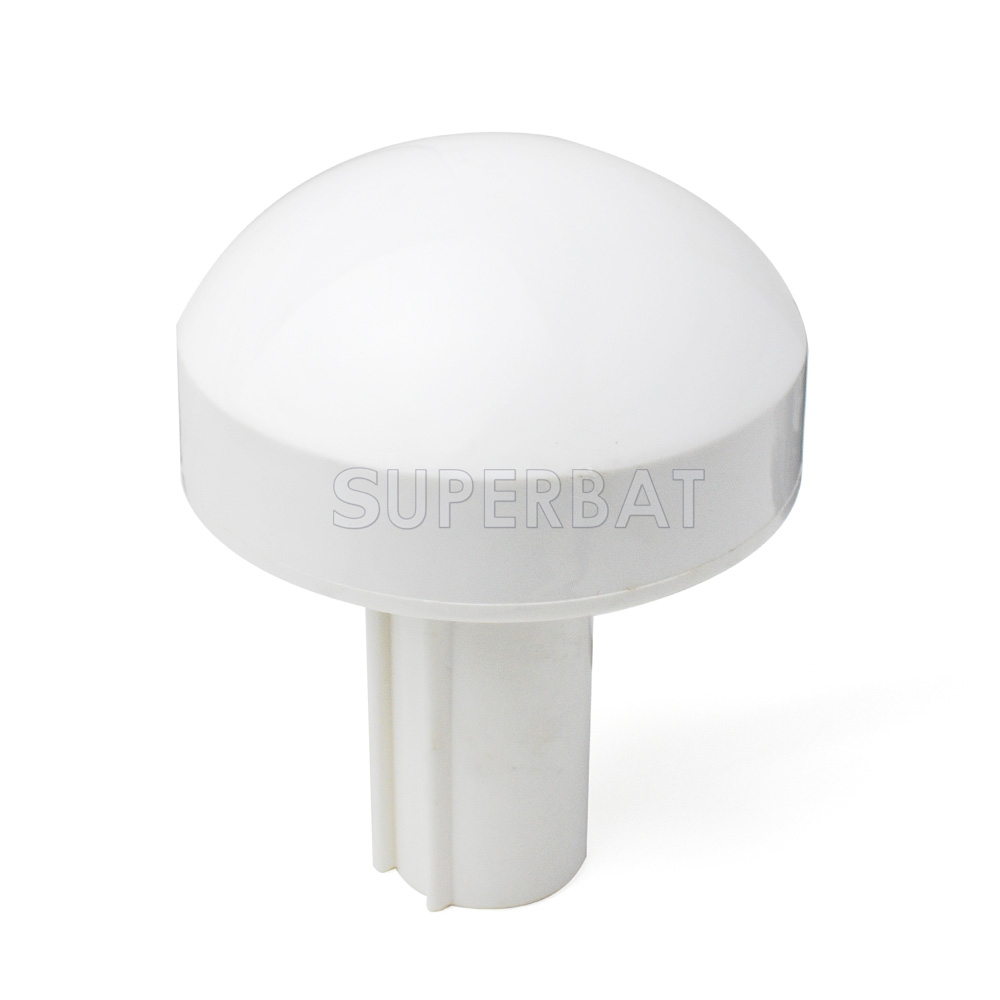

Weatherproof GPS timing antenna BNC Plug with RG58 coax cable
Unit Price: $30.90
sku:GA24-500-B01SP
cable length
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $30.90 $29.35 $27.81 $26.26 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9998
Quantity: Units

GPS type: GA24 End connector: BNC Connector Polarity: Standard Connector Gender: Male , Plug

Dielectric antenna specification

Center frequency: 1575.42mhz+/-2 MHZ
V. S. W. R: <1.5
Band width: Band width

Attenuation fo: +/-100mhz>30db

Impendence: 50 ohm

Peak gain: >3dbic based on 7*7cm ground plane

Gain coverage: >-4dbic at -90<0<+90(over 75% volume)

Polarization: rhcp

Lna specification
Lna gain(without cable): 28dB,35dB,45dBtypical
Noise figure: 1.5db
Dc voltage: 3-5V
Dc current: 20MA max

Mechanical specification
Weight: < 400g
Cable: Coax cable RG58
Cable Length: Optional 5M / 3M / 10M ,contact us

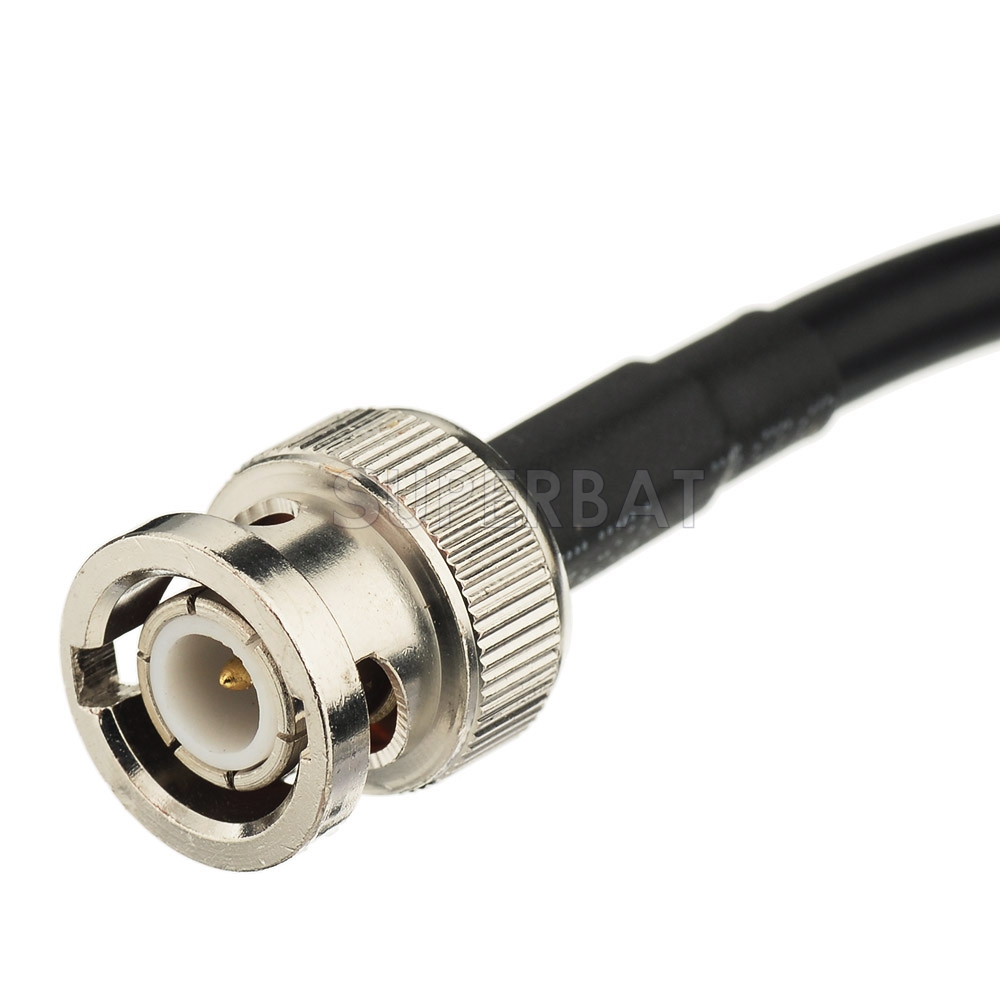

Connector: BNC male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

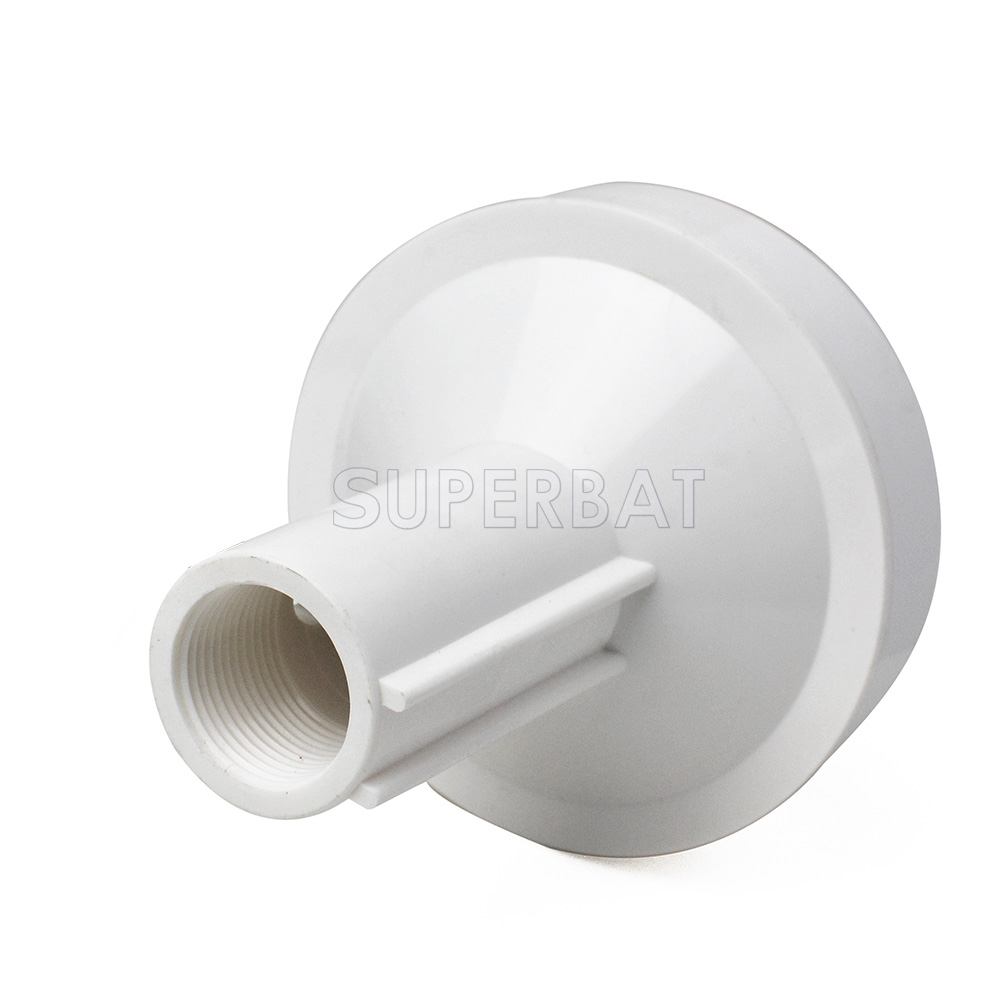

Mounting base: Screw

Environmental specification
Working temp: -40~+85
Storage temp: -40~+100
Vibration sine sweep: 1g(0-p)10~50~10hz each axis
Humidity: 95%~100%rh
Weatherproof: 100%
