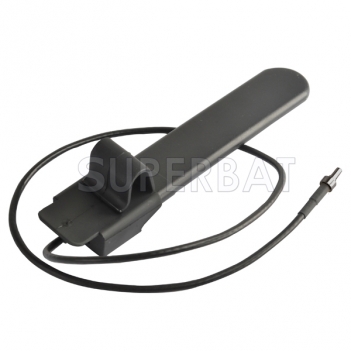

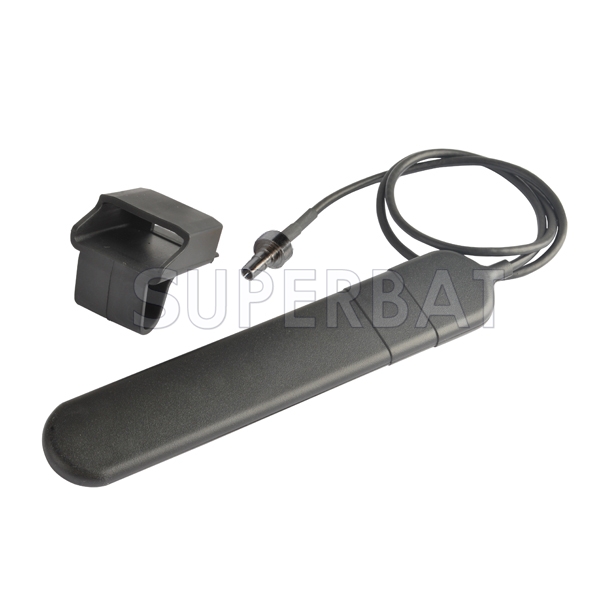

UMTS/GSM 3G 13dbi antenna for Huawei E166 E169 E1762 E176 E176G E182 E1820 E196E
UMTS/GSM 3G 13dbi antenna for Huawei E166 E169 E1762 E176 E176G E182 E1820 E196E
Unit Price: $15.00
sku:3A3-1779-C01SP-130-46
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $15.00 $14.25 $12.30 $10.95 ASK
saving% 0% 5% 18% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Rubber Duck Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850/1900/900/1800/2100/2170Mhz Connector Series: CRC9 Connector Polarity: Standard Connector Gender: Plug Gain: 13dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 46cm Weight: 42g

Boosts antenna strenght up to 13 dB
Frequencies 850/1900/900/1800/2100/2170Mhz
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Enhance and maintain excellent signal quality
Clip mount allows you to easily attach and remove to back or side of laptop lid/screen
Usable indoor or outdoors
Quick, simple installation, no software required
connector: CRC9 male straight as default, optional conector: SMA/SSMB/TS9/MS147/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card..and so on.,please give us notes if the connector is chosen !

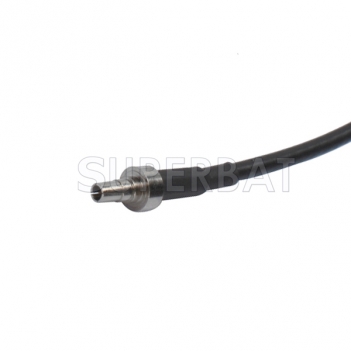

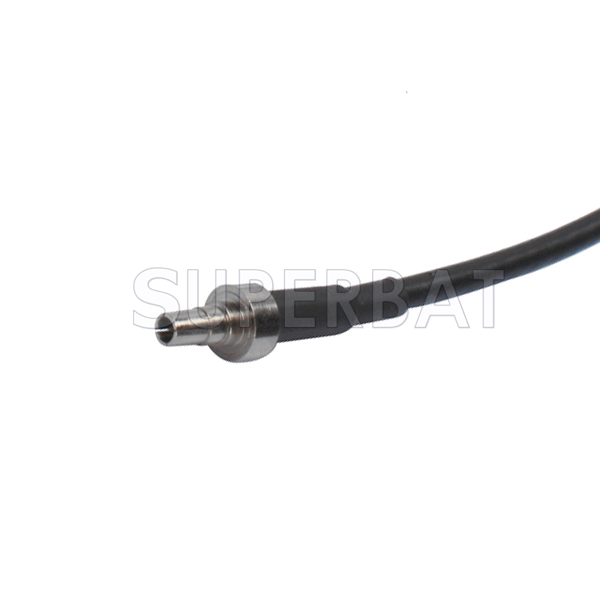

CRC9 connector/ adapter for HUAWEI USB Modems
SSMB connector for huawei E800 E870
MC-LUCENT connector for Option Wireless
MCX male for Ericcson W30/W35 data router
MMCX male for Ericsson MC95/MC99/RLMC352
SMA male for Ericsson W21
Cable length: 46cm, RG174
Antenna Weight: 42g
