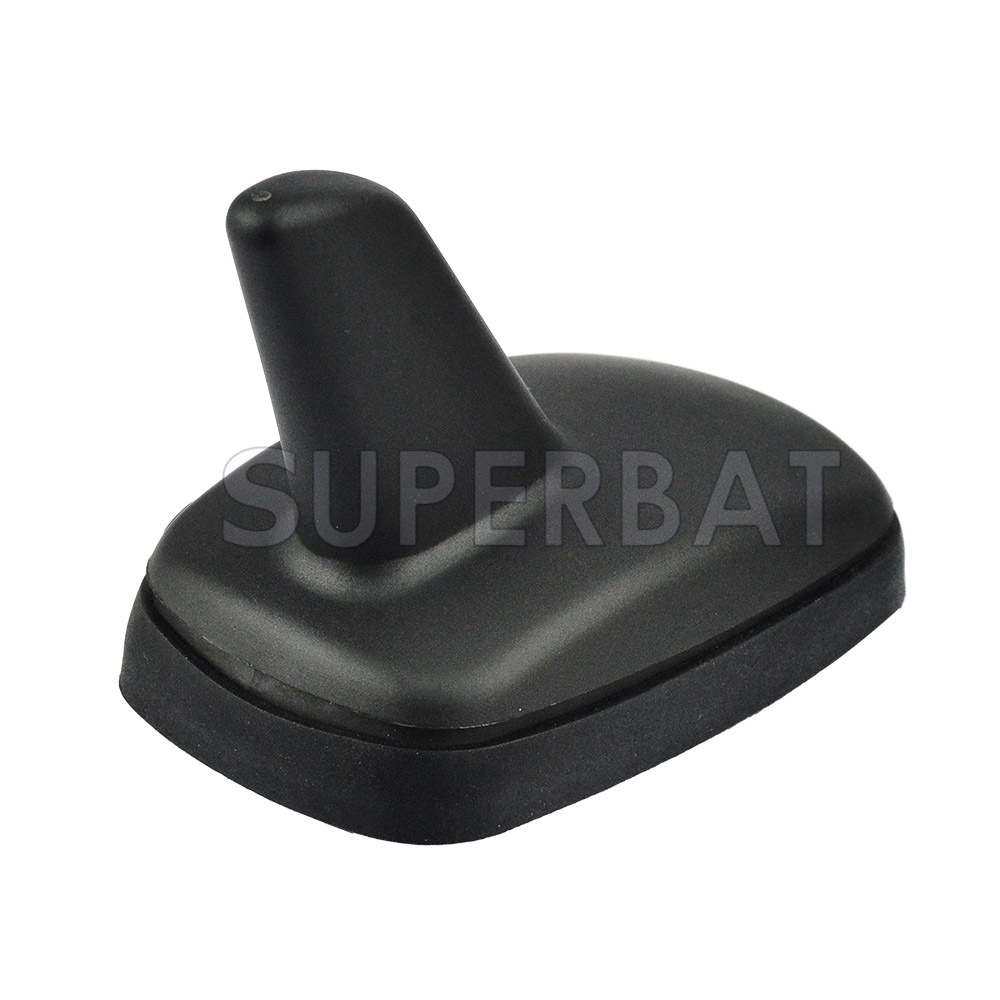

Trucks/Car/RV Satellite Radio Antenna Shark Fin Antenna Fakra Curry K Female and Fakra"H" Replacement Cable for XM Commander SKYFi XMD1000
Unit Price: $22.00
sku:GA23-30-KIT-F03H
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $22.00 $20.90 $19.80 $18.70 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Specification

Dielectric:

XM:2320-2345mhz

VSWR:1.5:1

Bandwidth(MHz):±5

Impedance:50ohm

Peak Gain >3dBi Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at -90°<0 <+90°(over 75% Volume)

Polarization:RHCP


LNA/Filter

LNA Gain (Without cable) :28 dBi Typical

Noise Figure(dB):1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz;

20dB Min f0+/-50MHz;

30dB Min f0+/-100MHz

VSWR <2.0

DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.

DC Current(mA):11 Max


Mechanical

Weight(gram):131g

Size(mm):84×53.8×62

Cable Length(m):0.3 m (RG174)

Connector :FAKRA curry female code K

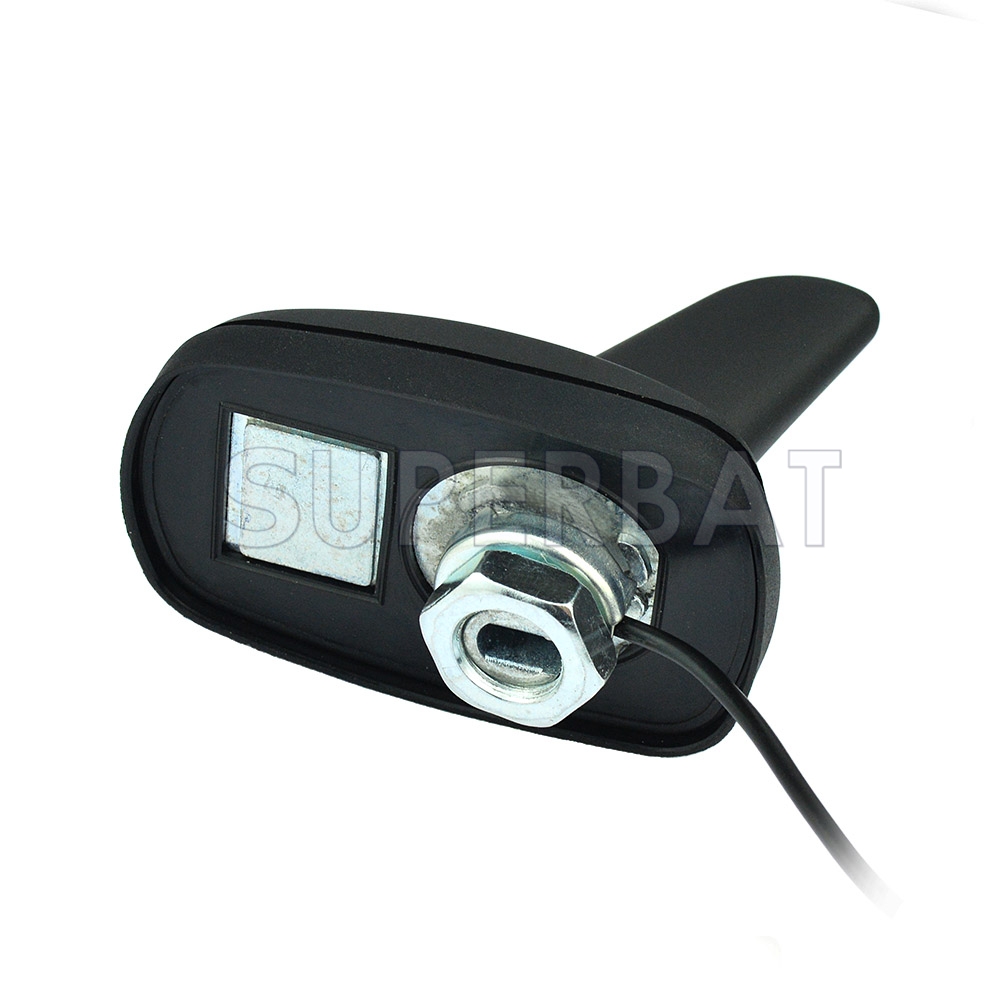

Mounting:Screw(Hole/Roof)

Housing:Black


Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+100℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Weatherproof:100%Waterproof

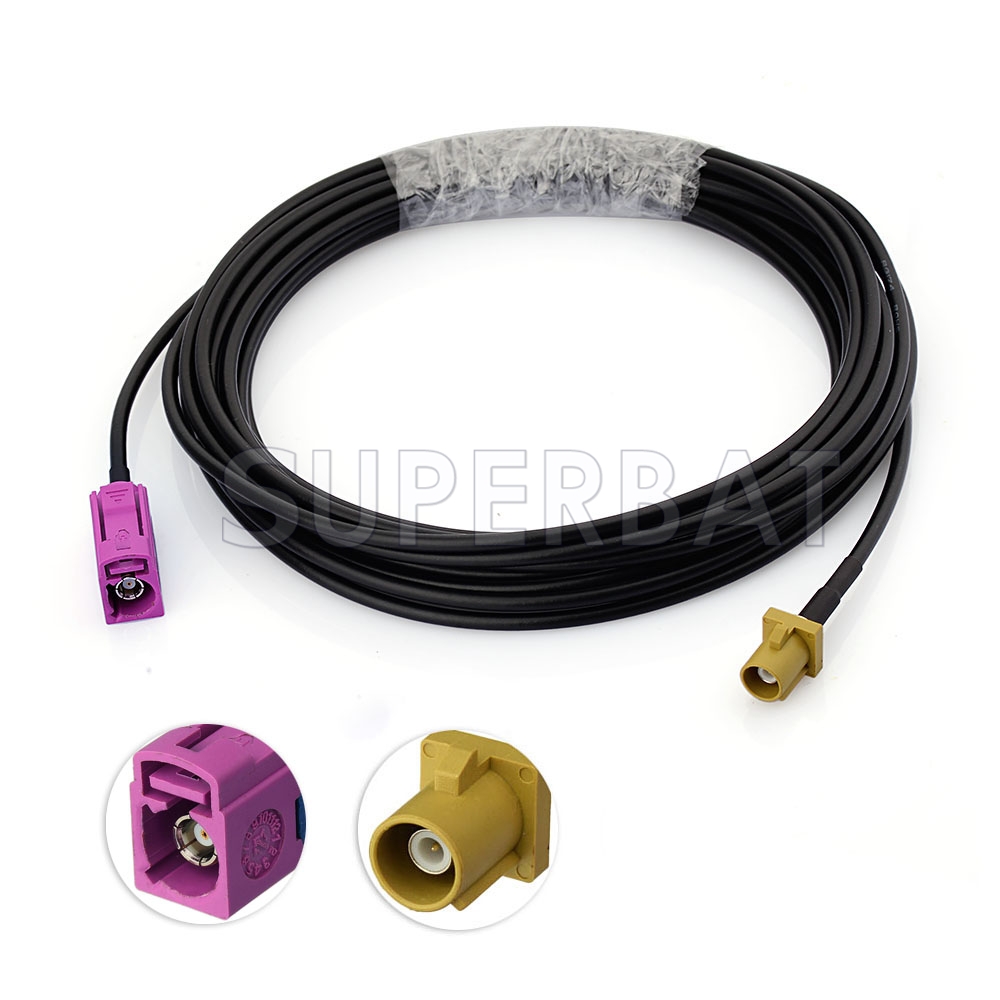

Antenna Replacement Cable

Connector:Fakra"K" male to Fakra"H" female

Cable:RG174 5M

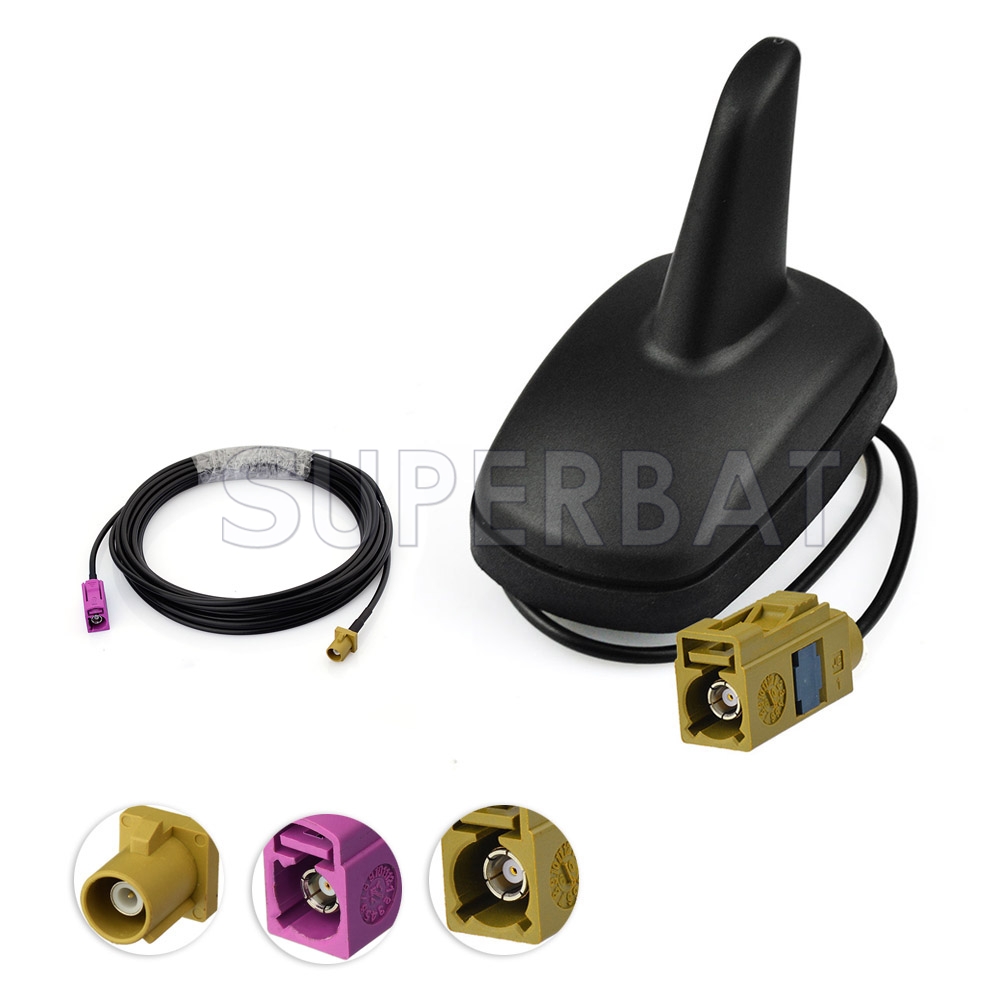

Package included:1pcs fakra Shark Fin Antenna

                                1pcs 5m Antenna Replacement Cable

Listing Suitable for the following Satellite Radio

SKYFi

SKYFi2

XMD1000

XM Commander
