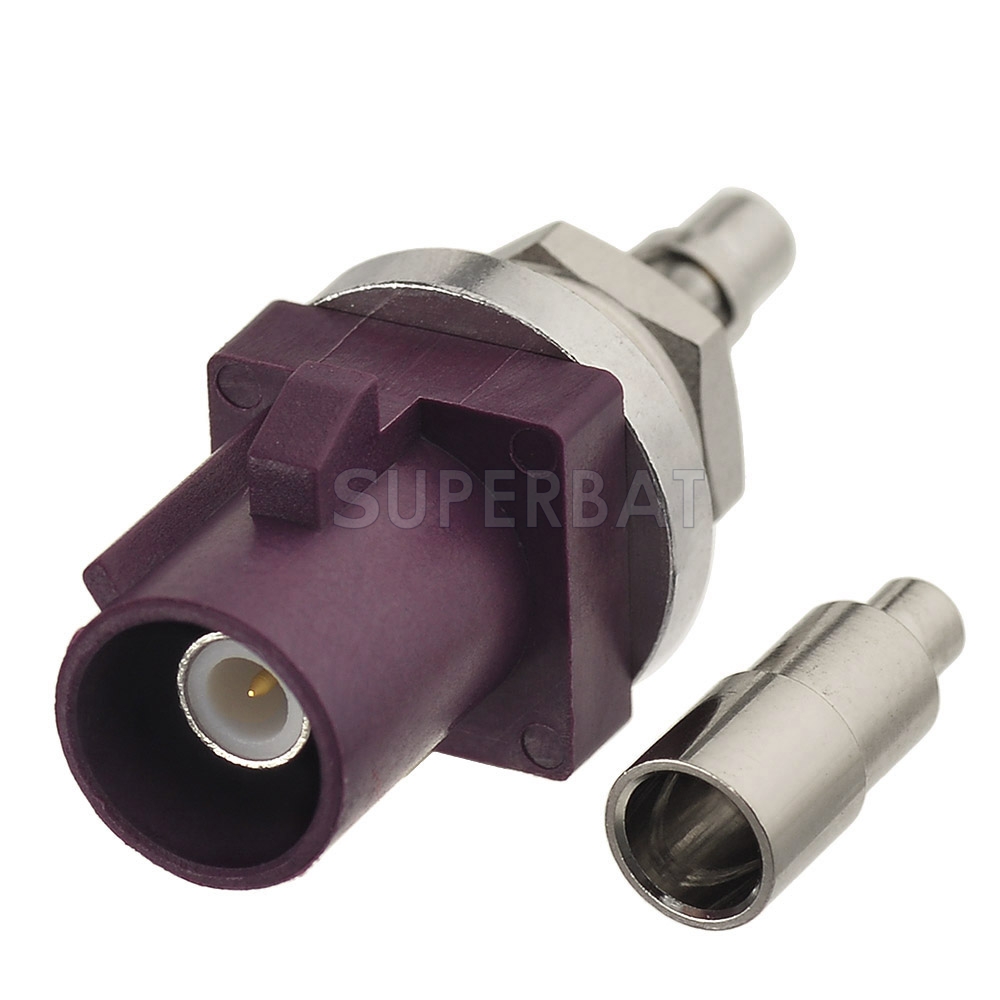

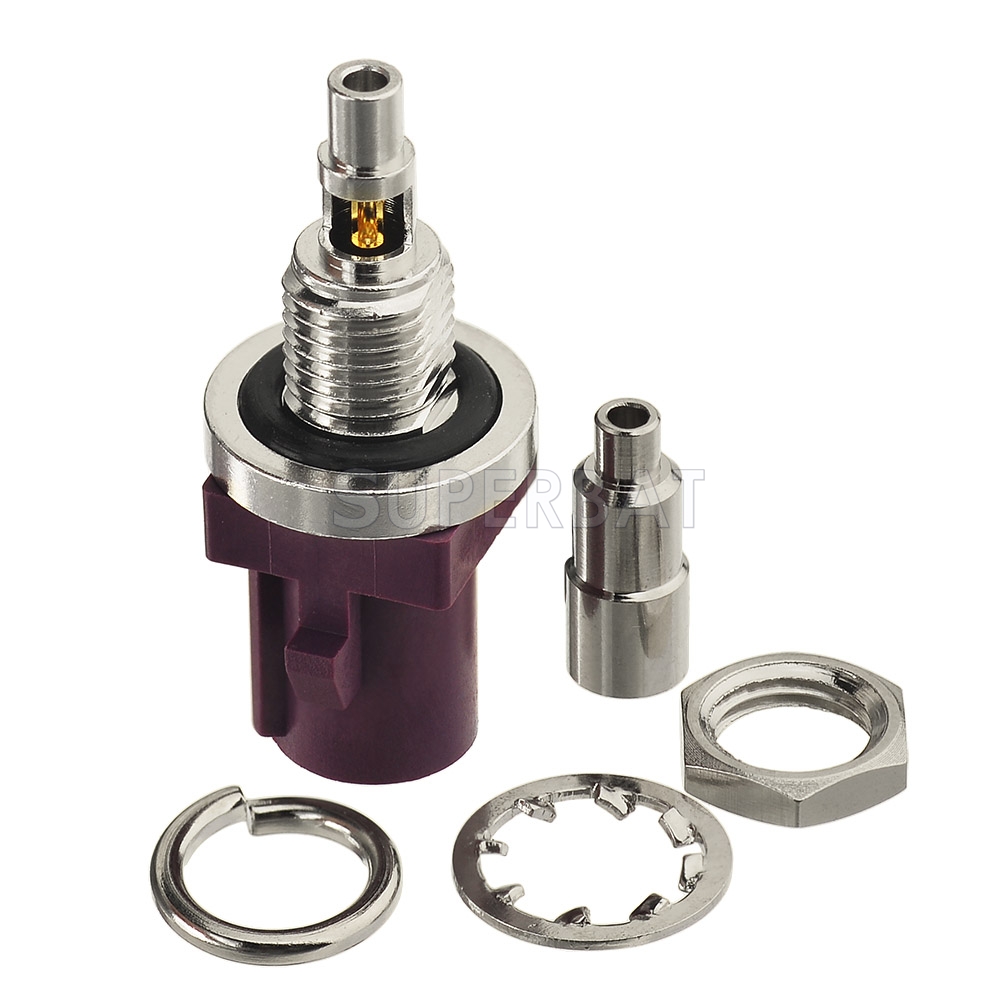

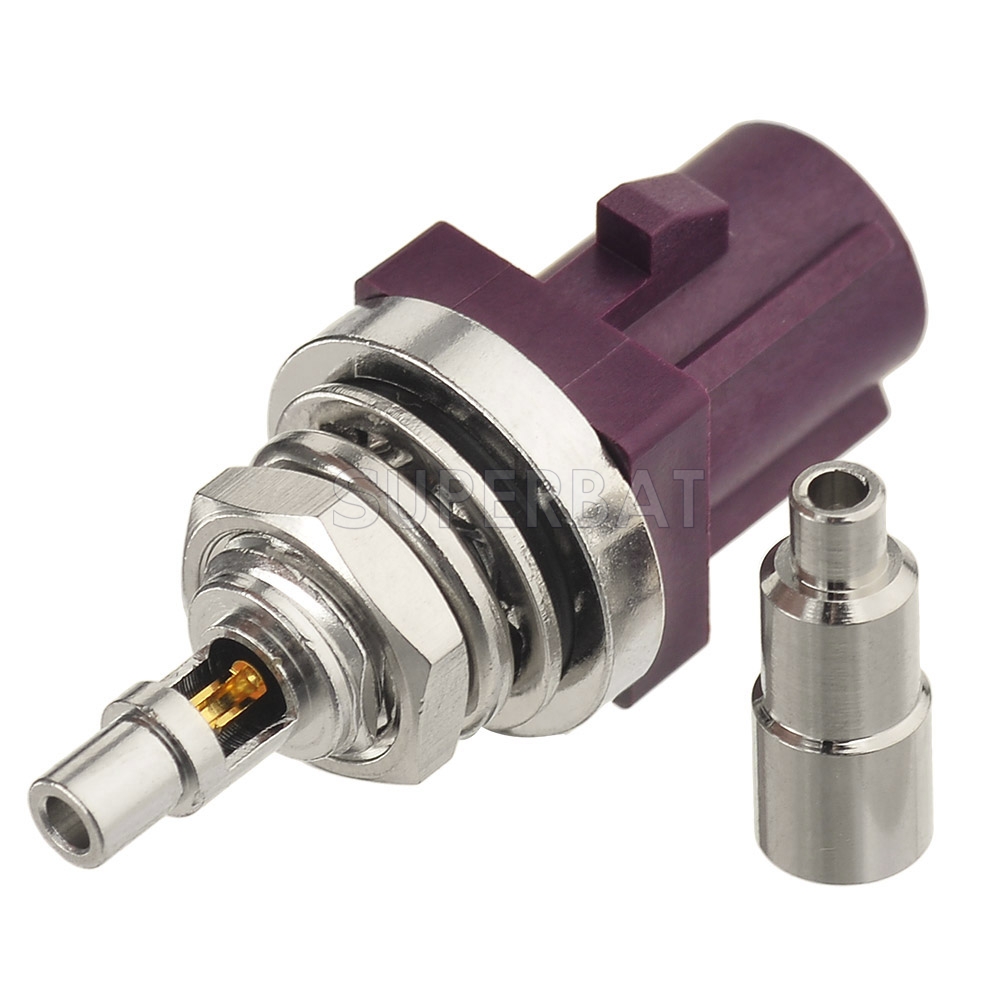

Superbat Waterproof Fakra code D male bulkhead o-ring Plug connector for 1.13mm 1.37mm Coaxial Cable
Waterproof Fakra code D male bulkhead o-ring Plug connector for 1.13mm 1.37mm Coaxial Cable
Unit Price: $3.95
sku:F03-BOPF37-D
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.95 $3.56 $3.20 $2.88 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9992
Quantity: Units

Series: FAKRA Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: 1.13mm , 1.37mm Body Style: Straight Mount Method: Bulkhead With O-Ring Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Coding: D Frequency Range: 3GHz

Description:
Type: Fakra D
Color: Violet
Gender:Plug

Suitable cable type :1.13mm,1.37mm cable

Mount Method: Bulkhead with o-ring

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly
FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered
