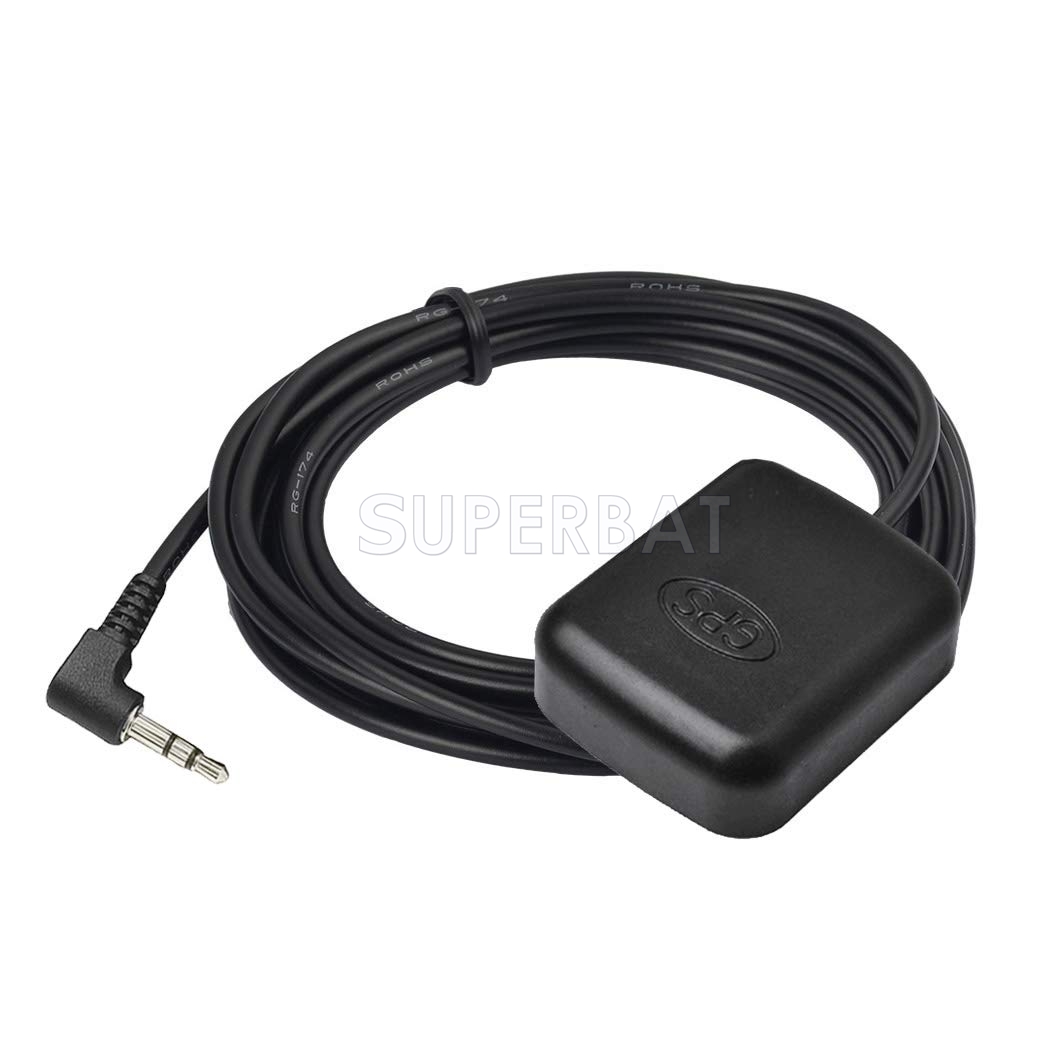

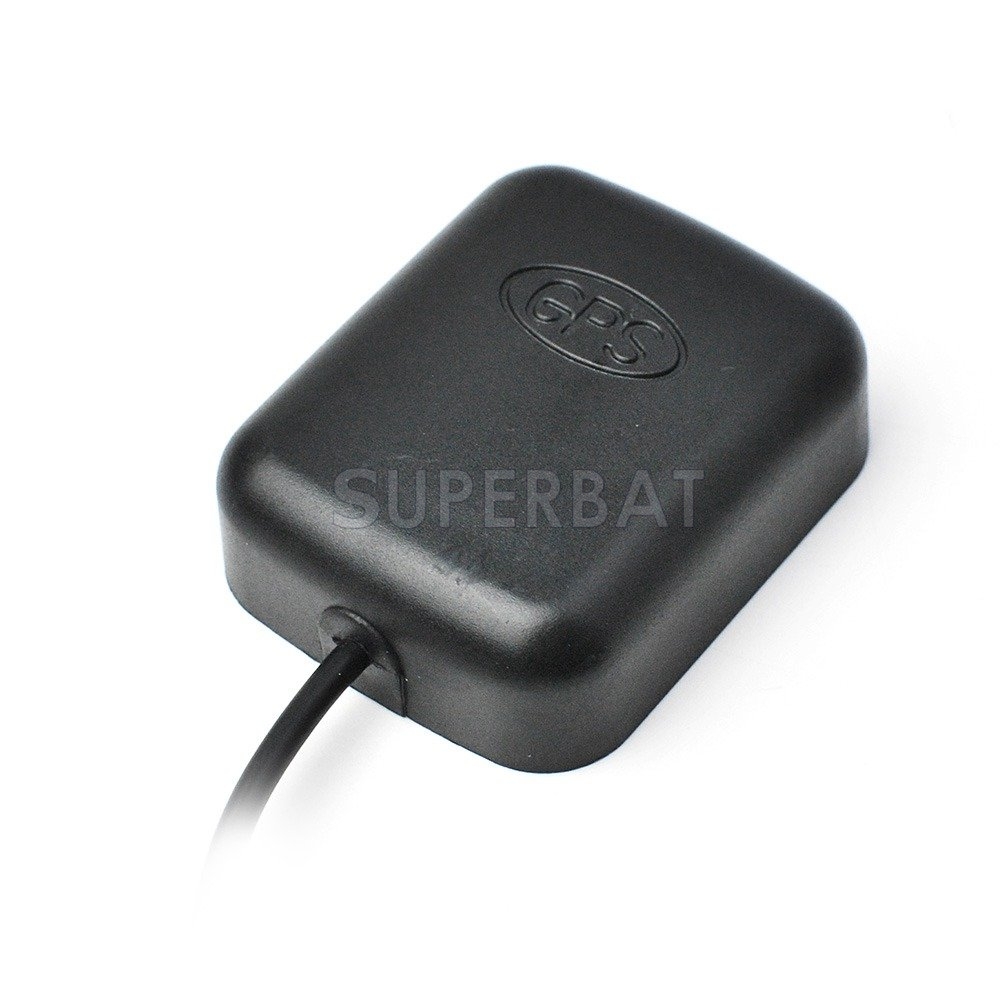

Superbat Vehicle Car Dash Cam Active GPS Antenna with 3.5mm Audio Connector for Car Truck SUV Dash Cam DVR Recorder GPS Tracker Receiver
Unit Price: $12.38
sku:GA50-180-35MRA
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $12.38 $11.14 $10.03 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Aplication: AUKEY , Papago End connector: 3.5MM Connector Style: Right Angle

1. Dielectric Antenna
Center Frequency: 1575.42MHz ±3MHz
V.S.W.R: 2:01
Bandwidth: ±5 MHz
Impedance: 50
Peak Gain: > 3dBic based on 7x175px ground plane
Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
Polarization: RHCP
2. LNA/Filter
LNA Gain Without cable: 28dB Typical
Noise Figure: 2.0dB
Filter Out Band Attenuation: (f0=1575.42MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R: < 2.0
DC Voltage: 3V to 5V
DC current: 7-10MA
3. Overall
Frequency Range: 1575/1609MHz
V.S.W.R: 2.0
Gain: 30±3dBic
Impedance: 50 Ohm
3. Mechanical
Weight: 60 gram

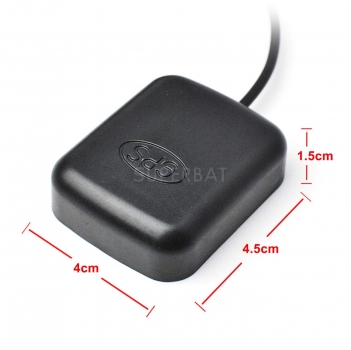

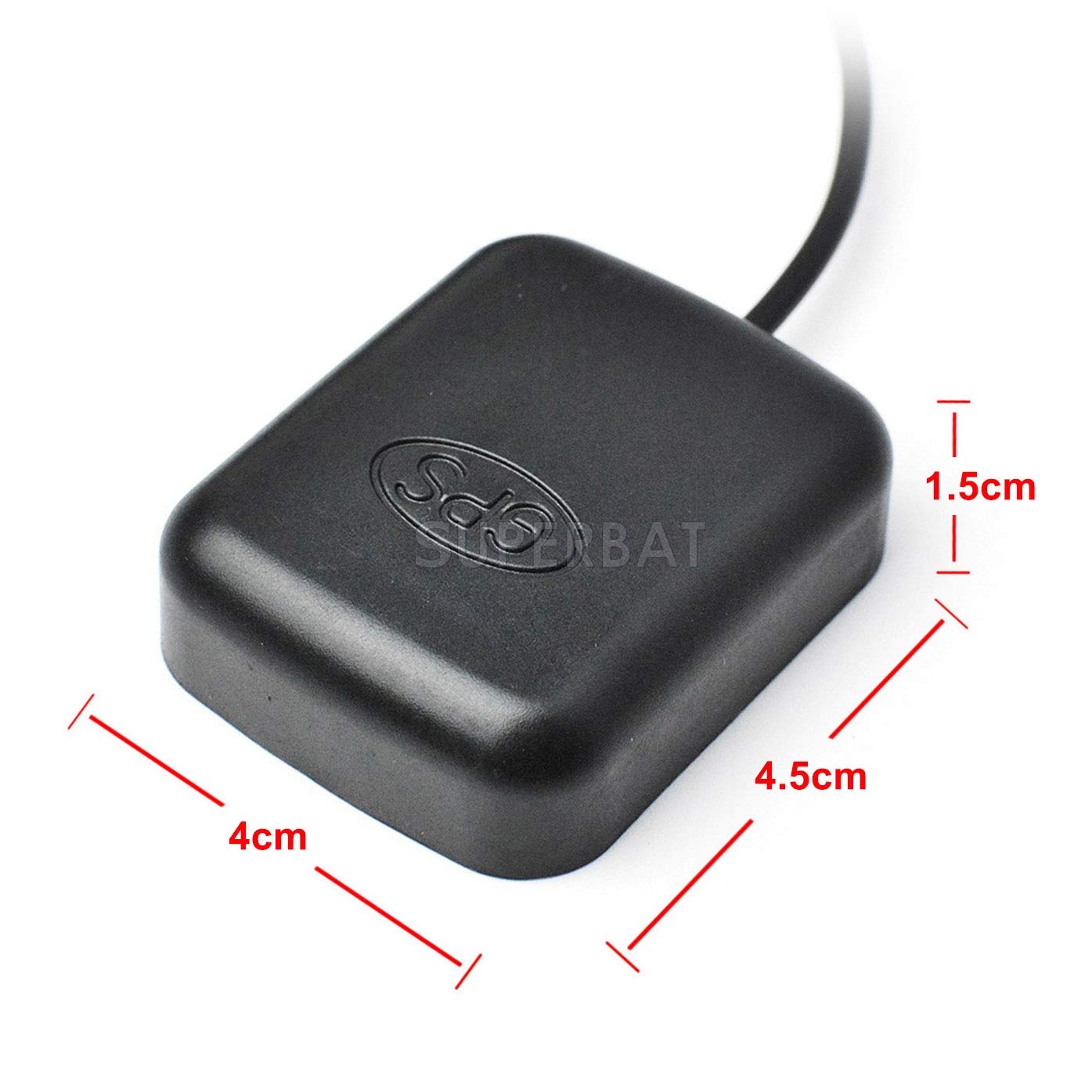

Size: 45x38x15mm
Cable: RG174
Length: 6 feet

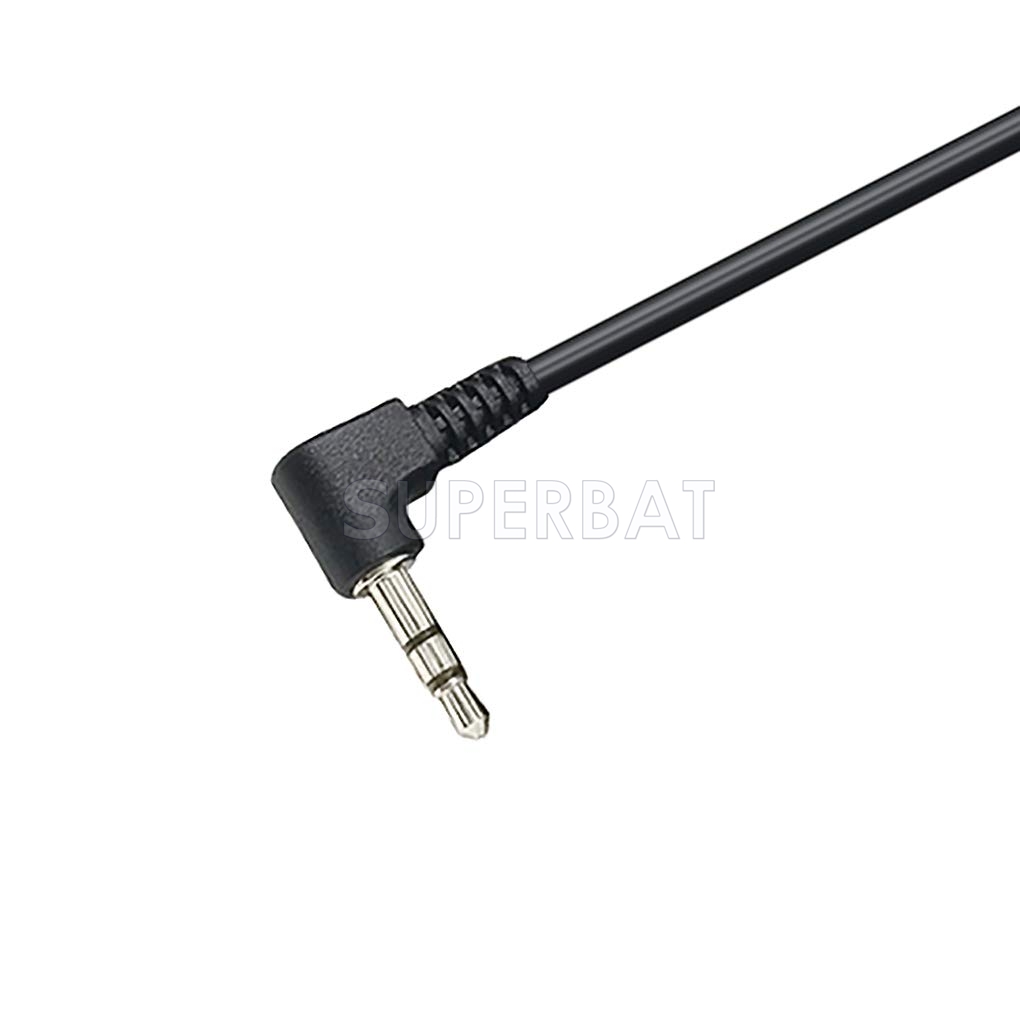

Connector: 3.5mm Audio Plug Connector;

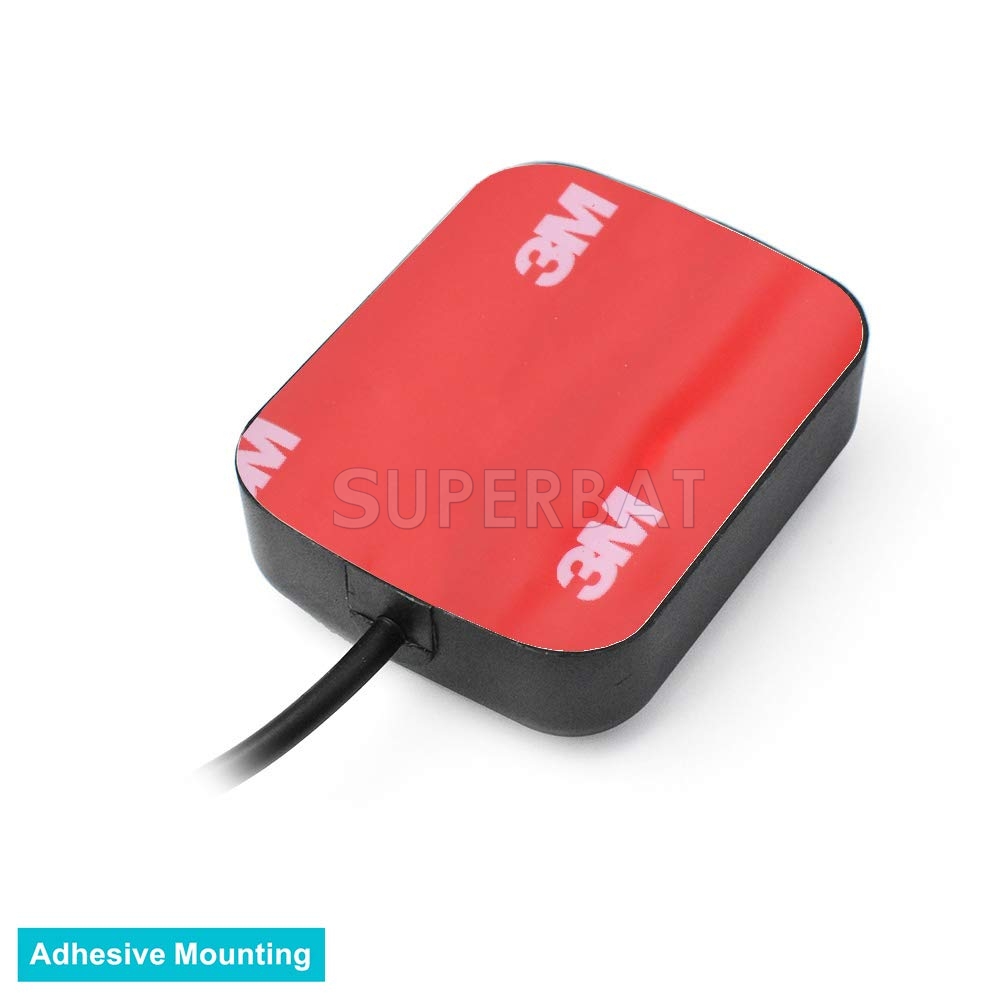

Mounting: Adhesive Mounting;
Housing: Black
4. Environmental
Working Temp: -40 to 85℃
Waterproof test: 4 hours under the tap, let the water rush over the housing;
Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
Humidity: 95% ~ 100% R

5.APPLICATIONS:


papago Dash cams

GoSafe 118

GoSafe 200

GoSafe 260

GoSafe 381

GOSAFE 760

AUKEY Dash Cams

DR01

DR02

DR02D

DR02J

DR03
