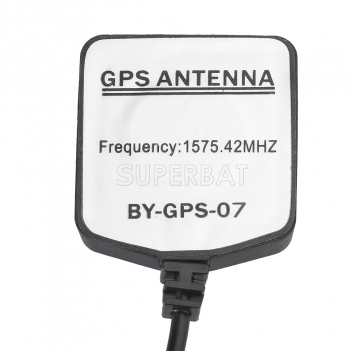

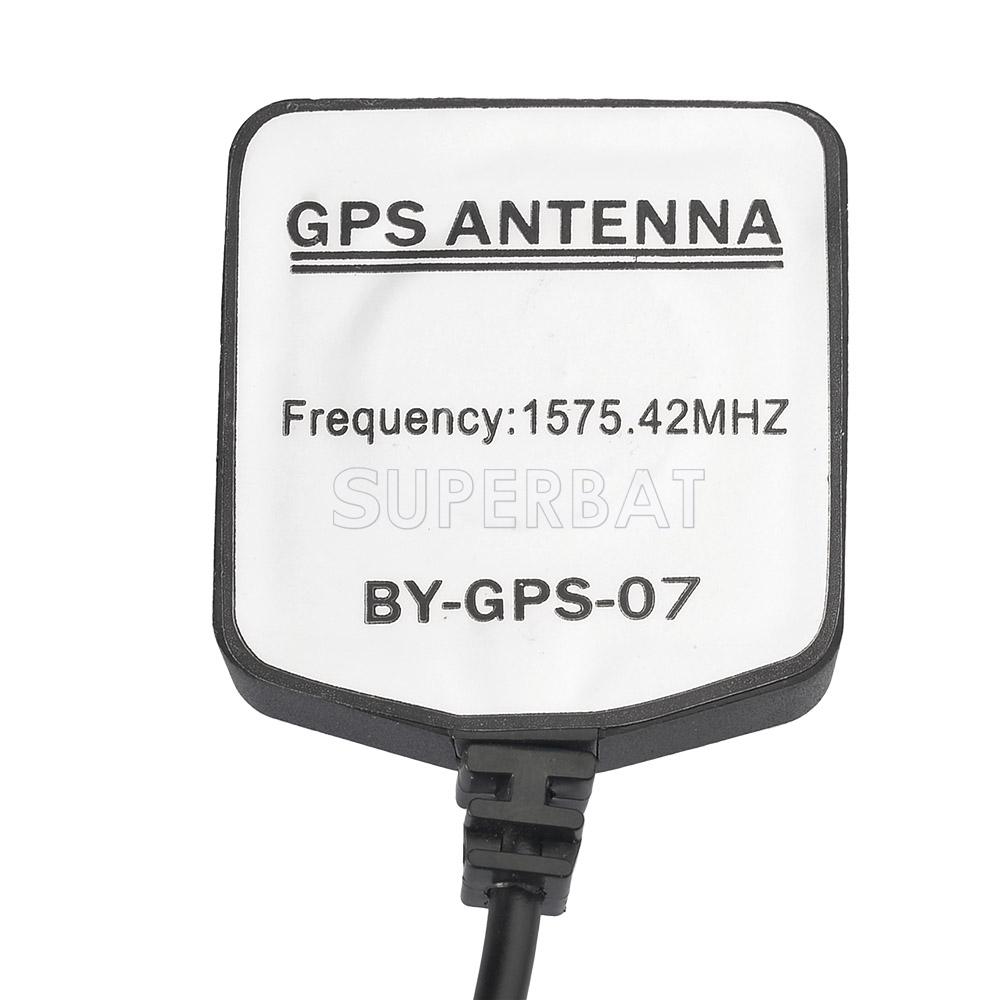

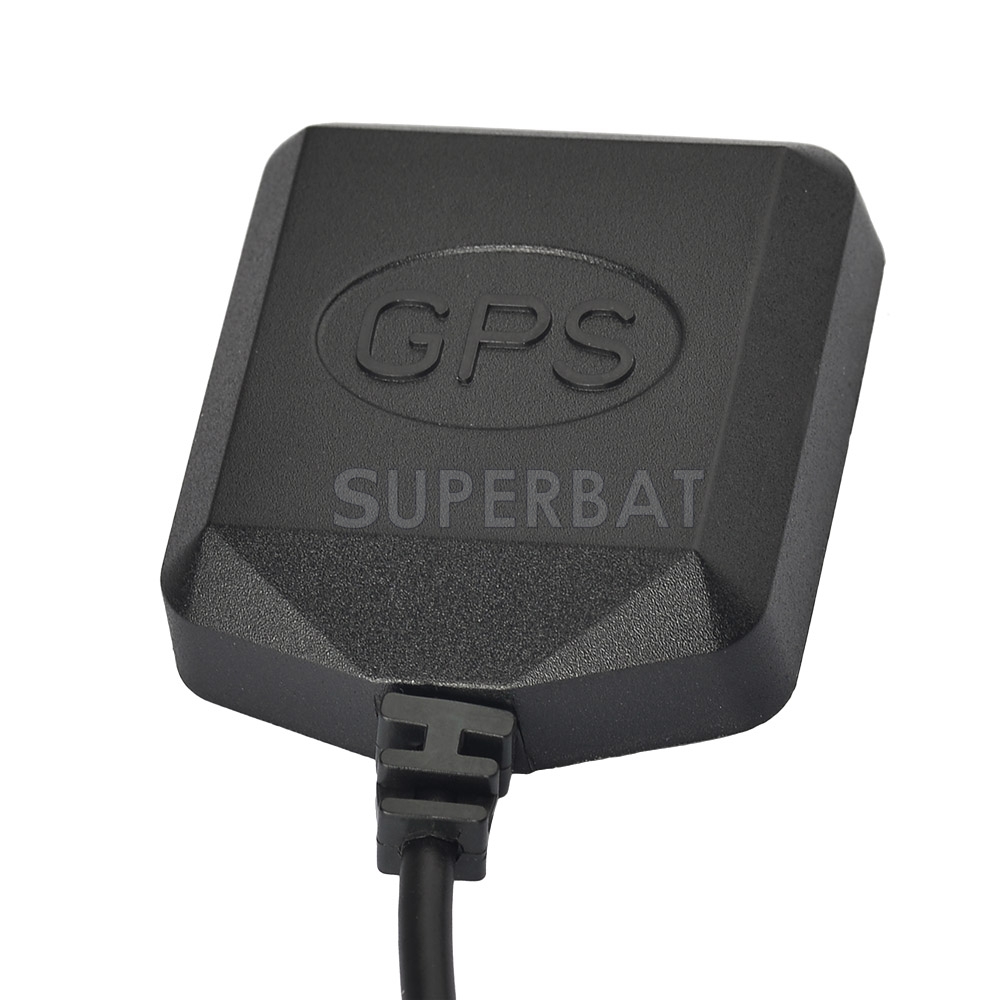

Superbat TNC Plug GPS mini Magnetic base Antenna Aerial Connector Cable for TomTom Garmin Navman Clarion GPS Navigation Receiver
Unit Price: $9.50
sku:GA07-300-T01SP
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $9.50 $8.55 $7.70 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 9990
Quantity: Units

Aplication: Furuno End connector: TNC Connector Style: Straight

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size 38x34x11mm

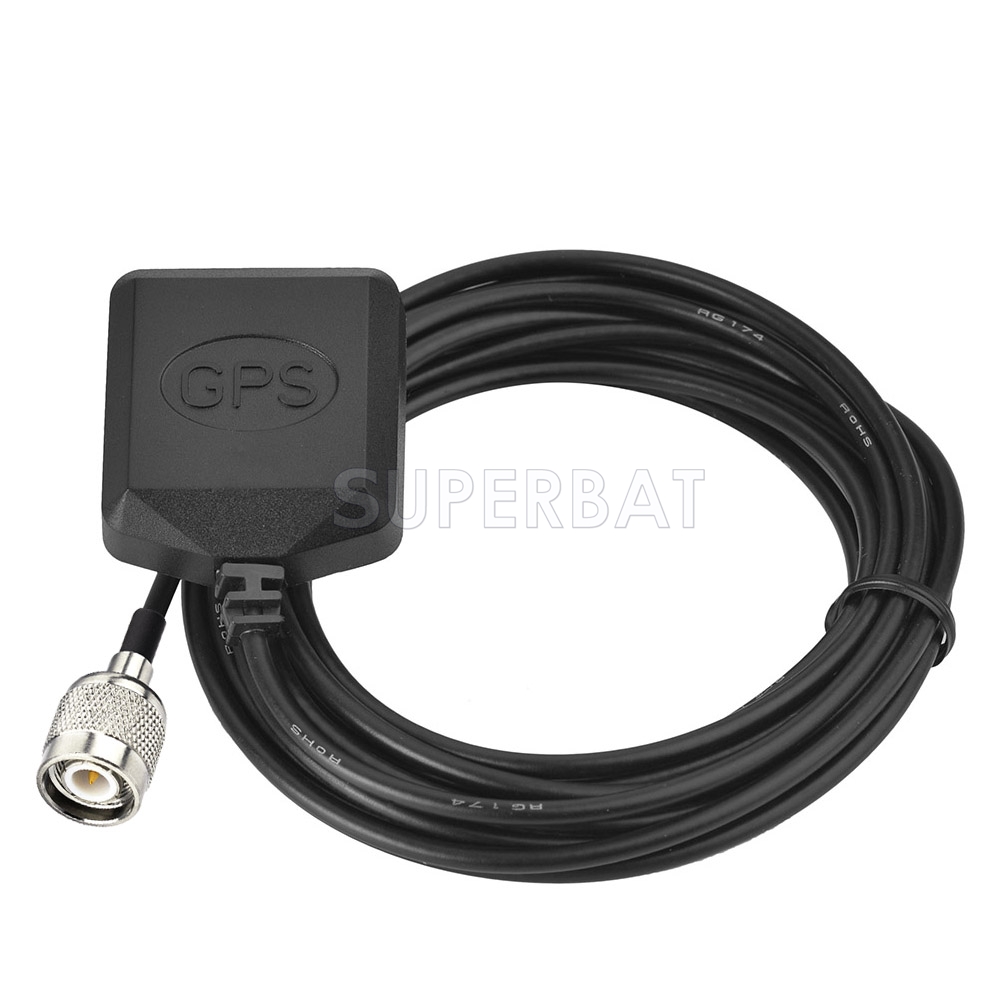

Cable :RG174 3 meter / contact us for other length

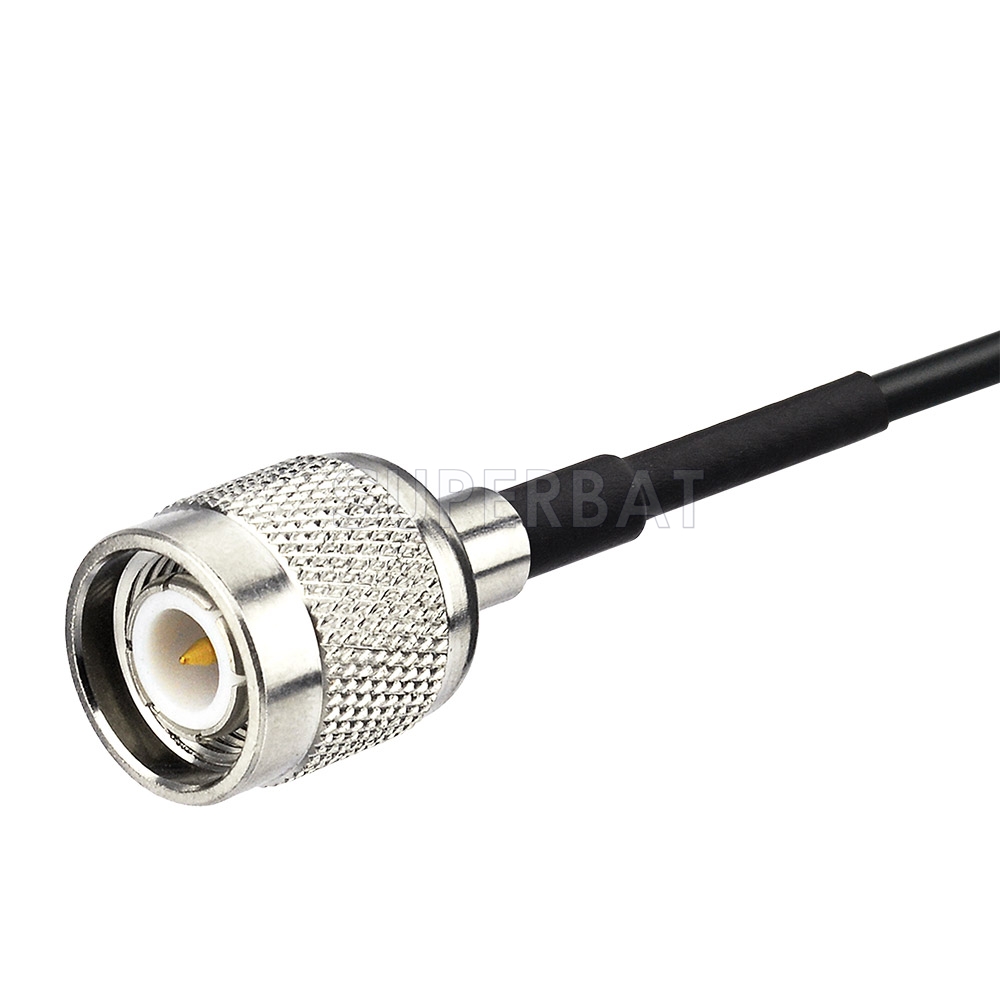

Connector :TNC male straight default/ SMA/SMB/SMC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

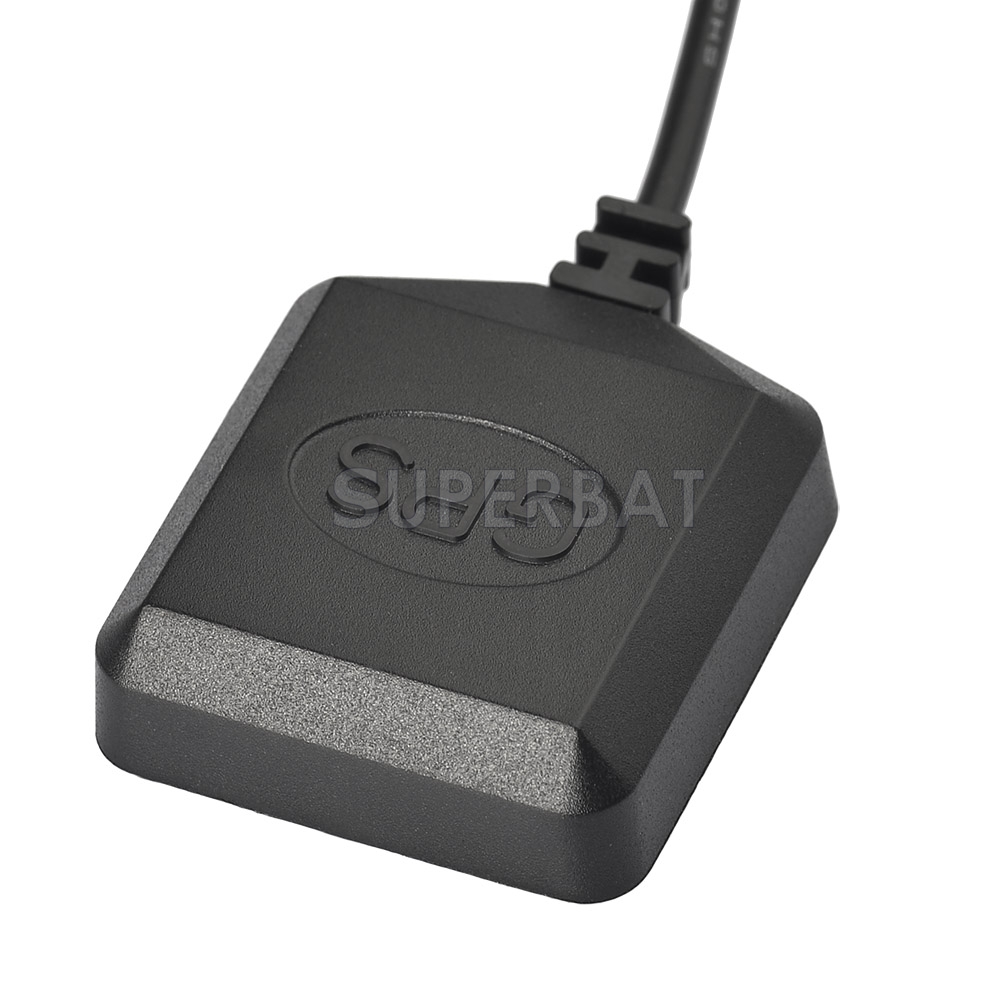

Mounting: Magnetic base

Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) Aplication:

Furuno GP 32 GPS receiver

Furuno GP 35 GPS receiver,

Furuno GP 36 GPS receiver,

Furuno GP 37 GPS receiver

Furuno GP 80 Receiver,

Furuno GP 80D Receiver

Furuno GP 90 Receiver

Furuno GP 150 GPS receiver,

Furuno GP 150D GPS receiver

Furuno GP 1600 GPS receiver,

Furuno GP 1610C GPS receiver

Furuno GP 1650 GPS receiver,

Furuno GP 1650D GPS receiver,

Furuno GP 1650D/NT GPS receiver,

Furuno GP 1650F/NT GPS receiver,

Furuno GP 1650/NT GPS receiver,

Furuno GP 1650W GPS receiver,

Furuno GP 1650W/NT GPS receiver

Furuno GP 1810 GPS Receiver

Furuno GP 1850 GPS Receiver,

Furuno GP 1850/NT GPS Receiver,

Furuno GP 1850W GPS Receiver,

Furuno GP 1850W/NT GPS Receiver,

Furuno GP 1850WD GPS Receiver,

Furuno GP 1850WD/NT GPS Receiver

Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
