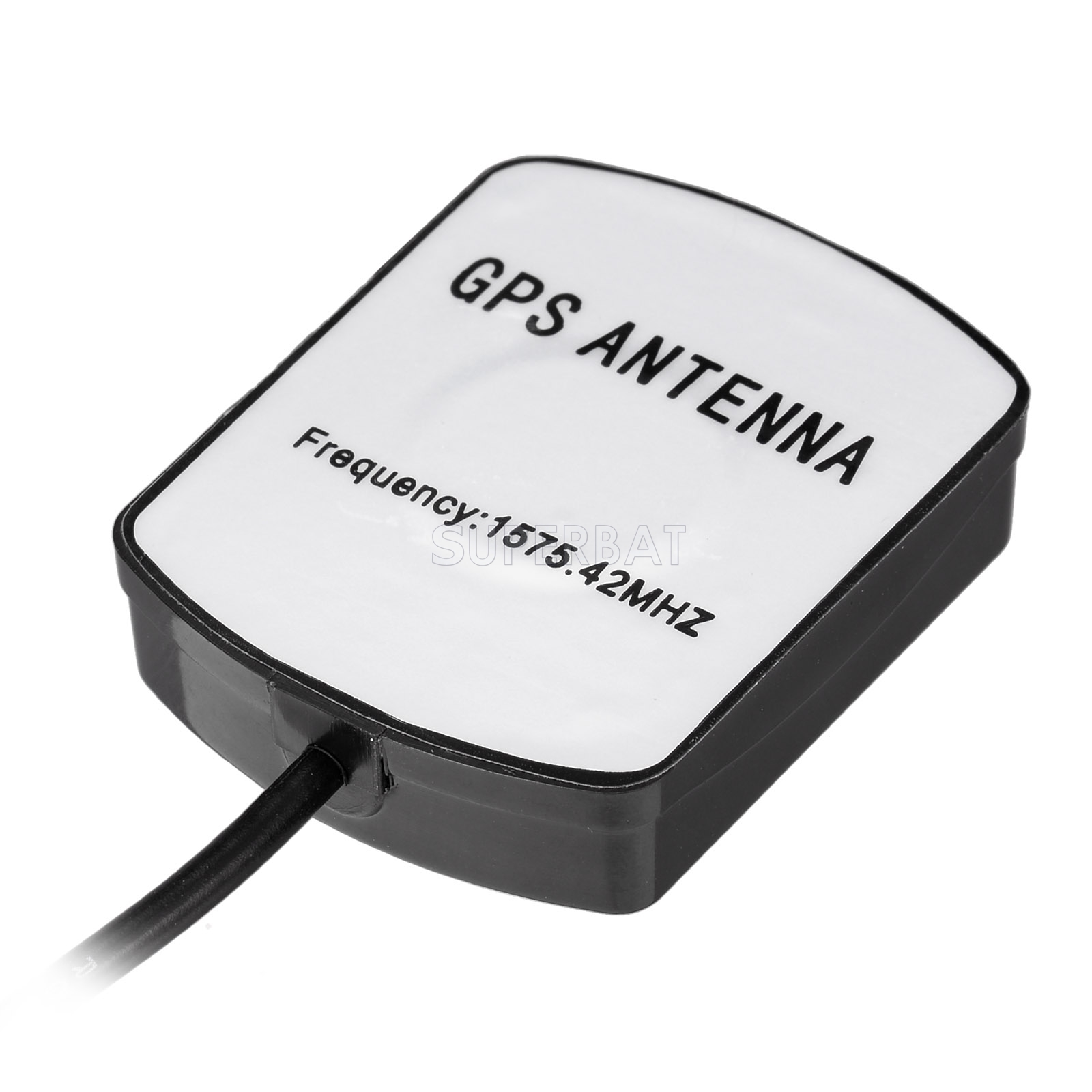

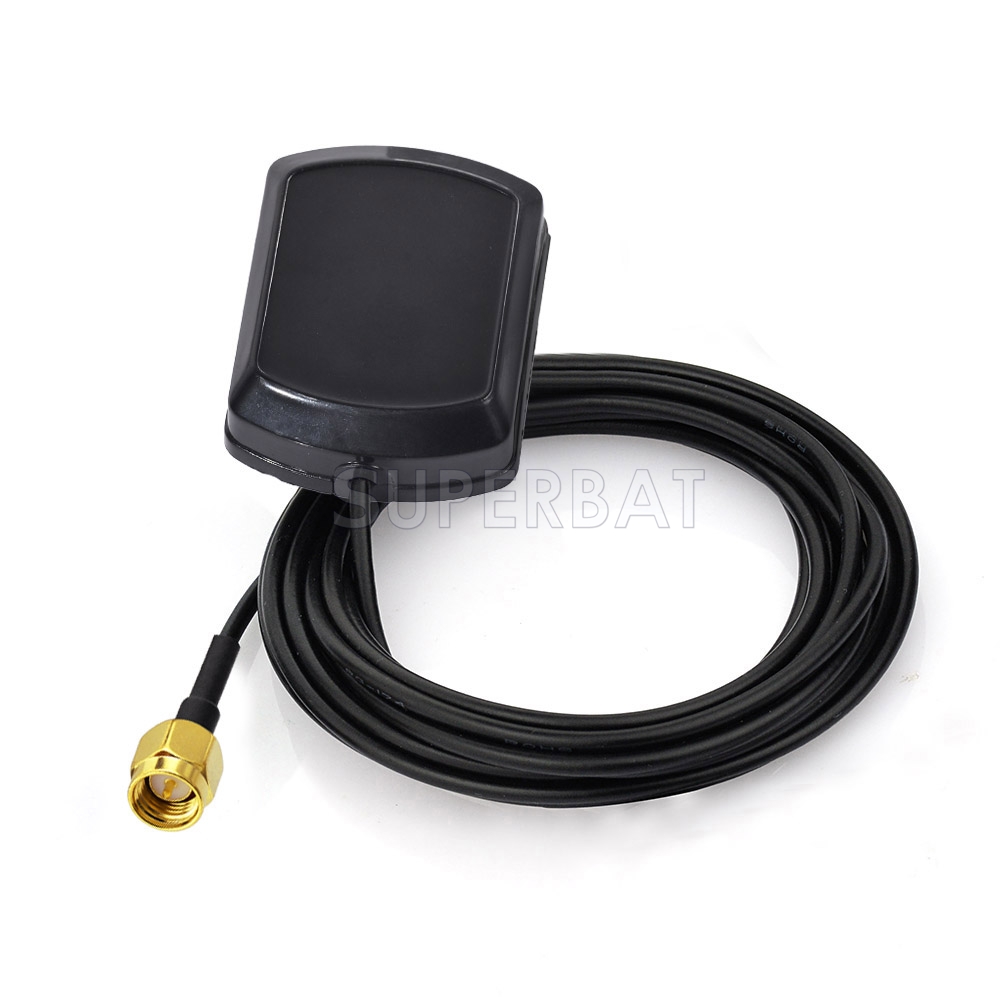

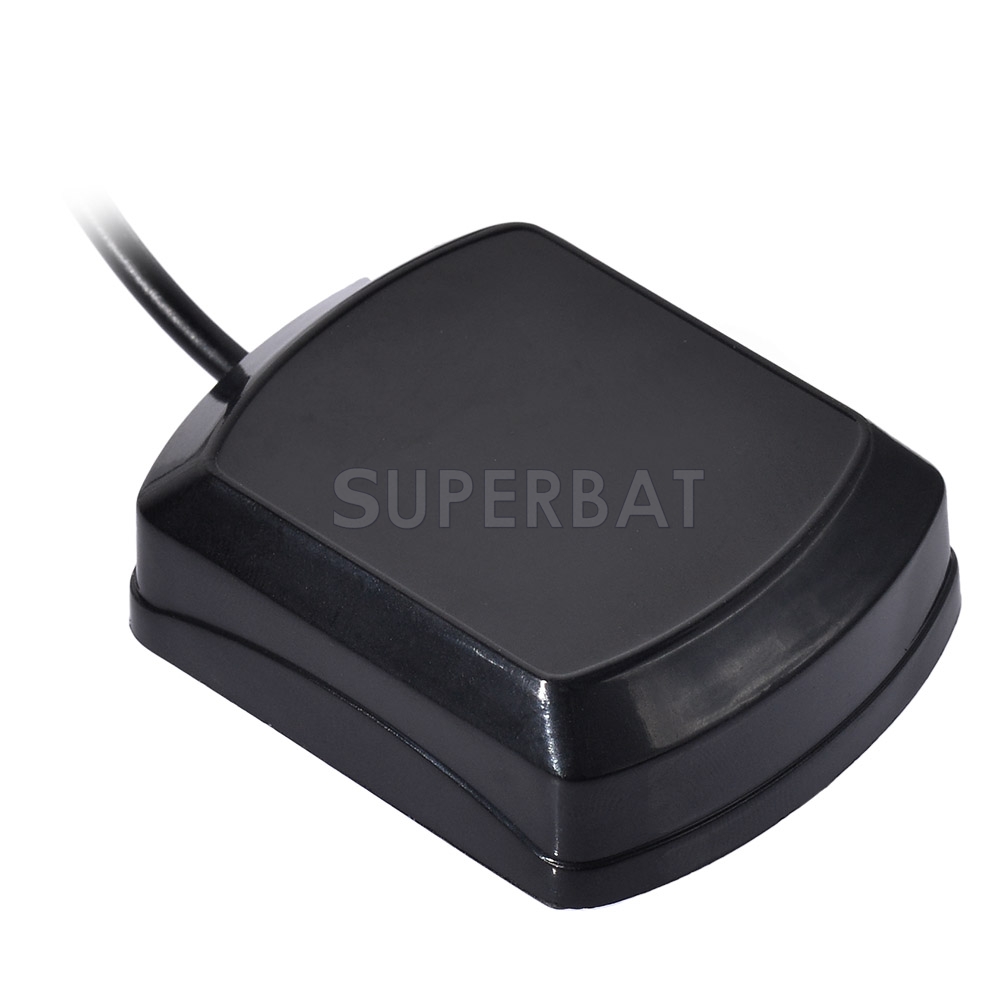

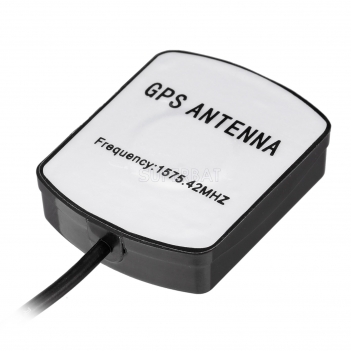

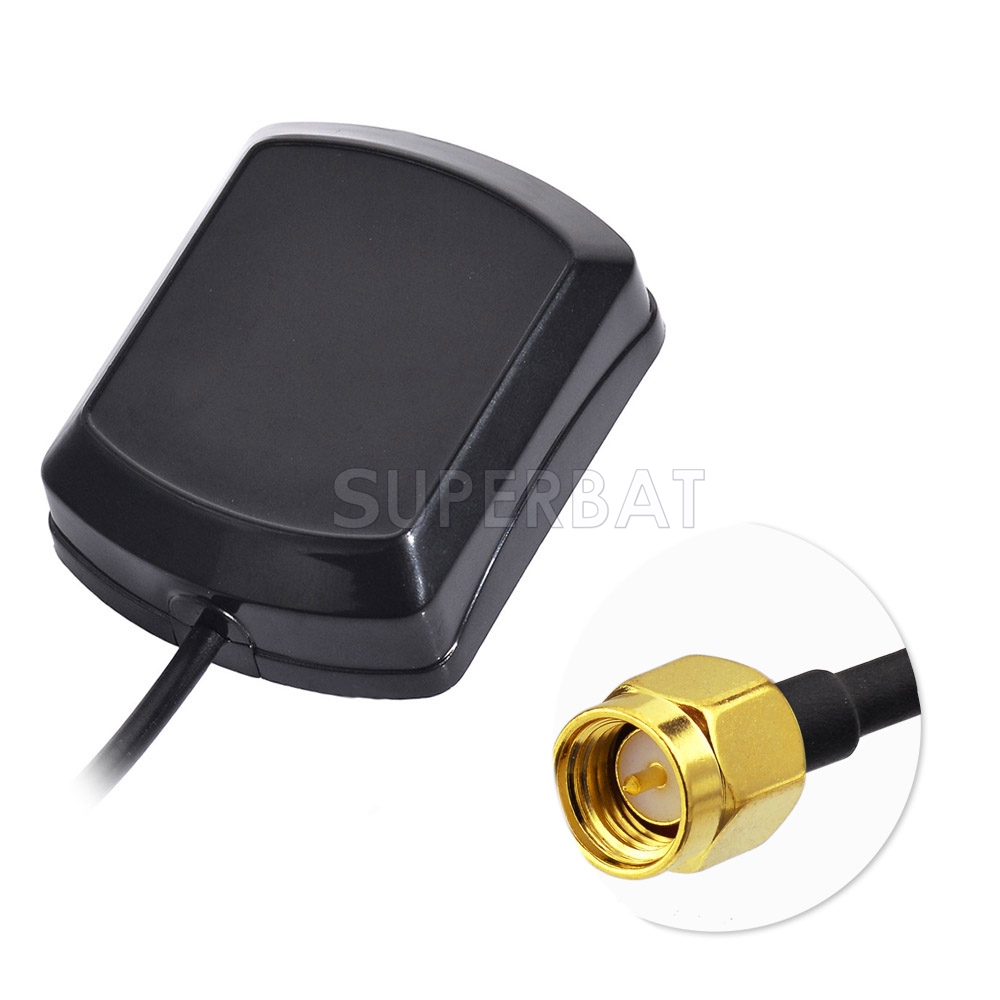

Superbat SMA Plug GPS Antenna Aerial Connector Cable for Boss Jensen GPS Navigation Receiver
Unit Price: $10.00
sku:GA01-300-S01SP
quantity 1 - 9 10 - 99 100 - 499 500 - 9999 10000+
Price Each $10.00 $9.00 $8.10 $7.30 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Aplication: Bose , Jensen End connector: SMA Connector Style: Straight

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :48x39x16mm
Cable :RG174 3 meter / Contact us for other length

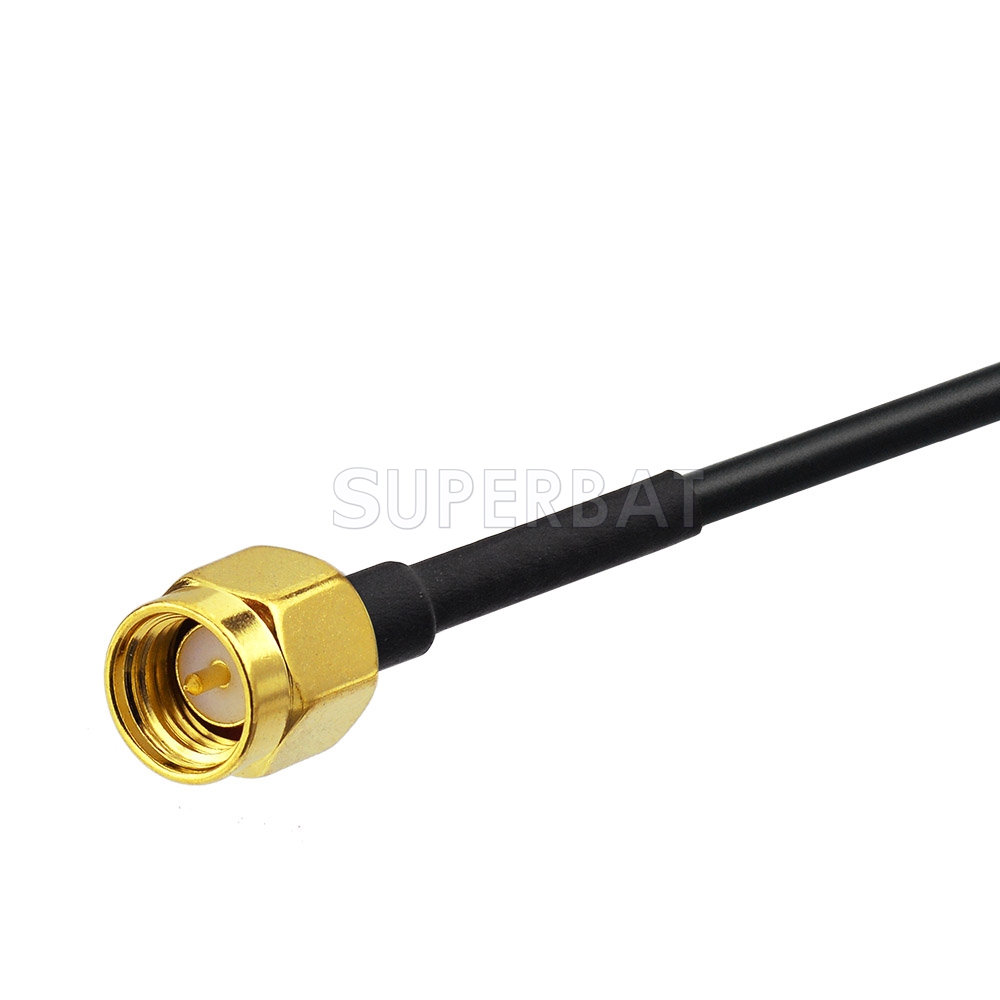

Connector :HRS FAKRA jack Straight default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APPLICATIONS:

Boss

BN965BLC

BV960NV

BV9384NV

Jensen

Jensen VX7021

Jensen VX7228

Jensen VX7022

Jensen VX7528

Jensen VX7024

Jensen VX7014

Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
