Superbat Outdoor antenna 4g 698-960/1710-2700MHz 12DBi Onmi External barrel antenna with 5m double slider connector SMA for GSM W-CDMA 2g 3g 4G signal
Unit Price: $39.28
sku:4A2-0232-S01SP-S01SP-100-500
End connector
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 698-960/1710-2700MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 10dB Radiation: Omnidirectional Cable Type: RG174 Cable Length: 5M Weight: 700g

This is a 4G LTE Antenna designed for 4g router and signal repeater.It has the following characteristics:

1. Compatible with the 4G mobile broadband modem router, simple installation, no software required.

2. Fits 4G modems with male SMA

3. Compatible List: 3G 4G router modem

4. Usable indoor or outdoor to improve and maintain excellent signal quality.

5. Frequency range: 698-960 / 1710-2700 MHZ

6 VSWR: <2.5

7. Gain: 10-12dBi

8. Polarization Type: Vertical

9. Radiation: Omni

10. Maximum input power: 10 W

11. Input impedance: 50 ohms

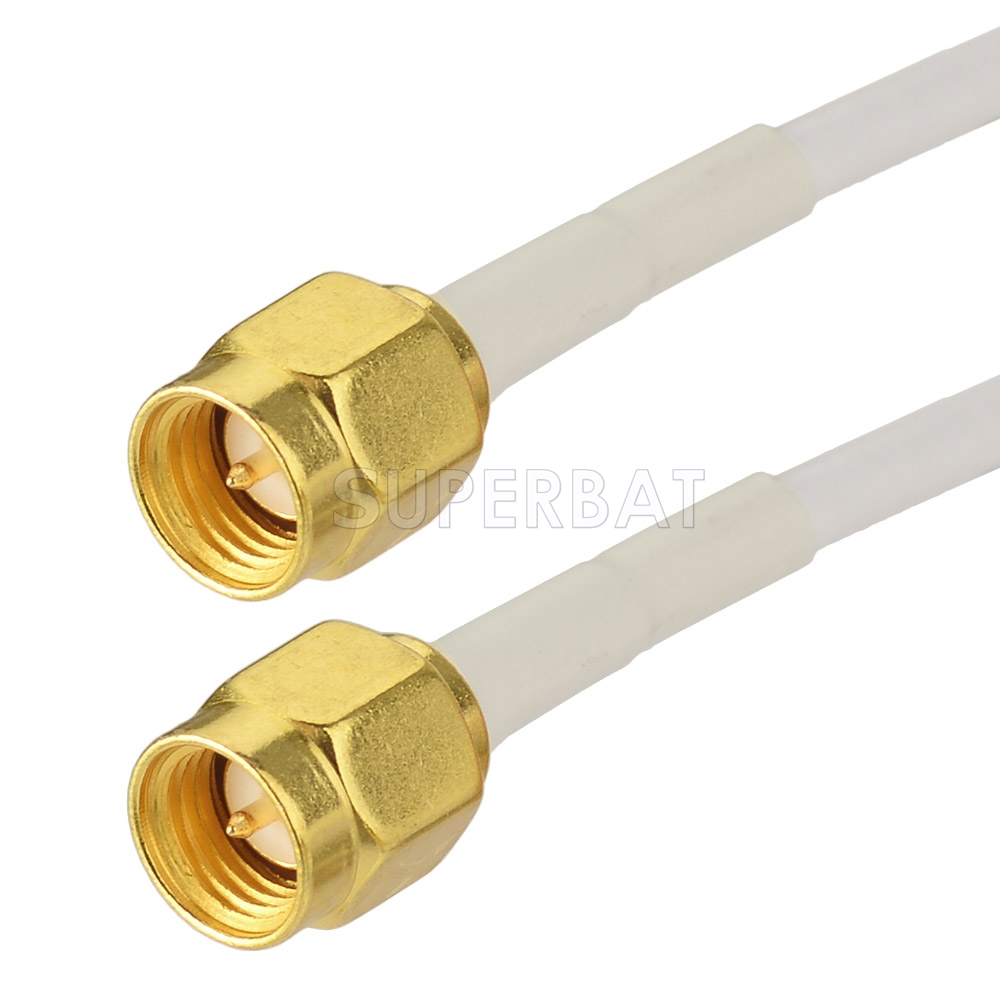

12. Type of connector: SMA

13. Cable Type: RG174

14. Cable Length: approx. 5m

15 Dimensions: Appox. 23 X 6.5X6.5 CM

16 Material: Metal + plastic

17. Color: white

18. Installation tips:

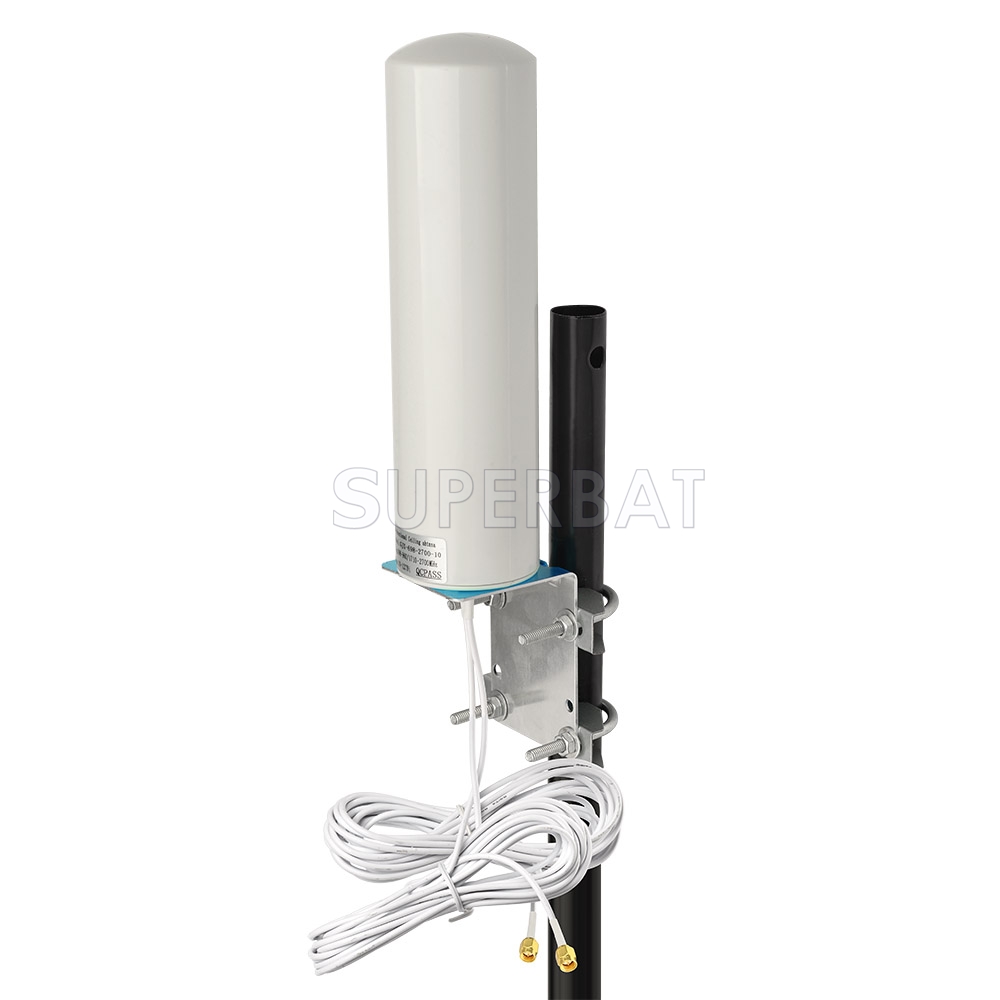

The antenna must be mounted vertically to maximize performance

The antenna must not be mounted against metal

This antenna is compatible with:ZTE MF28G,ZTE MF29T,ZTE MF29S2,ZTE MF28D

Huawei E5186,Huawei E5172,Huawei B890,Huawei B593u-12,Huawei B593S-22,Huawei B593U-91,Huawei B593U,Huawei E5172AS-22,Huawei E517S22

Vodafone B4000,Vodafone B3000,Vodafone B2000,Vodafone B1000
