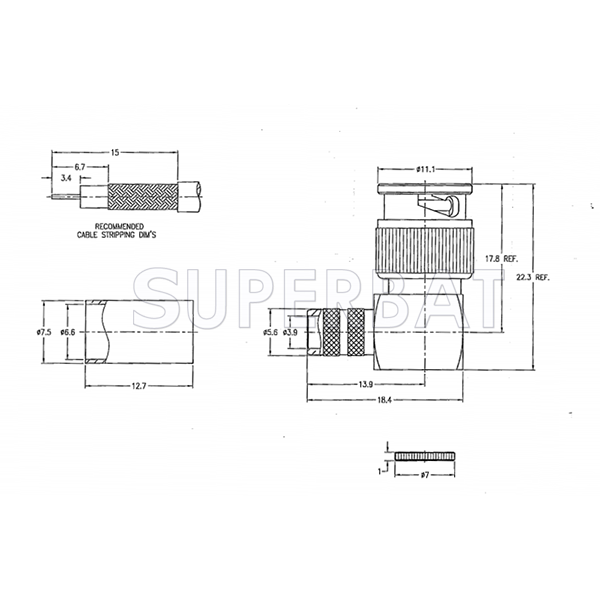

Superbat Mini-BNC Right Angle Crimp Plug Male Connector 75 Ohm for RG-59 Coax Cable
Unit Price: $2.16
sku:B06-RA059-41BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: Mini BNC Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: RG59 Body Style: Right Angle Impedance: 75 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The Mini BNC connector series offers the high performance and wide compatibility of the original Amphenol 75 Ω BNCs. However, the Mini-BNC has a higher connector density. Specifically, 40% more interconnects in the same area.

Furthermore, the Mini BNC series expands on the SMB and SMZ system. Mini BNCs provide a positive locking bayonet system whereas SMB and SMZ have no locking feature. In addition, the Mini BNC is specifically designed to be a drop-in replacement and used with the Telco DS3 application.

The Mini BNC is compatible with the present field installer tooling and strip dimensions.



FEATURES AND BENEFITS

Crimp/Crimp design compatible with Trompeter tooling

Same standard installation tooling using the best-in-class Telco DSC cable terminations assignment

Same foot print on the jack side, making the Mini BNC a drop-in replacement for most high-density applications using SMB or SMZ jacks

75 allowing room for movement up the frequency chain while matching impedance

Bayonet locking coupling mechanism



APPLICATIONS

Antennas

Medical Equipment

Automotive (GPS)

Computers/LANs

Mil-Aero

Base Stations

Cable Modems

Instrumentation

Network Analyzers

Telecom
