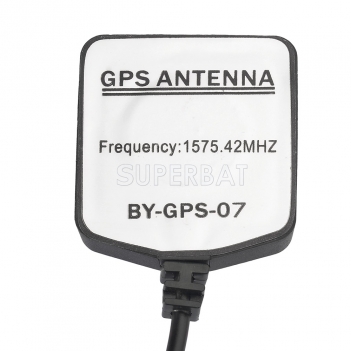

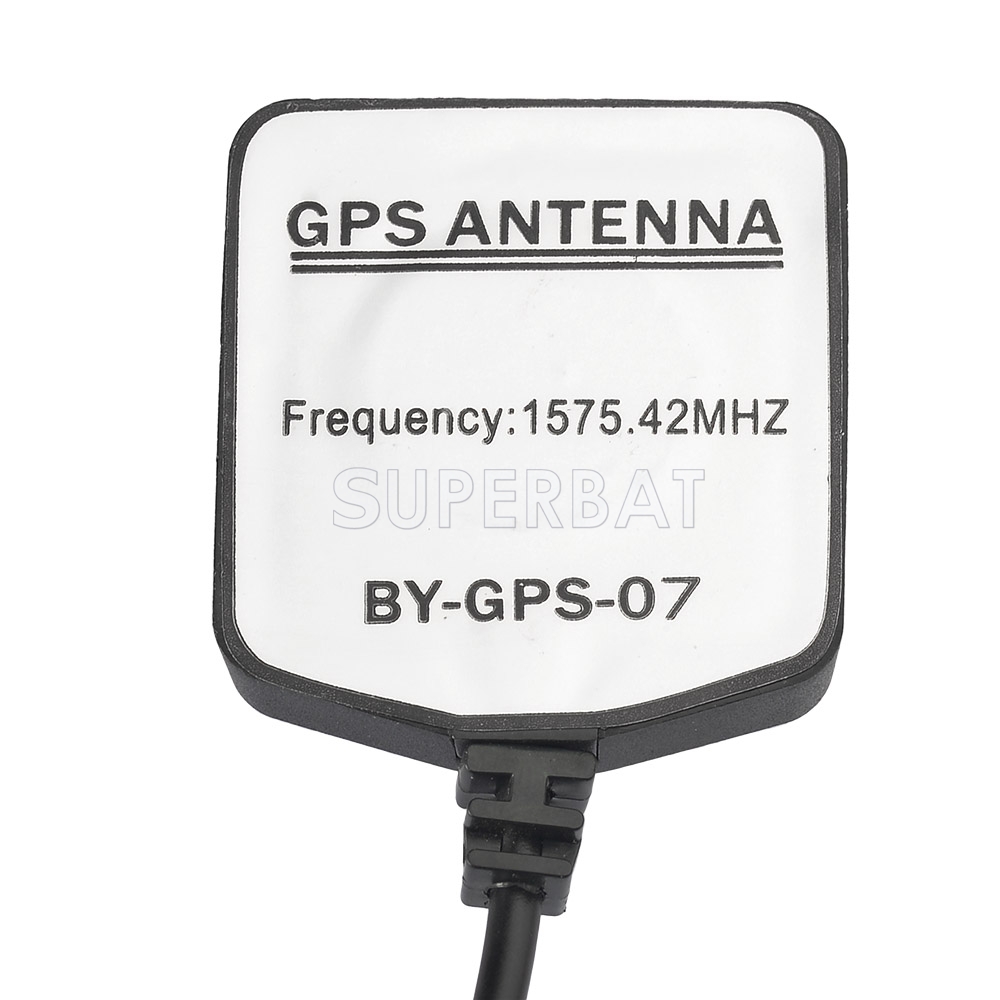

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size 38x34x11mm

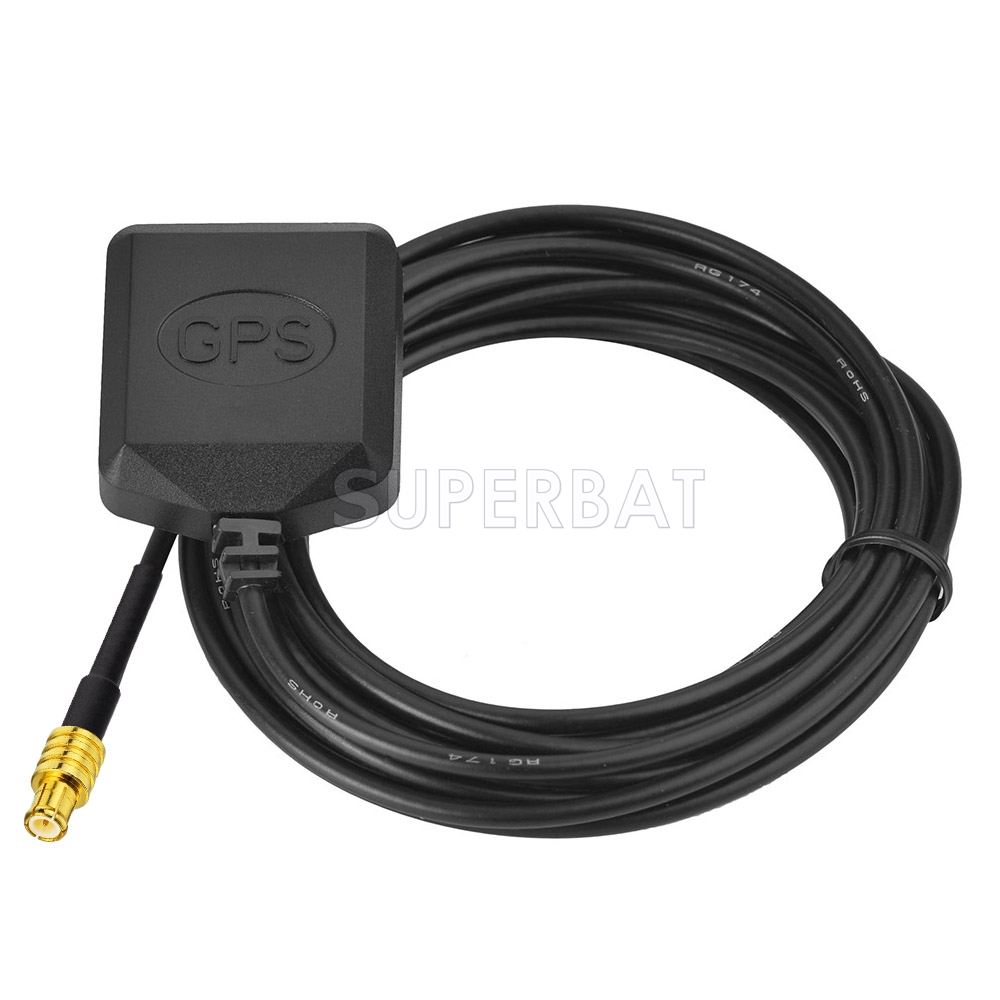

Cable :RG174 3 meter / contact us for other length

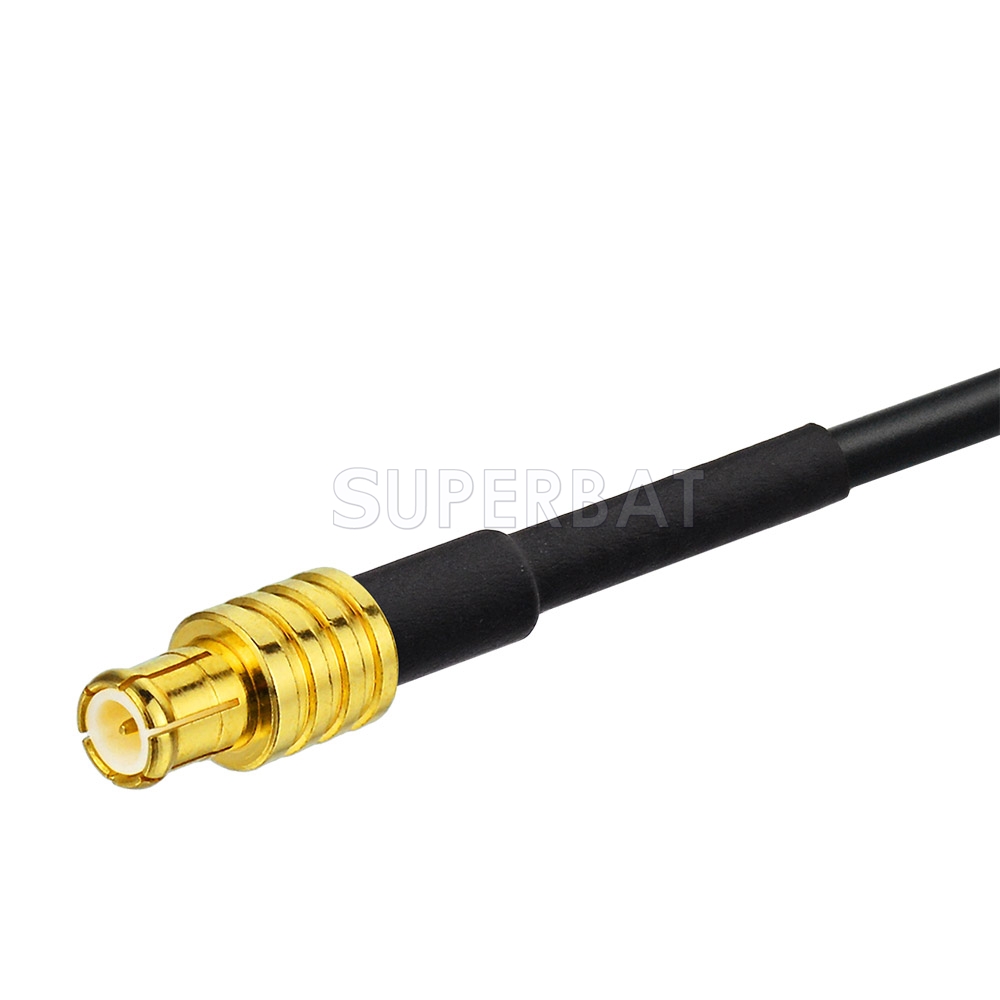

Connector :MCX male straight default/ SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

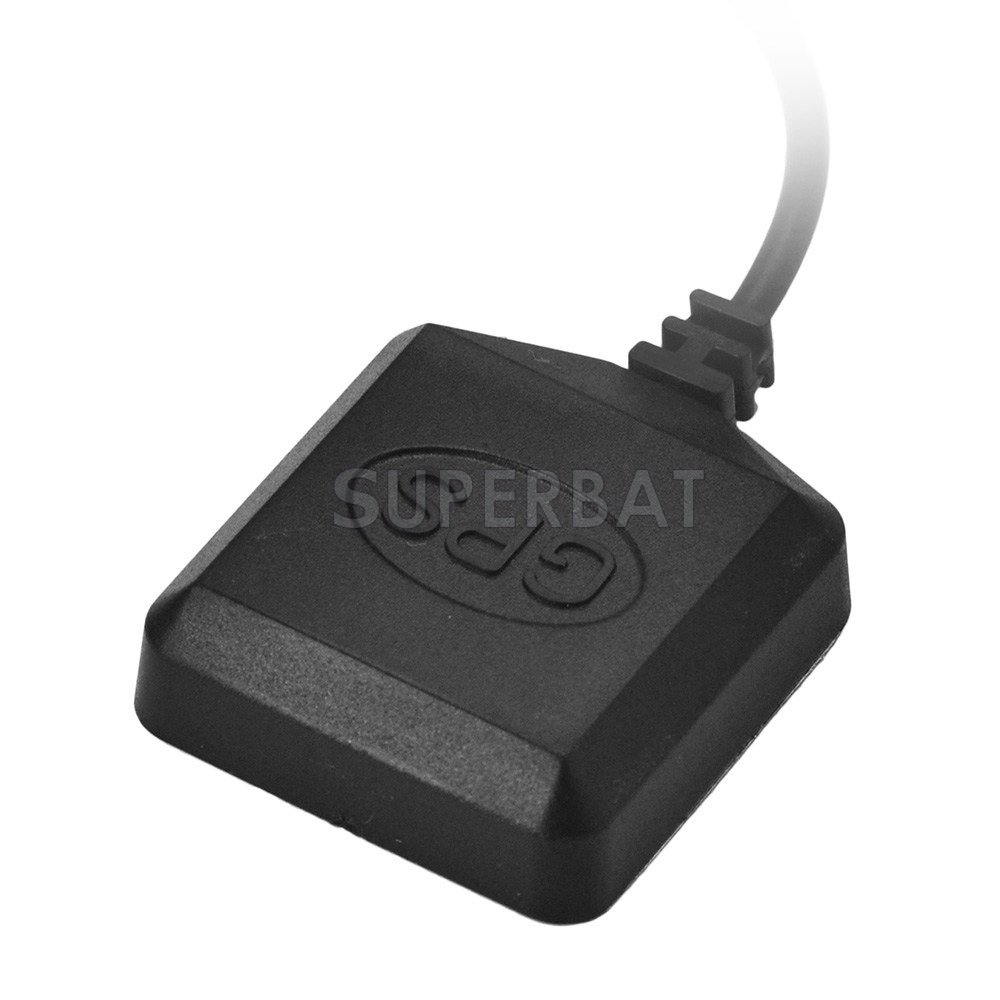

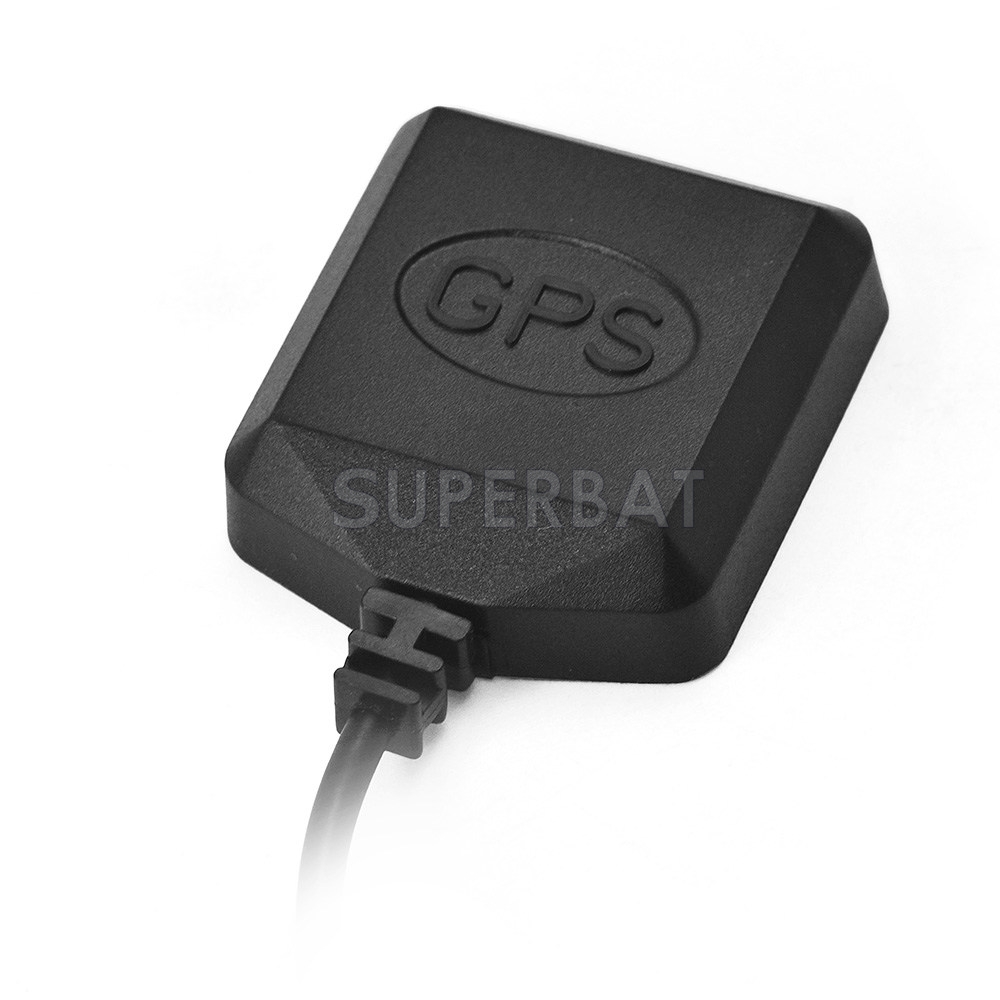

Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APLICATIONS:
TomTom
TomTom Go 510 (2005)
TomTom GO 530
TomTom GO 630
TomTom GO 630 Traffic
TomTom GO 710
TomTom GO 730
TomTom GO 730 Traffic
TomTom GO 910
TomTom GO 930
TomTom GO 930 Traffic
TomTom ONE
TomTom ONE 1st Edition
TomTom ONE 2nd Edition
TomTom ONE Europe
TomTom ONE New Edition Europe
TomTom ONE New Edition Regional
TomTom ONE Regional
Garmin
Garmin iQue 3200
Garmin iQue 3600
Garmin iQue 3600a
Garmin iQue M3
Garmin iQue M4
Garmin iQue M5
Garmin Nüvi 350
Garmin Nüvi 350T
Garmin Nüvi 360
Garmin Nüvi 360T
Garmin Nüvi 370
Garmin Nüvi 5000
Garmin Nüvi 650
Garmin Nüvi 660
Garmin Nüvi 660 TFM
Garmin Nüvi 660T
Garmin Nüvi 670
Garmin Nüvi 670TFM
Garmin Nüvi 680
Garmin nüvi 700
Garmin Nüvi 710
Garmin Nüvi 710T
Garmin nüvi 750
Garmin Nüvi 750 TFM
Garmin nüvi 750T
Garmin nüvi 755
Garmin Nüvi 755 TFM
Garmin nüvi 755T
Garmin nüvi 760
Garmin Nüvi 760 TFM
Garmin nüvi 760T
Garmin nüvi 765
Garmin Nüvi 765 TFM
Garmin nüvi 765T
Garmin Nüvi 770
Garmin Nüvi 770 TFM
Garmin Nüvi 770T
Garmin Streetpilot 2610
Garmin StreetPilot 2620
Garmin StreetPilot 2650
Garmin StreetPilot 2660
Garmin Streetpilot 2720
Garmin StreetPilot 2730
Garmin Streetpilot 2820
Garmin StreetPilot 7500
Garmin Streetpilot C310
Garmin Streetpilot C320
Garmin Streetpilot C330
Garmin Streetpilot C340
Garmin Streetpilot C510
Garmin Streetpilot C530
Garmin Streetpilot C550
Garmin StreetPilot i2
Garmin StreetPilot i3
Garmin StreetPilot i5
Garmin zumo 500
Garmin zumo 550
Garmin zumo 660 Europa
Navman
Navman iCN 310
Navman iCN 320
Navman iCN 330
Navman iCN 510
Navman iCN 520
Navman icn 530
Navman iCN 550
Navman iCN 610
Navman iCN 620
Navman iCN 630
Navman iCN 635
Navman iCN 650
Navman iCN 720
Navman iCN 750
Clarion
Clarion MAP 360
Clarion MAP 370
Clarion MAP 560
Clarion MAP 670
Clarion MAP 680
Clarion MAP 690
Clarion MAP 770
Clarion MAP 780
Clarion MAP 790
Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
