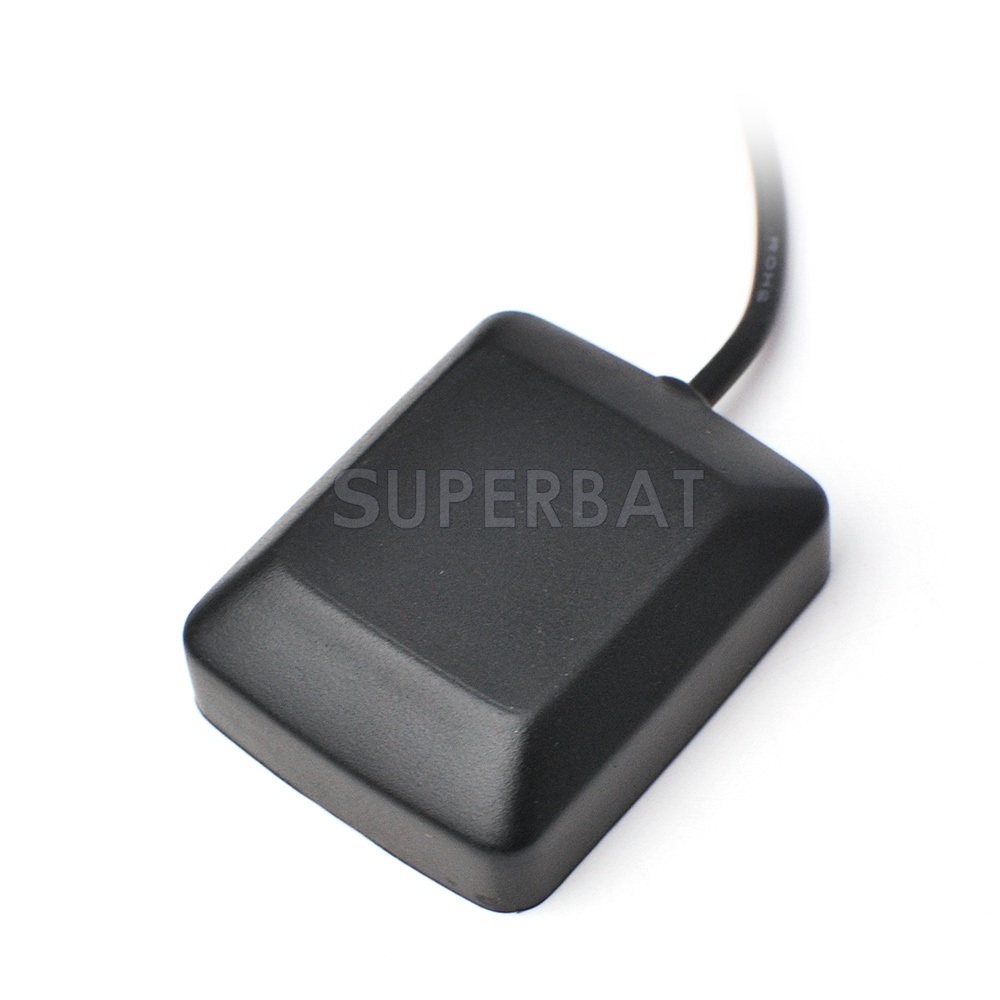

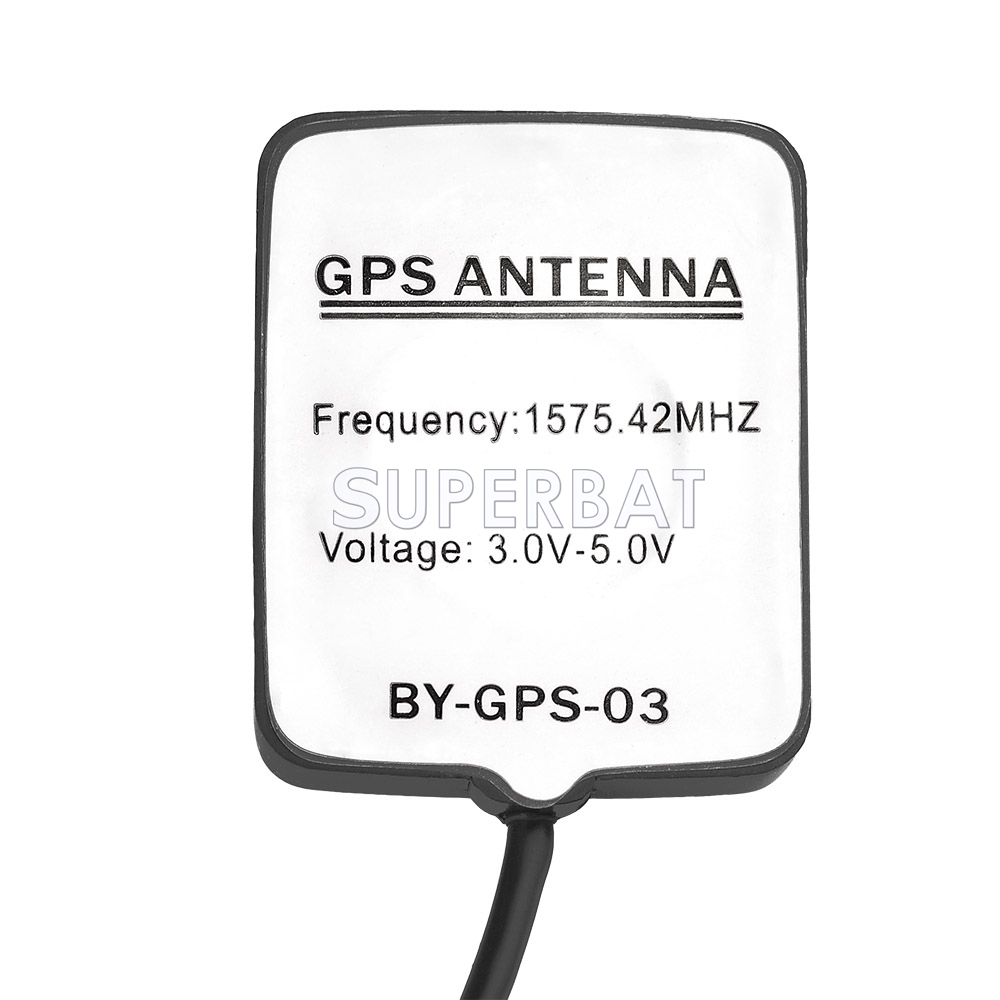

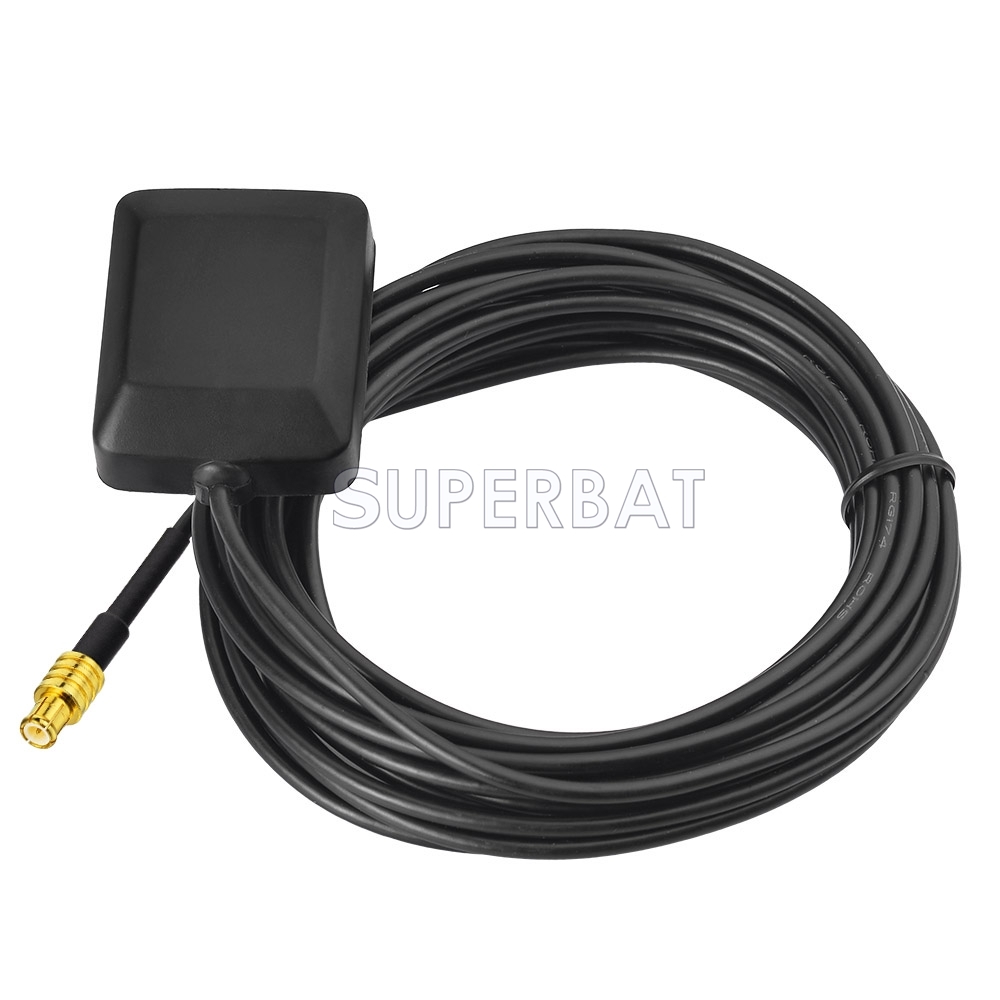

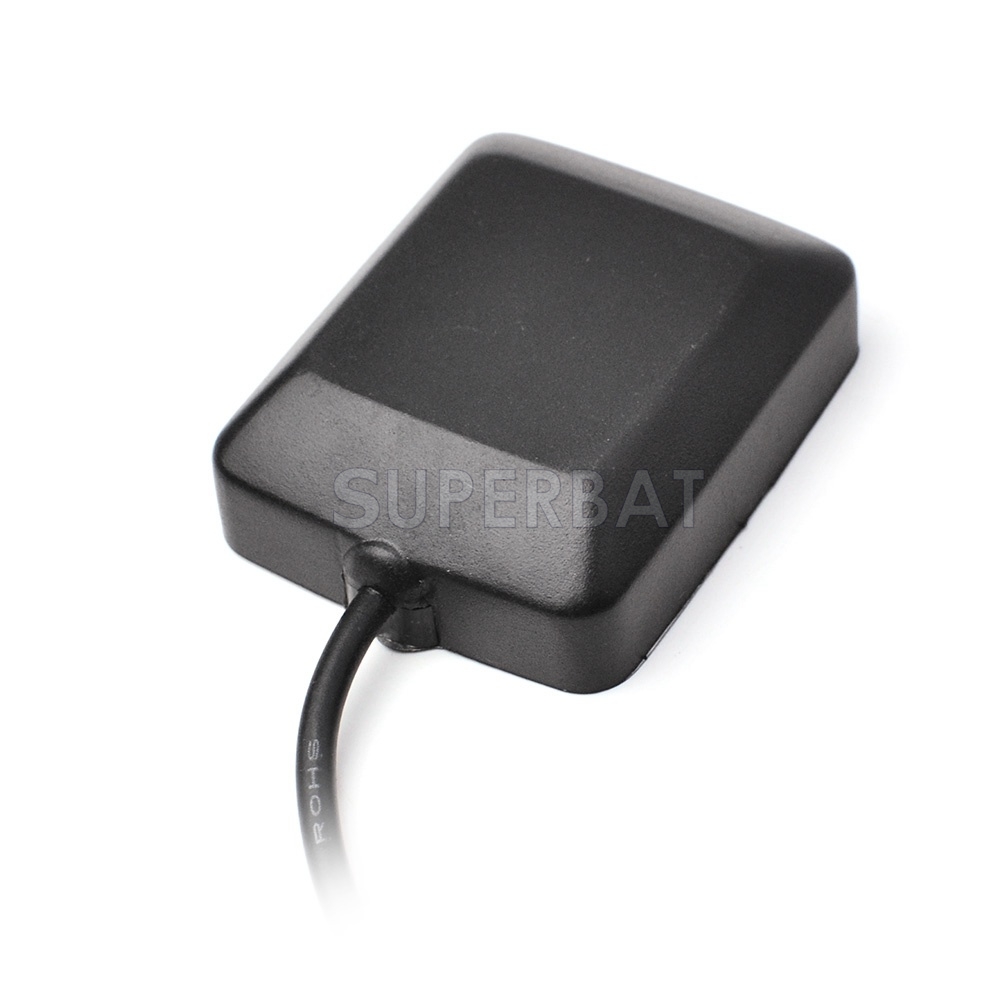

Superbat MCX Plug GPS Active Magnetic base Antenna Aerial Connector Cable for TomTom Garmin Navman Clarion GPS Navigation Receiver
Unit Price: $10.00
sku:GA03-300-M03SP-GPS
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $10.00 $9.00 $8.10 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 999
Quantity: Units

Aplication: Garmin , Clarion , Navman , TomTom End connector: SMB Connector Style: Straight

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :45x36x14mm
Cable :RG174 3 meter / Contact us for other length

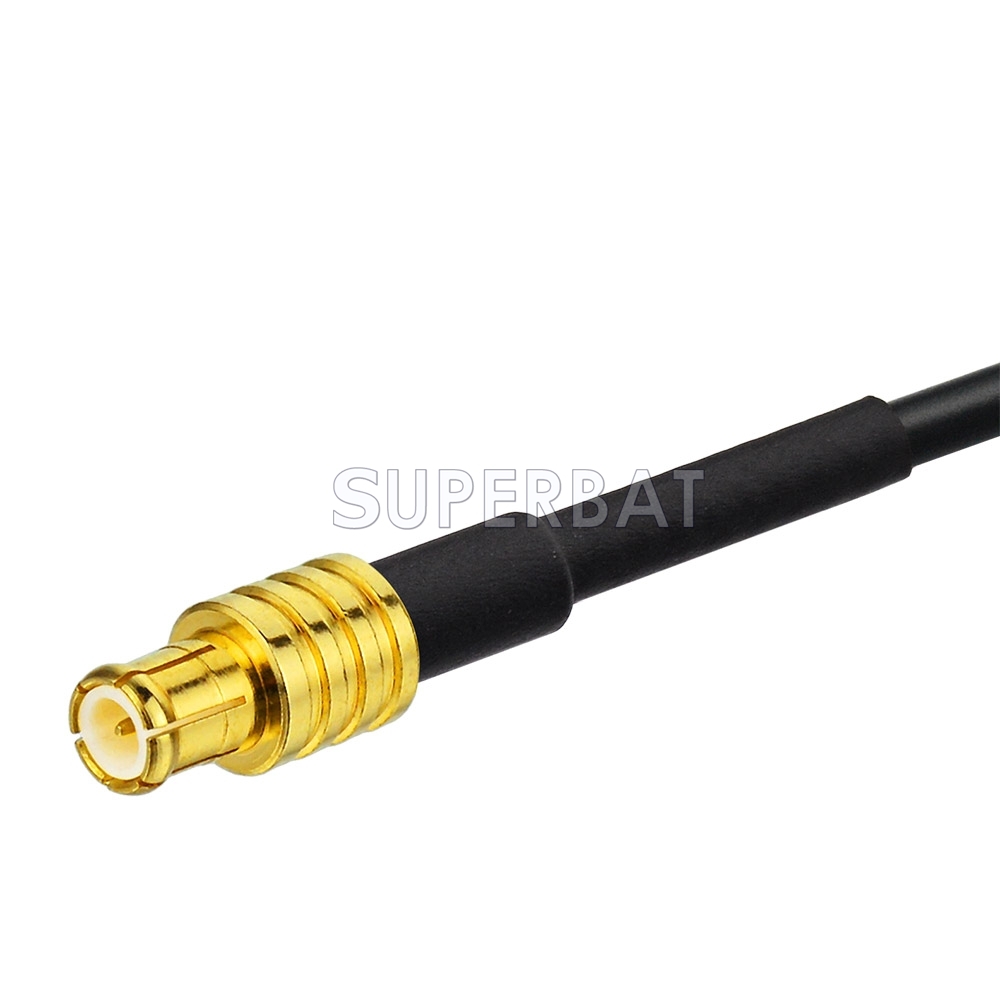

Connector: MCX plug straight
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APLICATIONS:

TomTom

TomTom Go 510 (2005)

TomTom GO 530

TomTom GO 630

TomTom GO 630 Traffic

TomTom GO 710

TomTom GO 730

TomTom GO 730 Traffic

TomTom GO 910

TomTom GO 930

TomTom GO 930 Traffic

TomTom ONE

TomTom ONE 1st Edition

TomTom ONE 2nd Edition

TomTom ONE Europe

TomTom ONE New Edition Europe

TomTom ONE New Edition Regional

TomTom ONE Regional

Garmin

Garmin iQue 3200

Garmin iQue 3600

Garmin iQue 3600a

Garmin iQue M3

Garmin iQue M4

Garmin iQue M5

Garmin Nüvi 350

Garmin Nüvi 350T

Garmin Nüvi 360

Garmin Nüvi 360T

Garmin Nüvi 370

Garmin Nüvi 5000

Garmin Nüvi 650

Garmin Nüvi 660

Garmin Nüvi 660 TFM

Garmin Nüvi 660T

Garmin Nüvi 670

Garmin Nüvi 670TFM

Garmin Nüvi 680

Garmin nüvi 700

Garmin Nüvi 710

Garmin Nüvi 710T

Garmin nüvi 750

Garmin Nüvi 750 TFM

Garmin nüvi 750T

Garmin nüvi 755

Garmin Nüvi 755 TFM

Garmin nüvi 755T

Garmin nüvi 760

Garmin Nüvi 760 TFM

Garmin nüvi 760T

Garmin nüvi 765

Garmin Nüvi 765 TFM

Garmin nüvi 765T

Garmin Nüvi 770

Garmin Nüvi 770 TFM

Garmin Nüvi 770T

Garmin Streetpilot 2610

Garmin StreetPilot 2620

Garmin StreetPilot 2650

Garmin StreetPilot 2660

Garmin Streetpilot 2720

Garmin StreetPilot 2730

Garmin Streetpilot 2820

Garmin StreetPilot 7500

Garmin Streetpilot C310

Garmin Streetpilot C320

Garmin Streetpilot C330

Garmin Streetpilot C340

Garmin Streetpilot C510

Garmin Streetpilot C530

Garmin Streetpilot C550

Garmin StreetPilot i2

Garmin StreetPilot i3

Garmin StreetPilot i5

Garmin zumo 500

Garmin zumo 550

Garmin zumo 660 Europa

Navman

Navman iCN 310

Navman iCN 320

Navman iCN 330

Navman iCN 510

Navman iCN 520

Navman icn 530

Navman iCN 550

Navman iCN 610

Navman iCN 620

Navman iCN 630

Navman iCN 635

Navman iCN 650

Navman iCN 720

Navman iCN 750

Clarion

Clarion MAP 360

Clarion MAP 370

Clarion MAP 560

Clarion MAP 670

Clarion MAP 680

Clarion MAP 690

Clarion MAP 770

Clarion MAP 780

Clarion MAP 790
