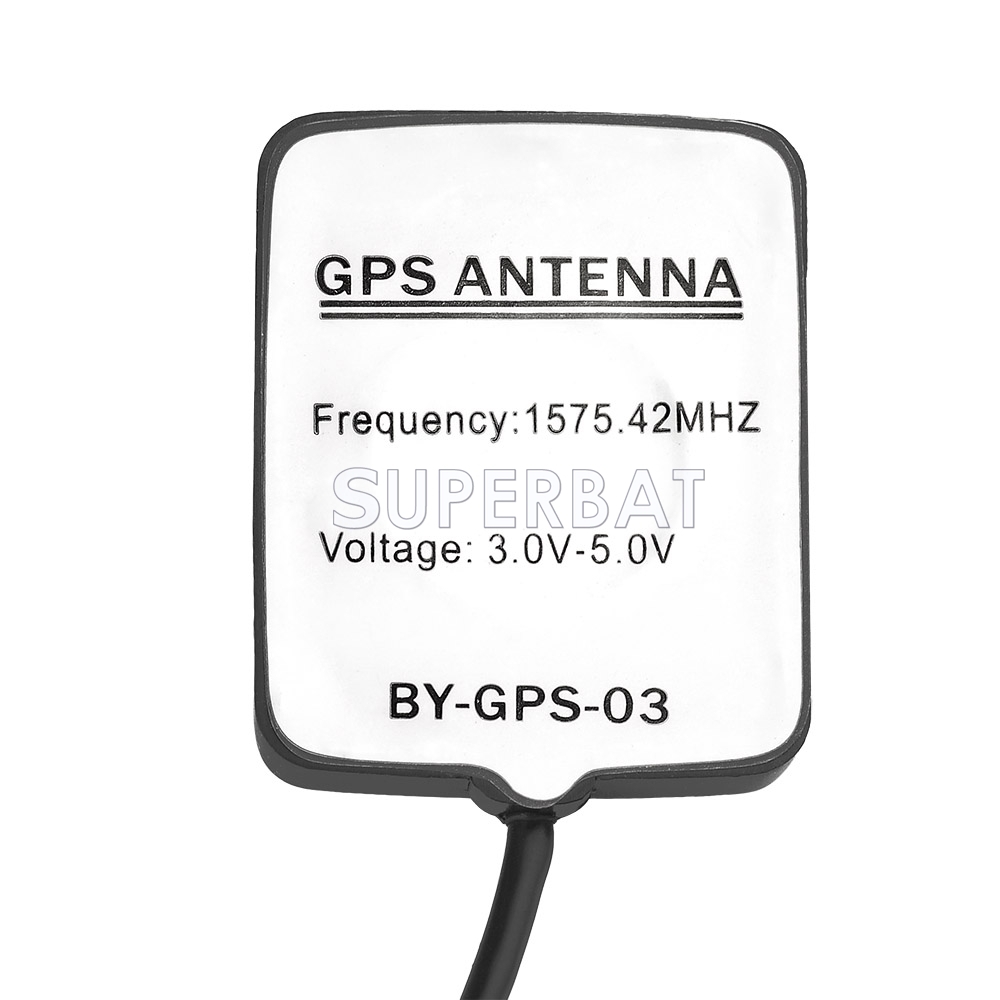

（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

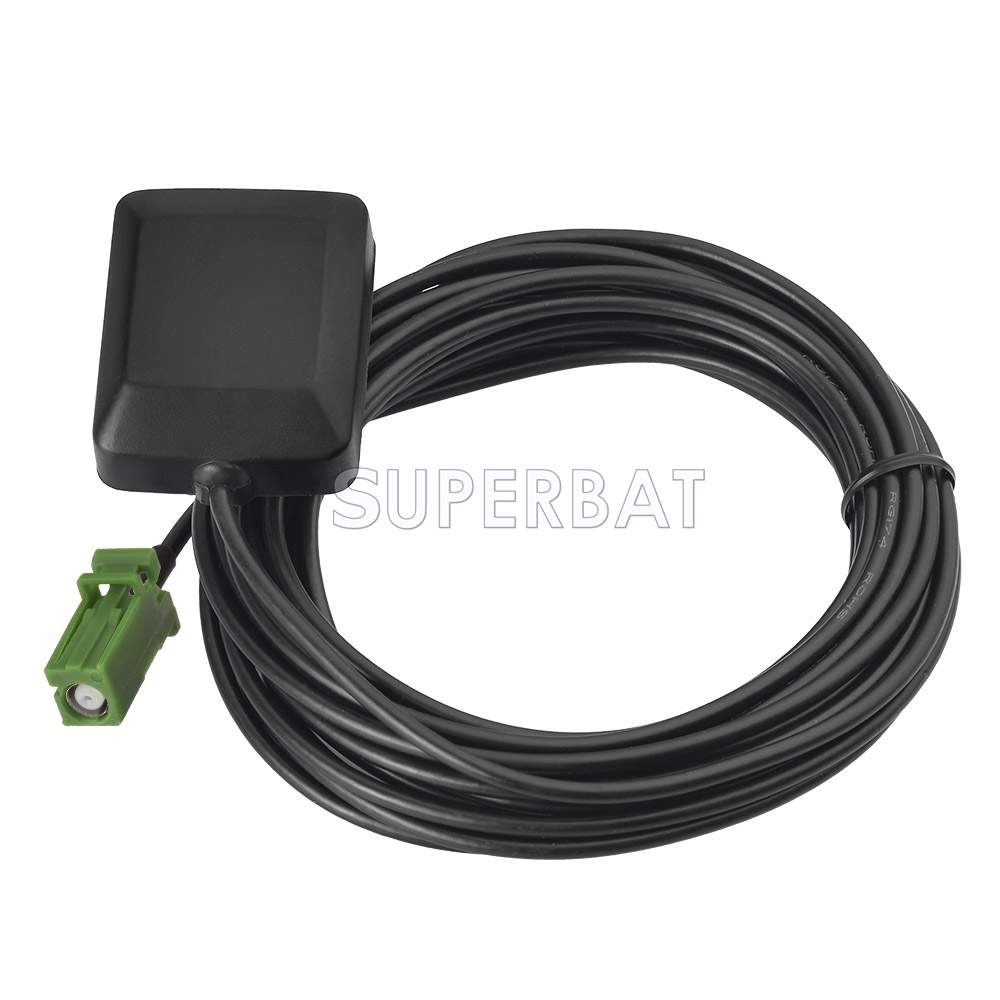

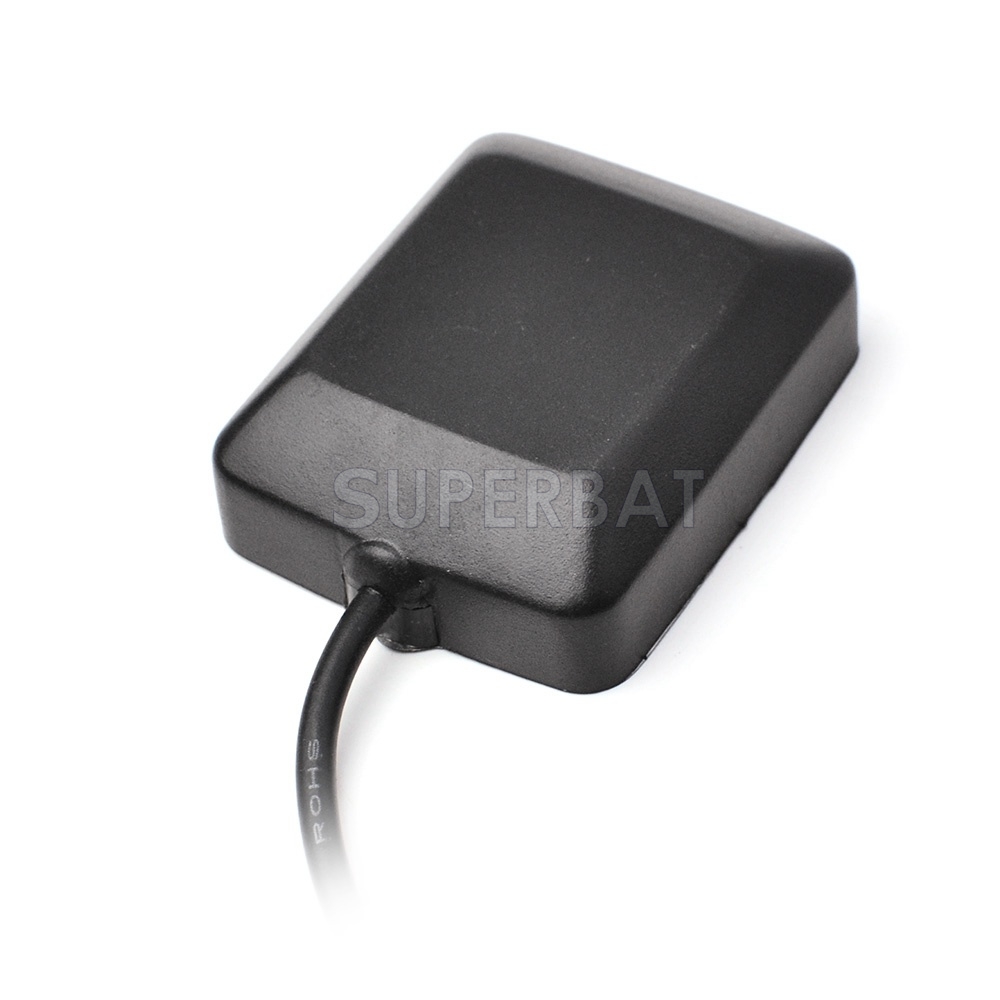

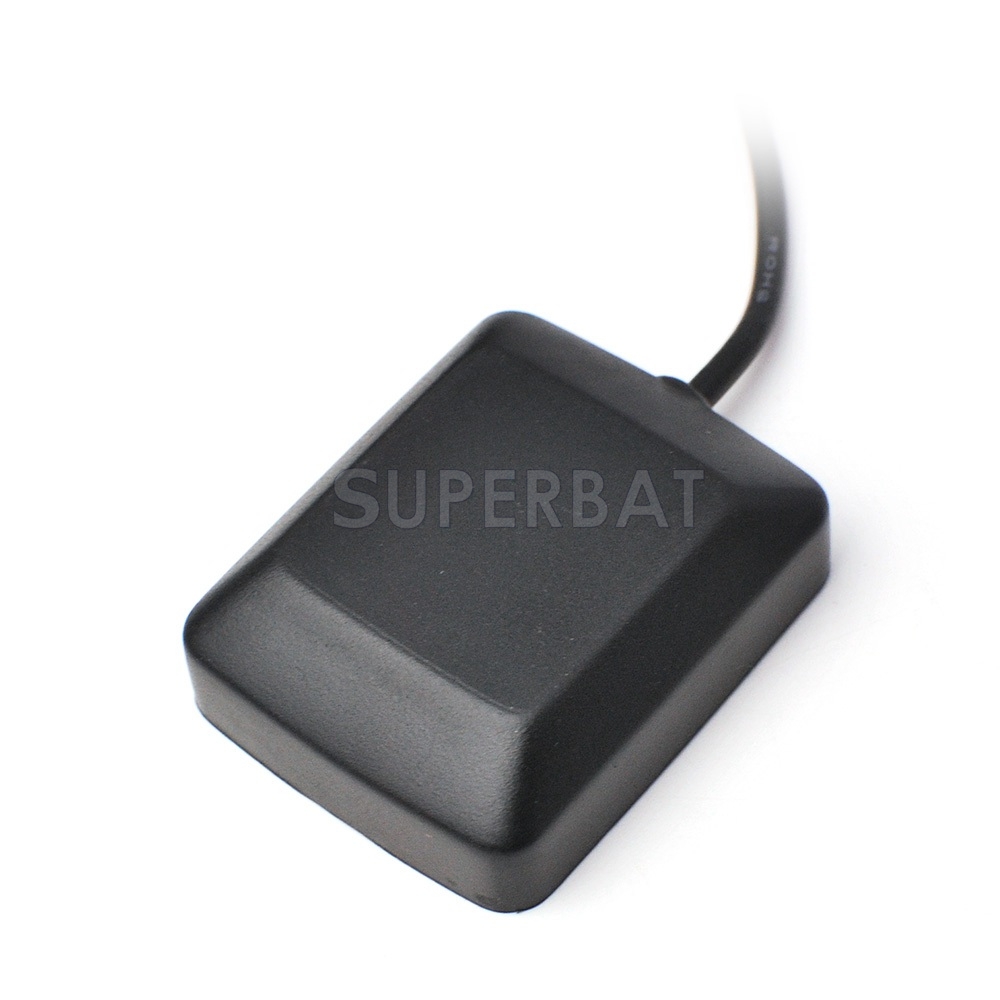

（iii）Mechanical
Weight ＜100gram
Size :45x36x14mm
Cable :RG174 3 meter / Contact us for other length

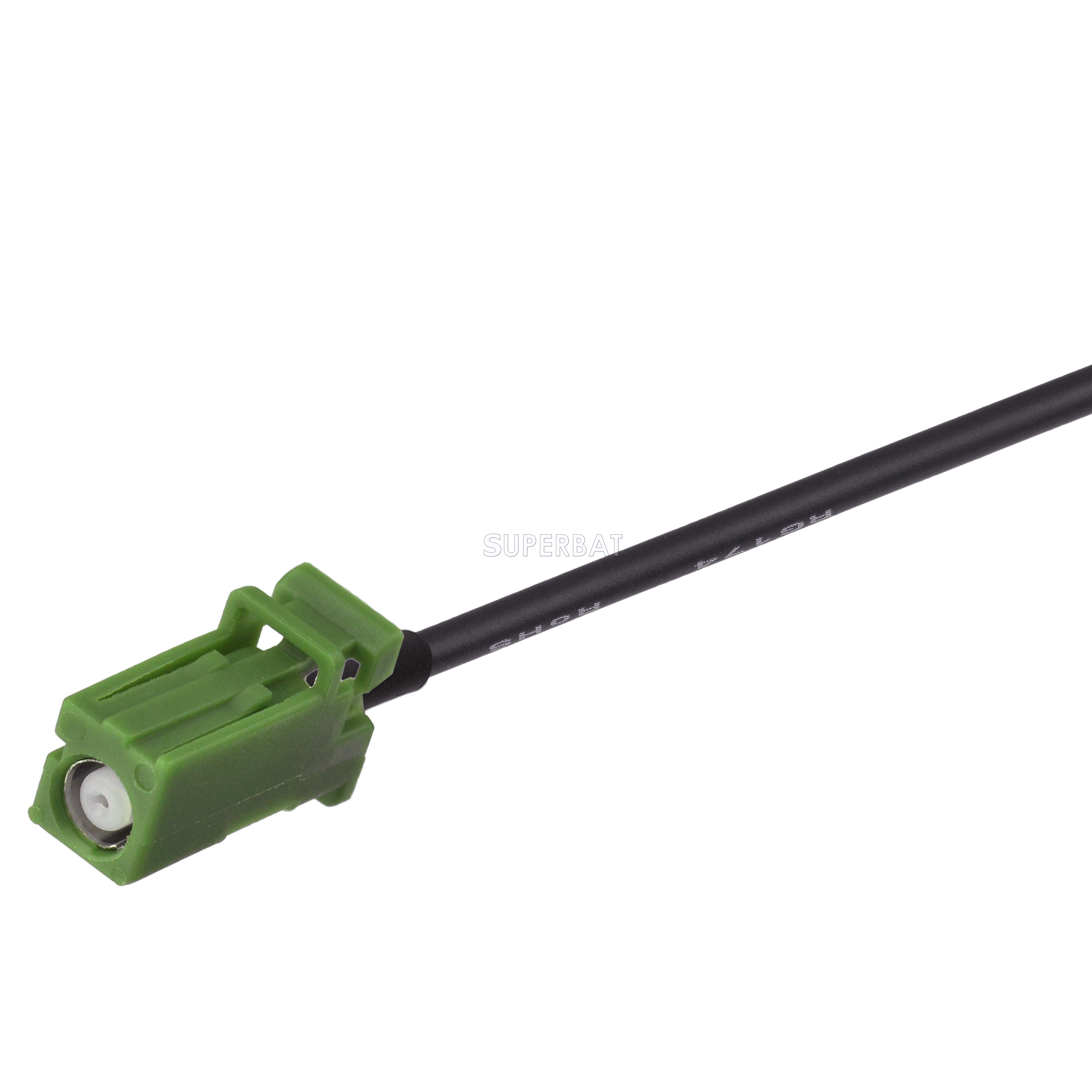

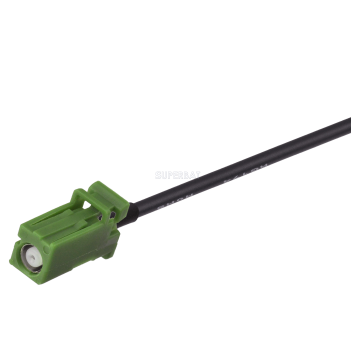

Connector: AVIC Jack straight
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:

Pioneer

AVIC-F7010BT

AVIC-F900BT

AVIC-F90BT

AVIC-F700BT

AVIC-X910BT

AVIC-X710BT

AVIC Z110BT

AVIC Z120BT

AVIC Z130BT

AVIC X7115BT

AVIC F310

AVIC F70

AVIC X920

AVIC X930

AVIC X9110

AVIC-X510

AVIC-5000NEX

AVIC-5100NEX

AVIC-5200NEX

AVIC-6000NEX

AVIC-6100NEX

AVIC-6200NEX

AVIC-6201NEX

AVIC-7000NEX

AVIC-7100NEX

AVIC-7201NEX

AVIC-8000NEX

AVIC-8100NEX

AVIC-8200NEX

AVIC-8201NEX

AVIC-EVO1-DT2-C-GR

AVIC-EVO1-DT2-C-OE

AVIC-EVO1-G72-BBF

AVIC-EVO1-G72-DMD

AVIC-EVO1-G72-QYI

AVIC-EVO1-OC2-MTB

AVIC-EVO1-PL2-VAL

AVIC-F88DAB

AVIC-F980BT

AVIC-F980DAB

AVIC-Z610BT

AVIC-Z620BT

AVIC-Z710DAB

AVIC-Z720DAB

AVIC-Z810DAB

AVIC-Z820DAB

AVIC-Z910DAB

AVIC-Z920DAB
