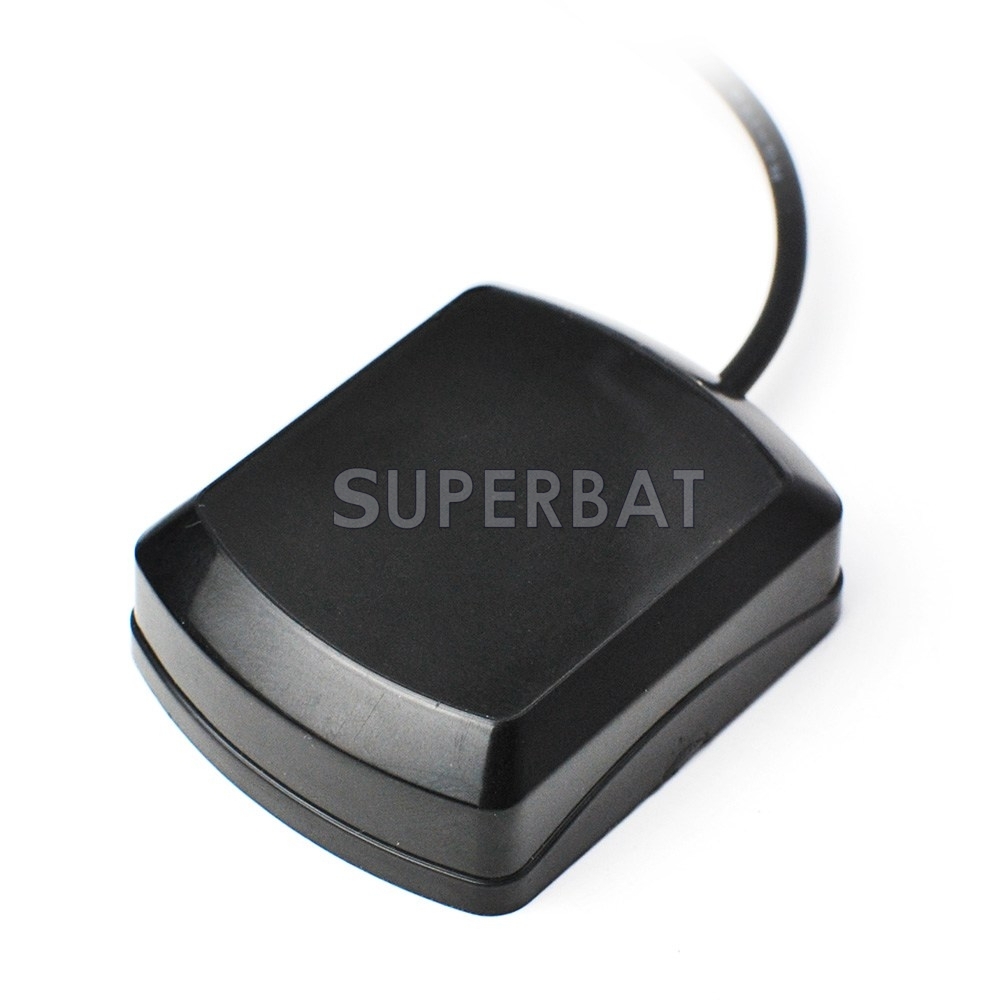

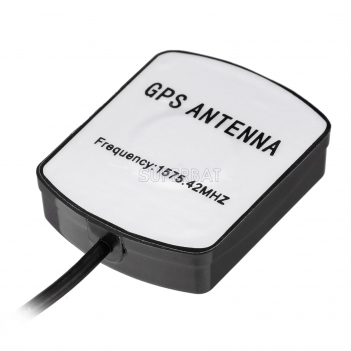

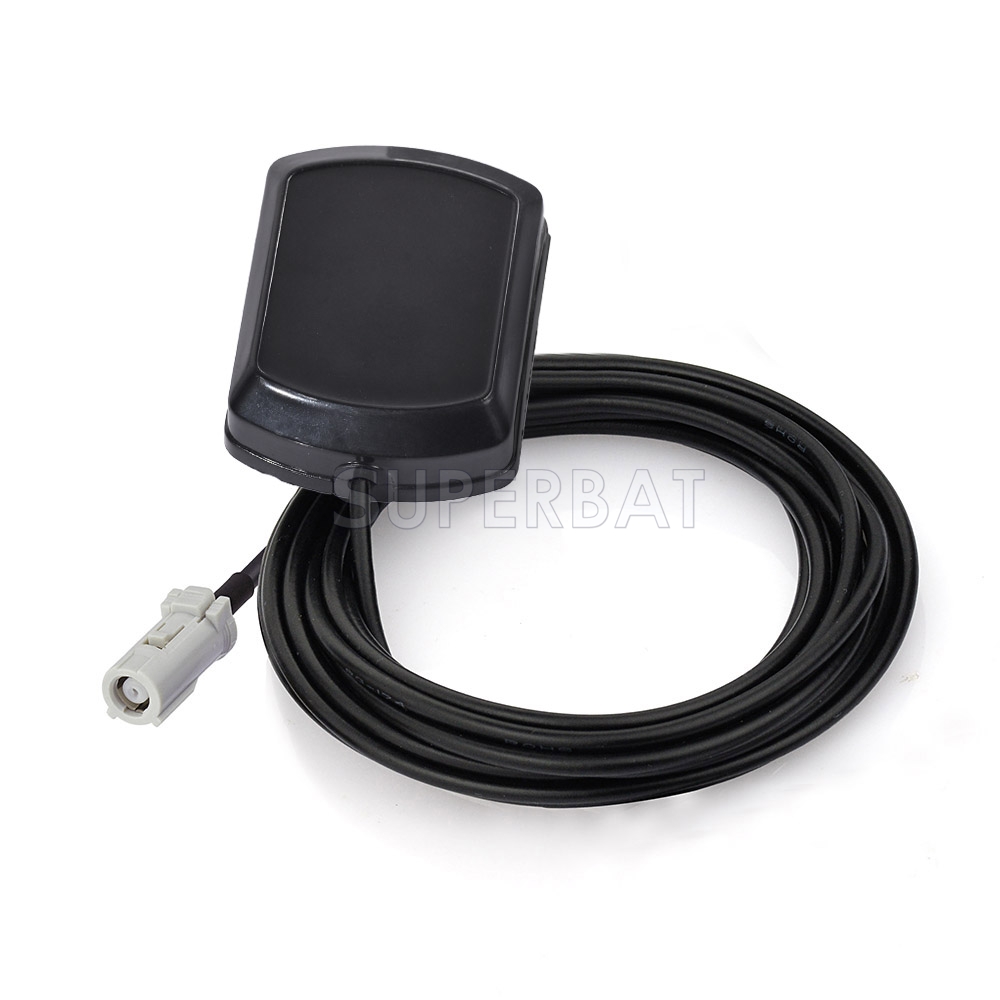

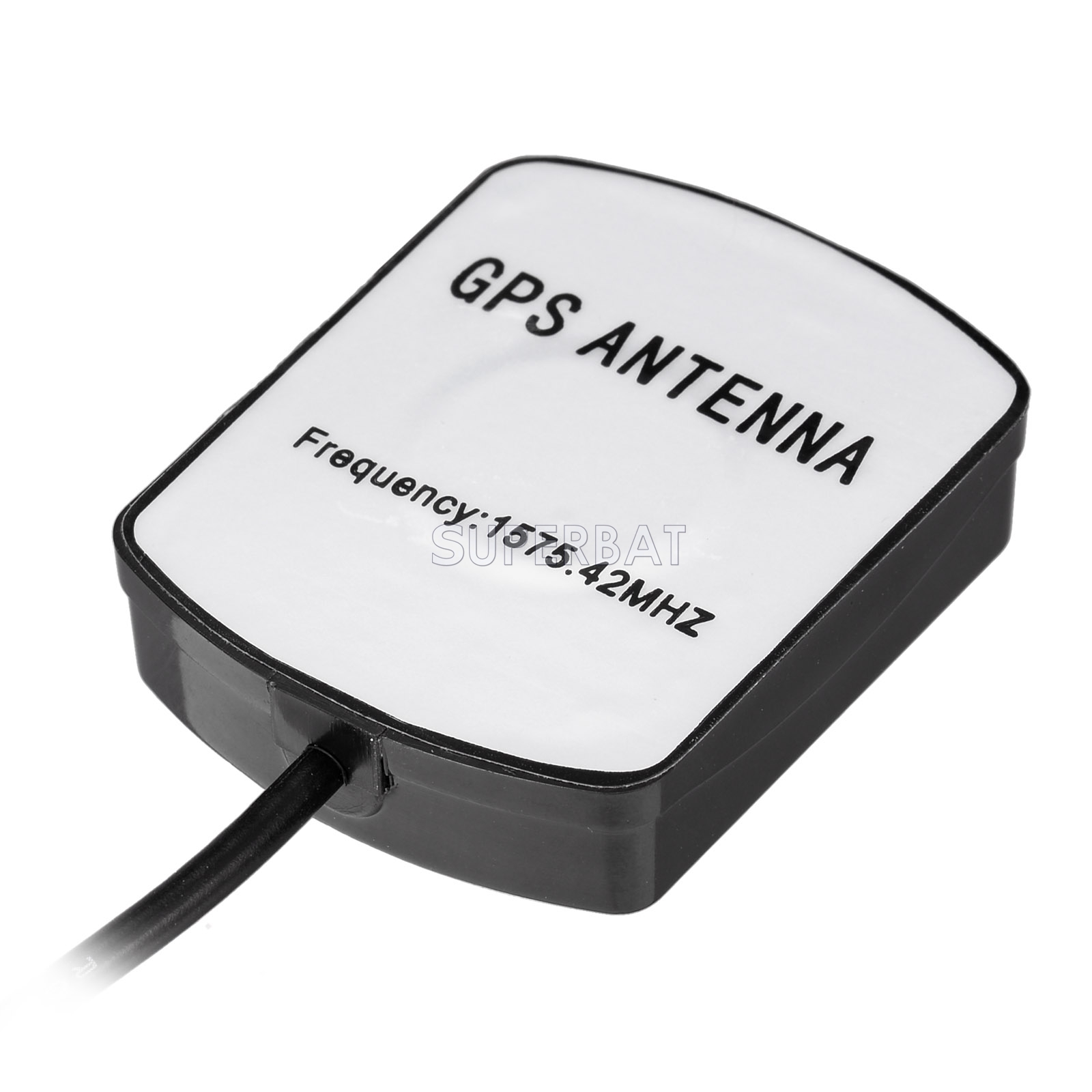

Superbat Gray AVIC GPS Antenna Aerial Connector Cable for Pioneer GPS Navigation Receiver
GPS Antenna AVIC 1575.42MHz±3 MHz 3M Active Antenna GA01
Unit Price: $10.00
sku:GA01-300-A01SJ
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.00 $9.00 $8.10 $7.30 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :48x39x16mm
Cable :RG174 3 meter / Contact us for other length

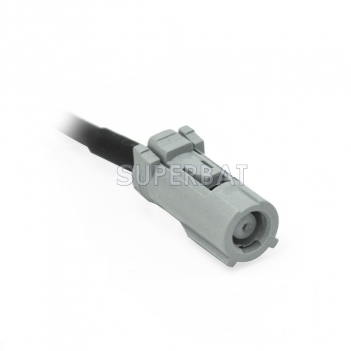

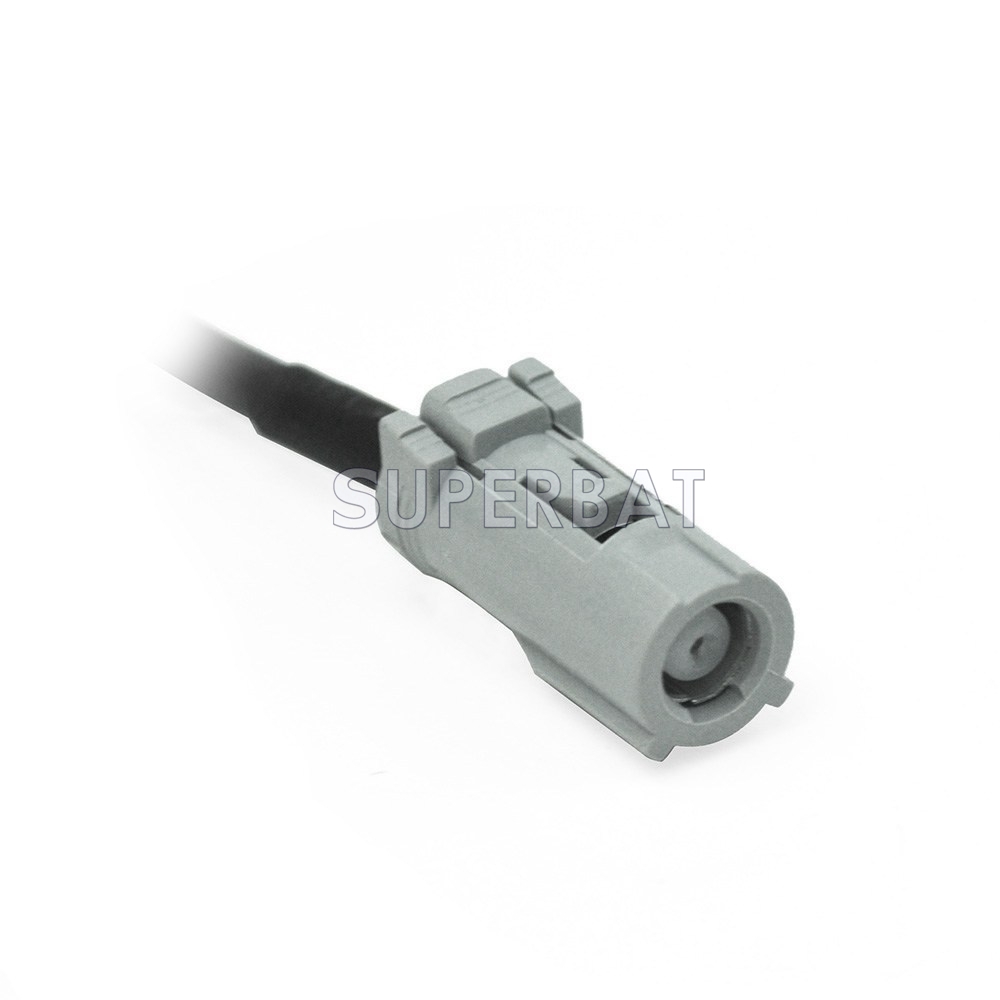

Connector :HRS AVIC jack Straight default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APLICATIONS:

Pioneer

AVIC-D1

AVIC-D2

AVIC-D3

AVIC-Z1

AVIC-Z2

AVIC-N1

AVIC-N2

AVIC-N3

AVIC-N4

AVIC-N5

AVIC-X1

AVIC-X2

AVIC-X3

AVIC-X1R

AVIC-X1BT

AVIC-HD1BT

AVIC-HD3BT

AVIC-991HVT

AVIC-810HVT

AVIC-710T

AVIC-610T

AVIC-800 DVD 50

AVIC-900

AVIC-90DVD

Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
