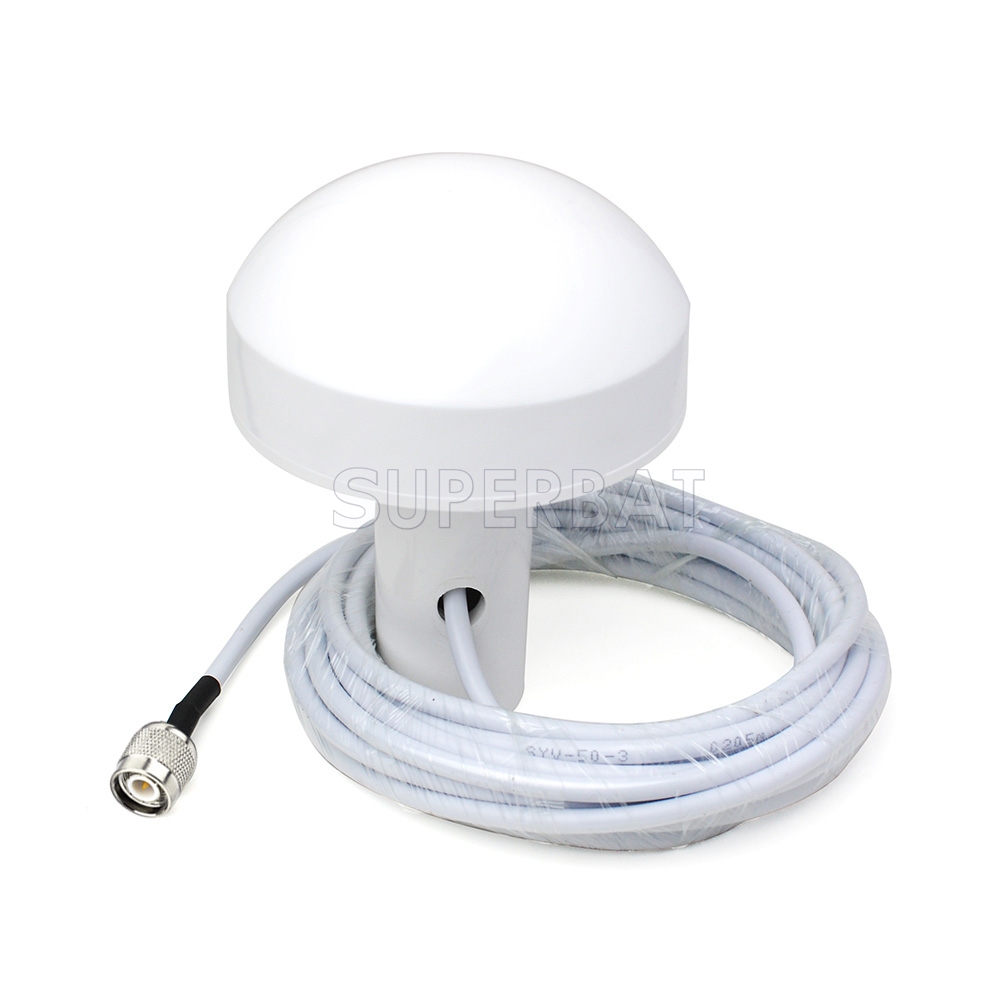

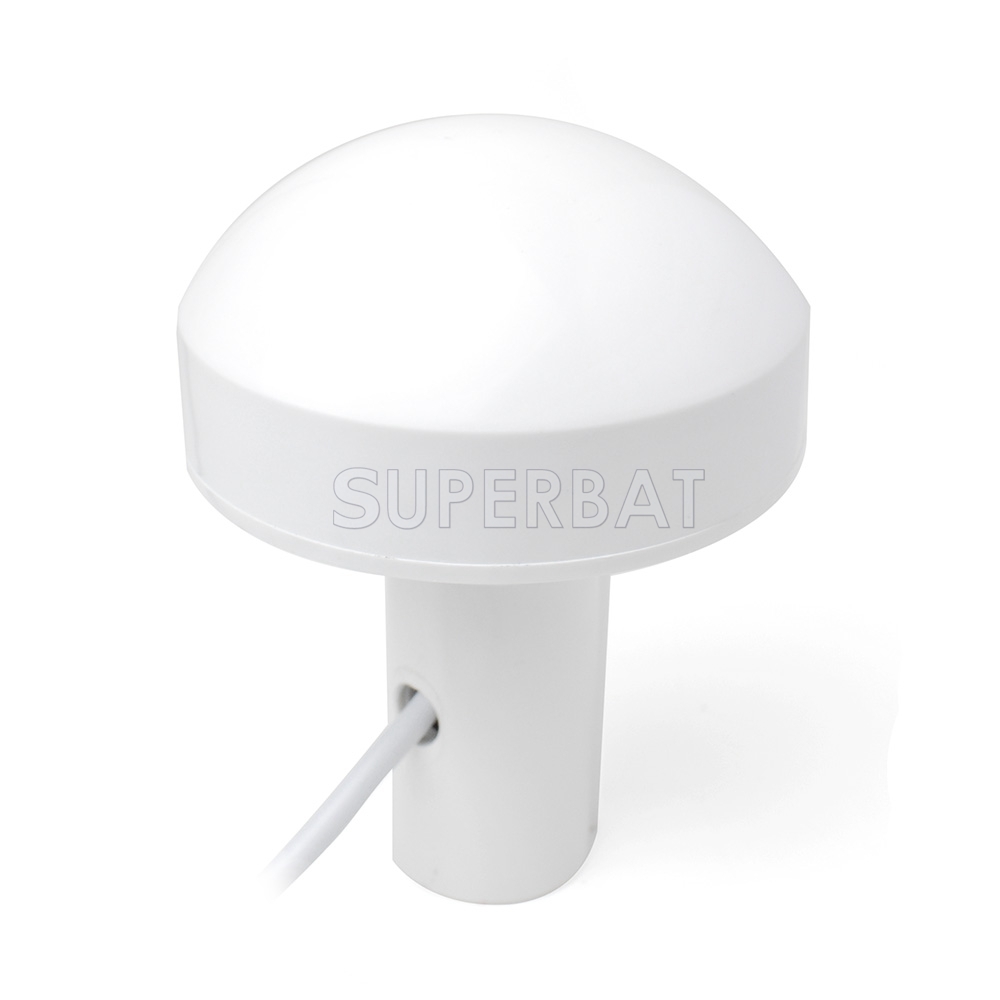

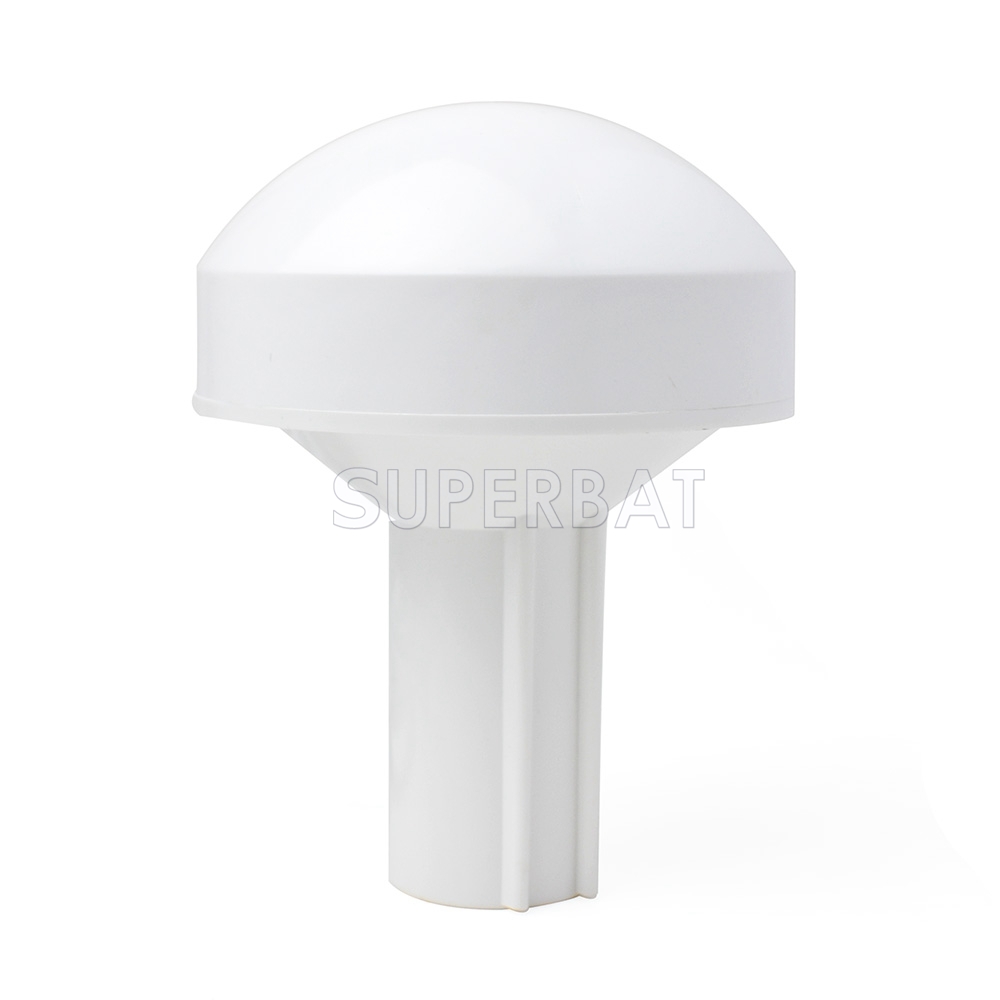

Dielectric antenna specification

Center frequency: 1575mhz+/-5 MHZ

V. S. W. R: <1.5

Band width: CF±5MHz

Impendence: 50 ohm

Gain: ≥28DB

Polarization: RHCP

Lna specification

Lna gain(without cable): 28±2dB

Filter Insertion Loss: ＜3dB

Noise figure: ＜1.3

Current Consumption: 18~35mA

Dc voltage: 3~5V DC

Mechanical specification

Weight: 335g

Cable: SYV-50-3

Cable Length: 5 meter ,(Optional 10meter ,contact us firstly)

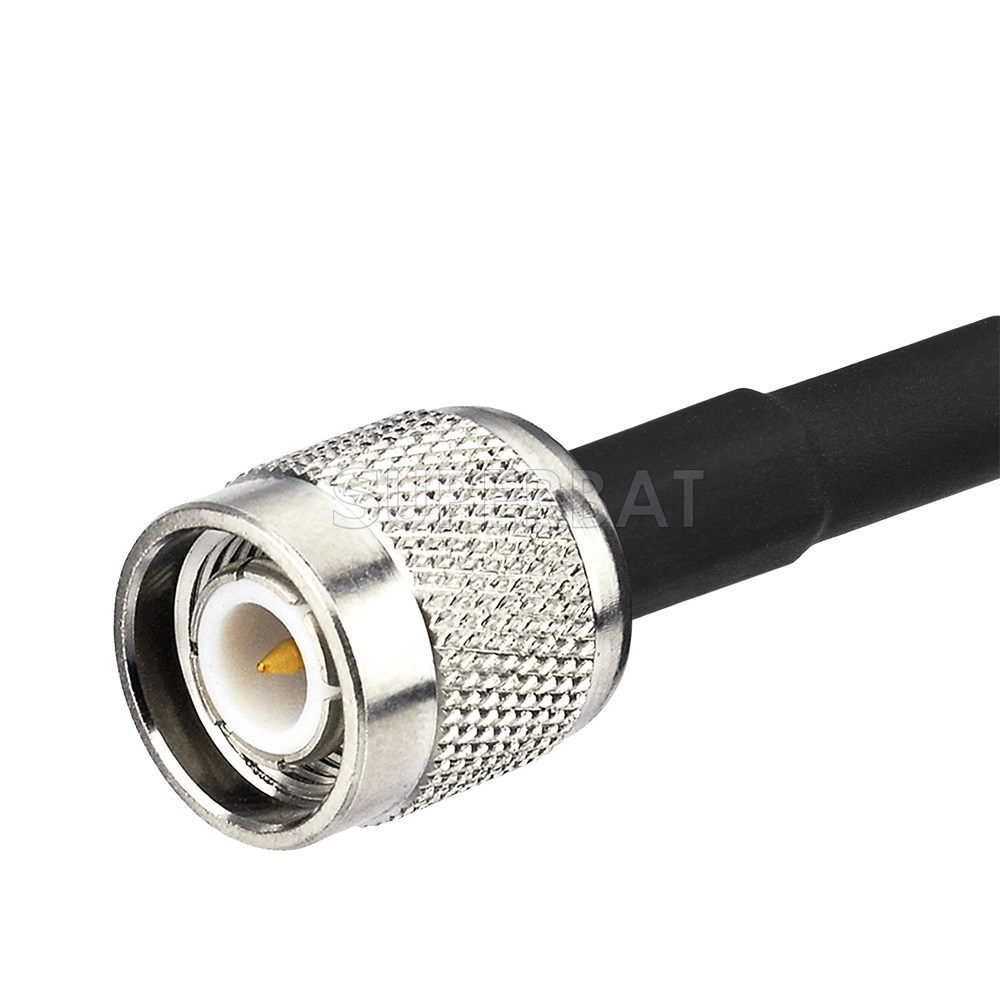

Connector: TNC male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

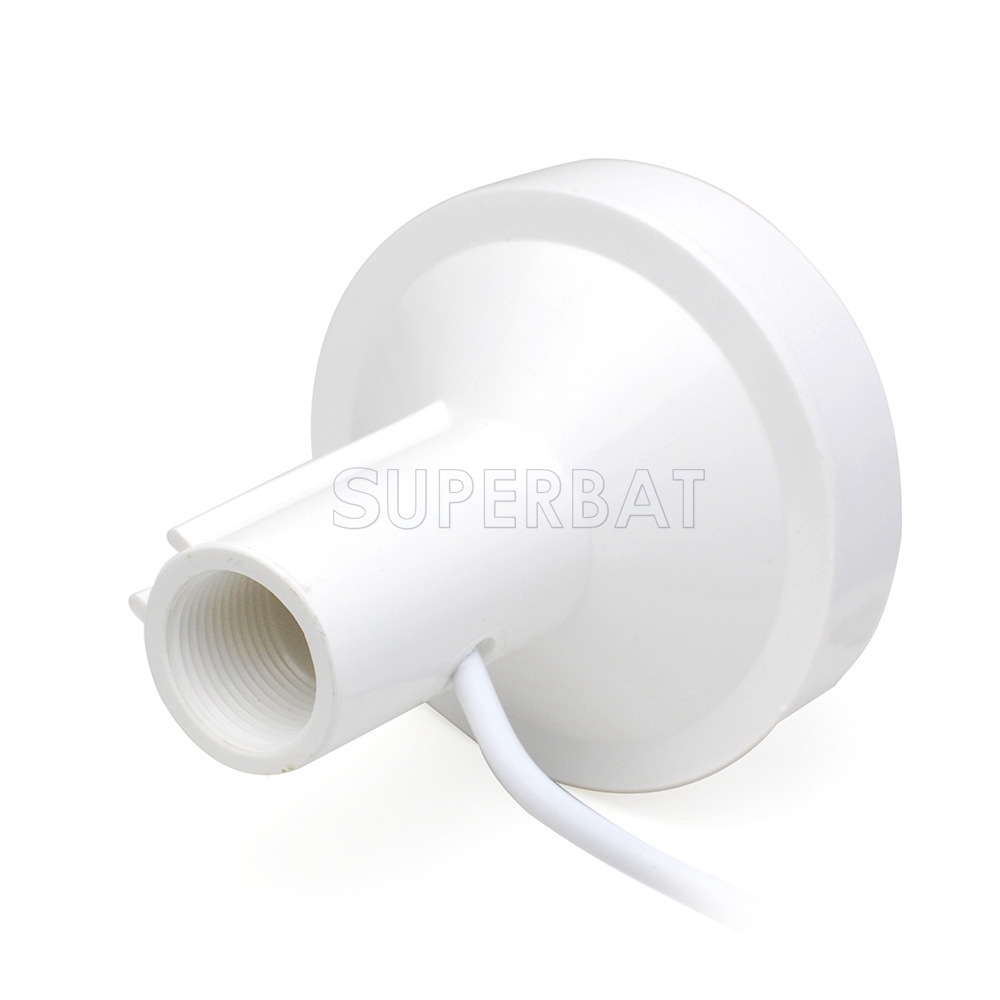

Mounting base: screw thread connection ( G3/4 )

Environmental specification

Working temp: -40~+60

Storage temp: -50~+85

Vibration sine sweep: 1g(0-p)10~50~10hz each axis

Humidity: 95%~100%rh

Weatherproof: 100%

Aplication

Furuno GP 32 GPS receiver

Furuno GP 35 GPS receiver,

Furuno GP 36 GPS receiver,

Furuno GP 37 GPS receiver

Furuno GP 80 Receiver,

Furuno GP 80D Receiver

Furuno GP 90 Receiver

Furuno GP 150 GPS receiver,

Furuno GP 150D GPS receiver

Furuno GP 1600 GPS receiver,

Furuno GP 1610C GPS receiver

Furuno GP 1650 GPS receiver,

Furuno GP 1650D GPS receiver,

Furuno GP 1650D/NT GPS receiver,

Furuno GP 1650F/NT GPS receiver,

Furuno GP 1650/NT GPS receiver,

Furuno GP 1650W GPS receiver,

Furuno GP 1650W/NT GPS receiver

Furuno GP 1810 GPS Receiver

Furuno GP 1850 GPS Receiver,

Furuno GP 1850/NT GPS Receiver,

Furuno GP 1850W GPS Receiver,

Furuno GP 1850W/NT GPS Receiver,

Furuno GP 1850WD GPS Receiver,

Furuno GP 1850WD/NT GPS Receiver

Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
