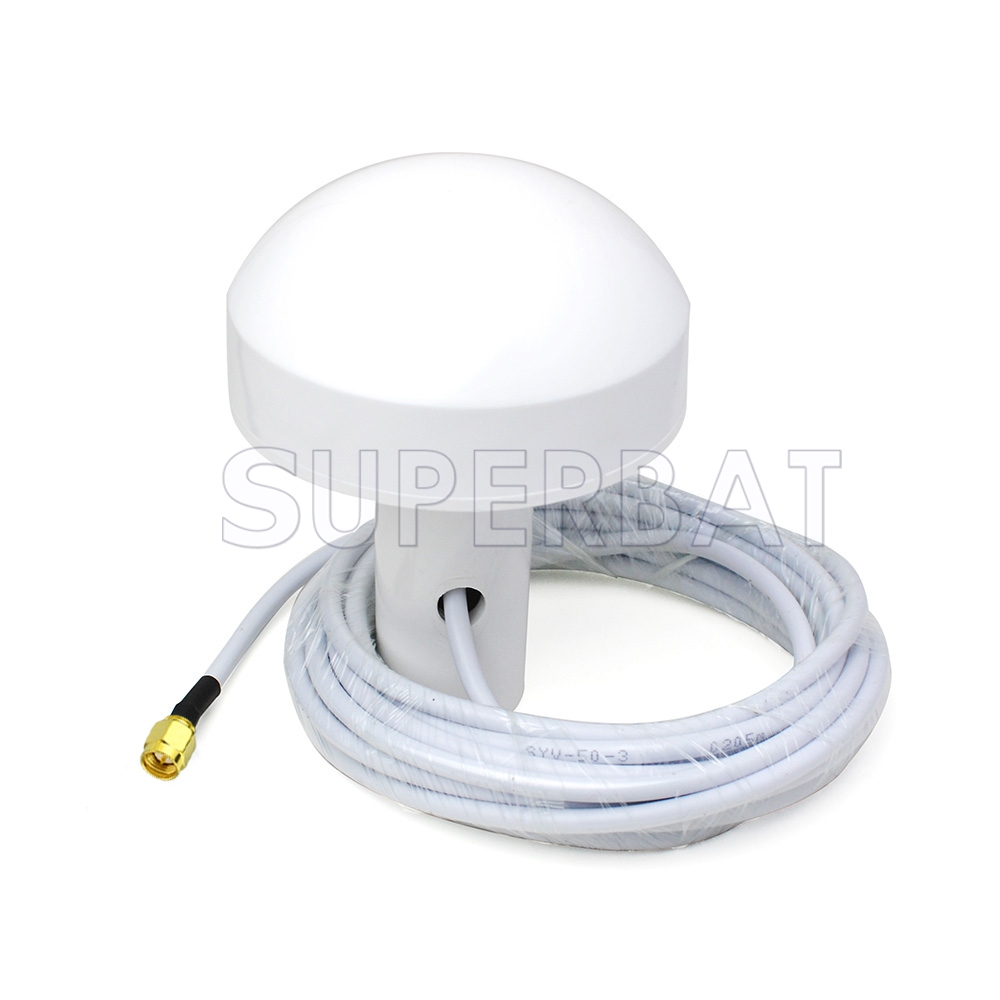

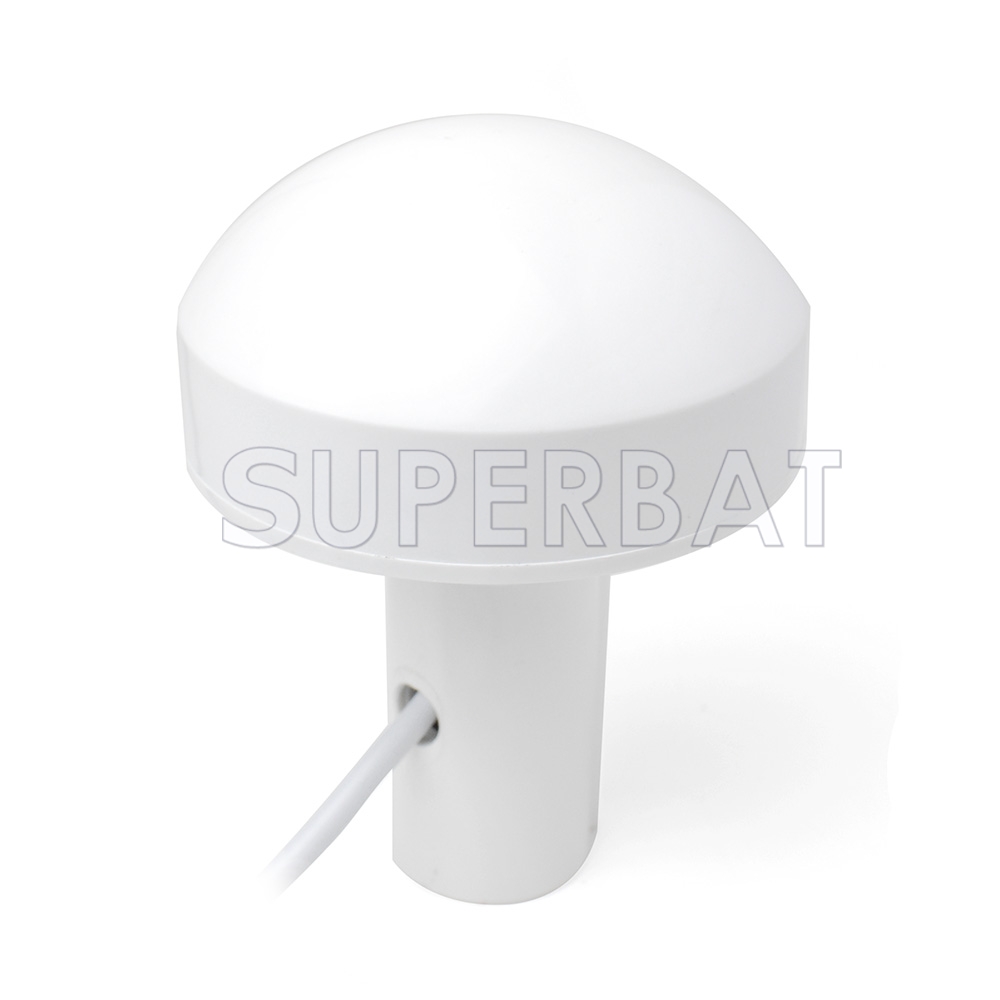

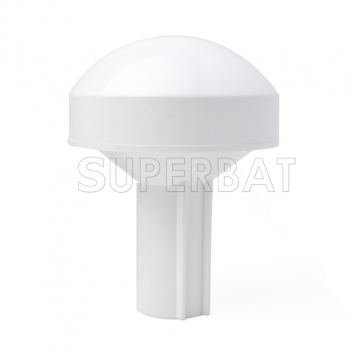

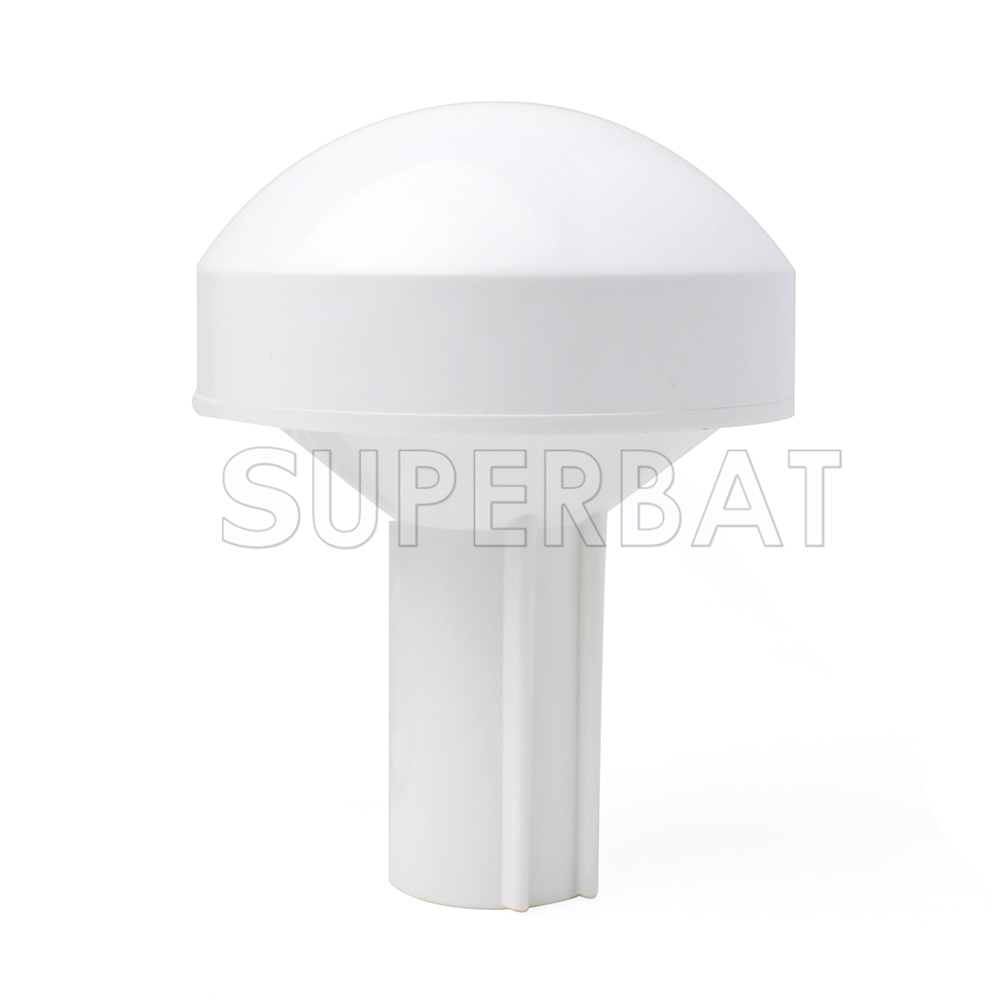

Dielectric antenna specification

Center frequency: 1575mhz+/-5 MHZ

V. S. W. R: <1.5

Band width: CF±5MHz

Impendence: 50 ohm

Gain: ≥28DB

Polarization: RHCP

Lna specification

Lna gain(without cable): 28±2dB

Filter Insertion Loss: ＜3dB

Noise figure: ＜1.3

Current Consumption: 18~35mA

Dc voltage: 3~5V DC

Mechanical specification

Weight: 335g

Cable: SYV-50-3

Cable Length: 5 meter ,(Optional 10meter ,contact us firstly)

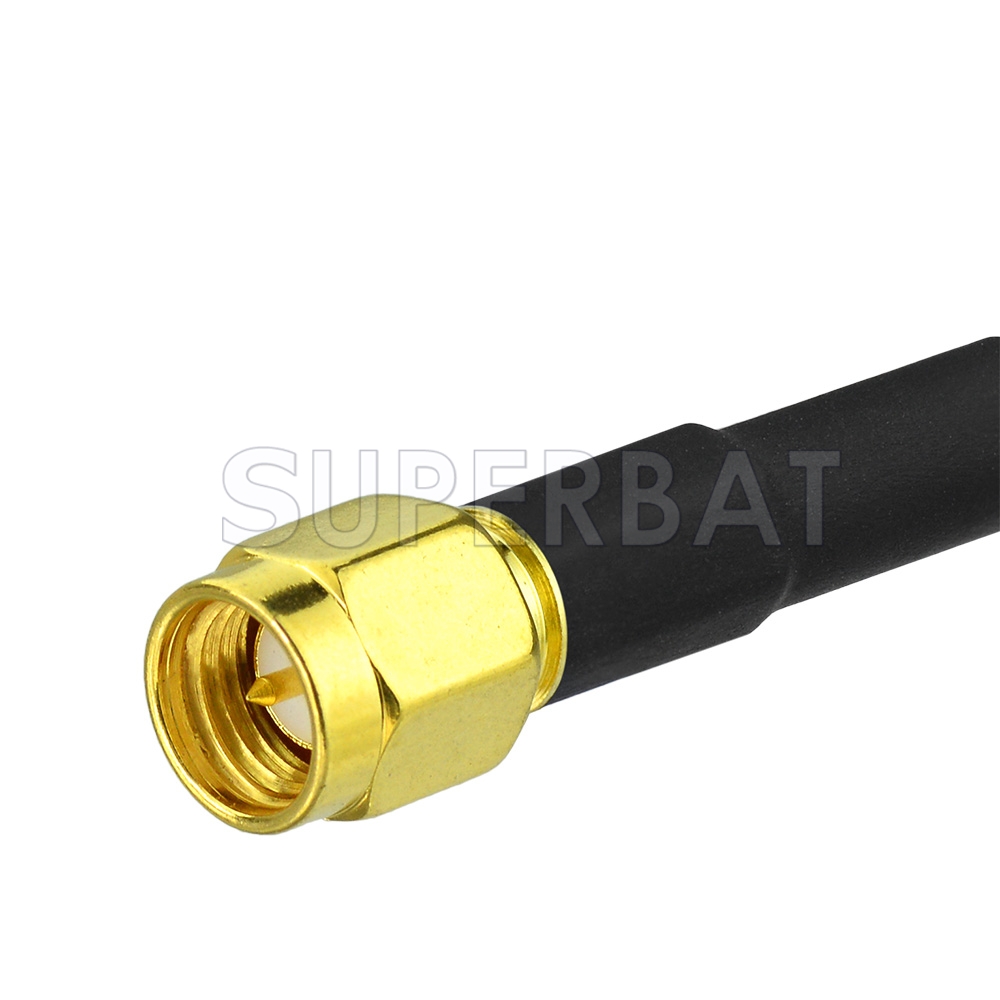

Connector: SMA male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

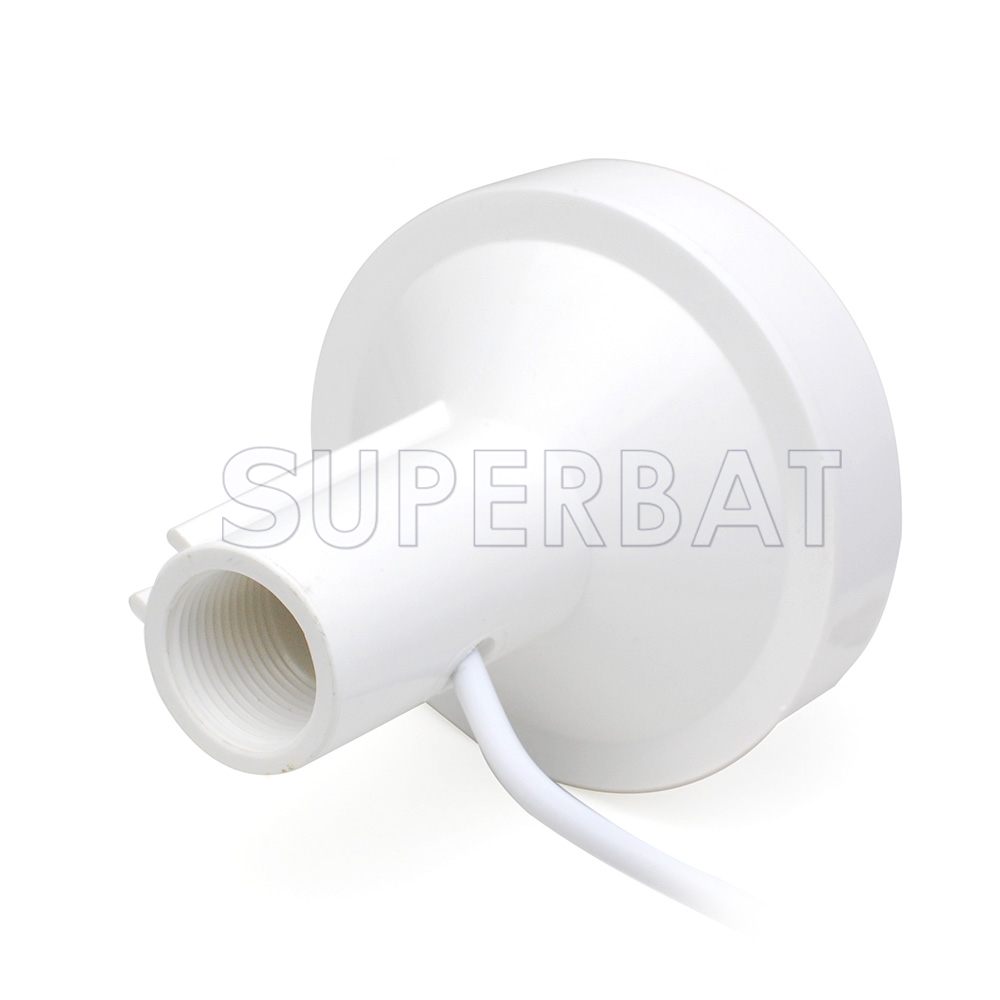

Mounting base: screw thread connection ( G3/4 )

Environmental specification

Working temp: -40~+60

Storage temp: -50~+85

Vibration sine sweep: 1g(0-p)10~50~10hz each axis

Humidity: 95%~100%rh

Weatherproof: 100%
