Features:

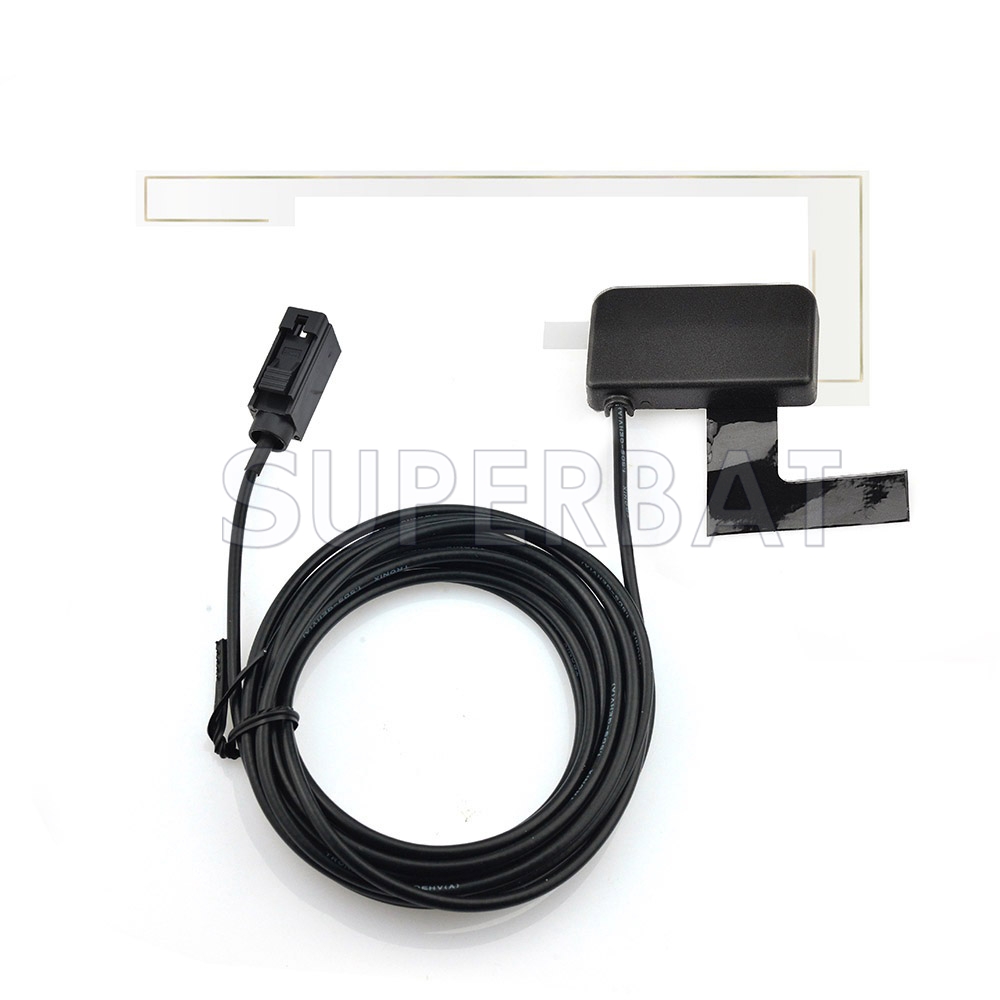

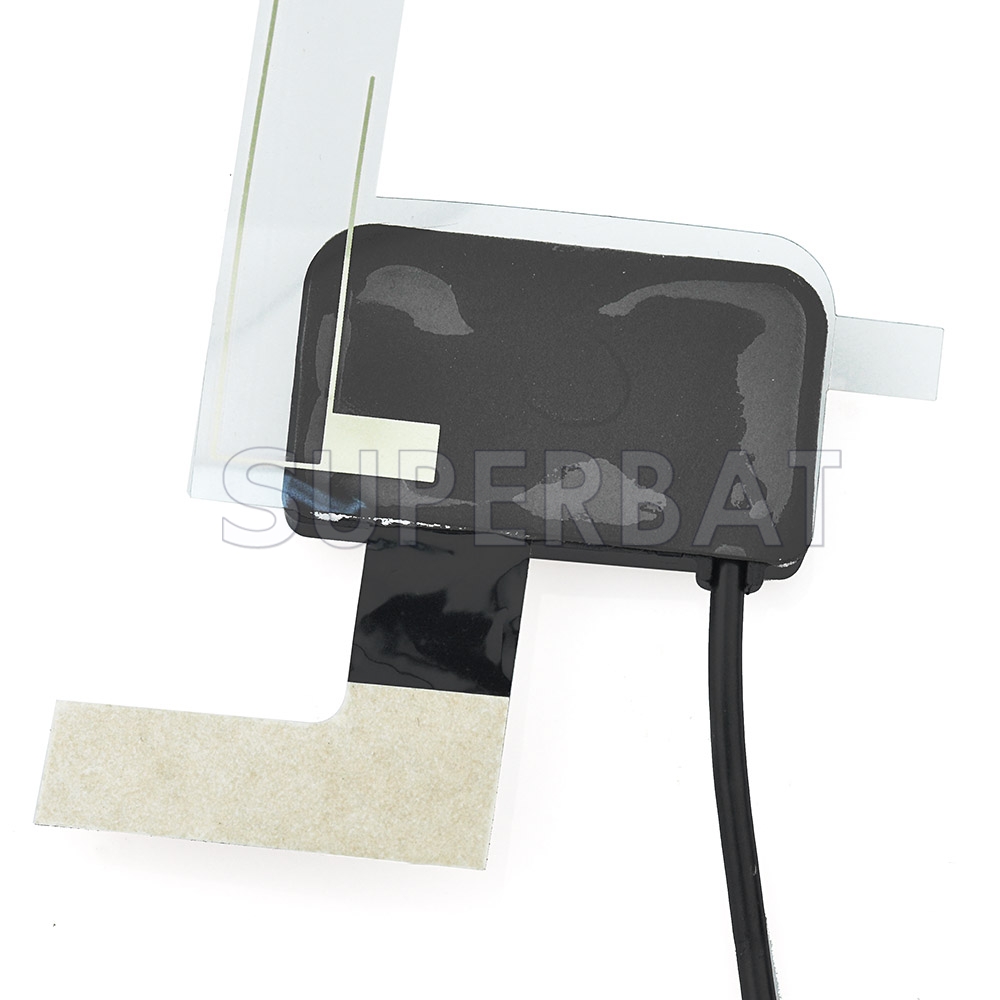

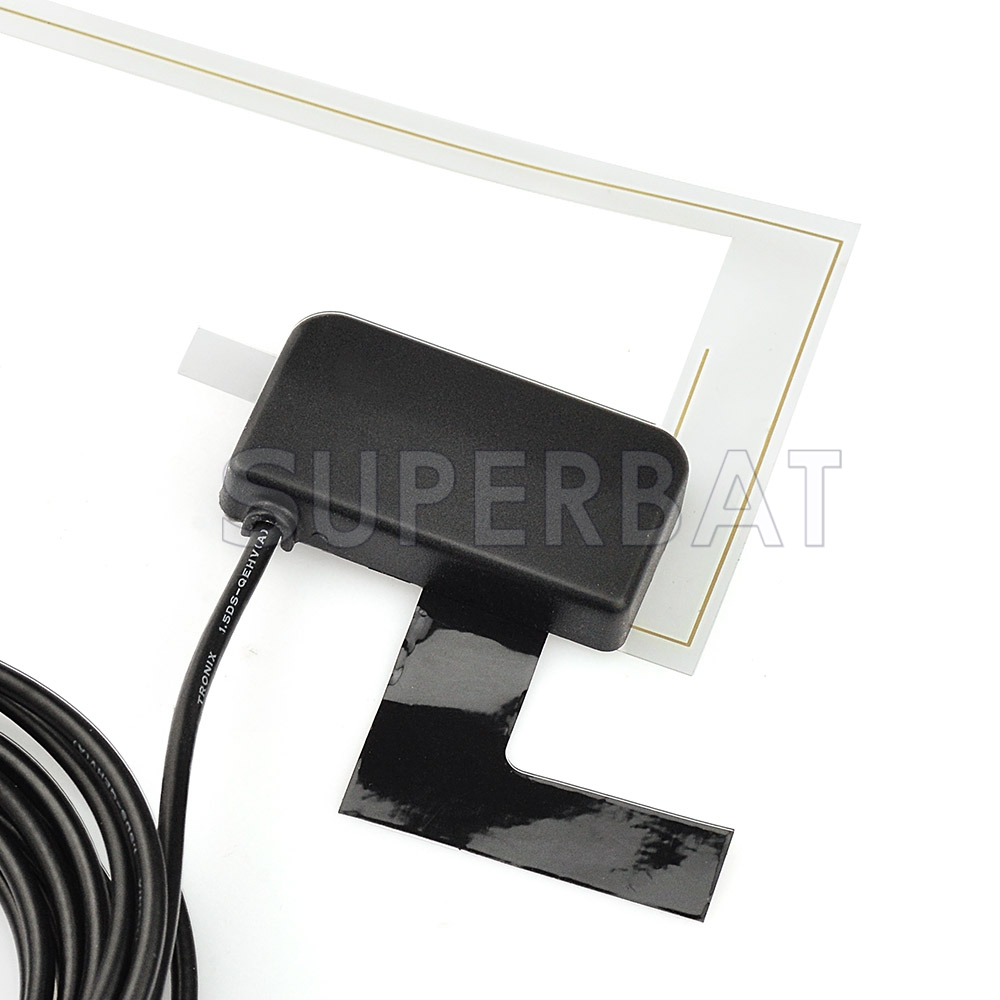

This product uses a coefficient of high conductivity, low resistance of the FPC printed antenna as a reception antenna, so that it has a strong signal receiving function, good directivity. This product can choose to paste in the front of the car and the windscreen to the upper left and right sides, so that the stability of the received signal.

Electric Speciality：

Working Voltage: DC 10.5V～16V

Working current: 30mA～60mA

Rated voltage: DC 12V

Rated Current: 40mA～50mA

Working Frequency: 170MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Output Gain: 15dB±3dB (Band Ⅲ) 12dB±3Db (L-Band)

Output impedance: 75Ω

V.S.W.R: ≤3.0:1

NS: ≤2dB

Working Temperature: -30℃～+80℃

Storage Temperature: -40℃～+90℃

Connector (depending on selection):

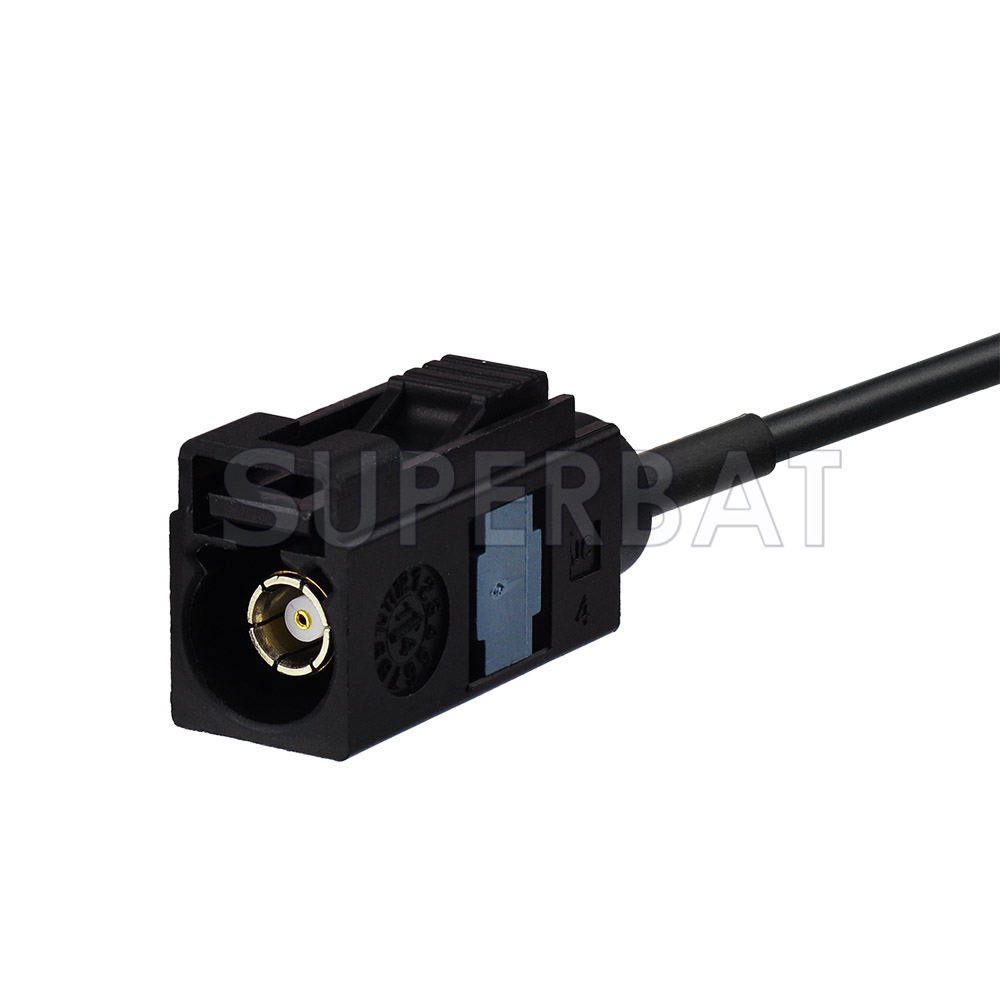

            FAKRA ""A"" female straight

            SMA male right angle

            SMA male straight

            SMB male straight

            MCX male straight

Cable Length: 3M
