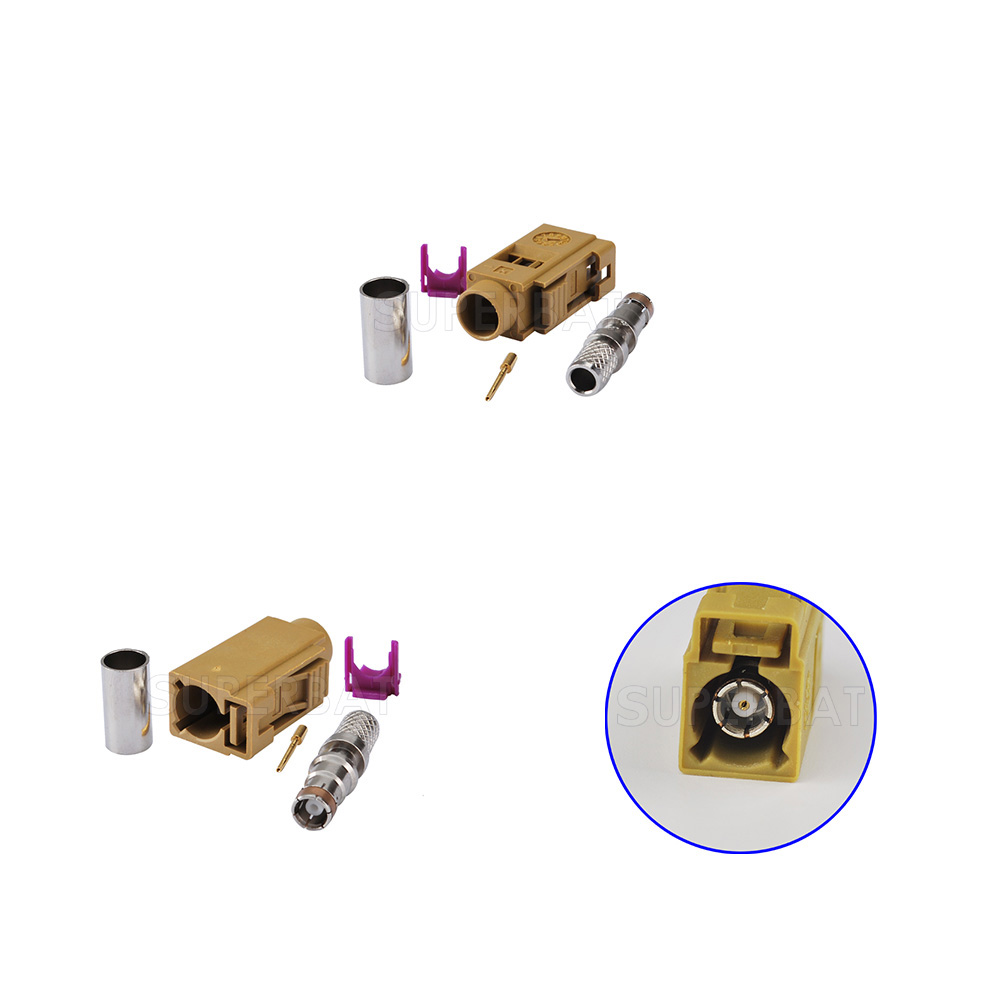

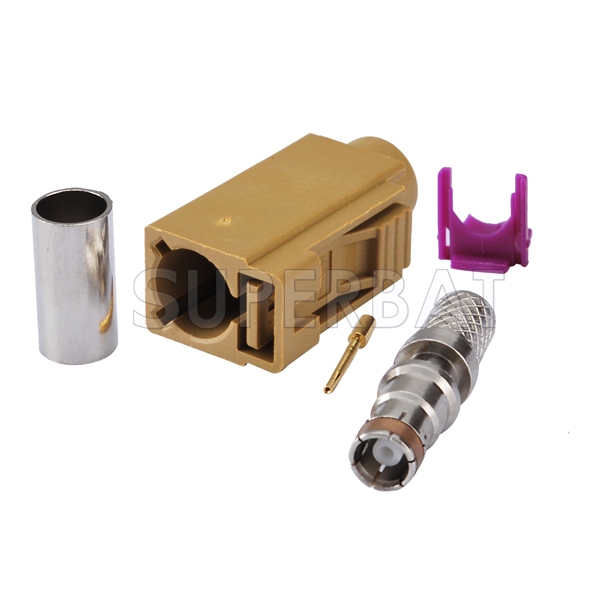

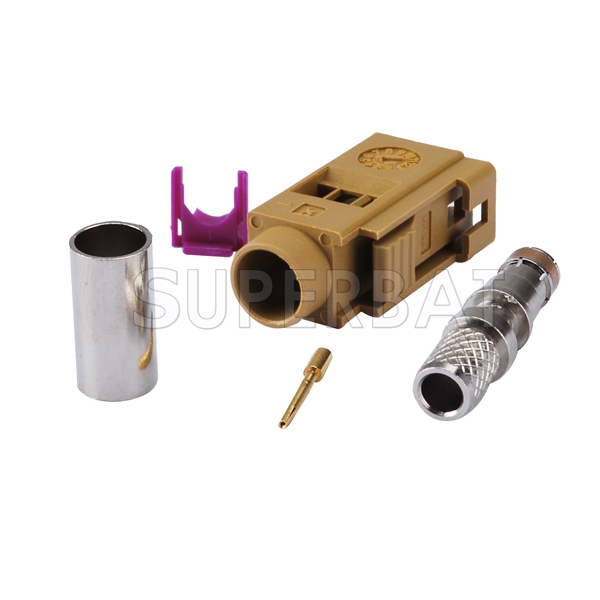

Superbat Fakra K crimp female connector Curry Satellitic Radio With IF
Unit Price: $2.05
sku:F03-SJL19-K
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.05 $1.95 $1.84 $1.74 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: FAKRA Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: LMR-195 , RG58 Body Style: Straight Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Coding: K Frequency Range: 3GHz

Description:

Product Type:Fakra Connector

Fakra Connector :50Ω

Frequency Range:  DC-6GHz(optimized DC-4GHz)

Suitable cable:RG58 LMR195

V.S.W.R:<1.5

Temperature Range:-40 / +100℃

Contact Resistance:<40 m


FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly


 FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered
