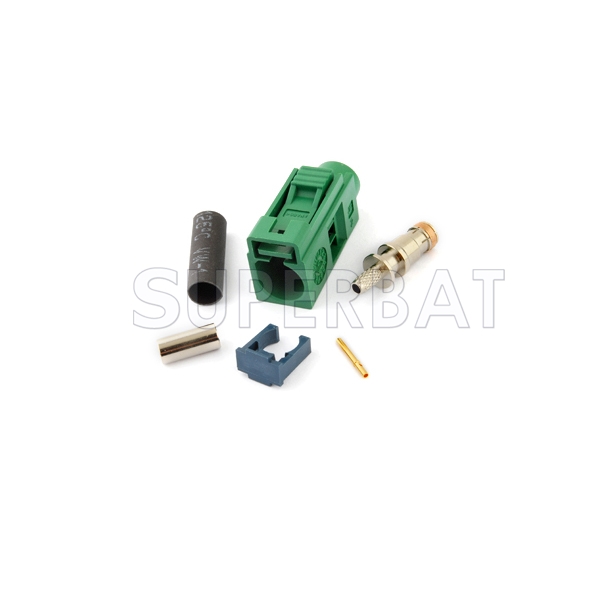

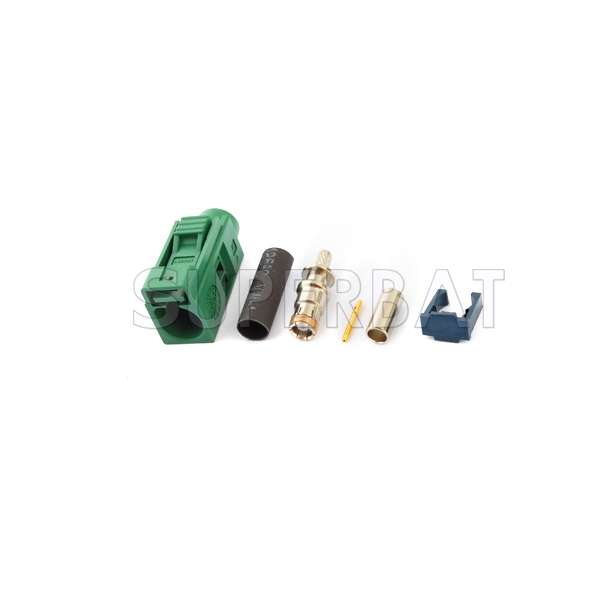

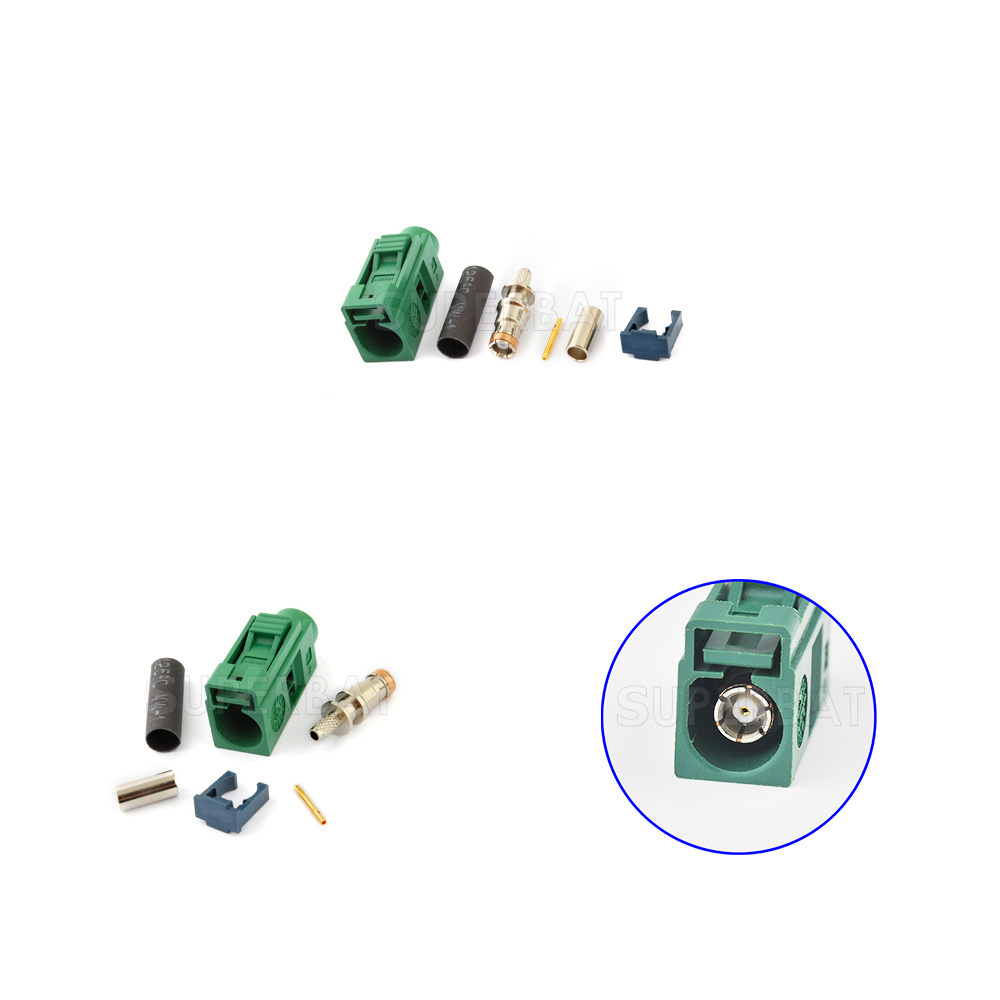

Superbat Fakra crimp Jack RF connector Green /6002 Car TV1 for RG316 RG174 LMR100
Fakra crimp Jack RF connector Green /6002 Car TV1 for RG316 RG174 LMR100
Unit Price: $2.89
sku:F03-SJ316-E
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.89 $2.60 $2.34 $2.11 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9700
Quantity: Units

Series: FAKRA Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: LMR-100 , RG174 , RG316 Body Style: Straight Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Coding: E Frequency Range: 3GHz

Description:

Code: "E"

Gender: Jack

Color: Green /6002

Connector Body Style: Straight

Suitable cable: RG316 RG174 LMR100

Apply to: TV1

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly


FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered


The antenna with this Fakra Connector is compatible with:

    VW RNS510 (MFD3);

    VW MFD2 (RNS2);

    SKODA COLUMBUS;

    MERCEDES COMMAND SYSTEMS W211 (E-CLASS);

    MERCEDES APS 50;

    AUDI RNS-E (DVD NAVIGATION);

    AUDI MMI (A6 4F, A8 4E);


Package included:

5pcs Fakra "E" female Jack connector Green /6002 Car TV1 crimp RG316 RG174 LMR100 cable
