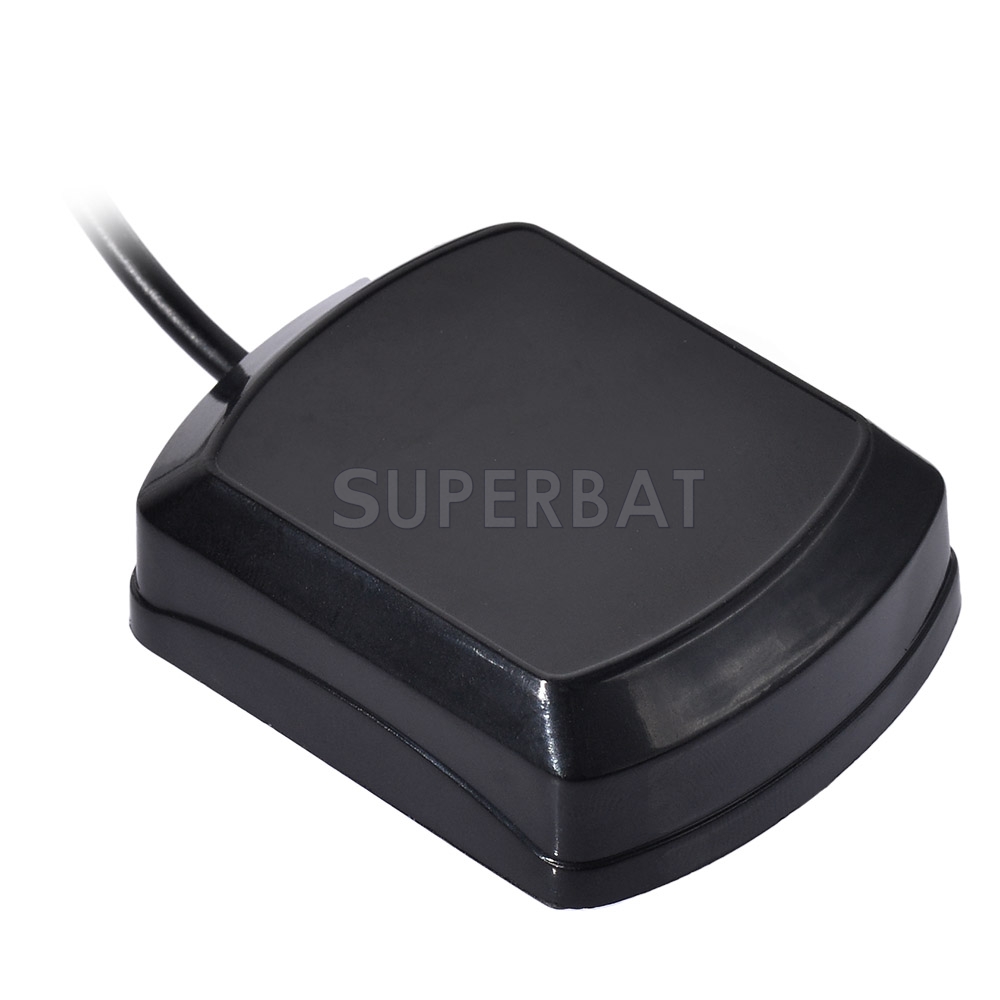

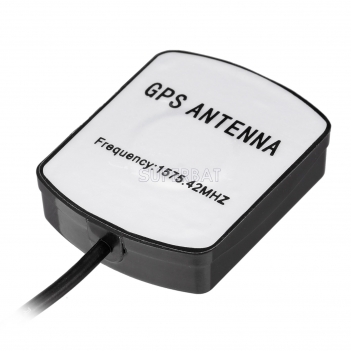

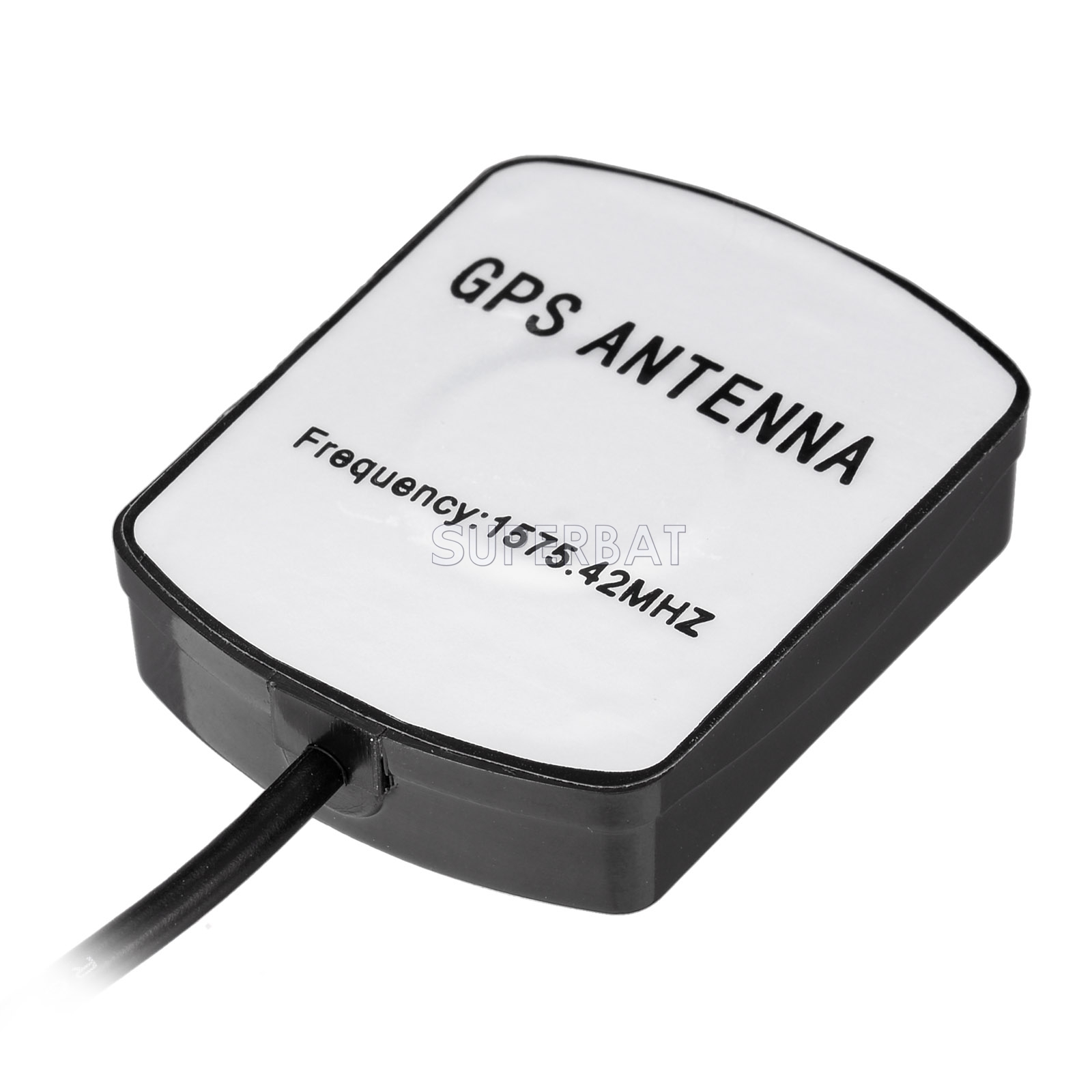

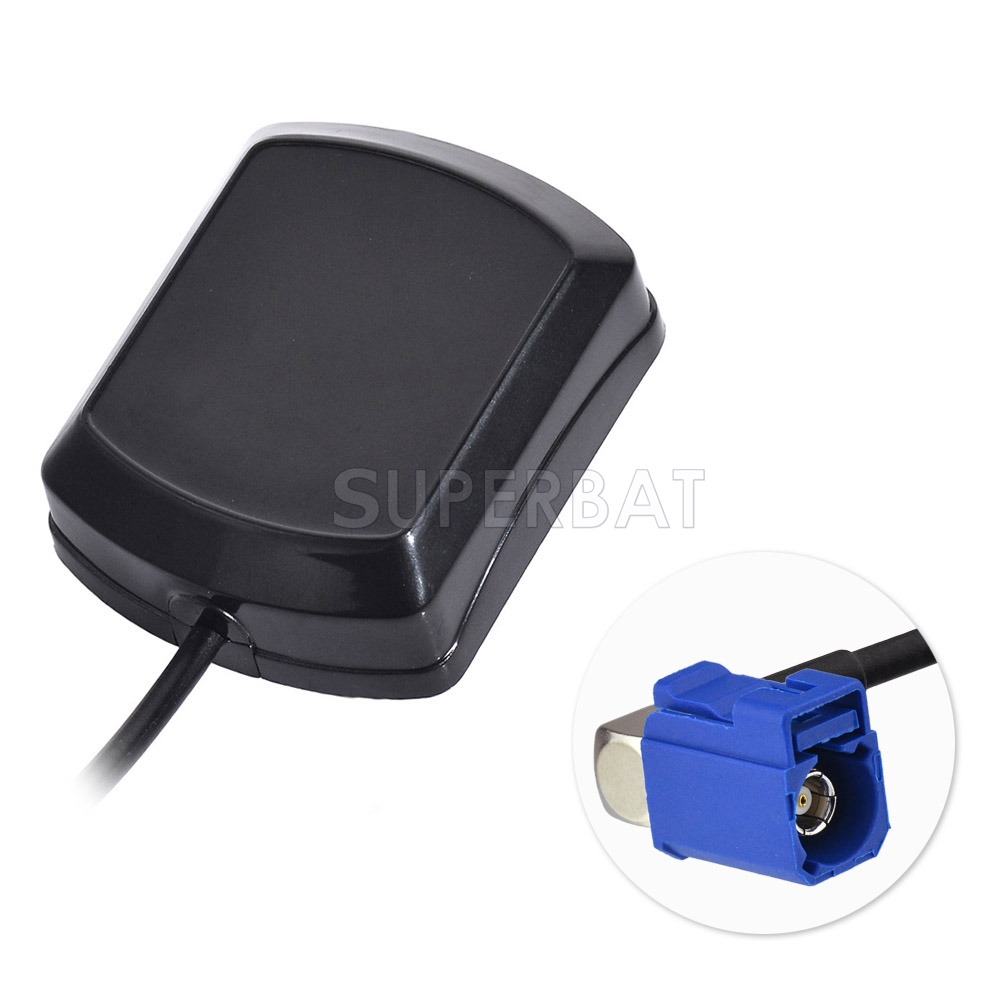

Superbat Fakra C Jack GPS Antenna Aerial Connector Cable for VW AUDI BMW Ford Benz GPS Navigation System (Right Angle Jack)

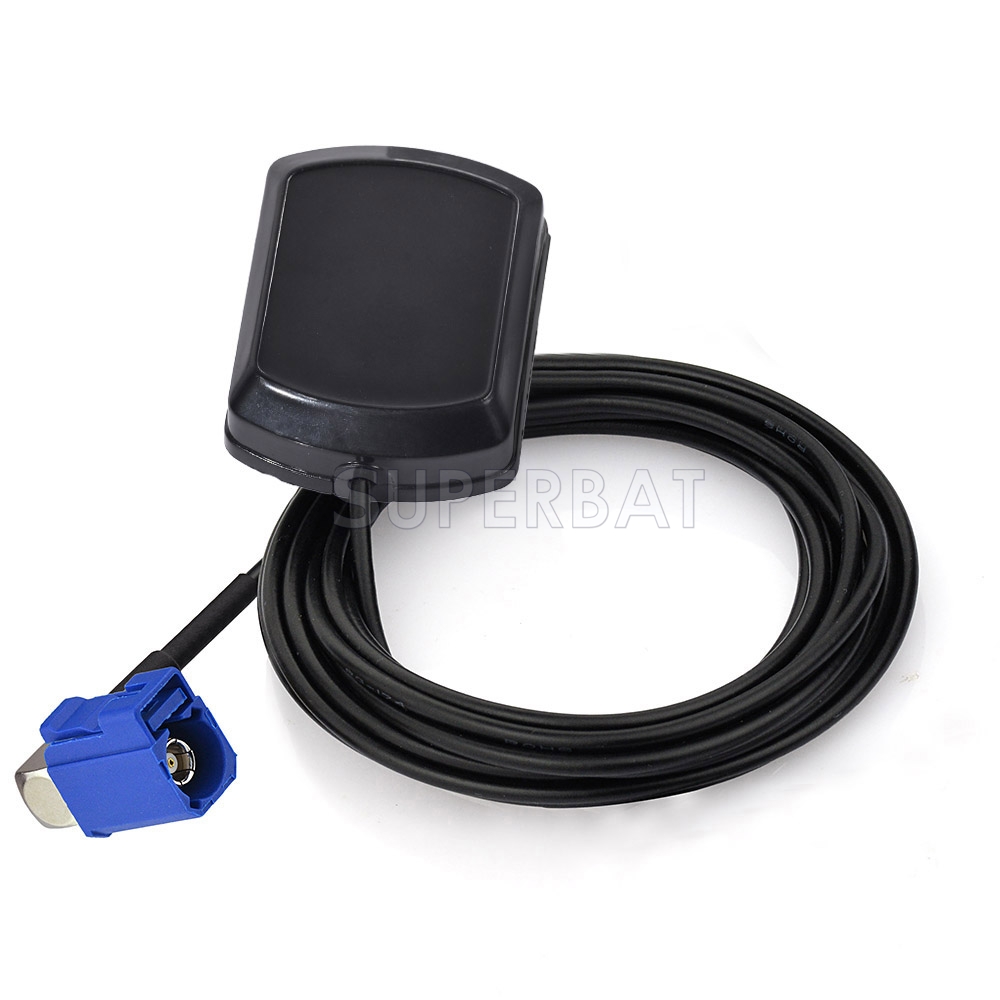

GPS Antenna Fakra "C" Adapter Right Angle with 3m GPS Fakra Antenna for VW Golf AUDI GPS Navigation System GPS Receivers Car DVR GPS Module Tracking Antenna
Unit Price: $10.00
sku:GA01-300-F03CRJ
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.00 $9.00 $8.10 $7.30 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 9999
Quantity: Units

Vechicle: BMW , Ford , Mercedes-Benz , Opel , Skoda , Volkswagen , Audi End connector: Fakra C Connector Style: Right Angle

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :48x39x16mm
Cable :RG174 3 meter / Contact us for other length

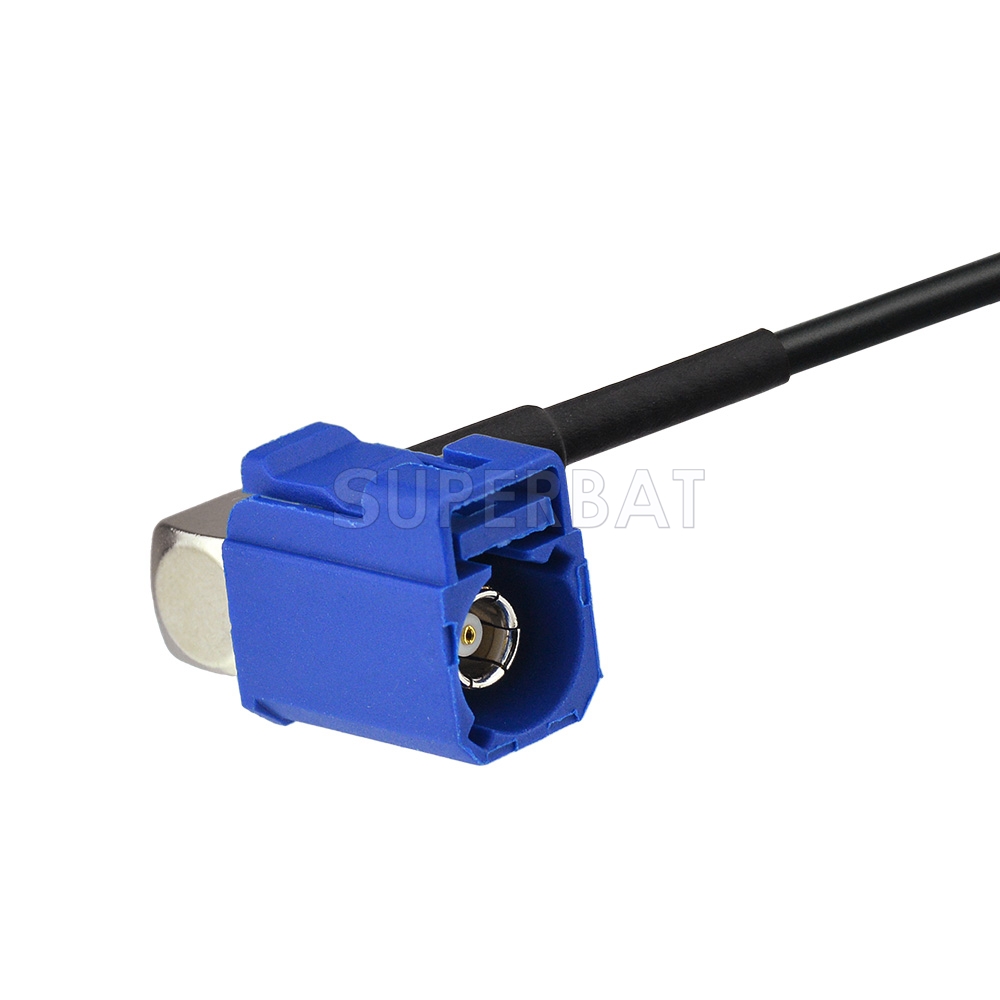

Connector :HRS FAKRA jack Straight default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APLICATION:


Fakra C Adapter GPS Antenna for VW: MFD2 RNS2, Golf 5, Golf Plus, Jetta, Passat, Touran, Touareg, T5, T5 Multivan RNS300 310, RNS315, RNS500, RNS510

Audi: RNS-E (16: 9), MMI DVD 2G, 3G, BNS low line

Skoda: RNS2, MFD2, Amundsen, Columbus; SEAT: RNS2, MFD2, Media System Low, Medium, High;

Mercedes-Benz: E-Class W211 Comand APS, CKL W209 APS 50 NTG 1, NTG 2, NTG 2.5, NTG 3, NTG 4

BMW Navigation Systems: CHAMP2, ENTRY, ENTRYNAV & ENAVEVO
