Feature:

Working Voltage: DC 10.5V～16V

Working current: 30mA～60mA

Rated voltage: DC 12V

Rated Current: 40mA～50mA

Working Frequency: 170MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Output Gain: 15dB±3dB (Band Ⅲ) 12dB±3Db (L-Band)

Output impedance: 75Ω

V.S.W.R: ≤3.0:1

NS: ≤2dB

Working Temperature: -30℃～+80℃

Storage Temperature: -40℃～+90℃

Cable specification: 1.5DS, 5M

Connector: Fakra or SMA or SMB or MCX (depending on your selection)

Cable Length: 3M

Band Ⅲ Gain:

Package included:

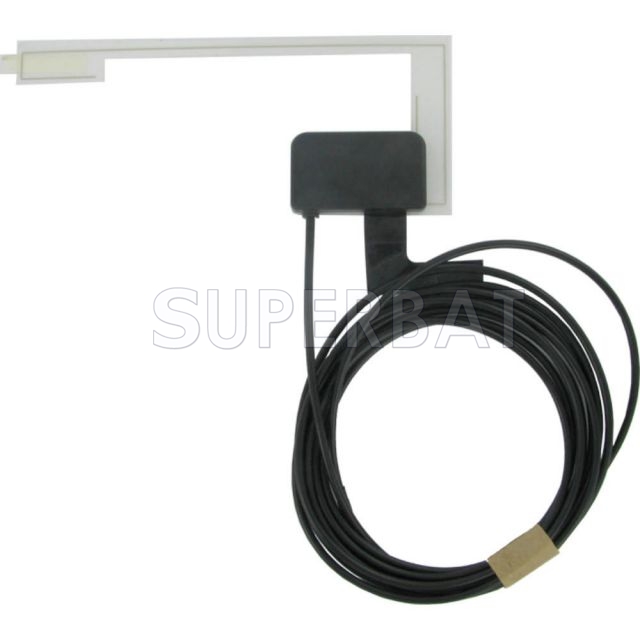

1pcs For Pioneer AN-DAB1 - Glass Mount DAB DAB+ Digital Car Radio Aerial Antenna for SMA/SMB/MCX/FAKRA Connector (depending on your selection)

Our RF cable assembliescan be customized with many different connector types and custom lengths depending on your needs and application. And they are used for medical, computer, LAN, RF, automotive, monitoring and communications equipment. If you require a special cable configuration not found here, you can create your own RF cable assembly configuration by writing E-mail or calling to us. Buy more,discount more!
