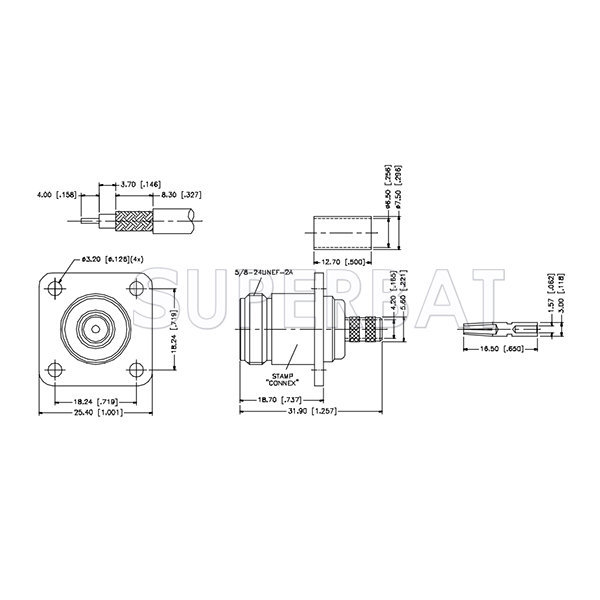

Superbat 50 Ohm N Type Jack Female Panel Mount 4 Holes Crimp Connector For LMR-240 Coaxial Cable
Superbat 50 Ohm N Type Jack Female Panel Mount 4 Holes Crimp Connector For LMR-240 Coaxial Cable
Unit Price: $4.79
sku:N01-FJL24HL4-41BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: N Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: LMR-240 Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration.


The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.


 N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz. Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.


Features and Benefits

Broad line of military, industrial and commercial grade products available

Excellent RF performance from DC to 90 GHz

Threaded coupling mechanism ideal for vibration resistance


Applications

Antennas

Base stations

Instrumentation

Satellite systems

WLAN

Radar systems

Broadcast

Surge protection
