Note: This connector is custom one ,the MOQ is 500 pcs.

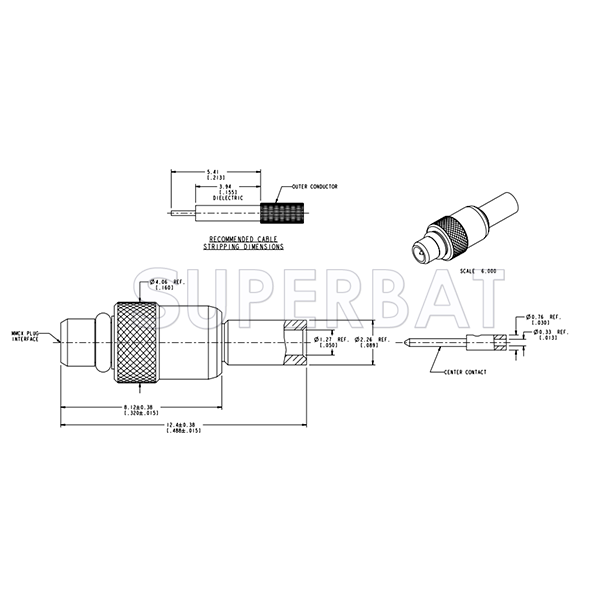

MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature
version of the MCX. It has the all features of the MCX series, including
50 Ω impedance with a broadband capability of DC to 6 GHz and secure,
fast and easy snap-on/ snap-off coupling, and a wide range of available
connectors. However, MMCX connectors have a smaller foot print than the
A range of connectors are available, including surface mount, edge card, and cable connectors.
Features and Benefits
Broadband performance with low reflection DC to 6 GHz, providing a high-quality solution at a low cost
Quick connect/disconnect snap-on mating reduces installation time
Conforms to European CECC 22000 specifications
Available in straight and right angle plugs and printed circuit board connectors
