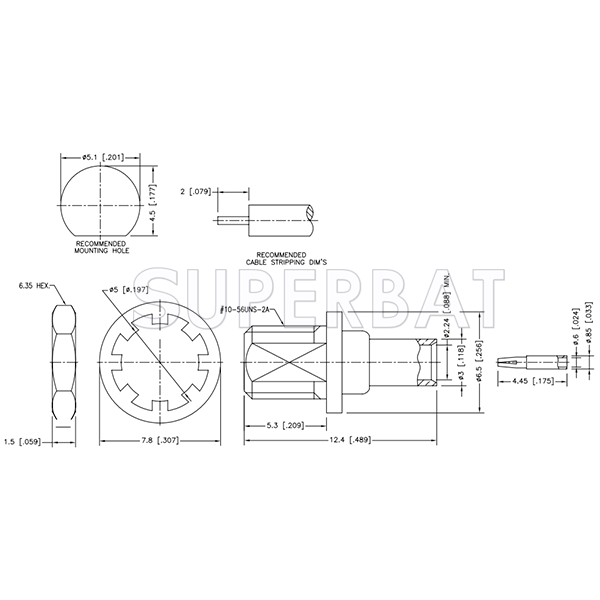

Superbat 50 Ohm MMCX Jack Straight Bulkhead Solder Connector For 0.085" Semi-Rigid Coax Cable
Superbat 50 Ohm MMCX Jack Straight Bulkhead Solder Connector For 0.085" Semi-Rigid Coax Cable
Unit Price: $2.56
sku:M01-BOS08-11BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: MMCX Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: .085" Body Style: Straight Mount Method: Bulkhead Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 Ω impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
A range of connectors are available, including surface mount, edge card, and cable connectors.


Features and Benefits
Broadband performance with low reflection DC to 6 GHz, providing a high-quality solution at a low cost

Quick connect/disconnect snap-on mating reduces installation time

Conforms to European CECC 22000 specifications

Available in straight and right angle plugs and printed circuit board connectors


Applications

Antennas

Instrumentation

Satcom

Base Stations

Telecom

Broadband

GPS
