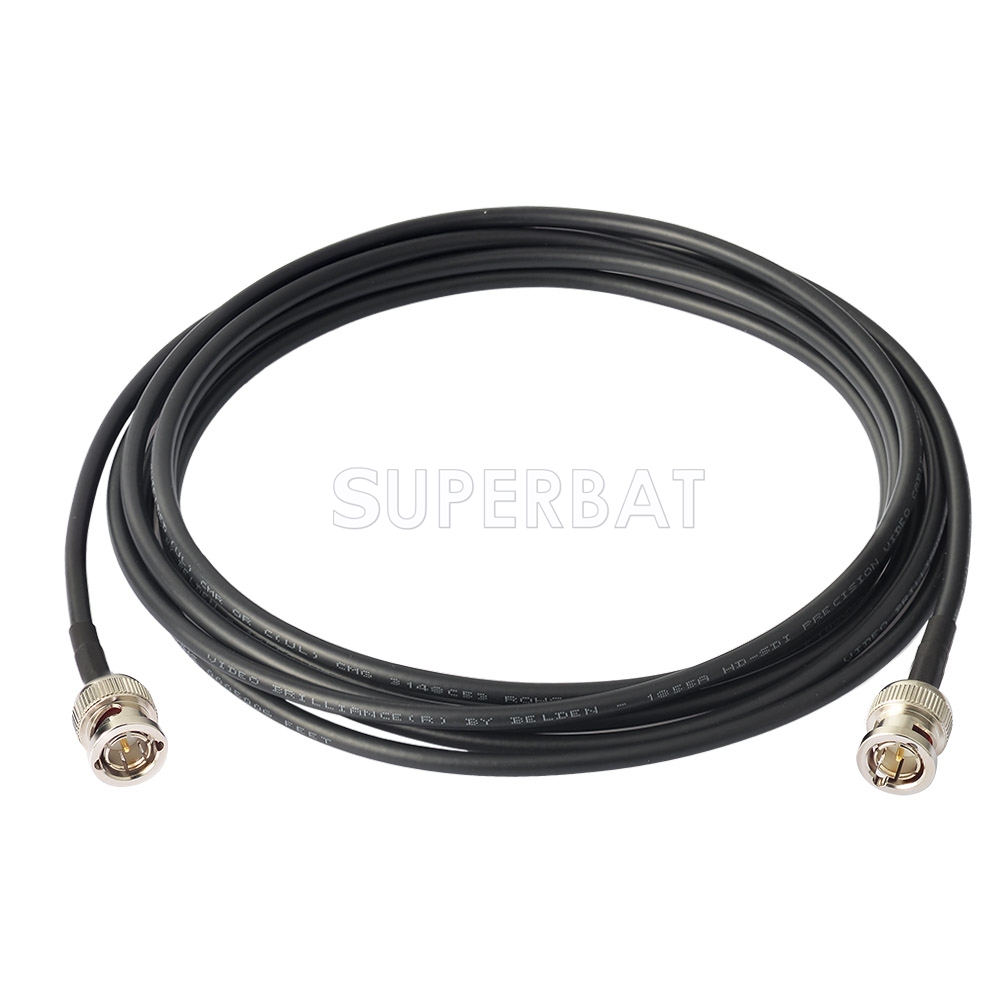

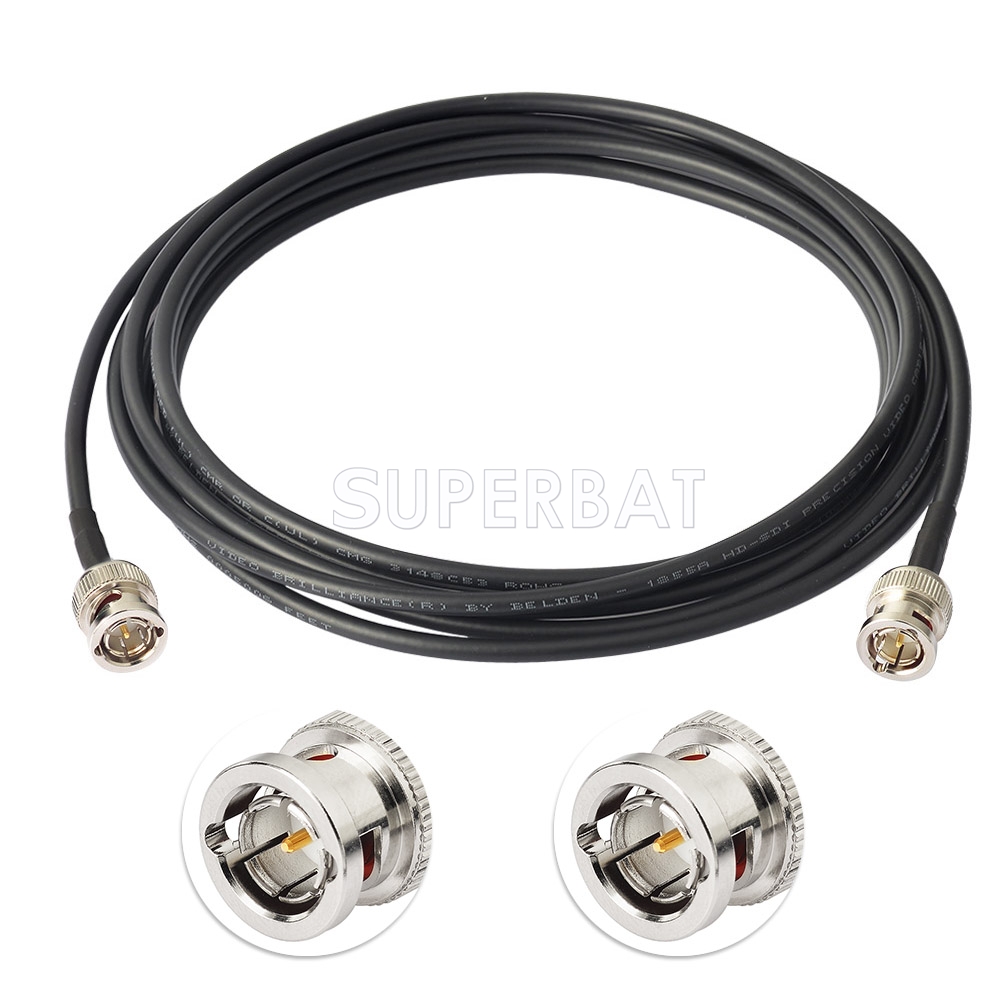

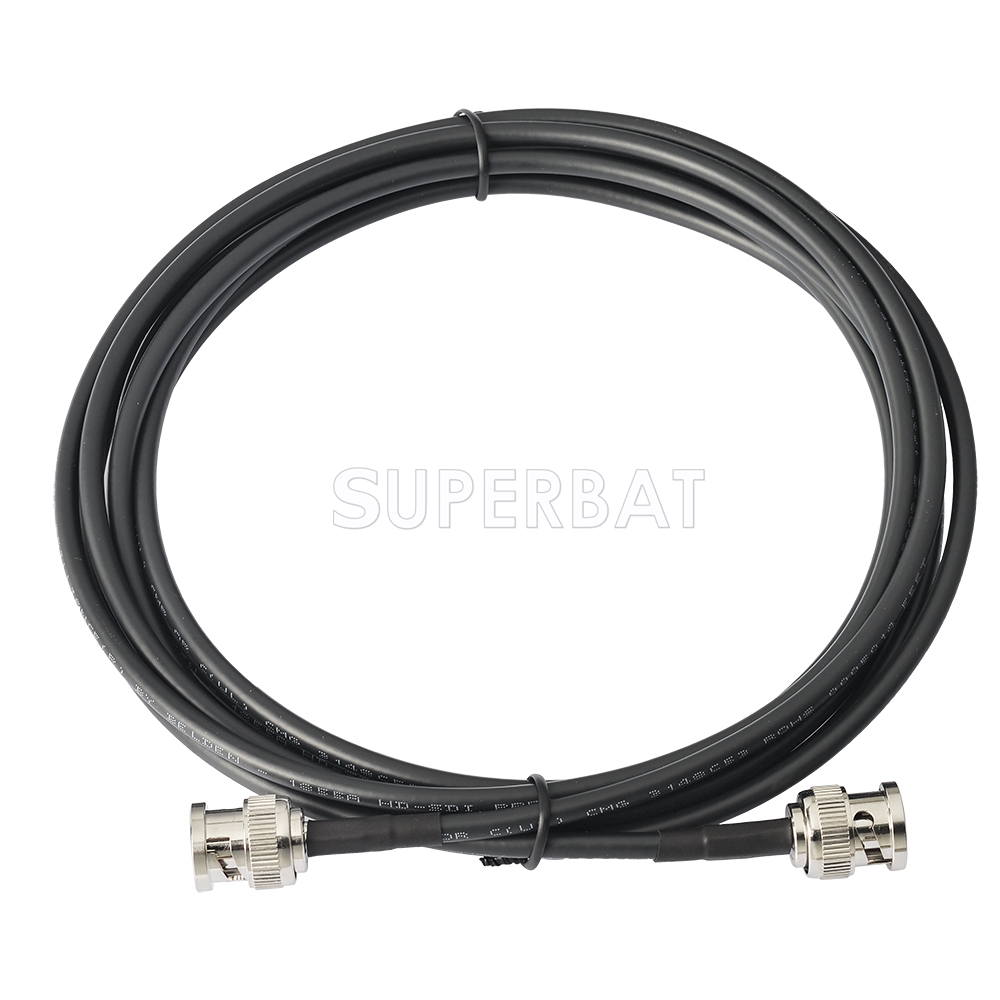

Superbat 15 feet BNC Male to BNC Male 75 Ohm 3G 6G HD SDI Vedio Camera Cable (Belden 1855A)
Unit Price: $16.08
sku:AC-B04SP-B04SP-1855A-457d2
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $16.08 $14.47 $13.02 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 990
Quantity: Units

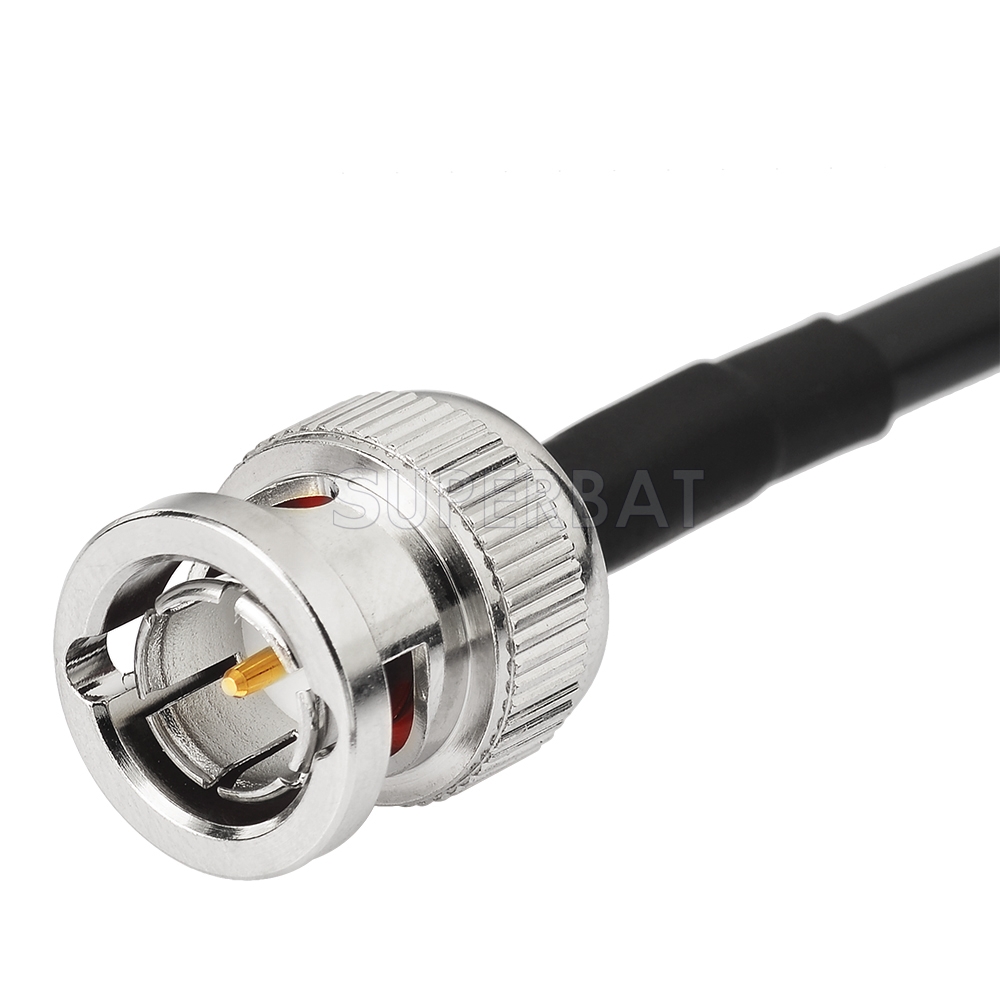

Connector Type: BNC Male 75 Ohm;

Connector Type: BNC Male 75 Ohm;

Cable Type: Belden 1855A;

Length: 15 feet;

Cable Impedance: 75 Ohm;

Package Weight: 135g;

Package Included: 1 x Cable;


Environmental Space: Indoor - Riser

Capacitance: 16.3 pF/ft;

Inductance: 0.107 µH/ft;

UL Voltage Rating: 300 V RMS;


Return Loss (RL):

5 MHz - 1600 MHz RL>23 dB

1600 MHz - 4500 MHz RL>21 dB

4500 MHz - 6000 MHz RL>15 dB


Conductor Count: 1

Conductor Size: 23 AWG

Conductor DCR:

Nominal Conductor DCR: 20.1 Ohm/1000ft
