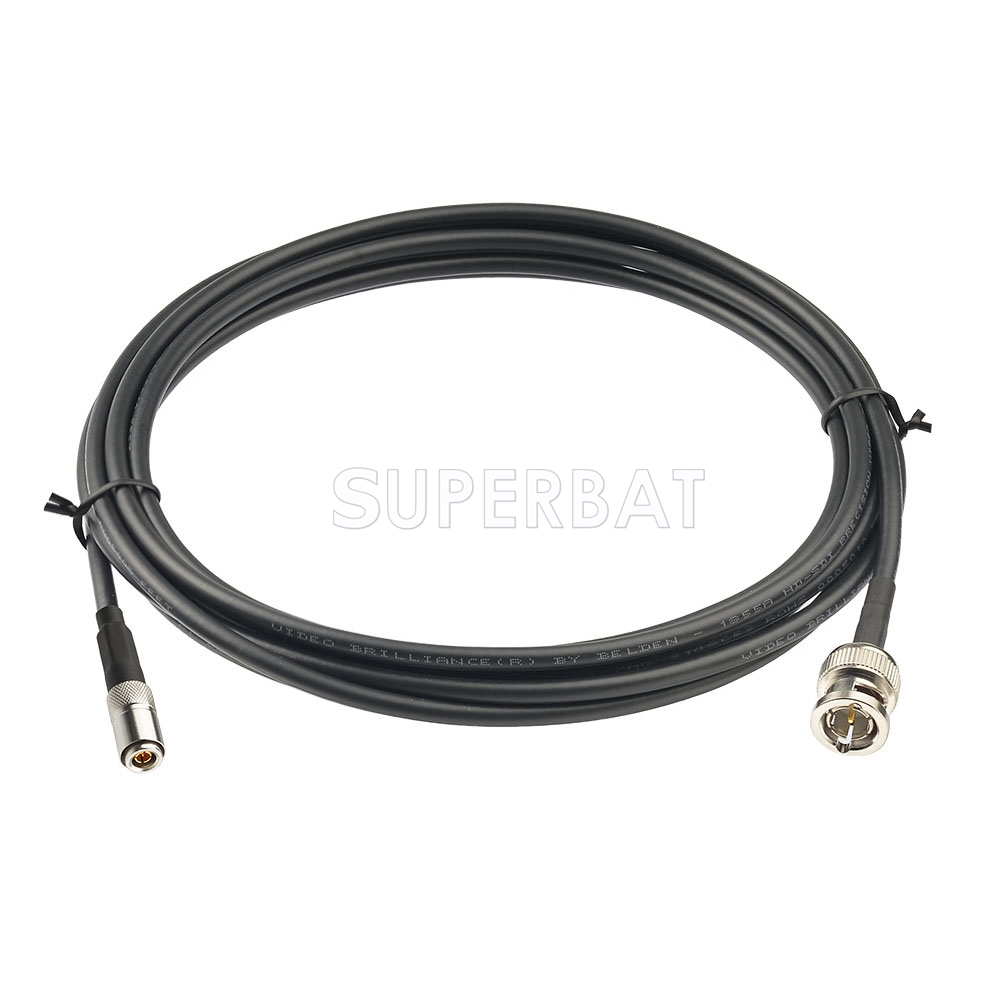

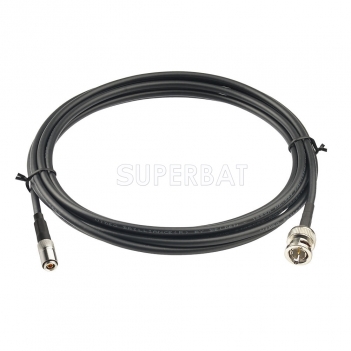

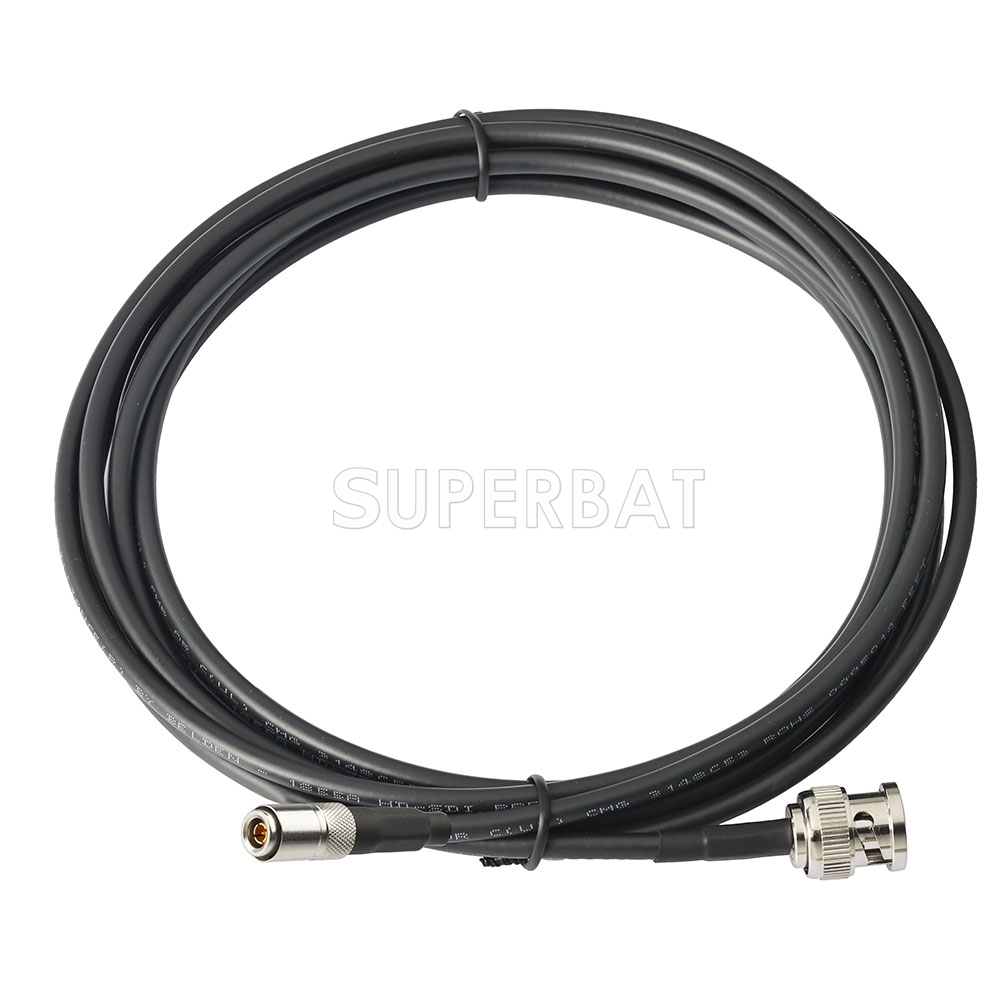

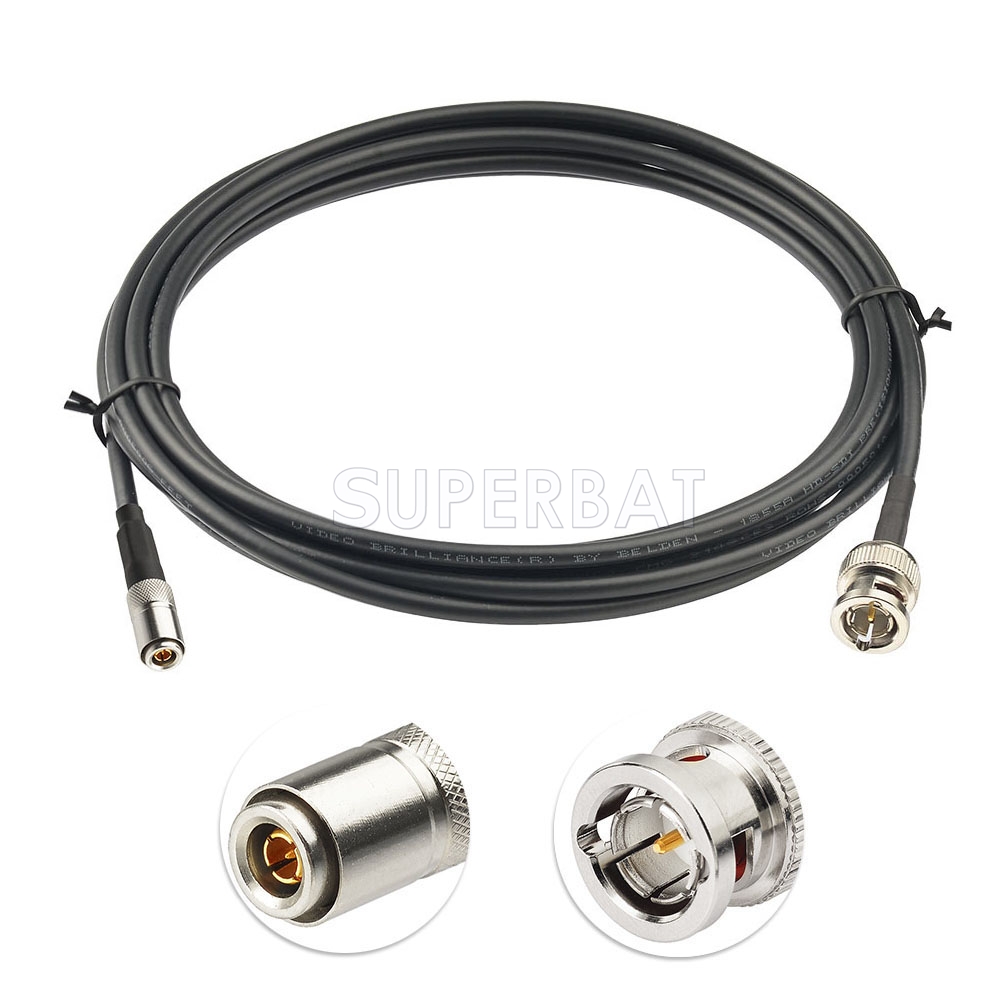

Superbat 10 feet BNC Male to DIN 1.0/2.3 Plug 75 Ohm 3G 6G HD SDI Vedio Camera Cable (Belden 1855A)
Unit Price: $12.88
sku:AC-B04SP-M08SP-1855A-304d8
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $12.88 $11.59 $10.43 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Cable Type: Belden 1855A Connector 1 Series: 1.0/2.3 Connector 2 Series: BNC Connector 1 Gender: Male , Plug Connector 2 Gender: Male , Plug Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Straight Cable Impedance: 75

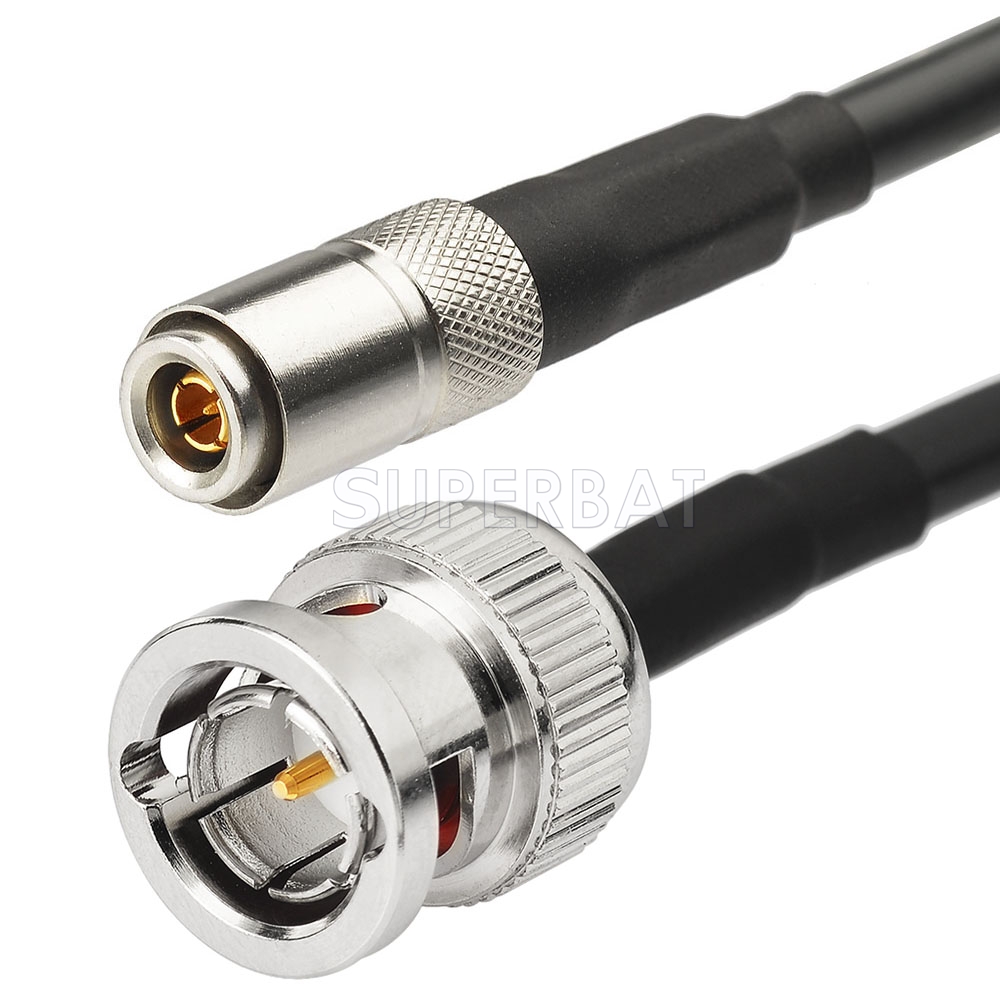

Connector Type: BNC Male 75 Ohm;

Connector Type: DIN 1.0/2.3 Plug 75 Ohm;

Cable Type: Belden 1855A;

Length: 10 feet;

Cable Impedance: 75 Ohm;

Package Weight: 92g;

Package Included: 1 x Cable;


Environmental Space: Indoor - Riser

Capacitance: 16.3 pF/ft;

Inductance: 0.107 µH/ft;

UL Voltage Rating: 300 V RMS;


Return Loss (RL):

5 MHz - 1600 MHz RL>23 dB

1600 MHz - 4500 MHz RL>21 dB

4500 MHz - 6000 MHz RL>15 dB


Conductor Count: 1

Conductor Size: 23 AWG

Conductor DCR:

Nominal Conductor DCR: 20.1 Ohm/1000ft


Custom Service:

We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we can customize the cables according to your requirements. If you are interested in them, please contact us, thank you!
