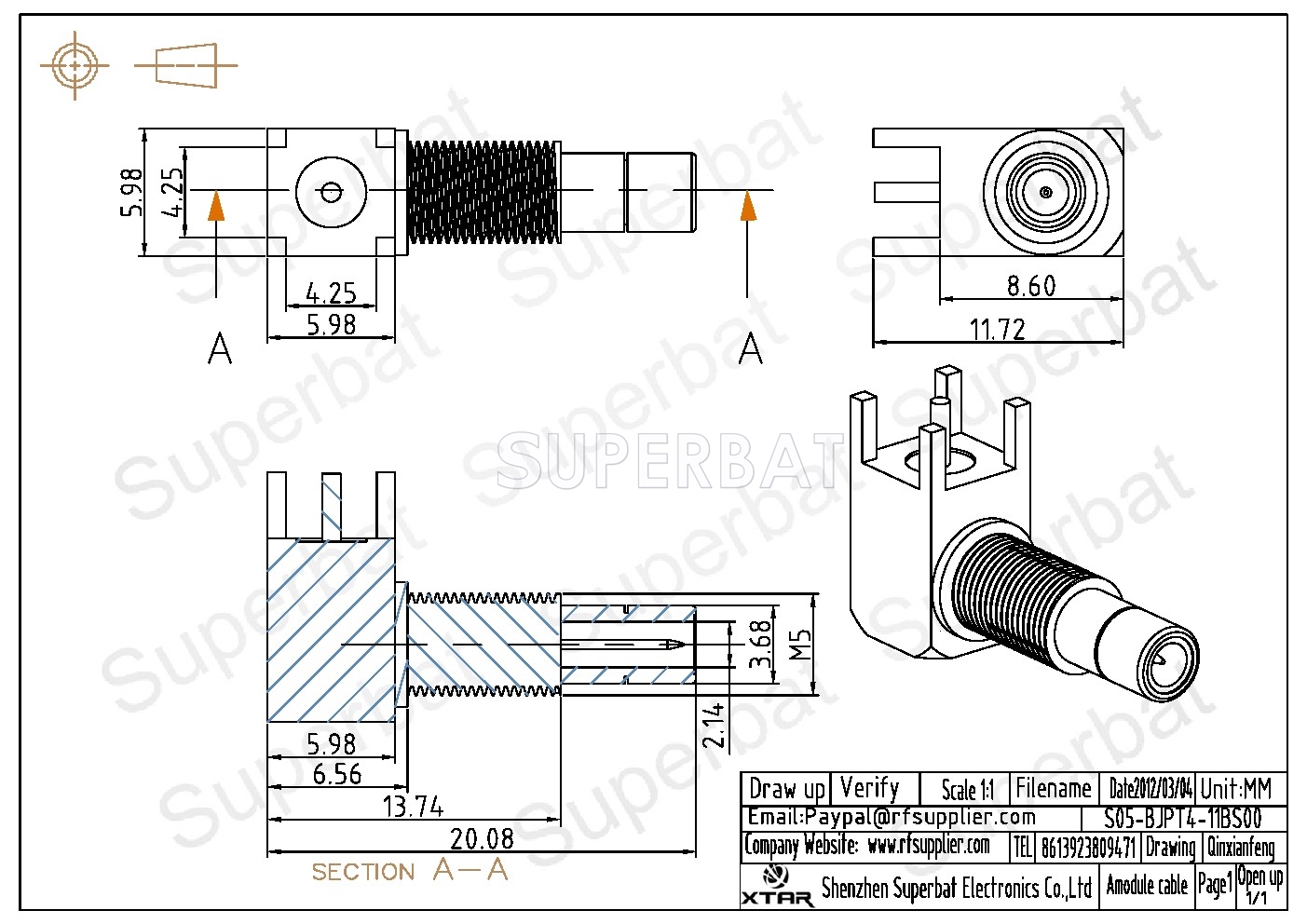

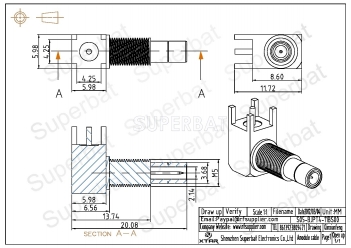

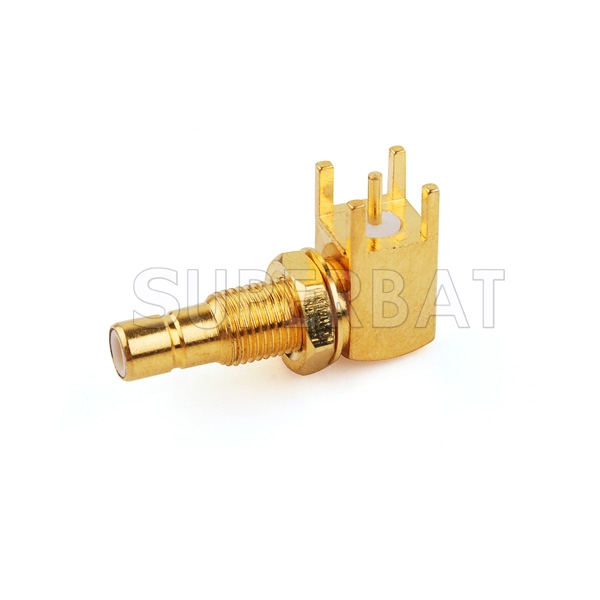

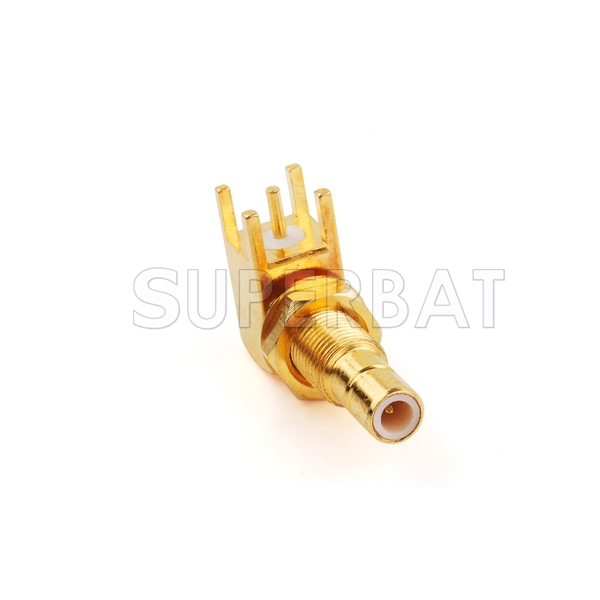

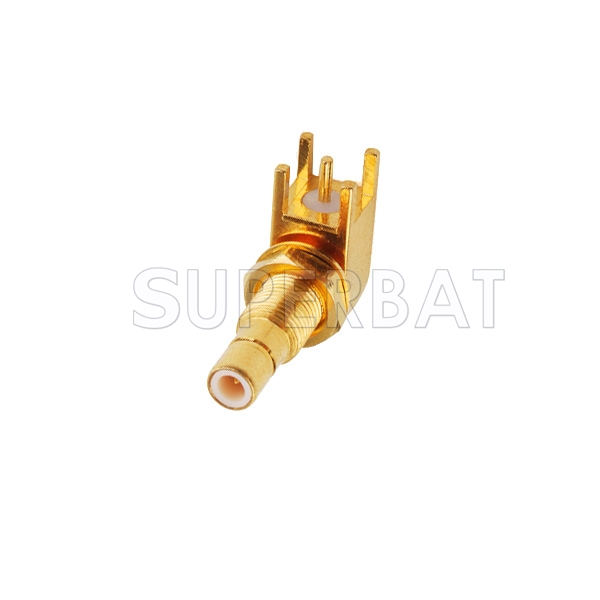

SMB Jack Male Bulkhead Right Angle Solder Connector
SMB Jack Male Bulkhead Right Angle Solder Connector
Unit Price: $2.64
sku:S05-BJPT4-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.64 $2.38 $2.14 $1.92 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1113
Quantity: Units

Series: SMB Termination Type: PCB Gender: Plug , Male Polarity: Reverse Polarity Body Style: Right Angle Mount Method: Bulkhead Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 5 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.

Features and Benefits
Selective plating provides corrosion resistance finish as well as good solder-ability characteristics
Various plating options in nickel, gold, and tin lead
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s

Applications
Base Stations
Antennas
Radio Boards
PC/LAN
GPS
