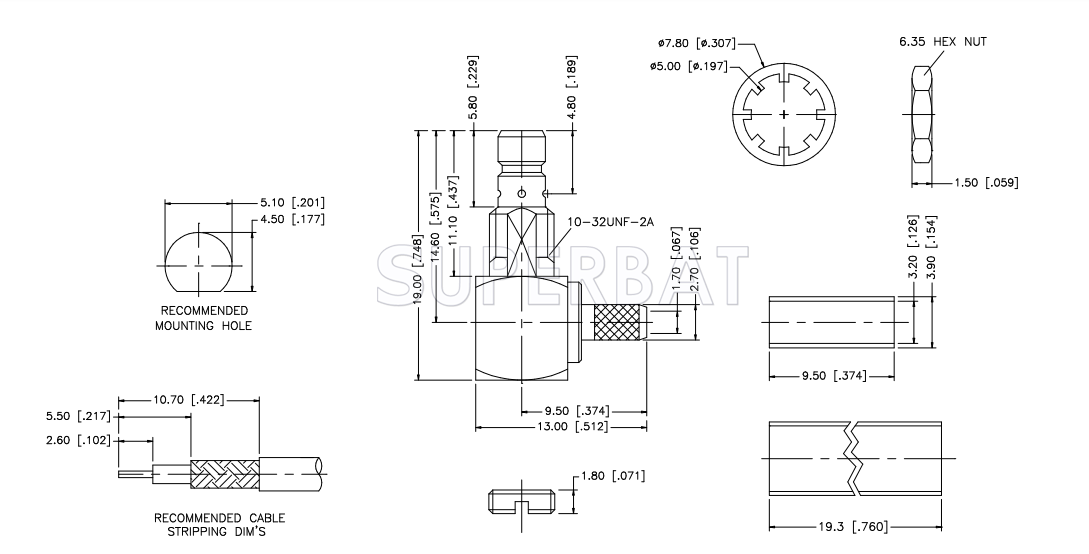

SMB Female Jack (male pin) Right Angle Crimp Coaxial Bulkhead Connector 50 Ohm for RG 316
SMB Female Jack (male pin) Right Angle Crimp Coaxial Bulkhead Connector 50 Ohm for RG 316
Unit Price: $2.99
sku:S05-RJ316-11BS01A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: SMB Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: RG178 , RG316 Body Style: Right Angle Mount Method: Bulkhead Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 14 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.

Features and Benefits
Selective plating provides corrosion resistance finish as well as good solder-ability characteristics
Various plating options in nickel, gold, and tin lead
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s

Applications
Base Stations
Antennas
Radio Boards
PC/LAN
GPS
