| Frequency Range: | AM 520Khz-1629KHz/ FM 76MHz-108MHz |
| Polarization: | Linear |
| Gain: | AM:5dB FM:15dB |
| Supply Voltage: | 12V DC |
| Current Consumption: | 40mA |
| Connector: | DIN Plug |
| Cable Length: | 300cm / 9.84 feet |
| Material: | Weatherproof ABS |
| Installation: | hole drilling |

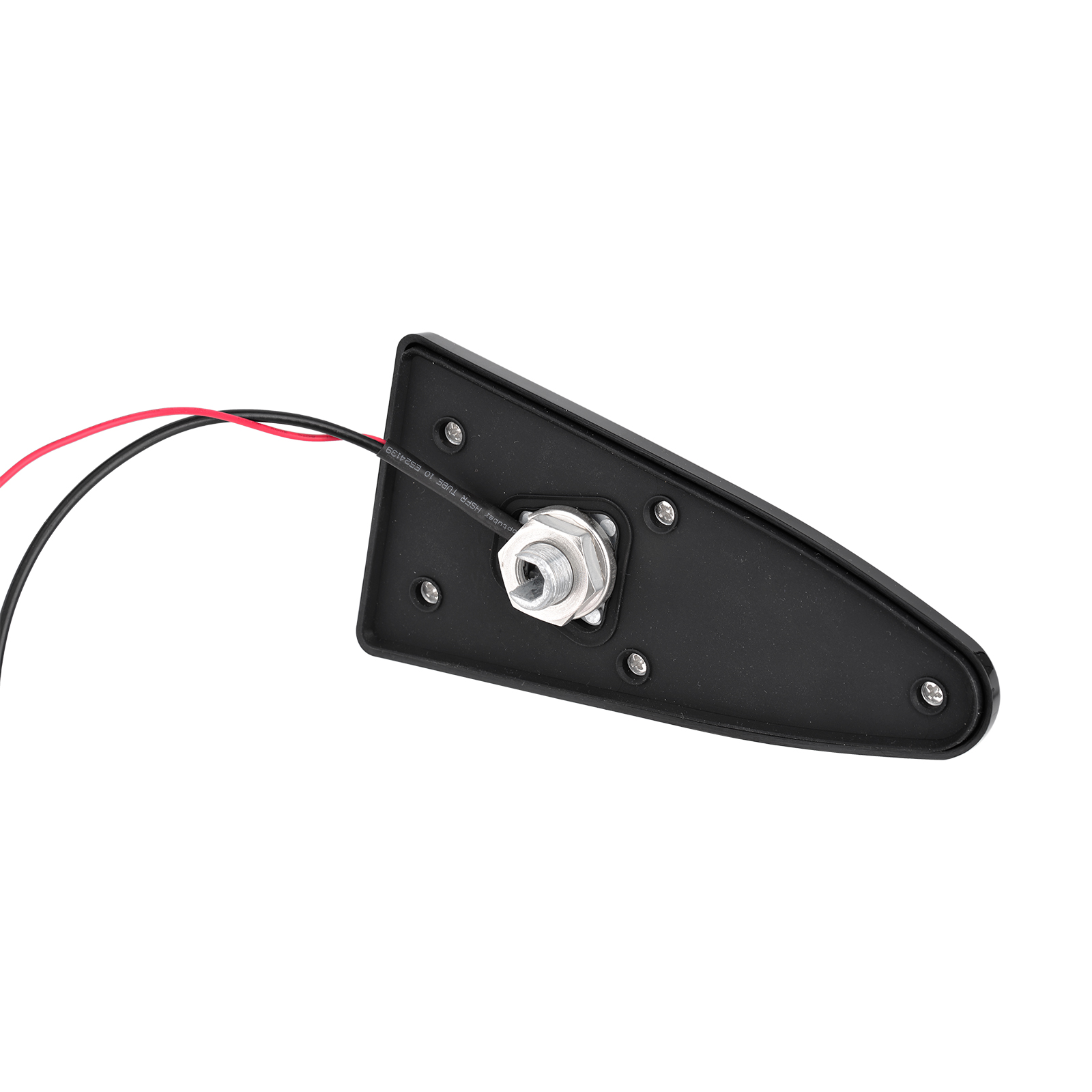

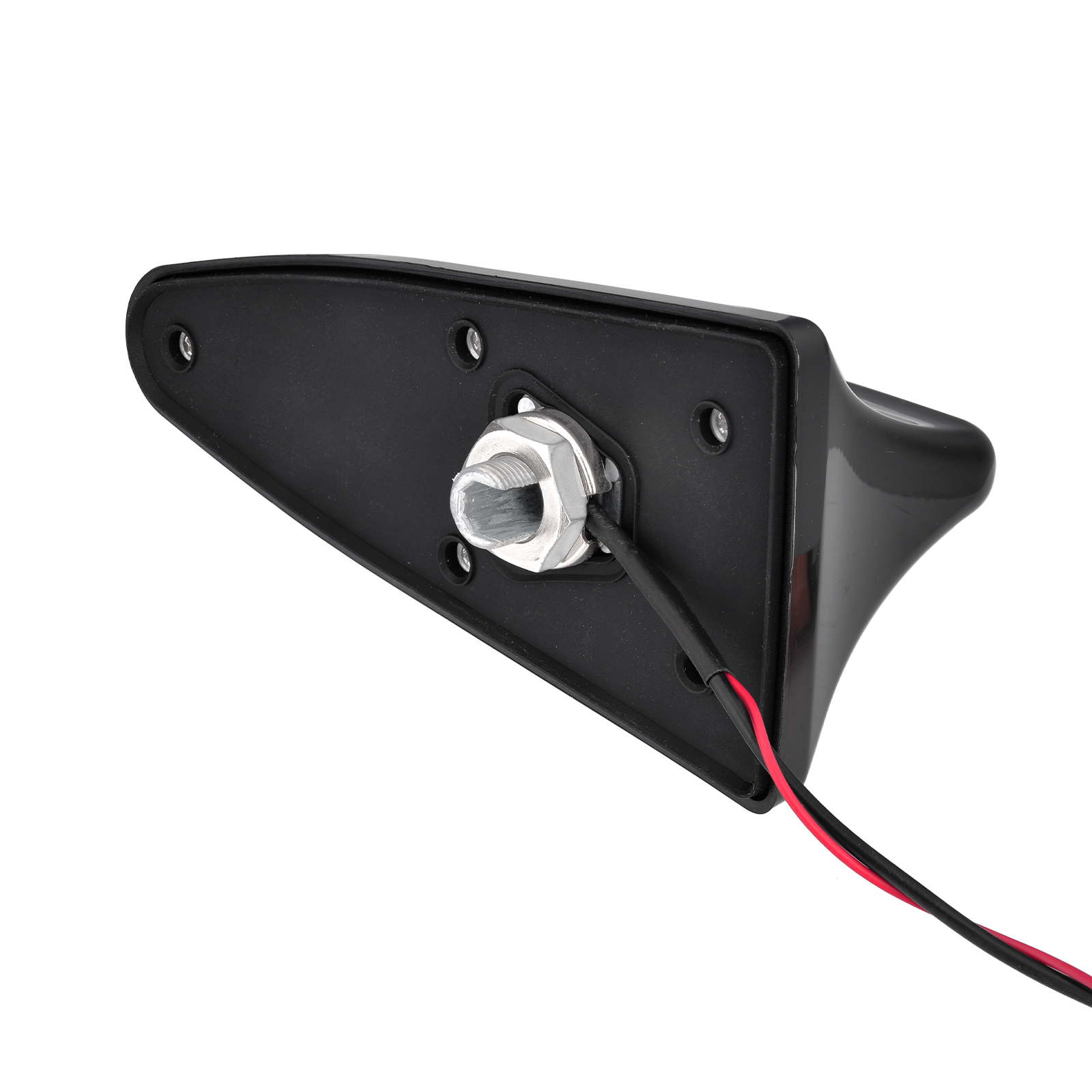

| Mounting Note 1: | Drill a hole on car roof, pass the stub through the hole, secure the antenna to roof via tightening the nuts that included,then connect the DIN plug connector to the back of the radio receiver and the power cord to the 12V power supply. |
| Mounting Note 2: | Choose a non-metallic surface to mount the antenna(metal acts as a shield and block radio signal) |
