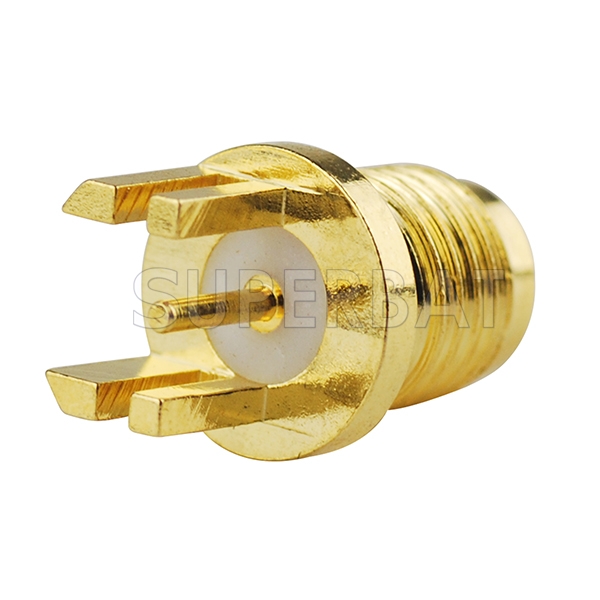

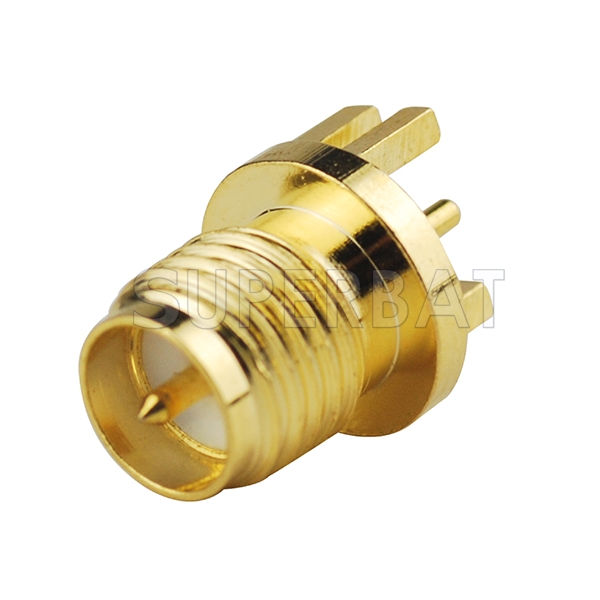

RP-SMA Male End Launch Jack PCB Mount RF connector Teflon insulator
Unit Price: $1.52
sku:S02-SJEDM-11BS02
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.52 $1.44 $1.29 $1.20 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: SMA Gender: Jack , Male Polarity: Reverse Polarity Body Style: Straight Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE

SMA connectors, short for Sub Miniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.



SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.



Product Series:SMA
Drawing:
Product Type:PCB Mount
PolarityReversed Polarity
Body Plating:Gold plated
Body Termination:Solder
Suitable PCB Size:1mm (0.4’’)
Connector Body Style:Straight
Connector Material:Brass
Contact Plating:Gold
Contact Termination:Solder
Gender:Jack (Female)
Impedance:50 Ohm
