PHYSICAL PROPERTIES

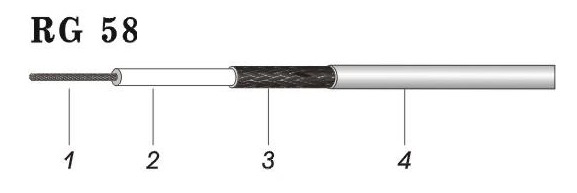

| Material | Diameter(mm) | |
| 1．Inner conductor | Tinned copper | 19*0.18 |
| 2．Insulation | PE | 2.95 |
| 3．Outer conductor | Tinned Copper Braid | 3.50 |
| 4．Jacket | PVC | 4.95 |
ELECTRICAL PROPERTIES
| Nom. Capacitance Conductor to Shield(pF/m) | 101.05 |
| Nom. Characteristic Impedance(ohm) | 50 |
| Nom. Velocity of Propagation(％) | 66 |
| Min. Bend Radius(Install)(mm) | 25 |
| Voltage Rating(VMS) | 1400 |
| Max. Operating Frequency(MHz) | 1000 |
| Operating Temperature Rating(℃) | -25～+70 |
Nom. Attenuation
| Frequency(MHz) | Nom. Attenuation(≯dB/m) |
| 100 | 0.151 |
| 400 | 0.308 |
| 1000 | 0.502 |
