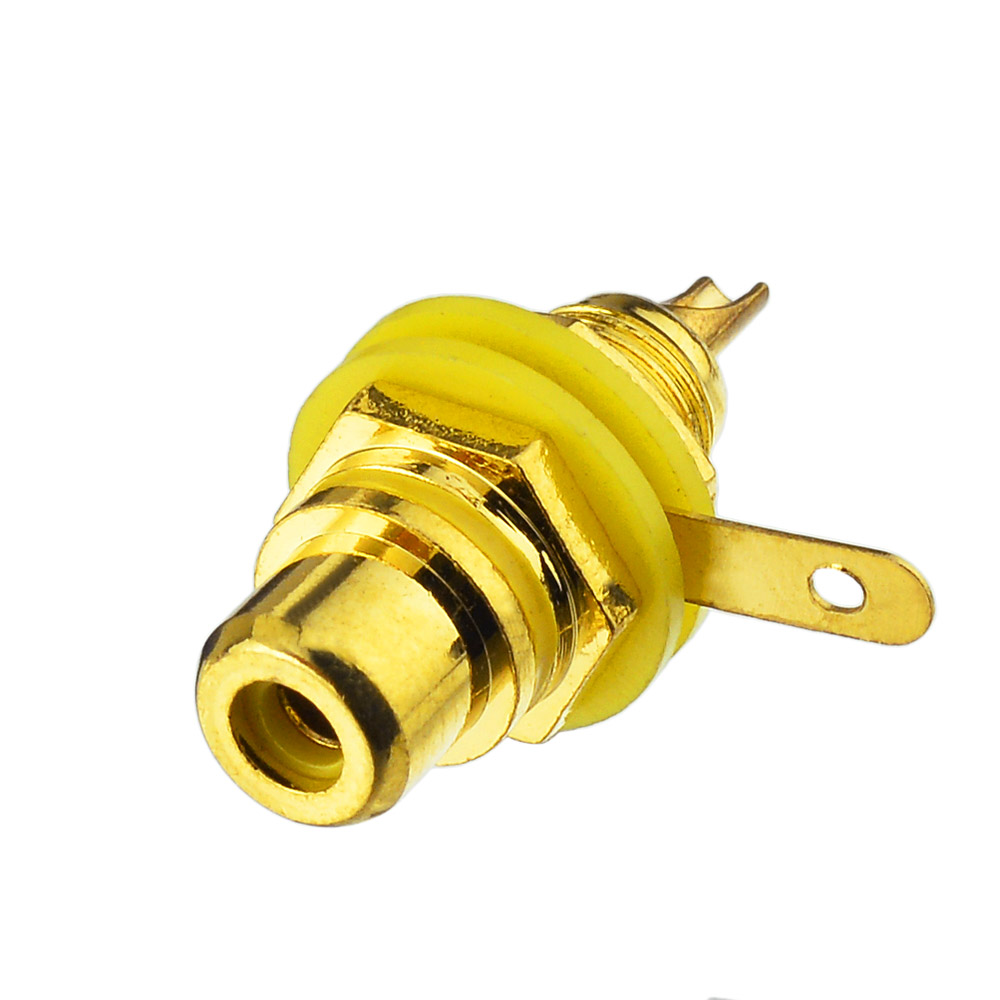

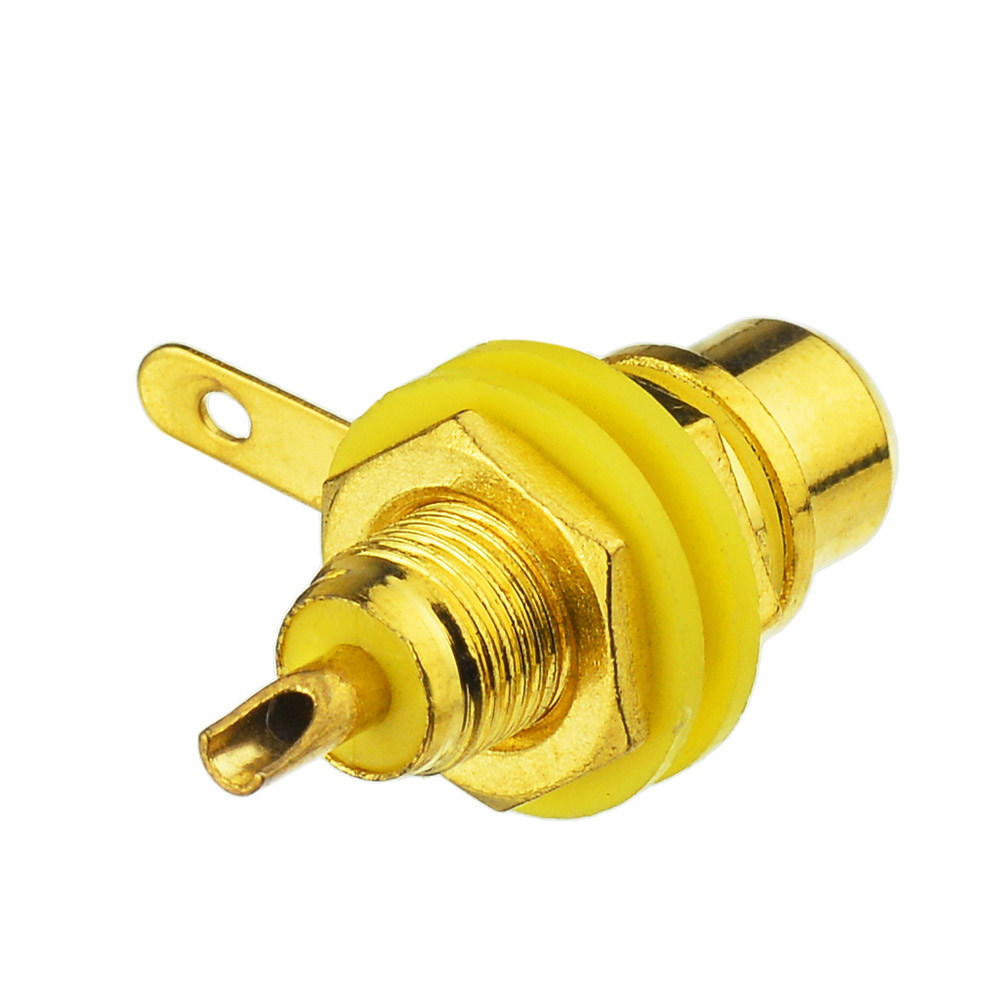

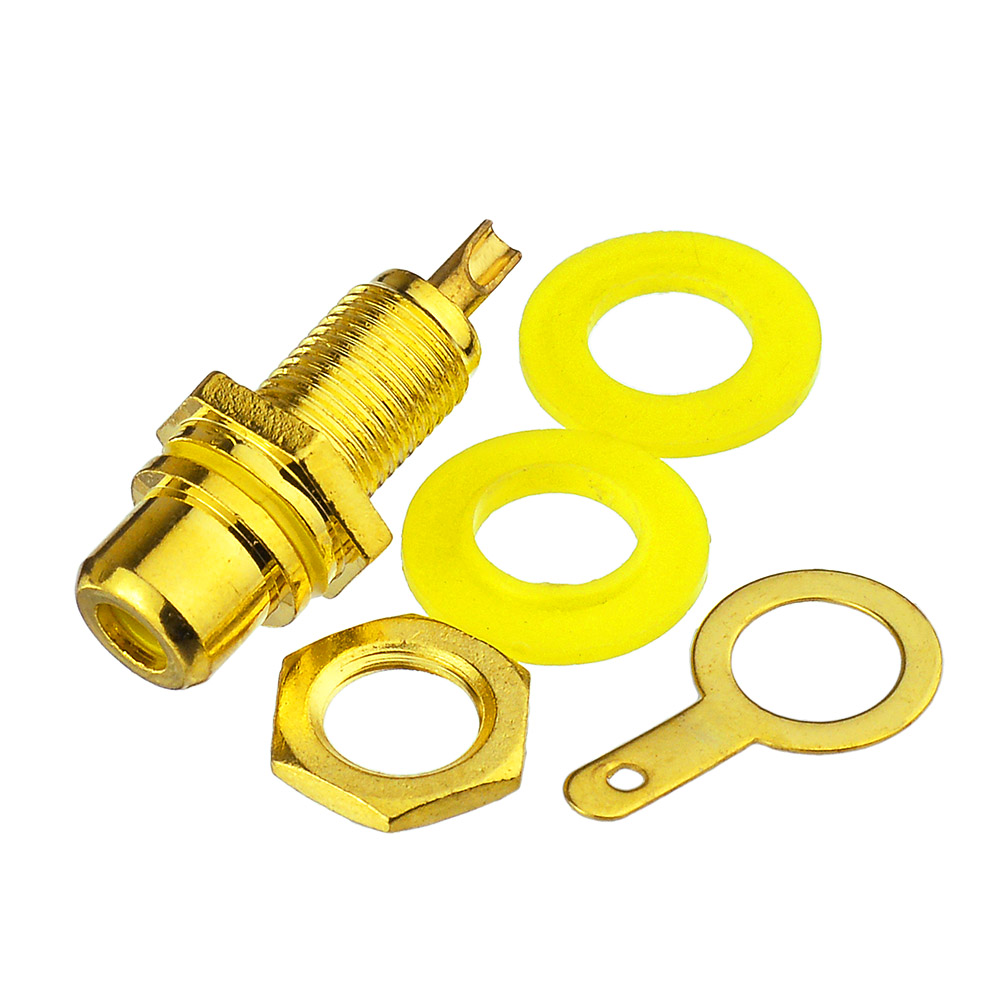

RF Connector RCA panel mount Bulkhead Jack with nut and solder cup
RF Connector RCA panel mount Bulkhead Jack with nut and solder cup
Unit Price: $2.28
sku:R01-BHT15-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.28 $2.05 $1.85 $1.66 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: RCA Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Straight Mount Method: Bulkhead Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold

RCA ,the standard video input connector, subminiature devices that provide repeatable electrical performance from DC to 7.5GHz
RCA which are widely used to connect audio and video components .It use on every TV, DVD player, stereo amplifier, set-top box and countless other devices.



Technical characteristics
Impedance: 50Ω
Temperature Range:55~+155 ℃
Frequency Range: DC~7.5GHz
Working Voltage: 2700V rms
Withstanding Voltage: 4000V  r.m.s at sea level
Contact resistance:
Center contact   ≤0.4 mΩ
Outer contact    ≤ 1.5 mΩ
Insulation resistance : ≥ 10000 M Ω
Center conductor retention force  ≥6N
Durability(mating) ≥500 (cycles)
Insulator: PTFE
Body:  brass & gold plated
Pin contact:  brass &  gold plated
Socket contact: copper & gold plated.
Crimp ferrule: copper  &  nickel or gold plated
Resilient contact: beryllium-copper & gold plated.
