Your position: Home > RF Coaxial Cable

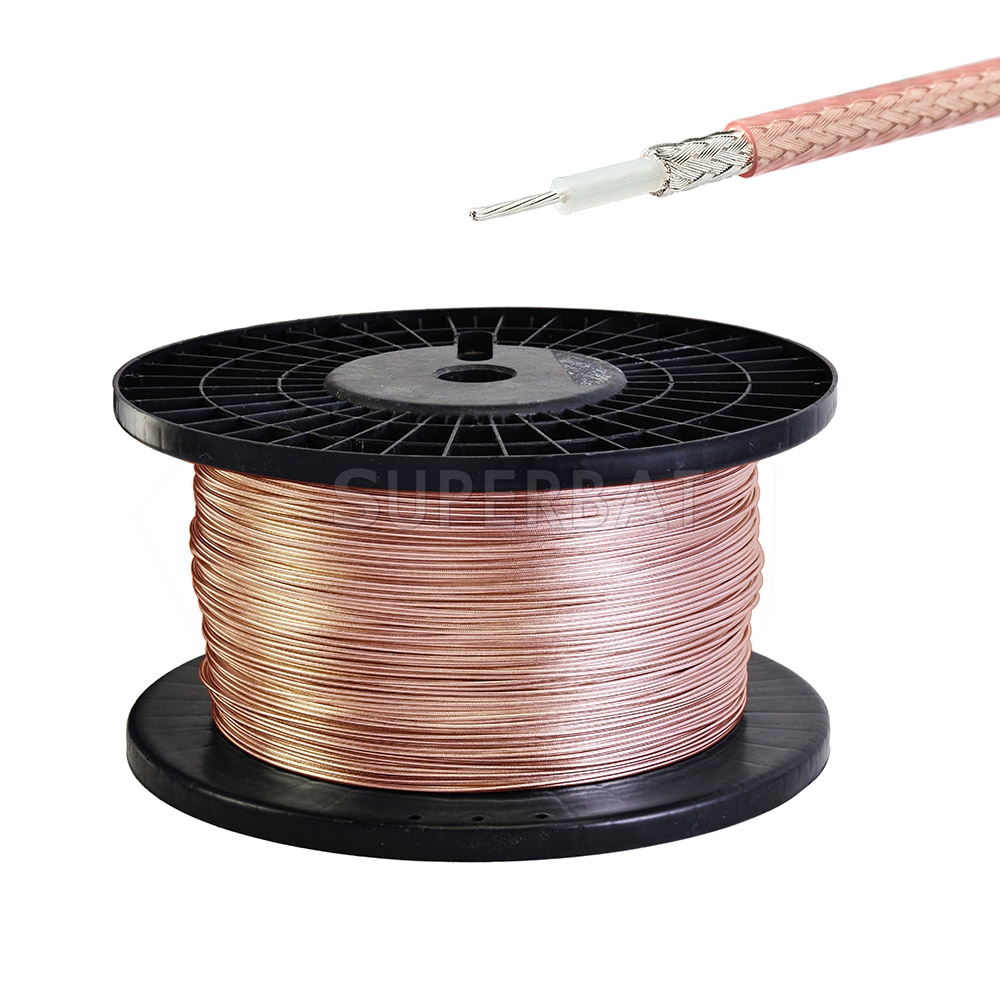

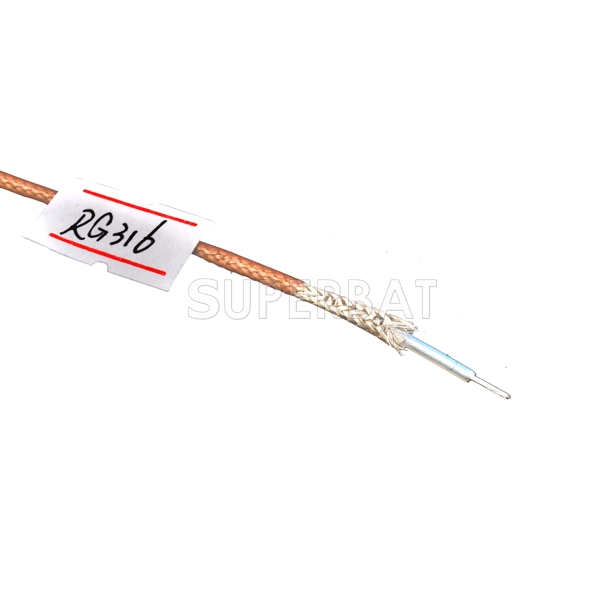

RF Coaxial cable RG316 / 1M
Unit Price: $1.35
sku:CA-316
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $1.35 $1.20 $1.15 ASK
saving% 0% 11% 15% -
Real Time Availability
Stock: 9643
Quantity: Units

Type: RG Series Cable Diameter(mm): 2.5 Inner conductor(mm): 7X0.175 Impedance: 50ohm

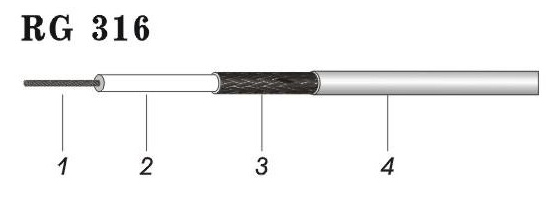

rg316


MaterialDiameter(mm)
1.Inner conductorSCCS7*0.175
2.InsulationPTFE1.52
3.Outer conductor1 : SC1.95
4.JacketFEP2.50


ELECTRICAL PROPERTIES


Nom. Capacitance Conductor to Shield(pF/m)96.5
Nom. Characteristic Impedance(ohm)50
Nom. Velocity of Propagation(%)70
Min. Bend Radius(Install)(mm)13
Voltage Rating(VMS)1200
Max. Operating Frequency(MHz)3000
Operating Temperature Rating(℃)-55~+200



Nom. Attenuation

Frequency(MHz)Nom. Attenuation(≯dB/m)
1000.262
4000.531
10000.856
30001.532
