PHYSICAL PROPERTIES

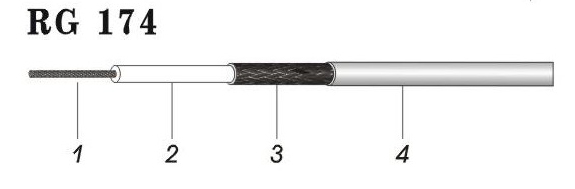

| Material | Diameter(mm) | |
| 1. Inner conductor | Bare Copper | 7*0.17 |
| 2. Insulation | Solid PE | 1.52 |
| 3. Outer conductor | Tinned Copper Bried | Nom.1.90 |
| 4. Jacket | PVC | 2.79 |
ELECTRICAL PROPERTIES
| Nom. Capacitance Conductor to Shield(pF/m) | 101.05 |
| Nom. Characteristic Impedance(ohm) | 50 |
| Nom. Velocity of Propagation(%…) | 66 |
| Min. Bend Radius(Install)(mm) | 10 |
| Voltage Rating(VMS) | 1100 |
| Max. Operating Frequency(MHz) | 1000 |
| Operating Temperature Rating(-°C) | -25~+70 |
Nom. Attenuation
| Frequency(MHz) | Nom. Attenuation(¯dB/m) |
| 100 | 0.276 |
| 400 | 0.558 |
| 1000 | 0.899 |
