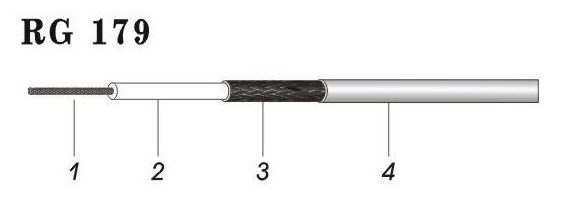

PHYSICAL PROPERTIES
| Material | Diameter(mm) | |
| 1．Inner conductor | SCCS | 7*0.102 |
| 2．Insulation | PTFE | 1.60 |
| 3．Outer conductor | 1 : SC | 2.04 |
| 4．Jacket | FEP | 2.54 |
ELECTRICAL PROPERTIES
| Nom. Capacitance Conductor to Shield(pF/m) | 64 |
| Nom. Characteristic Impedance(ohm) | 75 |
| Nom. Velocity of Propagation(％) | 70 |
| Min. Bend Radius(Install)(mm) | 10 |
| Voltage Rating(VMS) | 900 |
| Max. Operating Frequency(MHz) | 3000 |
| Operating Temperature Rating(℃) | -55～+200 |
Nom. Attenuation
| Frequency(MHz) | Nom. Attenuation(≯dB/m) |
| 100 | 0.268 |
| 400 | 0.549 |
| 1000 | 0.883 |
