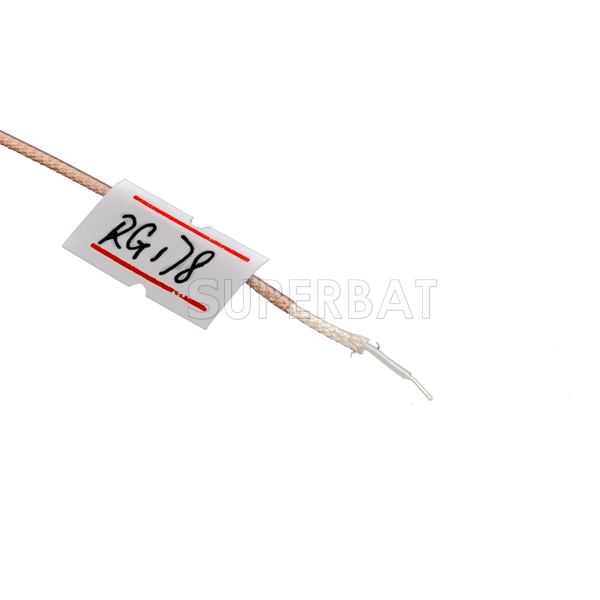

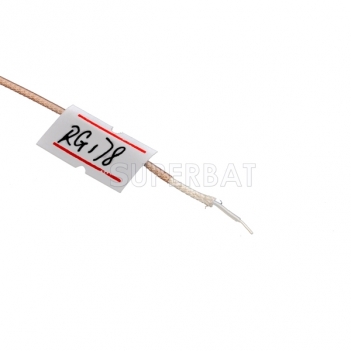

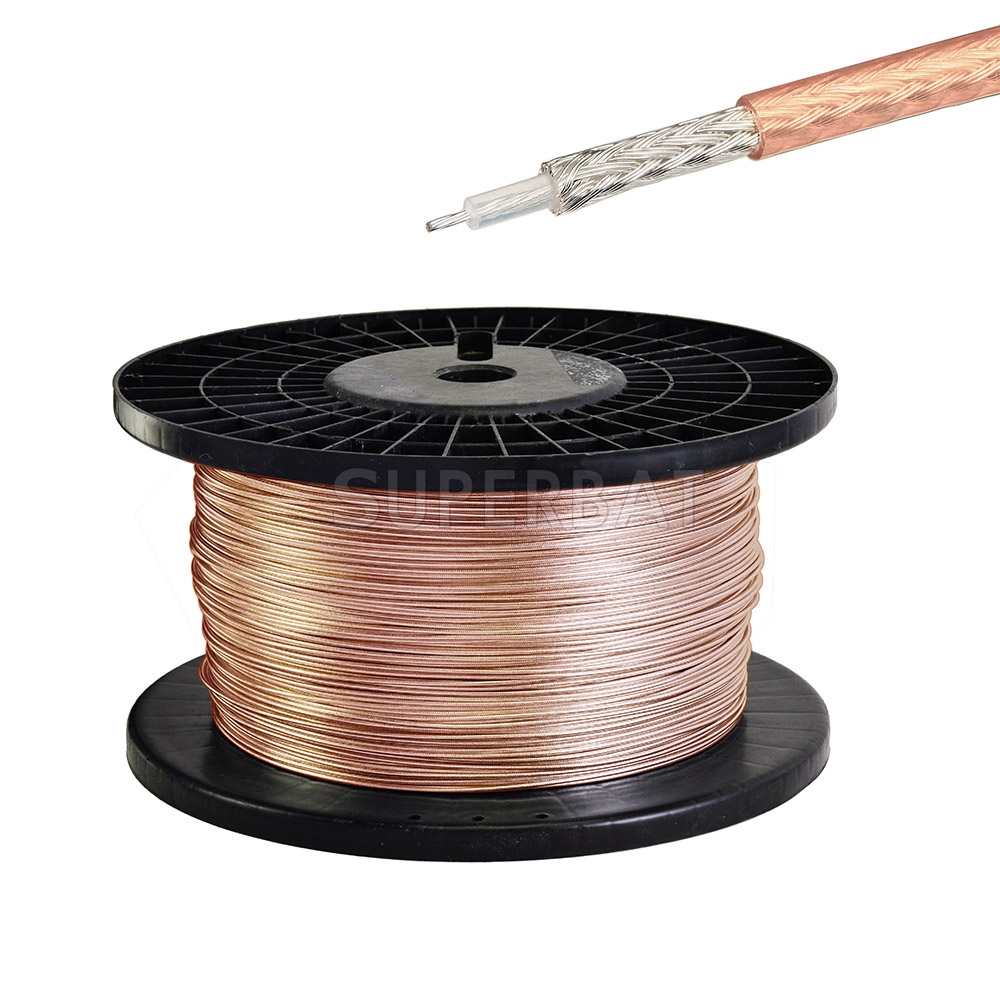

RF Coaxial cable RG-178 1 Meter
Unit Price: $1.35
sku:CA-178
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $1.35 $1.22 $1.12 ASK
saving% 0% 10% 17% -
Real Time Availability
Stock: 9770
Quantity: Units

Type: RG Series Cable Diameter(mm): 1.83 Inner conductor(mm): 7X0.102 Impedance: 50ohm

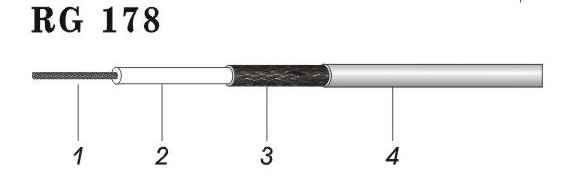

PHYSICAL PROPERTIES


MaterialDiameter(mm)
1.Inner conductorSCCS7*0.102
2.InsulationPTFE0.86
3.Outer conductor1 : SC1.30
4.JacketFEP1.83


ELECTRICAL PROPERTIES

Nom. Capacitance Conductor to Shield(pF/m)96.45
Nom. Characteristic Impedance(ohm)50
Nom. Velocity of Propagation(%)70
Min. Bend Radius(Install)(mm)10
Voltage Rating(VMS)750
Max. Operating Frequency(MHz)3000
Operating Temperature Rating(℃)-55~+200


Nom. Attenuation

Frequency(MHz)Nom. Attenuation(≯dB/m)
1000.453
4000.912
10001.457
30002.572
