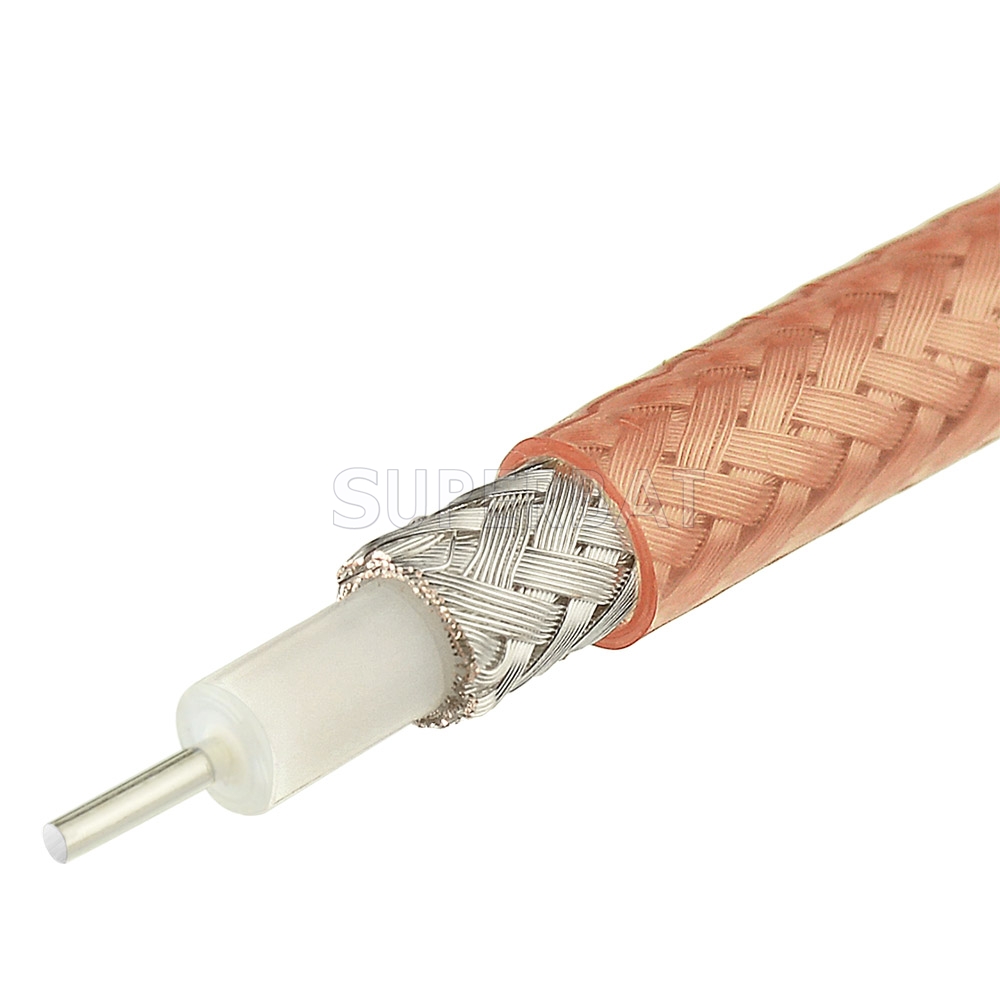

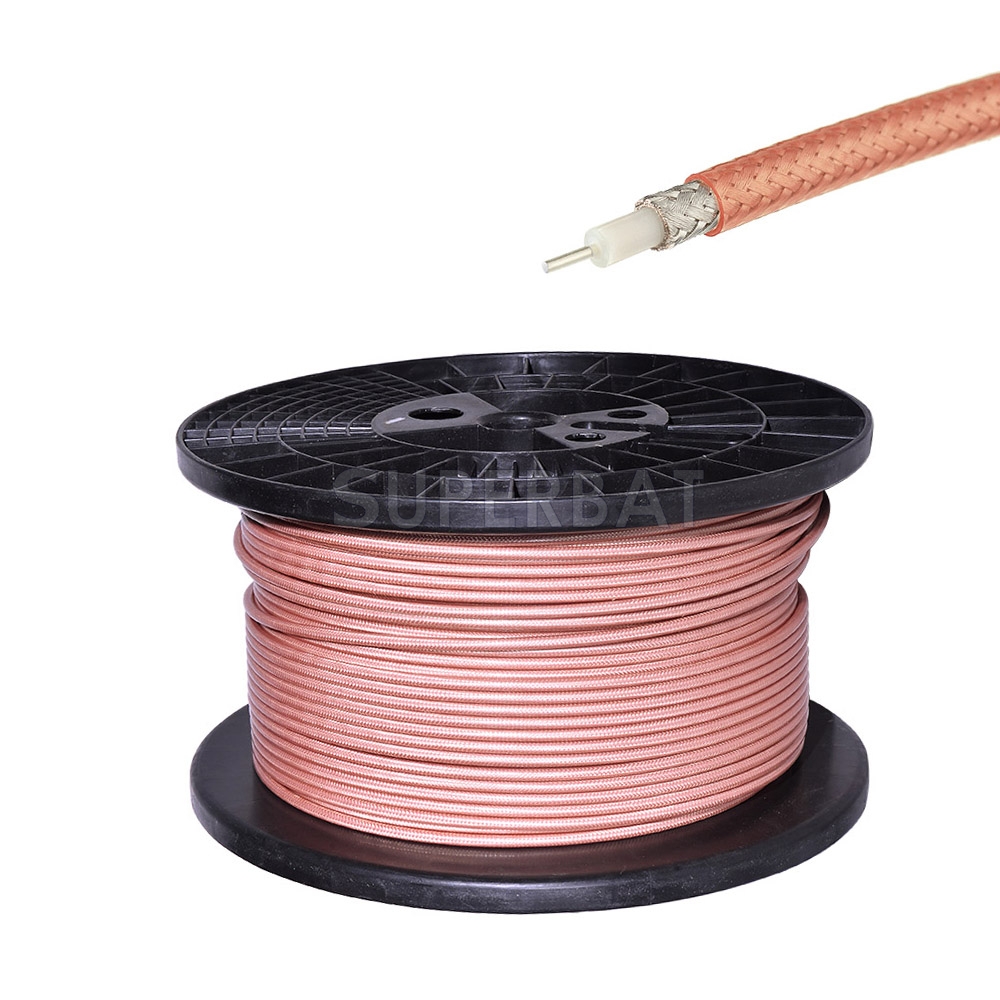

RF Coaxial cable M17/60-RG142 1 METER
Unit Price: $9.45
sku:CA-142
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $9.45 $8.60 $7.84 ASK
saving% 0% 9% 17% -
Real Time Availability
Stock: 9999
Quantity: Units

Type: RG Series Cable Diameter(mm): 4.95 Inner conductor(mm): 0.93 Impedance: 50ohm

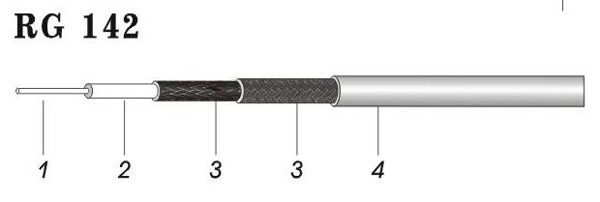

PHYSICAL PROPERTIES


MaterialDiameter(mm)
1. Inner conductorSliver plated copper0.93
2. InsulationPTFE2.95
3. Outer conductor

Sliver plated copper double

braiding

3.95

4. JacketFEP4.95


ELECTRICAL PROPERTIES

Nom. Capacitance Conductor to Shield(pF/m)96.5
Nom. Characteristic Impedance(ohm)50
Nom. Velocity of Propagation(ï¼…)70
Min. Bend Radius(Install)(mm)25
Voltage Rating(VMS)1900
Max. Operating Frequency(MHz)8000
Operating Temperature Rating(°C)-55+200


Nom. Attenuation

Frequency(MHz)Nom. Attenuation(¯dB/m)
1000.125
4000.256
10000.420
30000.781

5000

1.050
