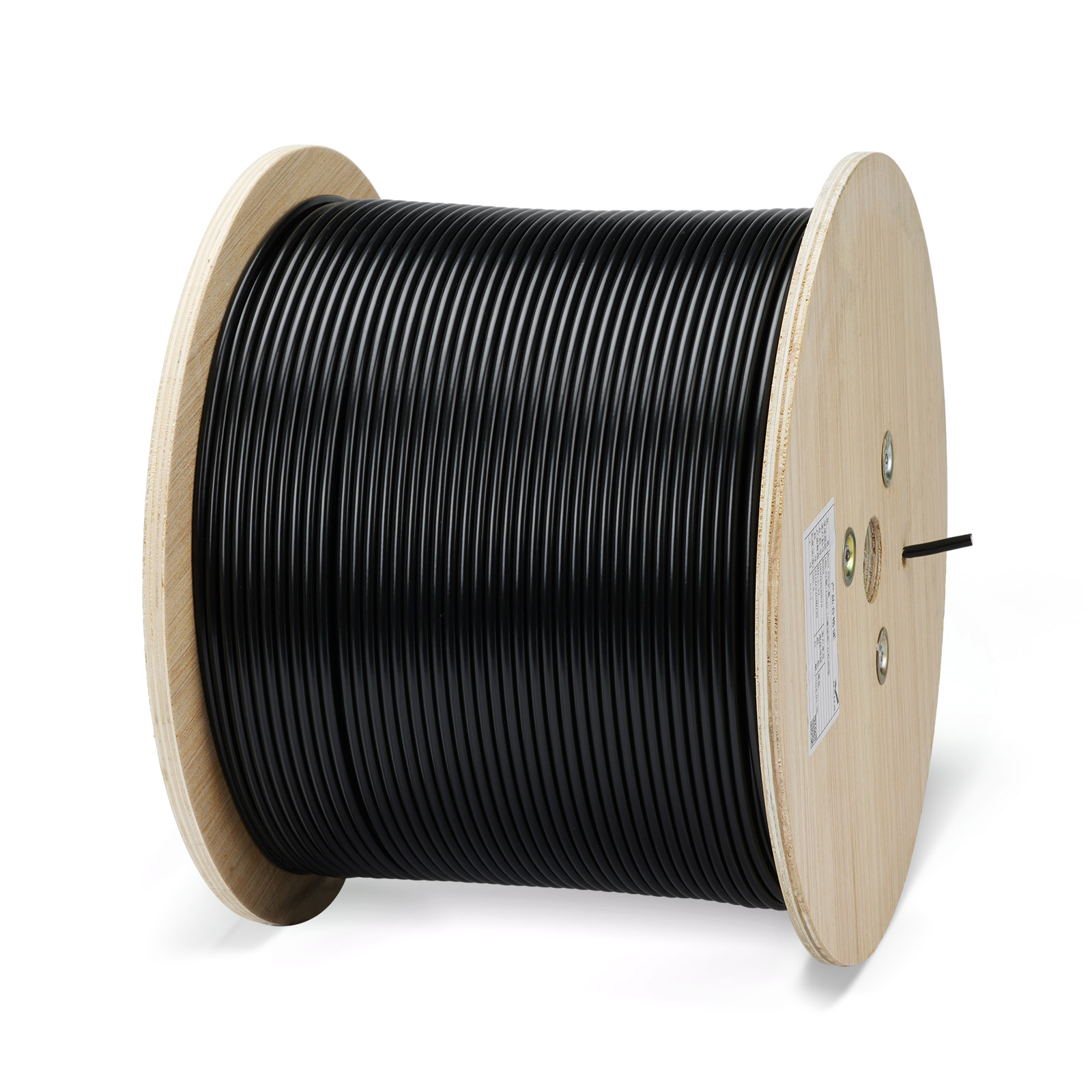

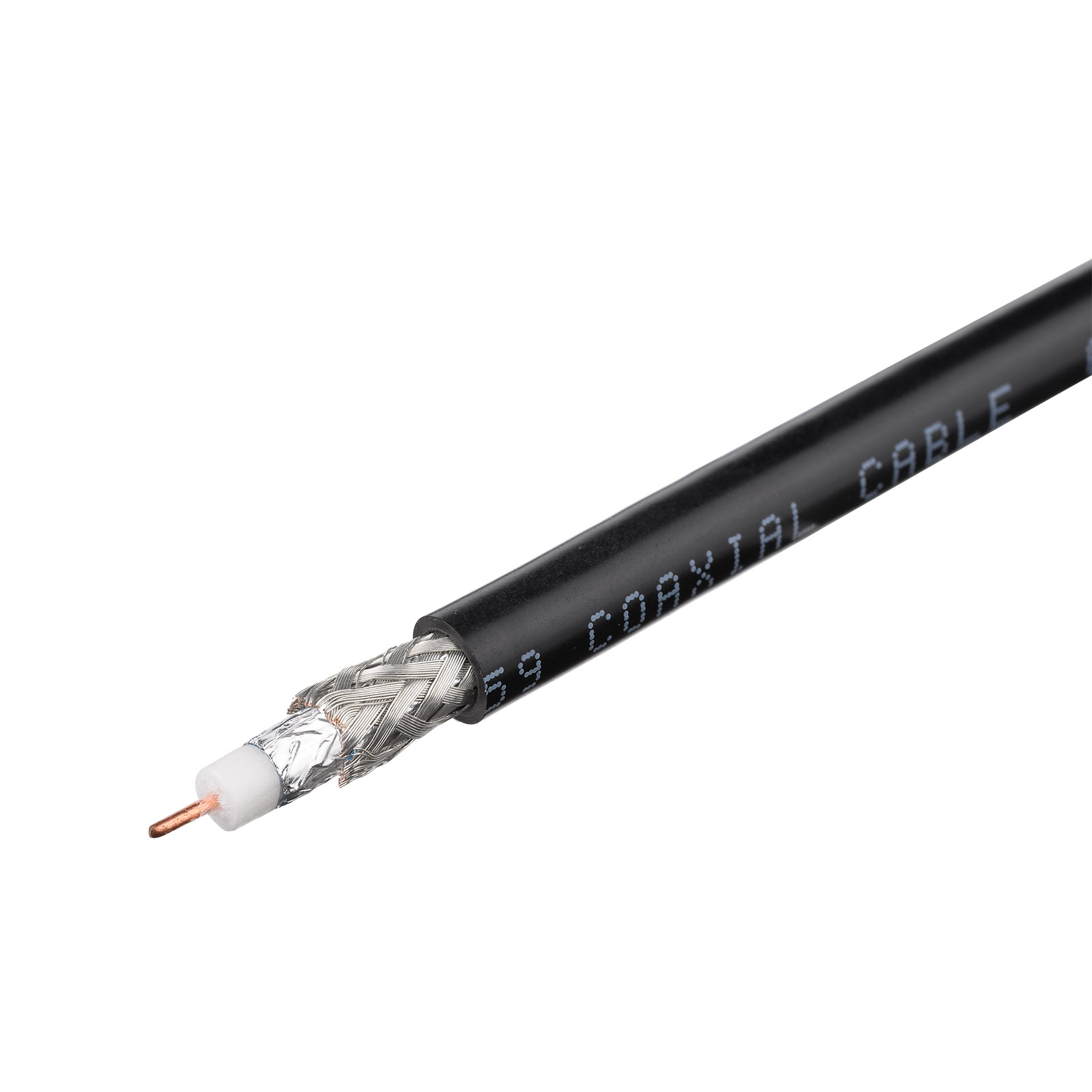

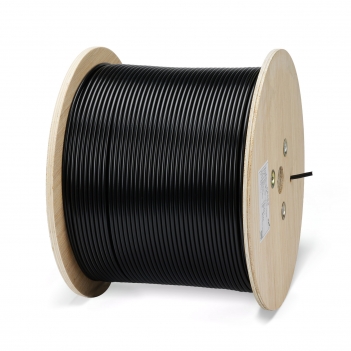

RF Coax Coaxial Connector Adapter RG59 cable 1 METER
Unit Price: $1.77
sku:CA-059
Real Time Availability
Stock: 10000
Quantity: Units

Type: RG Series Cable Diameter(mm): 6.1 Inner conductor(mm): 0.81 Impedance: 75ohm

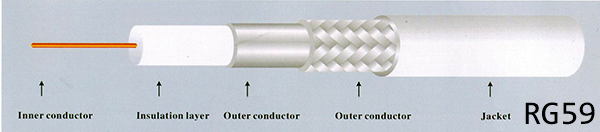

PHYSICAL PROPERTIES


MaterialDiameter(mm)
1.Inner conductorCopper Clad Steel or Bare Copper0.81
2.InsulationFoam Polyethy lene3.66
3.Outer conductorSingle-sided Aluminum Tape and Tinned Copper Wire or Aluminum Magnesium Alloy Braiding4.35
4.JacketPVC6.10


ELECTRICAL PROPERTIES

Nom. Rated Capacitance (pF/m)53

Nom. Characteristic Impedance(ohm)

75
Nom. Velocity of Propagation(%)82
Min. Bend Radius(Install)(mm)61
VSWR1-1000MHz≤1.15 1-2000MHz≤1.20
Max. Operating Frequency(MHz)1-2000MHz
Operating Temperature Rating(℃)-20~+70


Attenuation at typical frequencies

MHz                     ≤db/100mMHz                   ≤db/100m
1                        1.09200                   17.2
20                       4.92400                   23.0
150                      13.8900                   35.6
