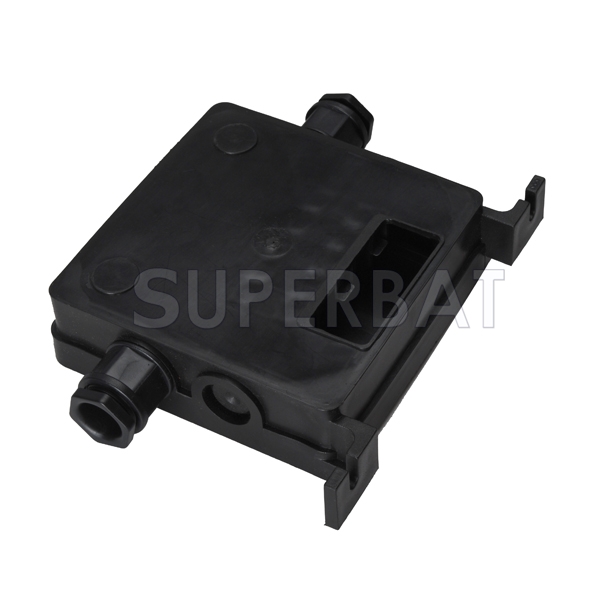

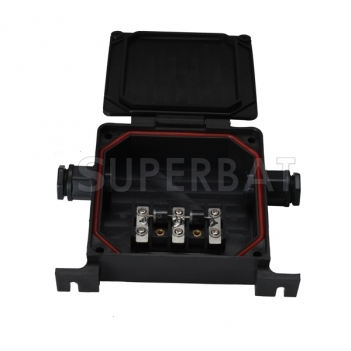

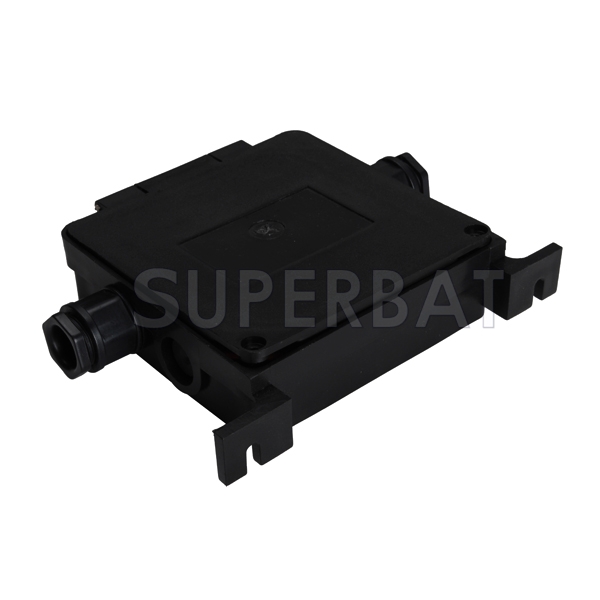

PV Junction Box 50W/70W 6A for Thin-Film Modules
Unit Price: $11.48
sku:PV-1097-JB013
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $11.48 $10.33 $9.30 $8.38 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Subject  PV Junction Box
Type of appliance  PV Junction Box for Thin-Film Modules
Trademark  Hong Xin Xu
Model No.  PV-1097-JB013
Rated Voltage (VDC)  1000
Rated Current (A)  6A
Diodes  10A10 1pcs /2PCS
Number of Terminals  2/3
Power Range  50W/70w
Application Class (Class A/B/C)  A
Pollution Degree (1/2/3/4)  3
Overvoltage Category (I / II / III / IV)  III




Low Ambient Temperature (°C)  -40°C
Upper Ambient Temperature (°C)  +85°C
Enclosure Rating ( RTI and Flammability Class)  UL94-V0
Wire Cross Section Area Range  4mm² defalut , Optional :2.5mm²-4mm²
Wire Length  90cm or Arbitrary length
Degree of Protection (IP Code)  IP67
Back Sheet of PV Module  TPT,TPE,PET,glass
Contact Material  Copper
Insulation Material  PPO
Overall Dimensions  100*100*30mm
Outlet of PV Junction Box  TWO
Net Weight  0.120kg
Welcome to visite our store



Package included: 1pcs PV Junction Box
