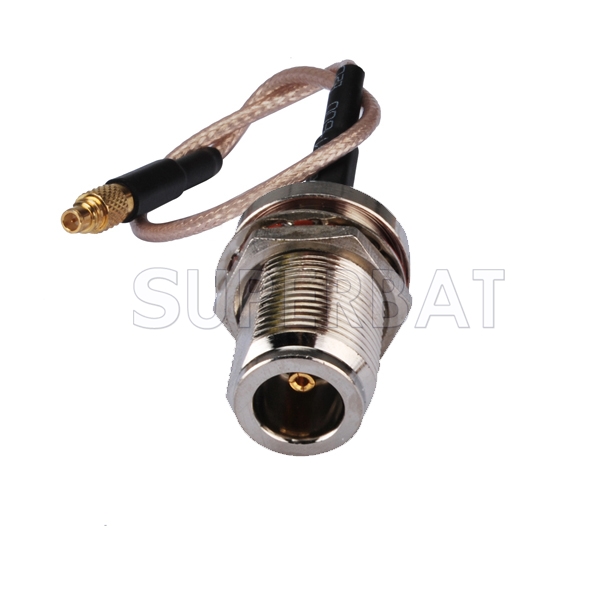

Pigtail Cable MMCX Plug to N Jack bulkhead with O-ring RG316 Custom RF cable assembly
Unit Price: $5.25
sku:AC-M01SP-N01BO-316-25
Length(cm)
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $5.25 $4.78 $4.25 ASK
saving% 0% 9% 19% -
Real Time Availability
Stock: 10000
Quantity: Units

Cable Type: RG316 Connector 1 Series: MMCX Connector 2 Series: N Connector 1 Gender: Male , Plug Connector 2 Gender: Female , Jack Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Straight Mount Method 2: Bulkhead with O-ring

MMCX cable assemblies is work with all cards that utilize the MMCX connector such as: the SR2, Ubiquiti XR2, Ubiquiti XR5, XR9, SR71-A, SR71-12, SR71-15, DCMA-82, DCMA-82IT, AWPCI085H, WLM54-SA26, EMP-8603, R5H, and WMR-400 miniPCI cards,and works with the 2511 CD PLUS EXT2 PCMCIA card, the 2011 CD PLUS EXT2, Proxim, Aironet, Cisco, Arlan and Symbol cards.

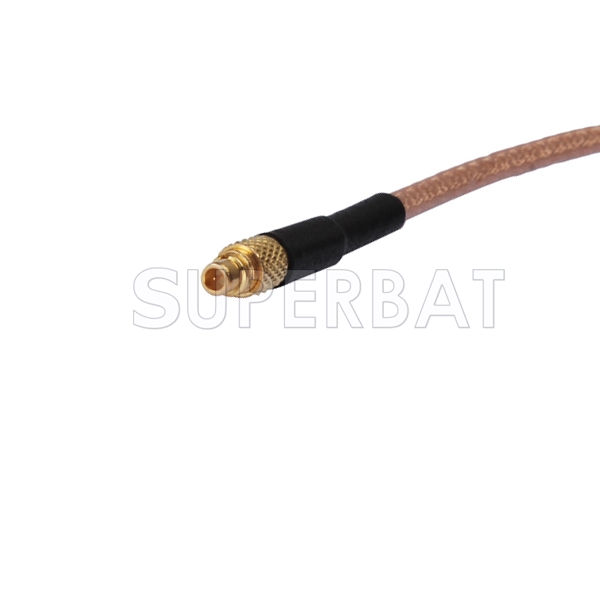

Connector:MMCX male straight
Body Plating:Goldplated
Mating Way: Snap On

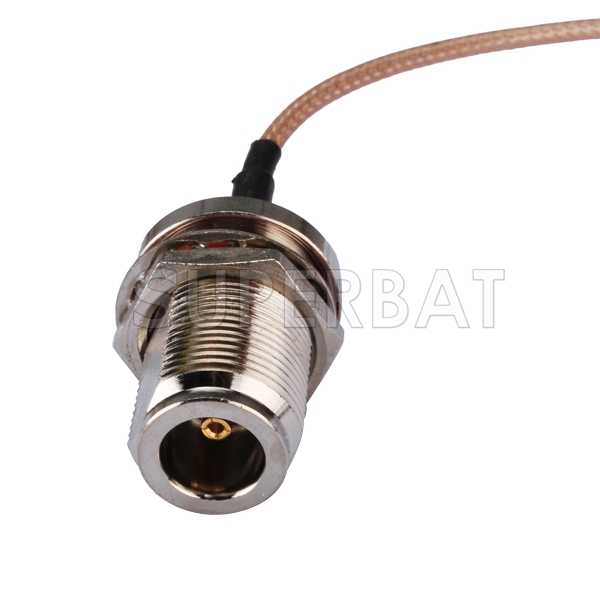

Connector:N female bulkhead O-ring straight
Body Plating:Nickelplated
Mating Way: Screw Type (Thread Coupling)



Typical applications for MMCX connectors are PCMCIA cards MINI-PIC Antenna and other small hand-held communications devices.


Applications:
    IEEE 802.11 a/b/g/n
    Wi-Fi
    WLAN
    Wireless Ethernet
    RFID
    UWB
    WiMAX
    iBurst
    Zigbee
    Bluetooth Wireless
    MIMO
