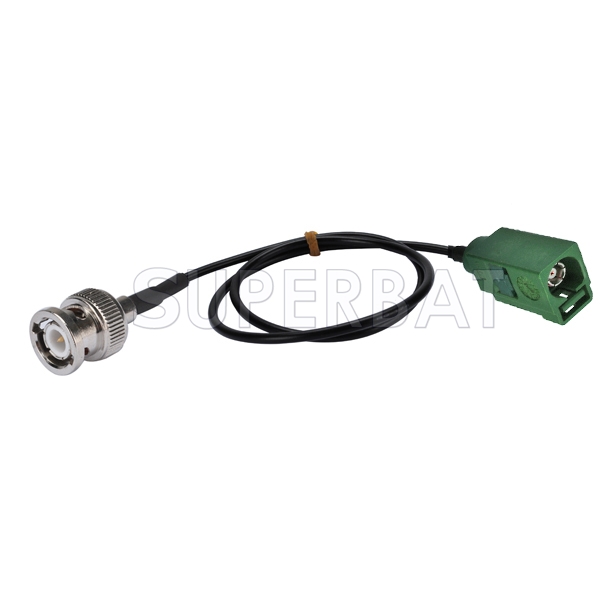

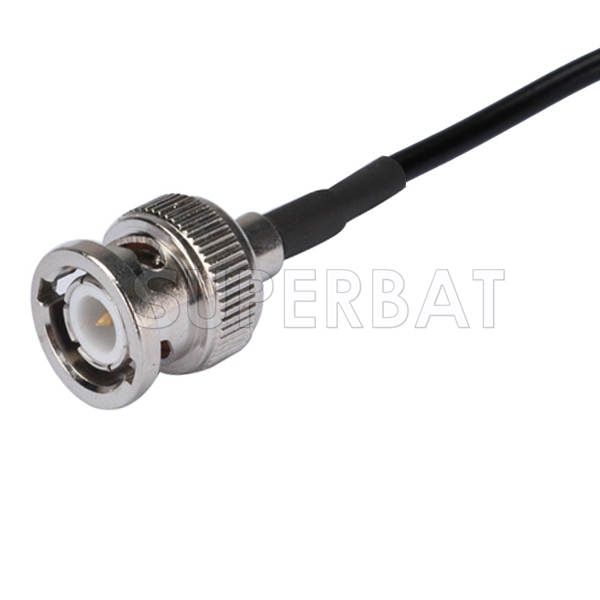

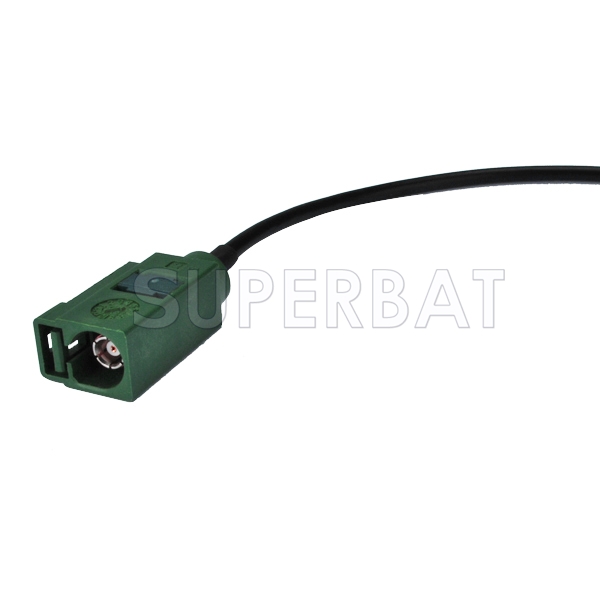

Pigtail cable BNC male to Fakra E 6002 Green Female RG174 RF Coaxial Cable Assemblies
Superbat RF Cable Assemblies, Jumper Cable, Pigtail Cable, Coax Cable, Lead patch, RF Cable, RF Adapter Cable, Coaxial Low Loss Cable, Communication Cable, Extension Cord, Aerial WiFi Pigtail, Cable Jumper, RF Coaxial Cable Assembly Electrical Wire
Unit Price: $4.77
sku:AC-B01SP-F03ESJ-174-30
Length(cm)
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.77 $4.34 $3.86 $3.58 ASK
saving% 0% 9% 19% 25% -
Real Time Availability
Stock: 9994
Quantity: Units

Cable Type: RG174 Connector 1 Series: BNC Connector 2 Series: FAKRA Connector 1 Gender: Male , Plug Connector 2 Gender: Female , Jack Connector 2 Coding: E Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Straight Mount Method 1: None Mount Method 2: None Cable Impedance: 50

FAKRA Connectors and Cable Assemblies support applications that require a high-performing, reliable, and cost-effective RF connector. FAKRA connectors are standard SMB Connectors embedded within a special inter-locking plastic housing that uses multiple color-codes for easy identification and mating, and are designed to perform up to 4GHz at 50 Ω.



Applications:



GPS antenna
car audio
GSM antenna
wireless equipments
Wireless Infrastructure


FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered

The antenna with this Fakra Connector is compatible with:

  • VW RNS510 (MFD3);

  • VW MFD2 (RNS2);

  • SKODA COLUMBUS;

  • MERCEDES COMMAND SYSTEMS W211 (E-CLASS);

  • MERCEDES APS 50;

  • AUDI RNS-E (DVD NAVIGATION);

  • AUDI MMI (A6 4F, A8 4E);

Custom Service:

Not exactly you are looking for ?

Welcome to build your desired Cable Assemblies through our Custom Cable Assemblies wizard : https://www.rfsupplier.com/customcable.html
