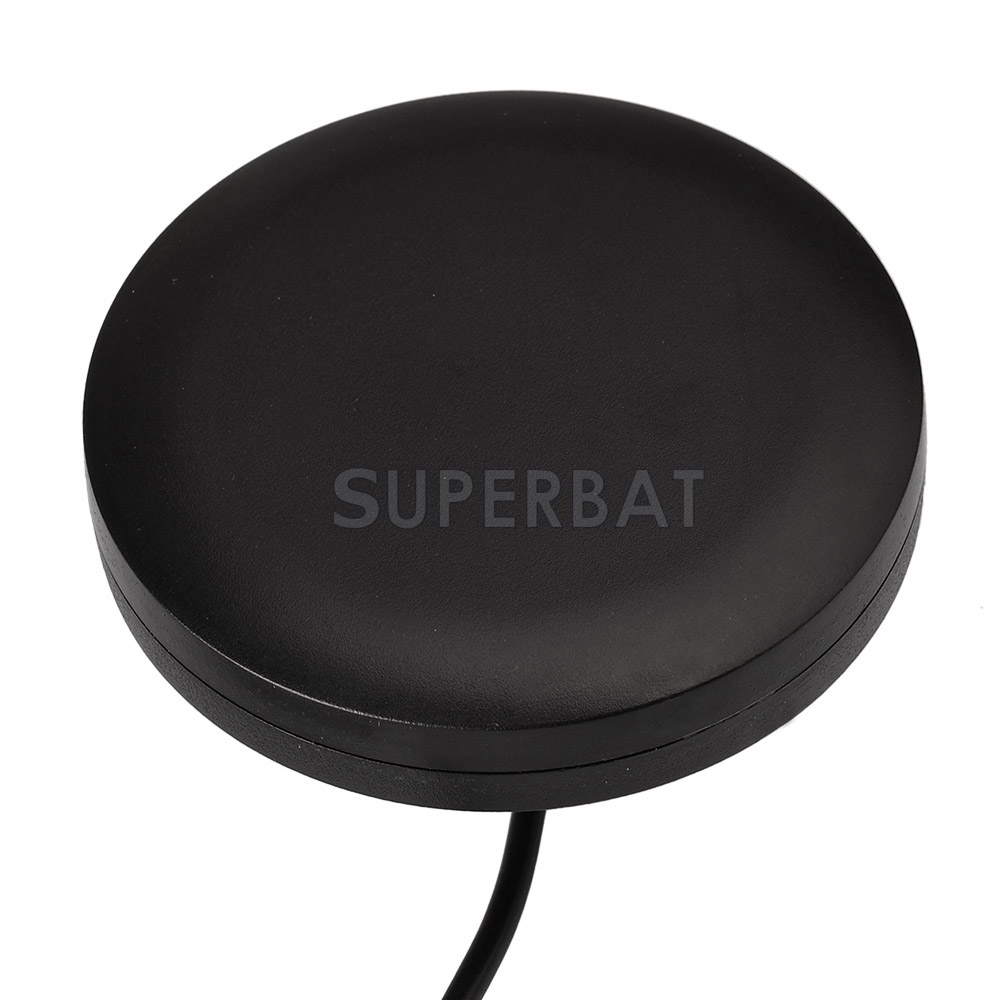

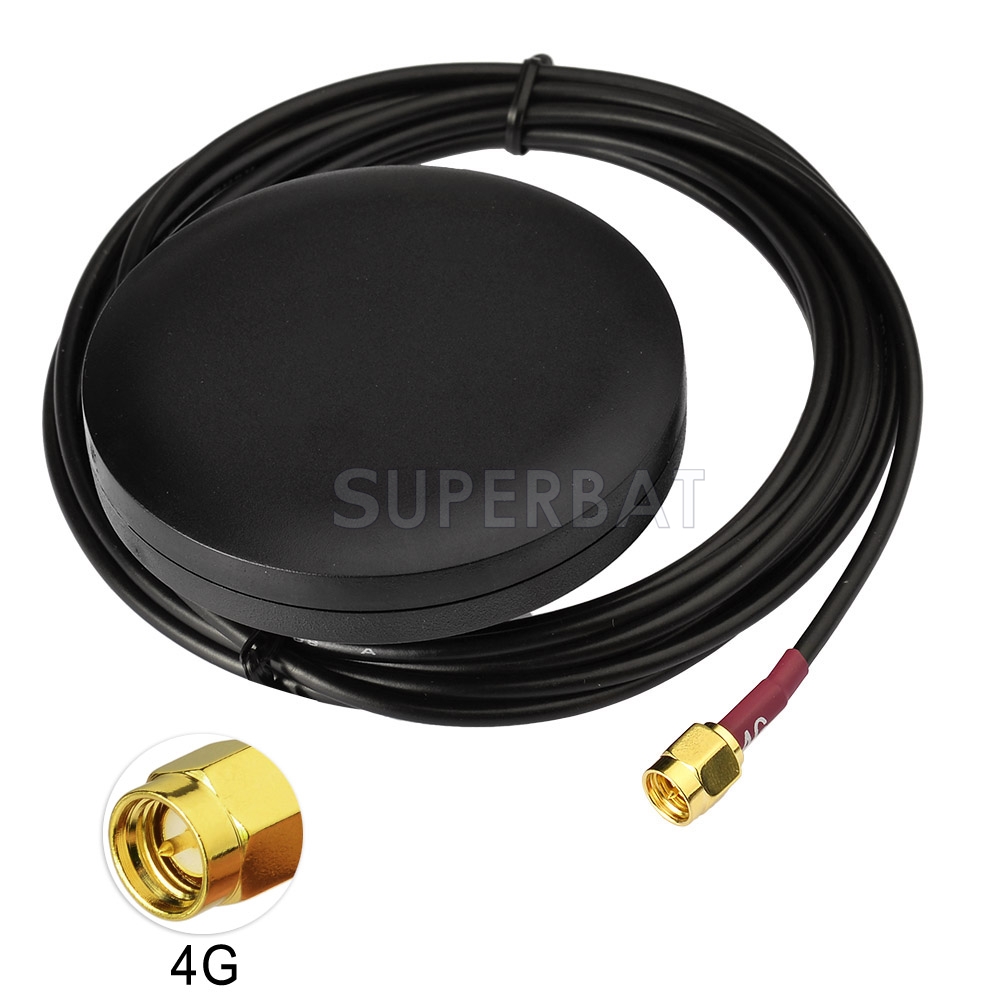

Outdoor 4G LTE Thru Hole Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Marine Boat Mobile Cell Phone Booster System
Unit Price: $8.45
sku:4A3-0153-S01SP-025-300-JCG019L
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $8.45 $7.60 $6.84 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 500
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 698~960/1710~2690MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 2.5dBi Radiation: Omnidirectional V.S.W.R: <3.0 Cable Type: RG174 Cable Length: 3M Weight: 81g

Outdoor 4G LTE Thru Hole Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Marine Boat Mobile Cell Phone Booster System

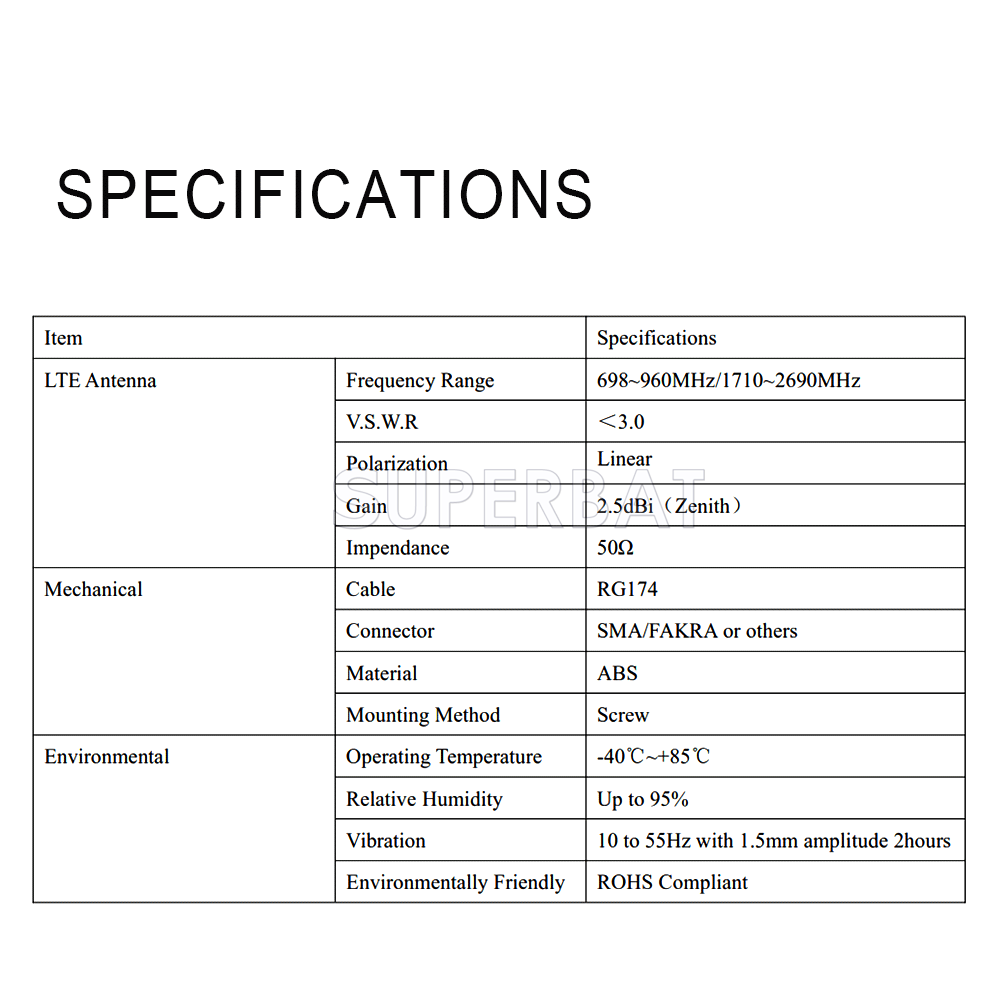

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: <3.0

Polarization: Linear

Gain: 2.5dBi(Zenith)

Impendance: 50Ω

Weight: 81g


Mechanical:

Cable: RG174

Cable Length: 3 Meters

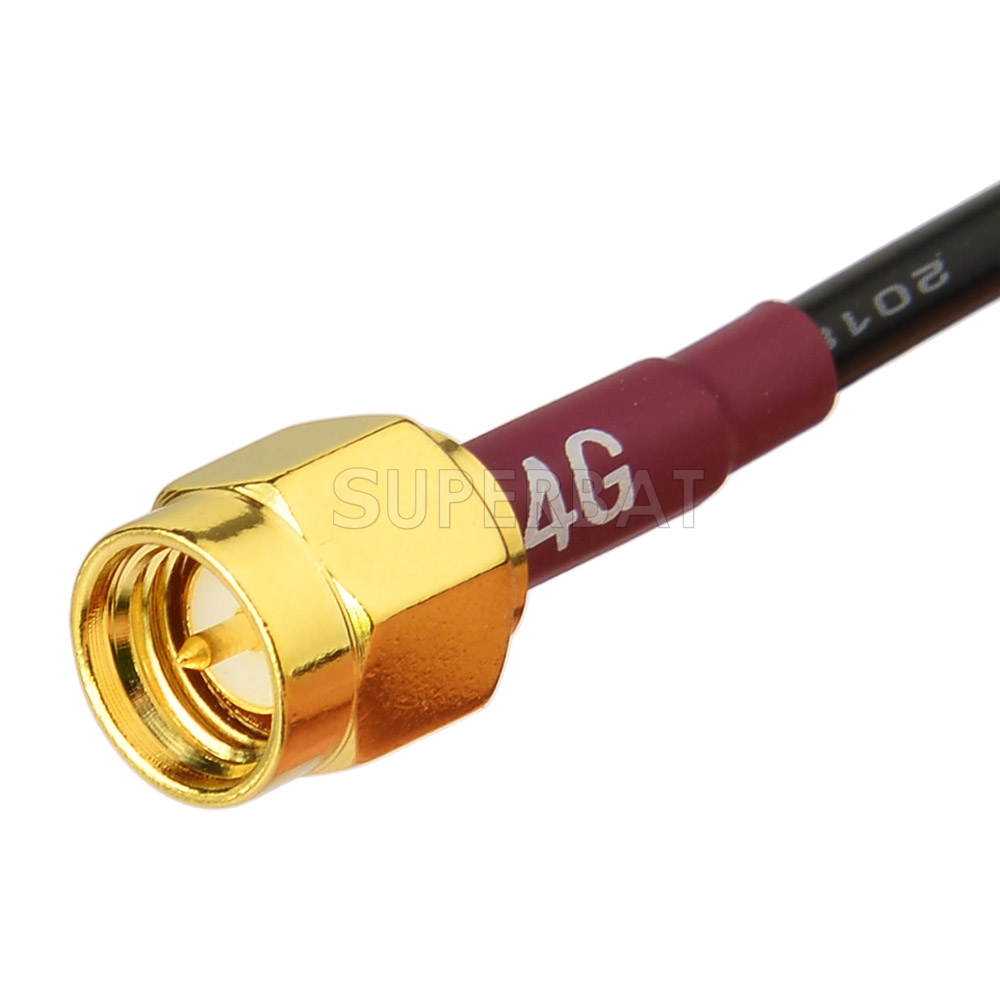

Connector: SMA Male Connector or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Material: ABS

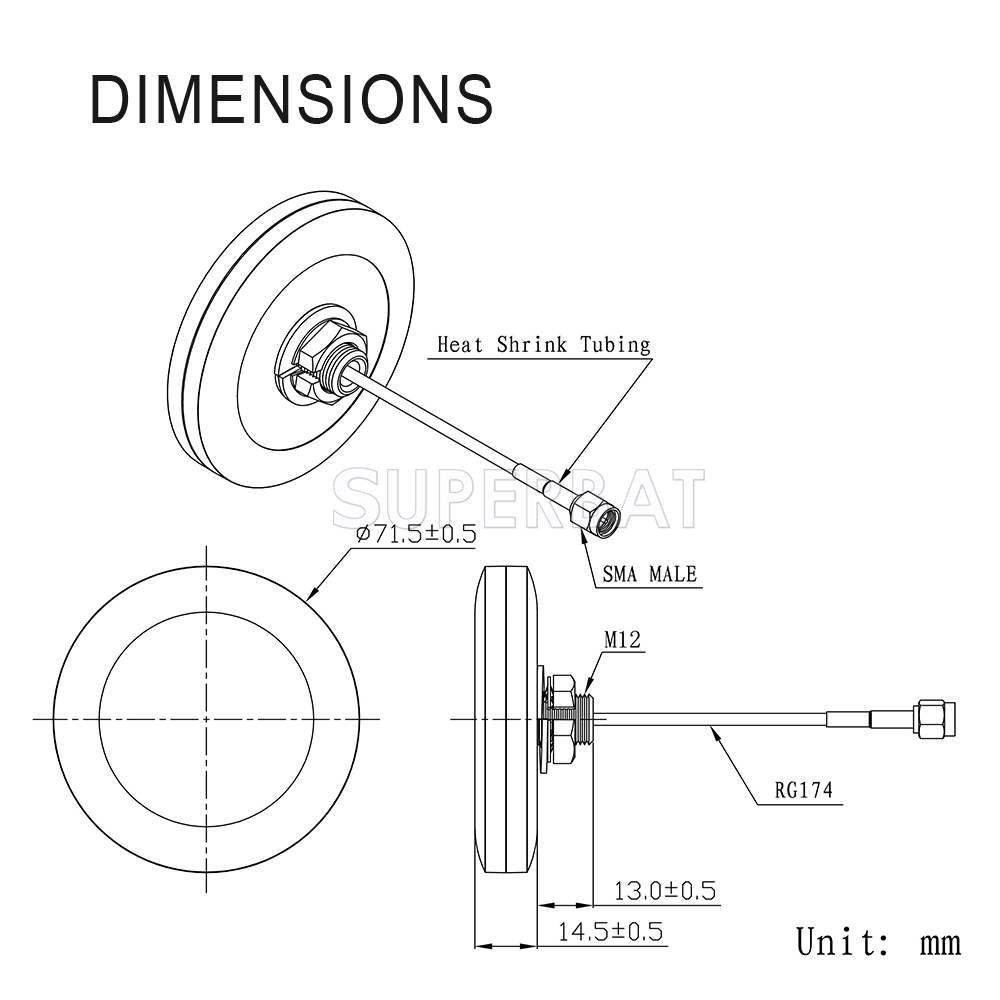

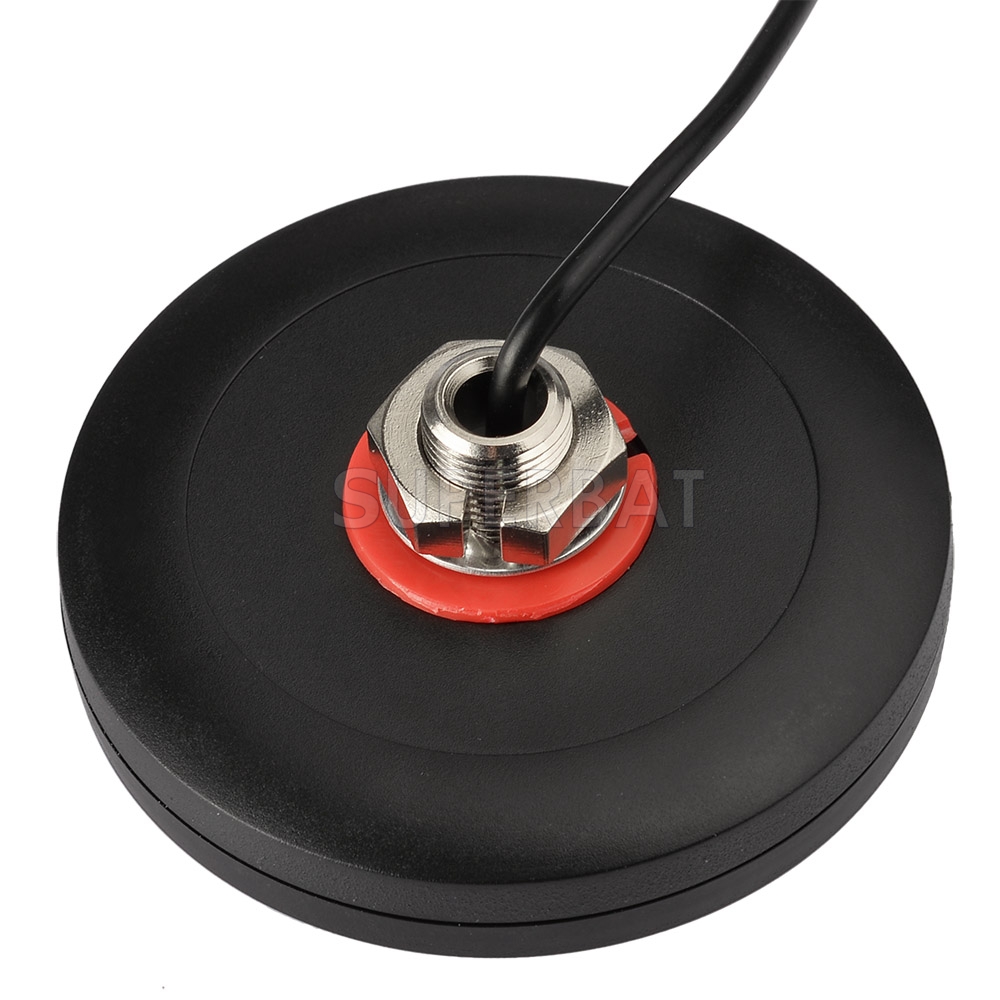

Mounting Method: Screw Thru Hole of 12mm Diameter


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
