Technical Specifications

Up-link Frequency: 1785-1870MHz
Down-link Frequency: 1805-1880MHz
Gain:Up Link: 55dB, Down Link: 60dB
In-band Ripple: <=3 dB
Spurious emission of out-band: >=17dBm
Impedance: 50 ohm
Power supply : DC 12V (AC 220V power adapter provided)
Working temperature: -10℃ to +60℃

noise figure:<=4 dB
Humidity: 5-95%

working voltage:AC110~220V 45~55Hz

size:200*130*20mm

Standard:To the GB6993-86 standard

Package

1. A 70 dB GSM Cell Phone Repeater
2. A 220V AC power adapter for the Repeater unit

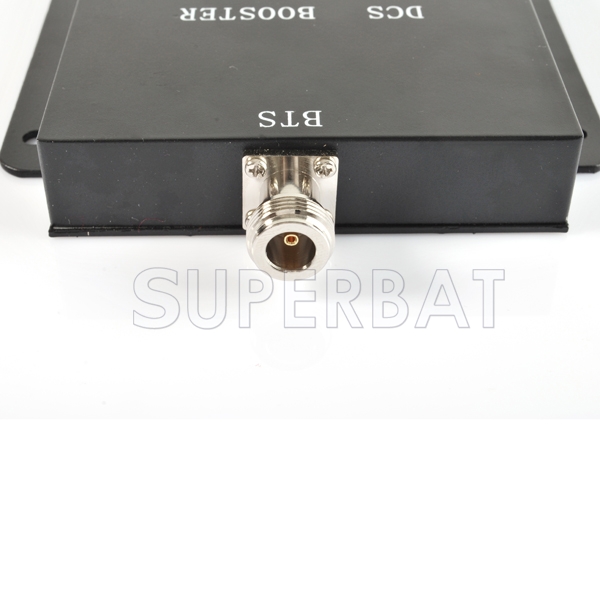

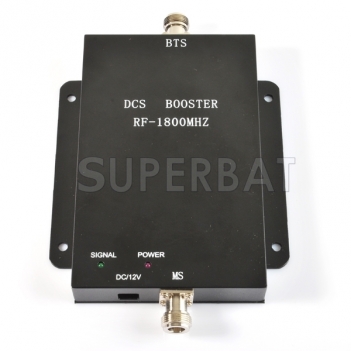

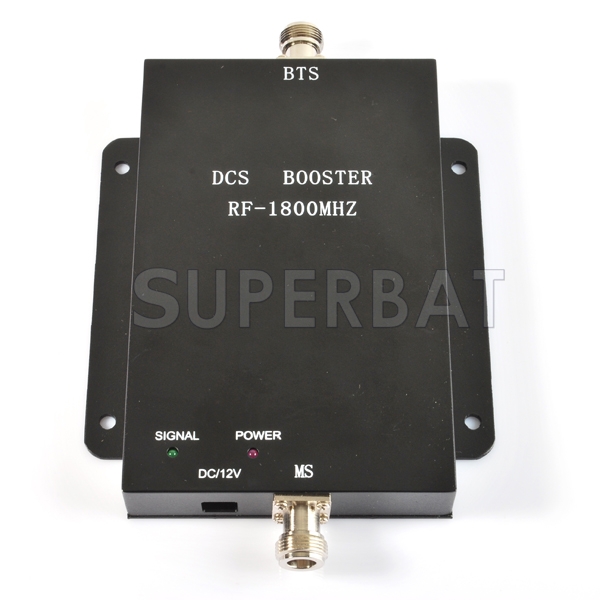

The Repeater has three connectors: 1. a DC connector for a DC 12V input. 2. A N-Type RF connector for connecting to an indoor antenna. 3. A N-Type connector for connecting to an outdoor antenna.

The installation is simple and no configuration or tuning is required. Install the Yagi and aerial antennas outdoor and indoor respectively, connect the cables and power, and go!
