N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.

Offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.

The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.

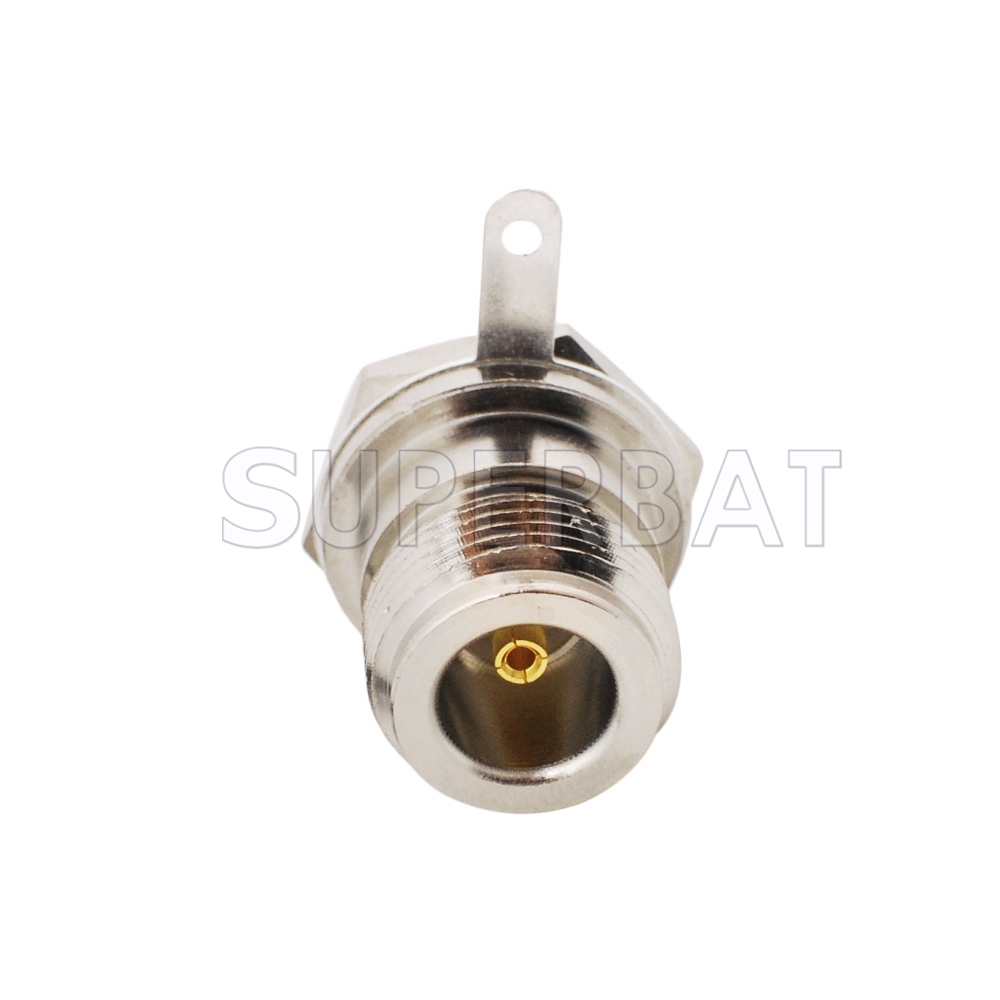

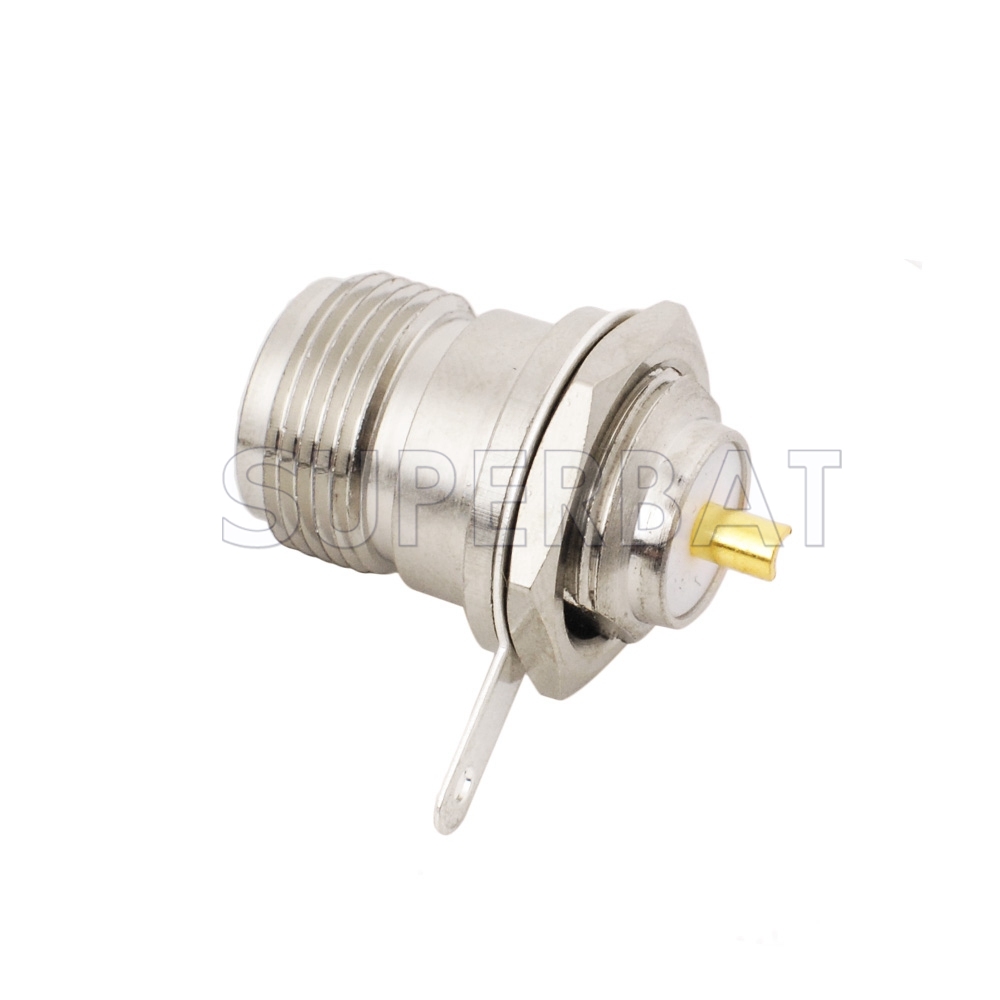

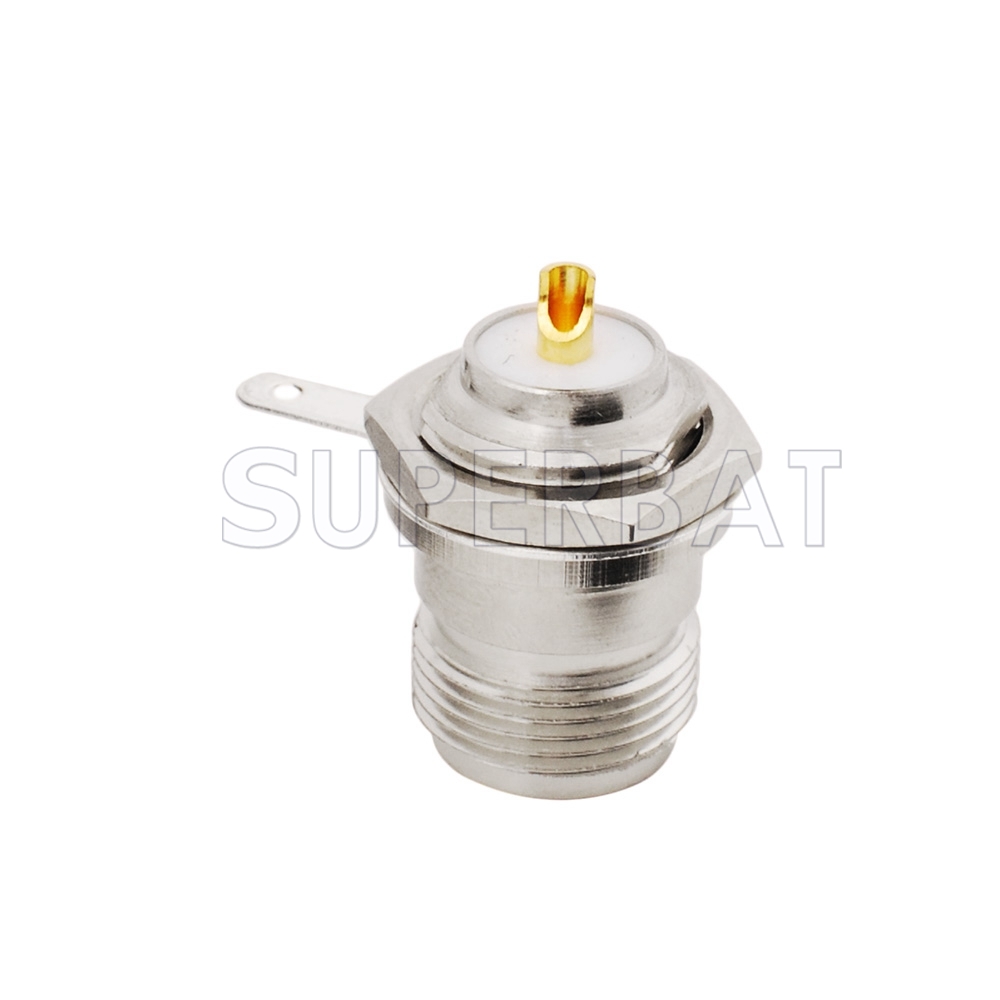

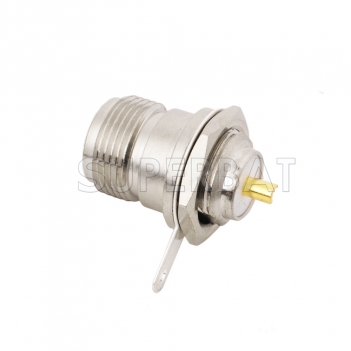

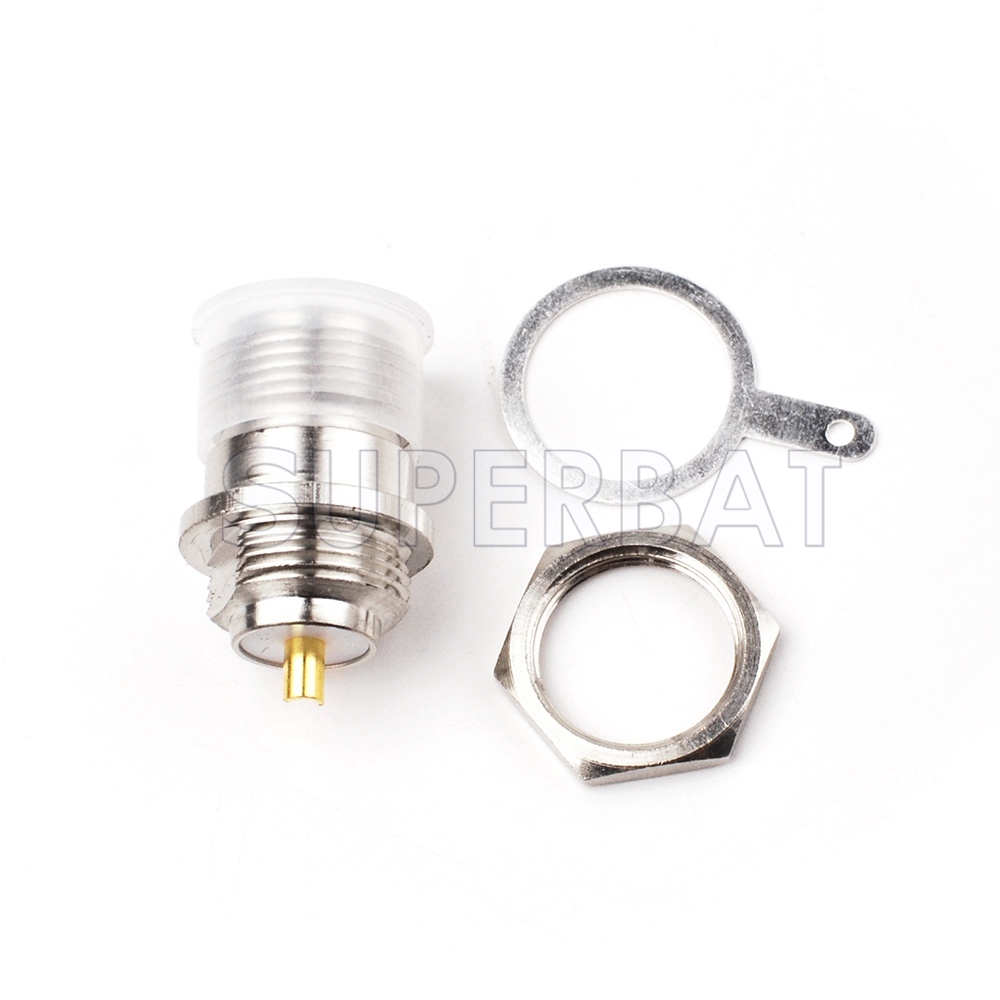

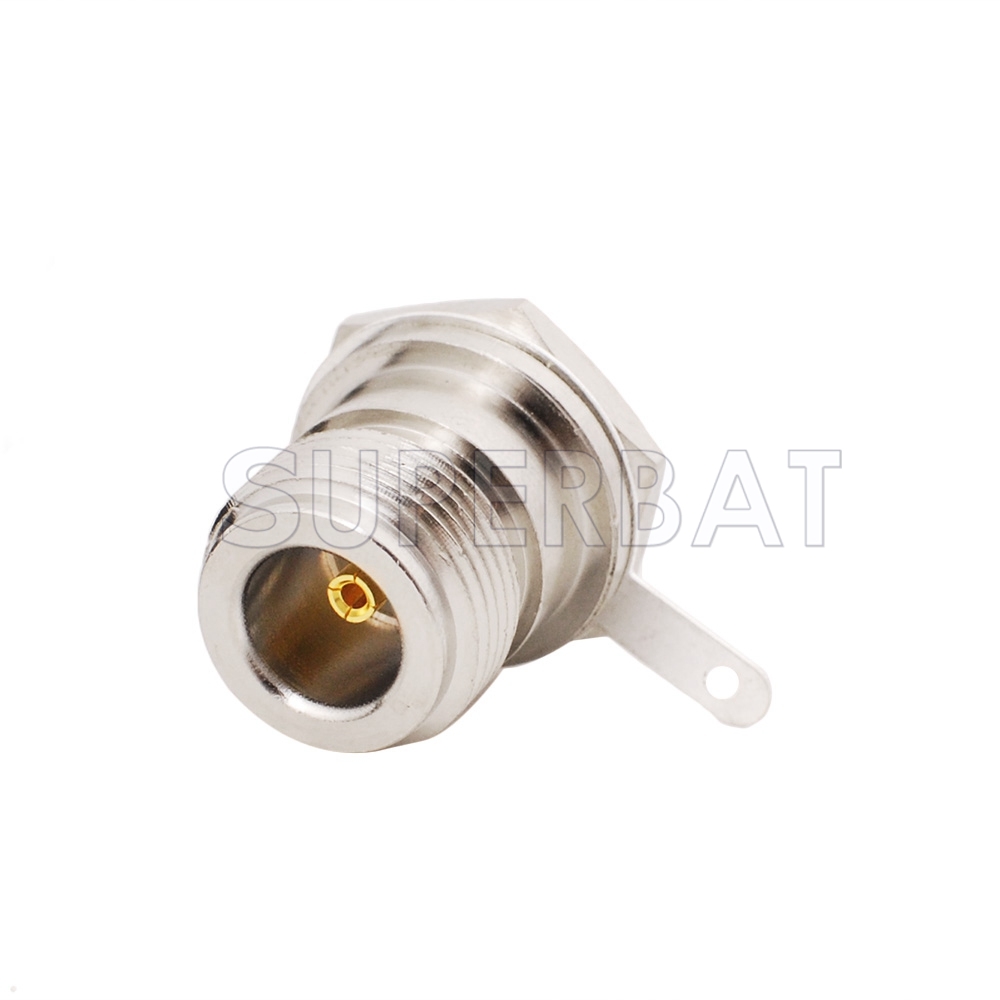

Product Series:     N
Product Type:
Panel Mount
Application:     -
Attachment / Affixment:     -
Body Plating:     Nickel-plated
Body Termination:     -
Cable Type:     -
Connector Body Style:

Straight
Connector Material:     Brass
Contact Plating:     Nickel-plated
Contact Termination:     -
Gender:     Jack
Impedance:     50 Ohm

N01-BHT15-41BS01 .pdf
