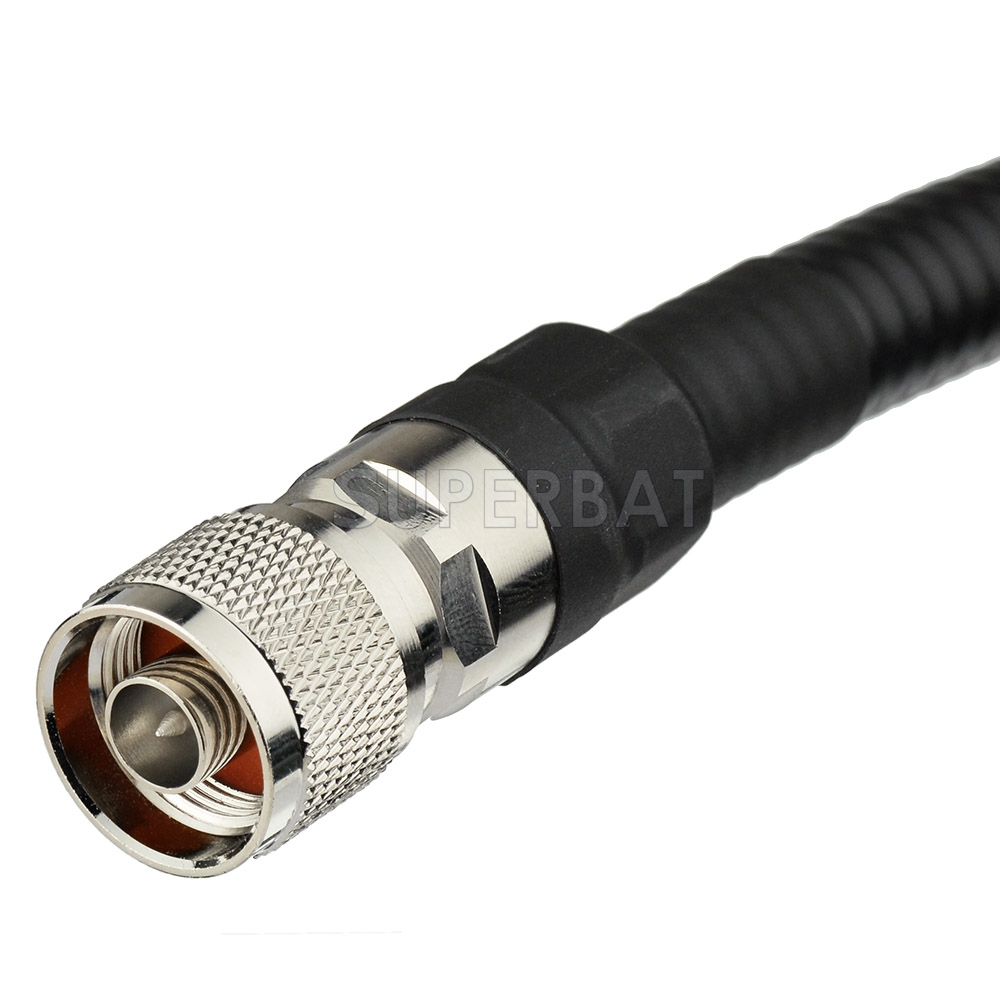

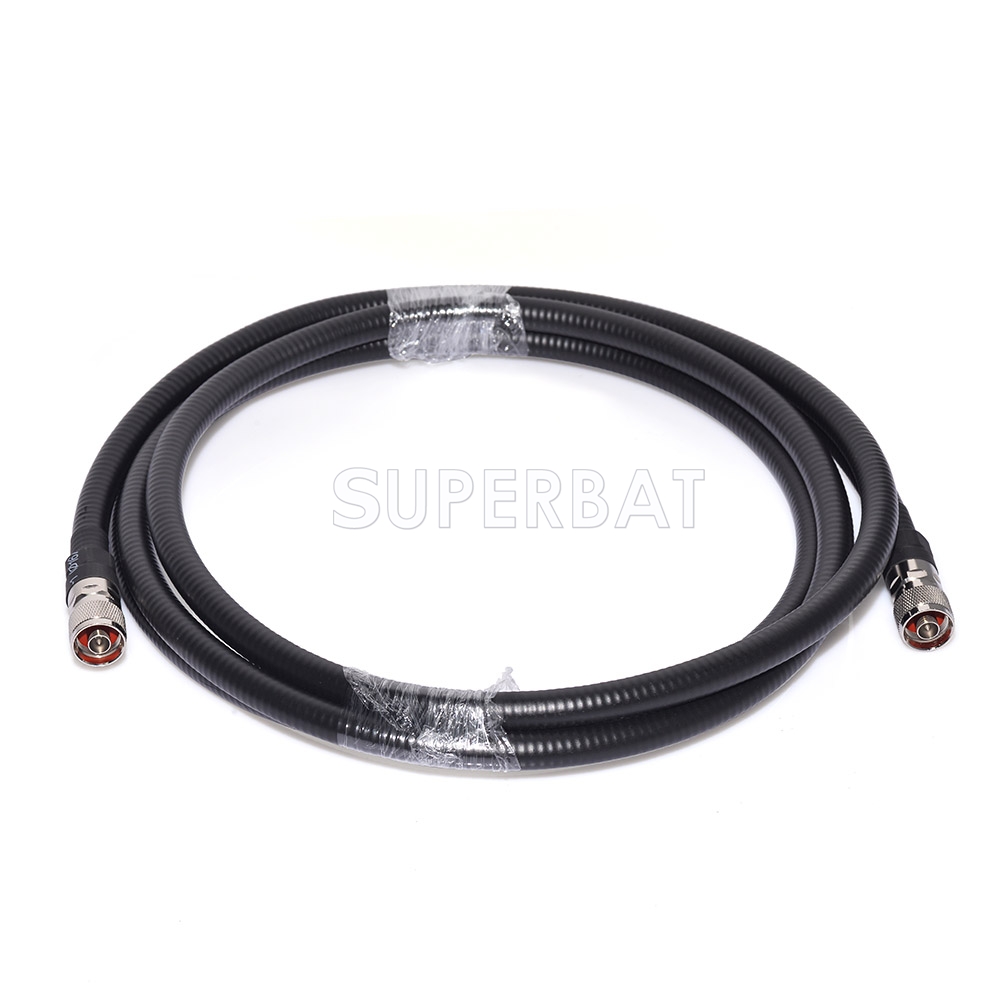

N male straight to N male straight 1/2" Super Flexible Feeder Cable
Impedance：50 Ω
connectors：N Plug straight，N Plug straight
cable：1/2" Super Flexible Feeder Cable
Optional Length：3M
Electrical charanteristics
Item | Specification | Remarks |
impedance | 50Ω | |
Velocity | 88％ | Nominal value |
Minimum insulation resistance | 5000MΩ.km | DC 500v 1 minute |
Capacitance | 76 | Nominal value |
Dielectric strength | DC 4000 v | 1 minute |
Peak power rating | 40kw | |
RF peak voltage | 1800v | |
VSWR | 1.08 | 800M-1000MHz |
1.08 | 1700M-2000MHz | |
1.08 | 2100M-2400MHz |
Custom Service: if you require the different length with the same both ends of connectors or other types of RF cable assemblies, welcome to build the cable through our RF custom cable wizard: https://www.rfsupplier.com/customcable.html
