The MCX (Micro Coaxial) series is a 50 Ohm series with broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
This series provides designers with options where weight and physical space are limited. While the MCX uses identical inner contact and insulator dimensions as the SMB, the outer diameter of the plug is .140 inches, which is 30% smaller than the SMB.

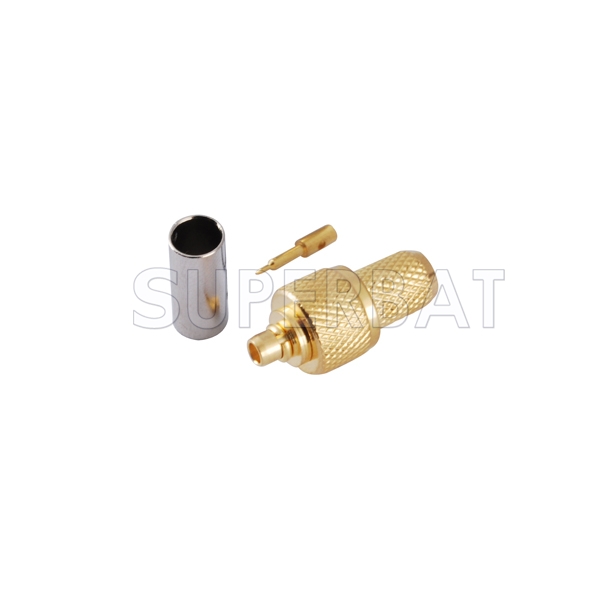

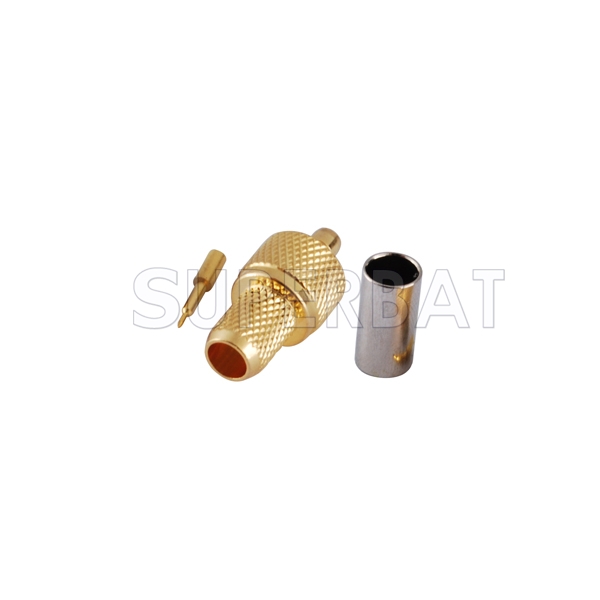

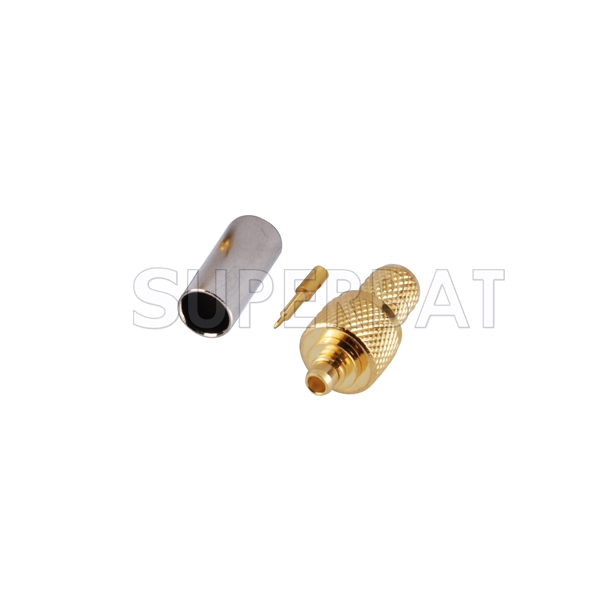

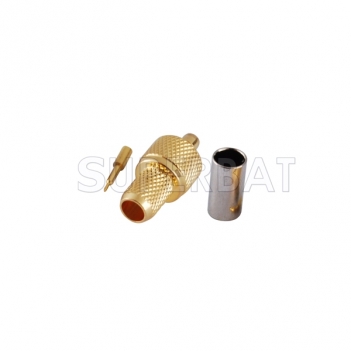

A range of connectors are available, including printed circuit board and cable connectors.

Features and Benefits
Broadband performance with low reflection DC to 35 GHz. Low cost combined with high quality
Quick connect/disconnect snap-on mating reduces installation time
Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable providing customers flexibility in their design and manufacturing

Applications
WLAN
GPS
PC/LAN
Automotive
Base Station
Head End Equipment
Radios
Wireless/ Networks Antenna
Instrumentation
Telecom
