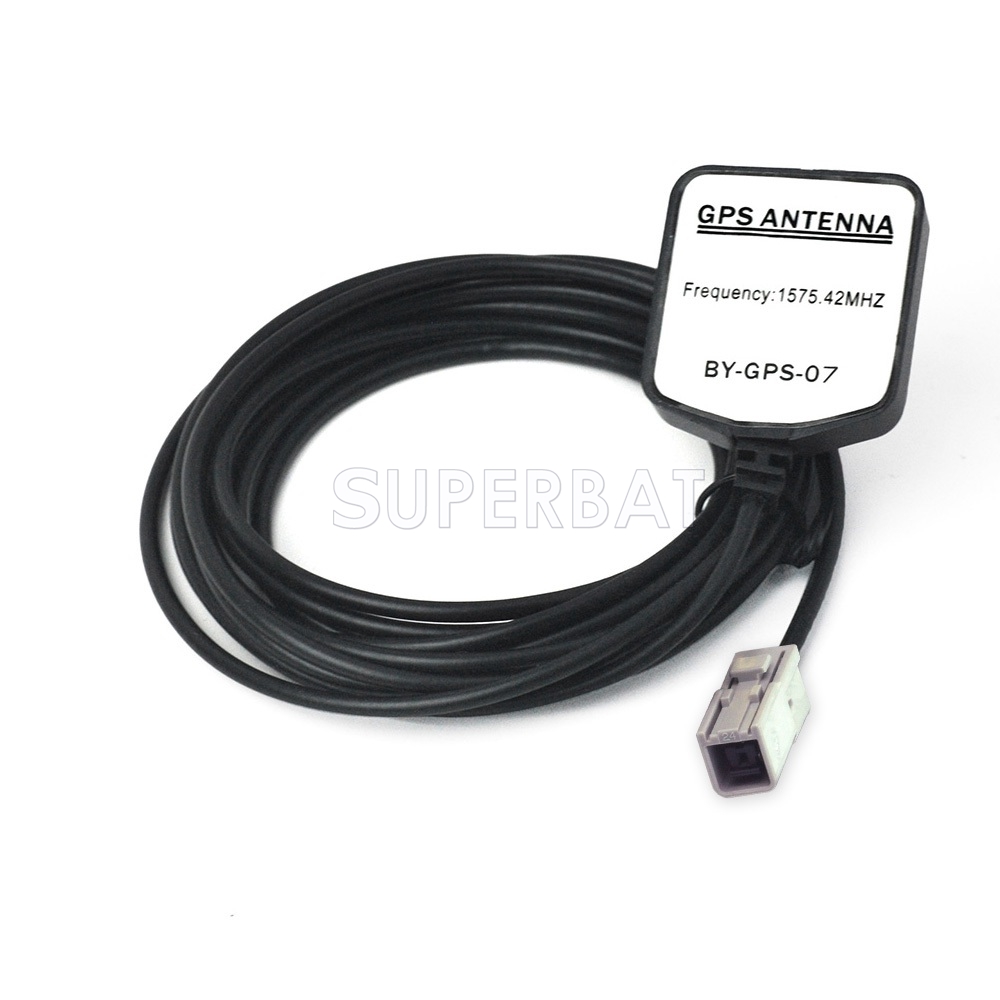

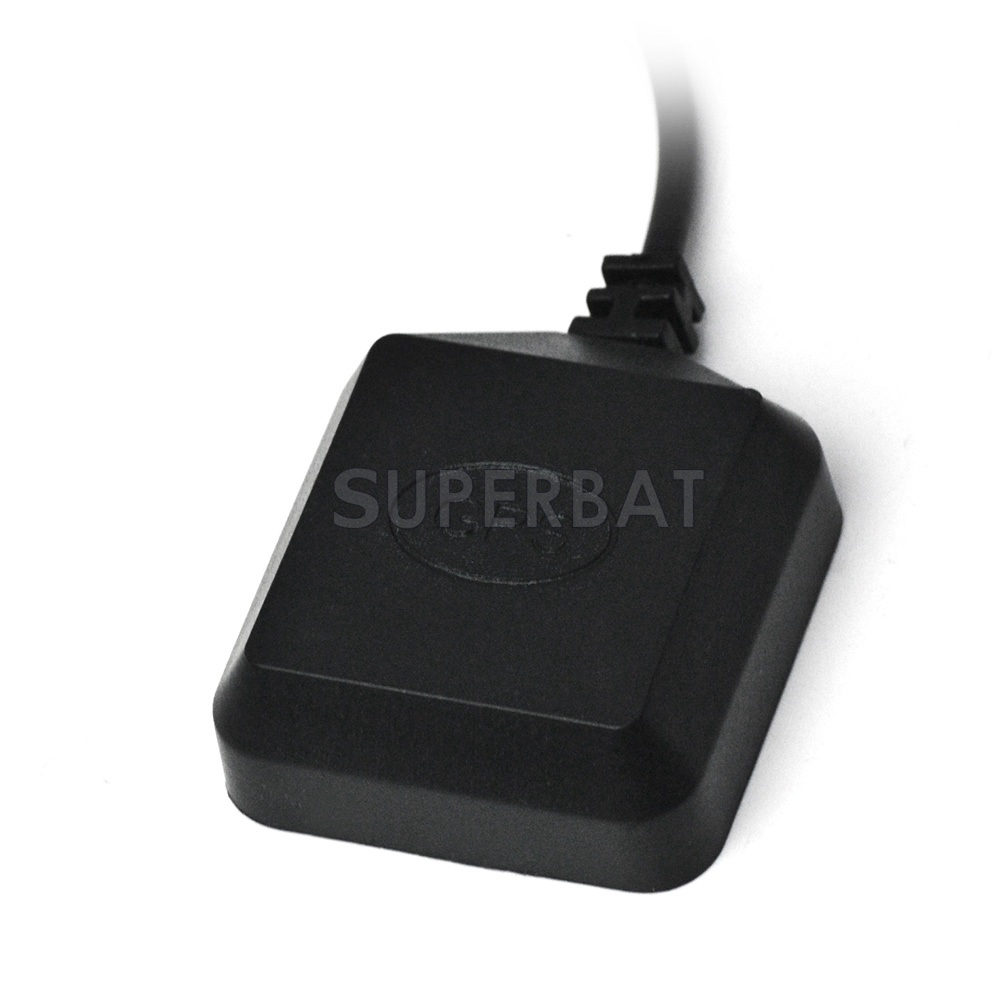

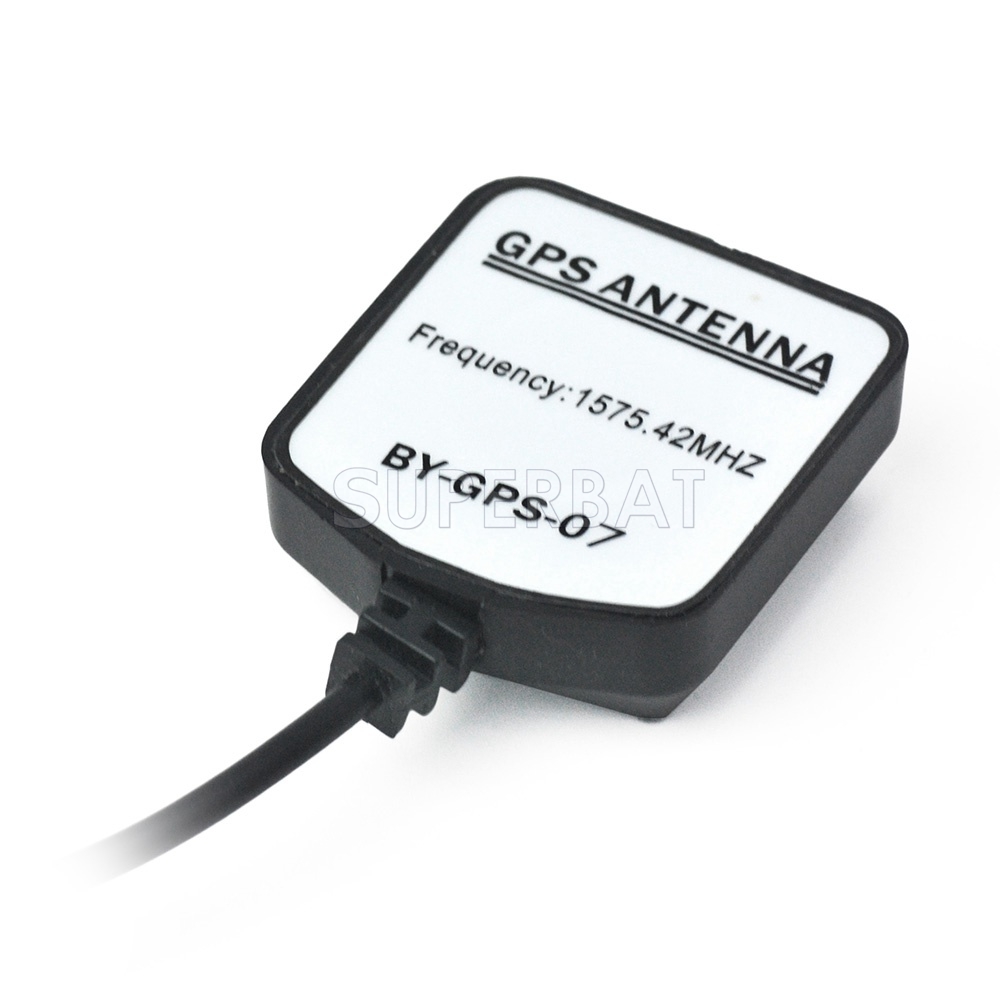

Mini GPS NAV Antenna to Pioneer GT5 Jack
Unit Price: $15.68
sku:GA16-300-GT5SJ
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $15.68 $14.90 $13.33 $12.07 ASK
saving% 0% 5% 15% 23% -
Real Time Availability
Stock: 10000
Quantity: Units

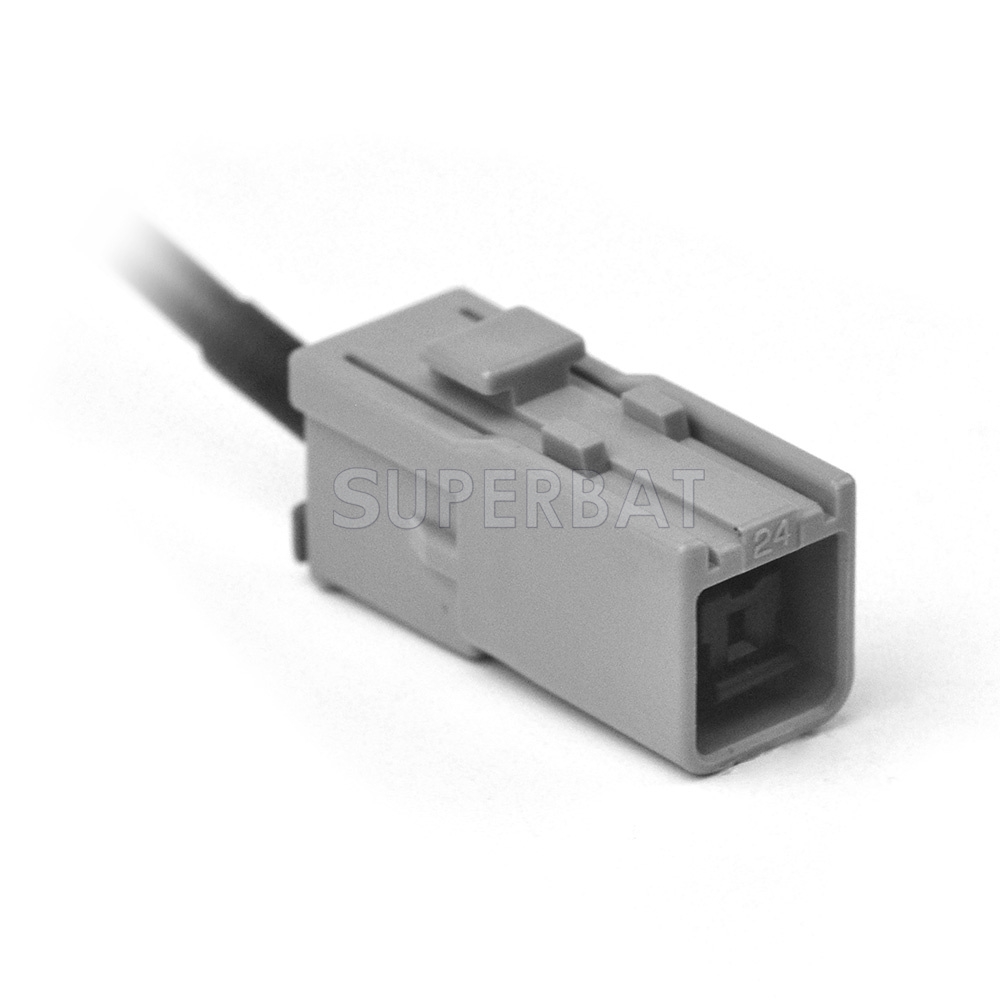

GPS type: other End connector: GT5-1S Connector Polarity: Standard Connector Gender: Female , Jack

  Characteristic:
    (i) Dieletric Antenna
    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impendence 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP



    (ii) LNA/Filter
    LNA Gain (Without cable) 28+/-3dB
    Noise Figure 1.5dB Typ.
    Filter Out Band Attenuation (f° =1575.42MHz)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ;
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
    DC Current 5mA /11mA/15mA Max



    (iii)Mechanical
    Weight <100gram
    Size 39.5*35.5*13.8mm
    Cable :RG174 3 meter / contact us for other length
    Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/GT5 in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

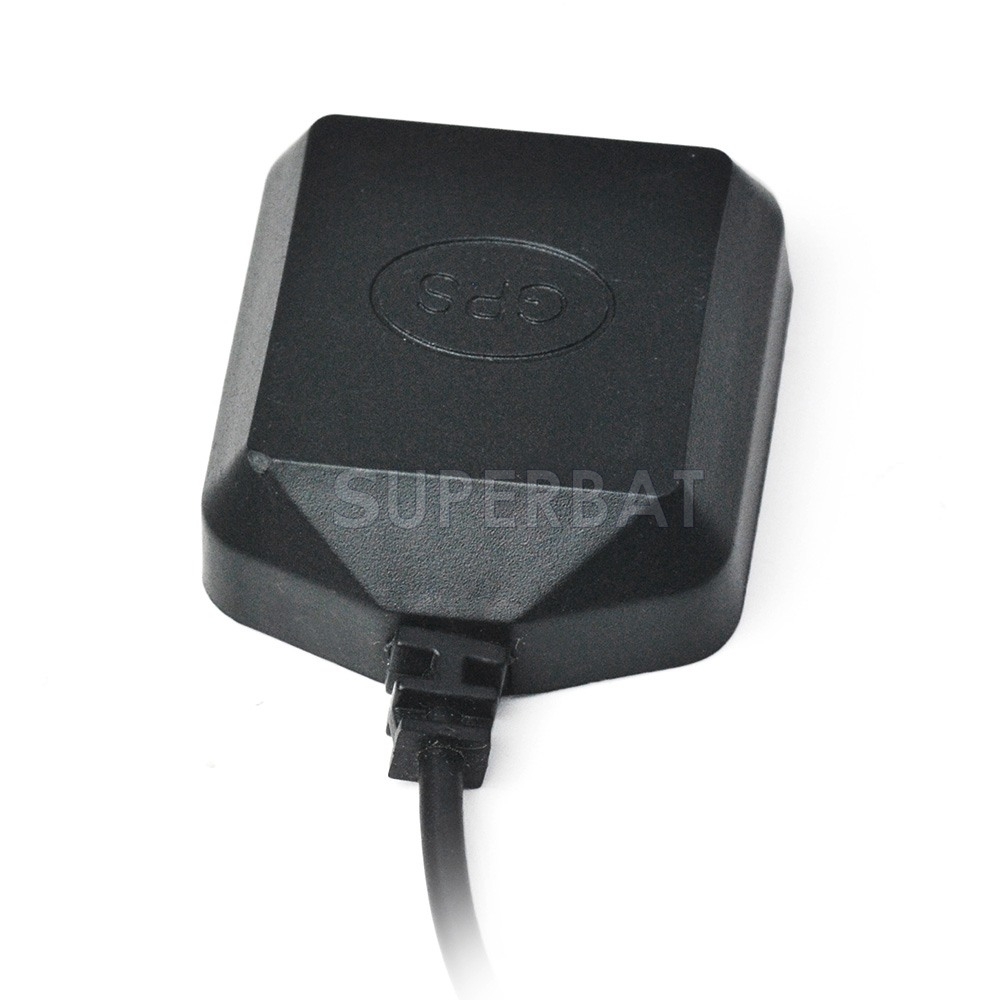

    Mounting Magnetic base
    Housing Black



    (iv)Environmental
    Working Temp -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Relative Humidity 95% non-condensing
    Weatherproof 100% Waterproof



    (V) FEATURES:
    Compact Construction/ Low Profile/
    Fully Waterproof
    Magnet and Screw Mount Base
    Excellent Temperature Stability
    Low Noise Figure
    High Sensitivity



    (VI) APPLICATIONS:
    Automobile GPS
    Bluetooth Receiver
    Car Tracking Navigation System
    AVL / Fleet Management Systems
    External Antenna for Handheld GPS
    External Antenna for PDA Navigator
